Product Description
This 2017 Kobelco SK75SR-3 midi excavator offers reliable performance for contractors seeking proven Japanese engineering. With approximately 6-7 years of field operation, this machine demonstrates Kobelco's reputation for durability in demanding applications.
Currently located in Hunan Province, China, this unit is available for immediate delivery from a direct owner source. The SK75SR-3 is well-suited for urban construction, utility work, and landscaping projects where a compact footprint and efficient operation are essential.
- Operating weight: Approximately 7.5 tonnes
- Net power: Around 40-45 kW
- Bucket capacity: Standard 0.28 m³
- Zero tail swing design for confined spaces
- Fuel-efficient engine meeting emission standards
Competitively priced for the current market, this excavator represents solid value for businesses expanding their fleet or replacing aging equipment. Inspection welcome prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1074390 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

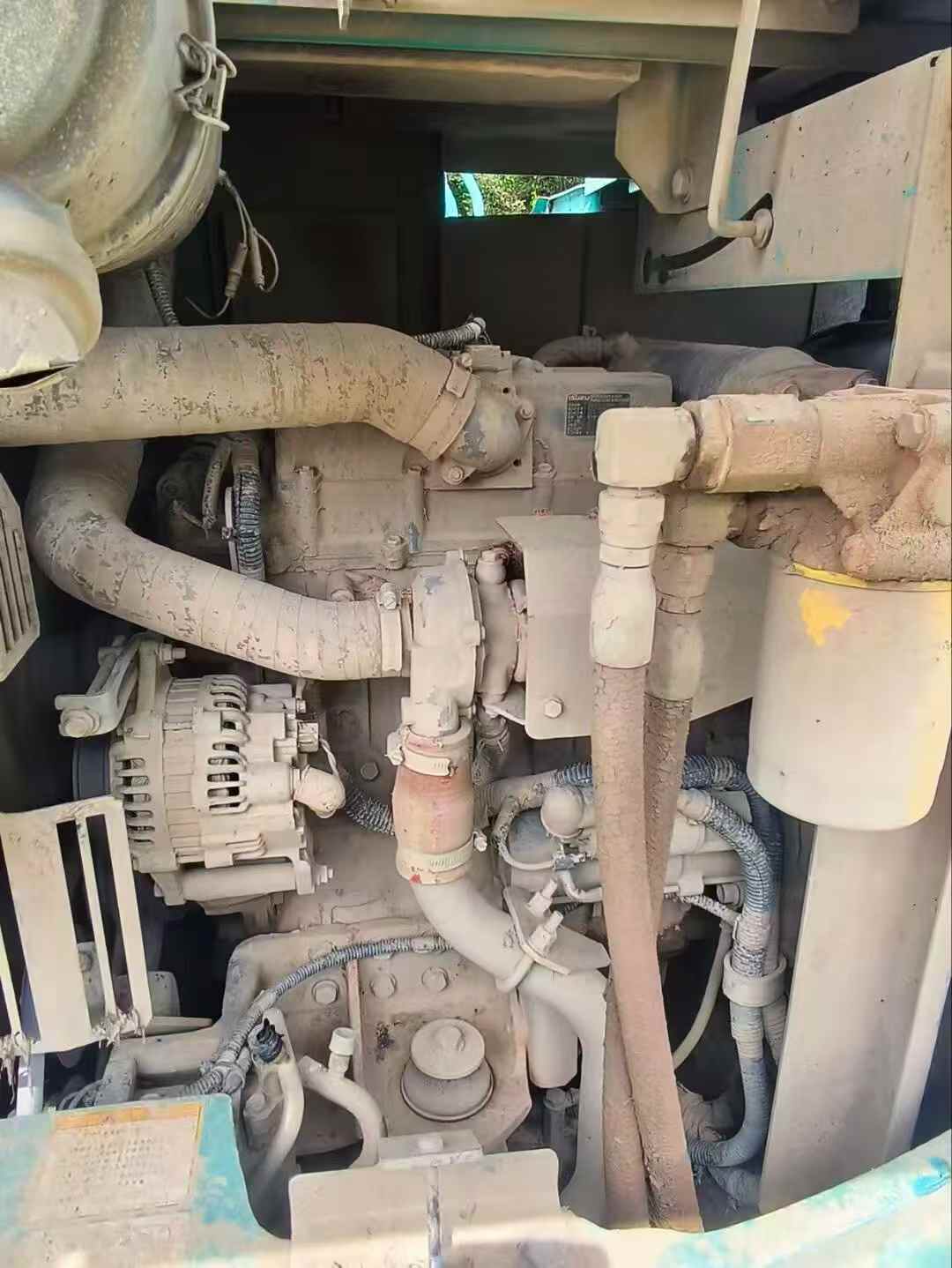

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
