2017 Kobelco SK75

1/7

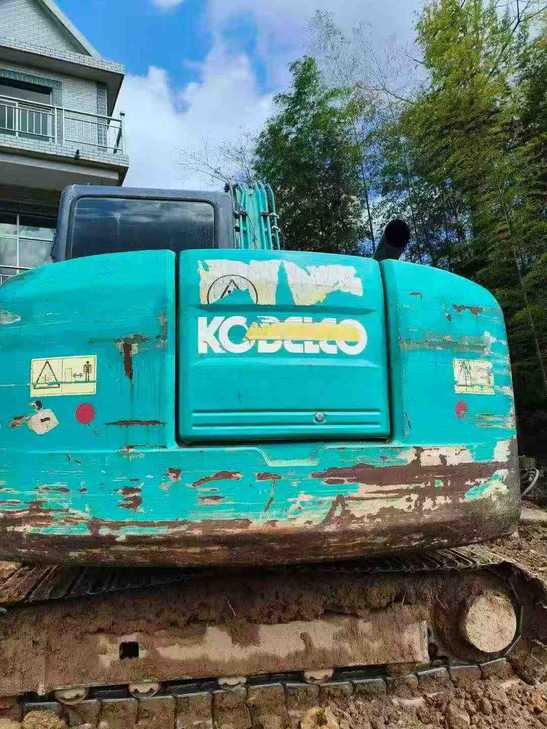

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7

Product Description

This 2017 Kobelco SK75 excavator is available from its original owner in Sichuan, China. The SK75 is a proven 7.5-ton class compact excavator known for reliable performance in confined jobsites and urban construction environments.

Key features of this unit include:

  • Kobelco's fuel-efficient engine technology for reduced operating costs
  • Compact swing radius design for work in restricted spaces
  • Hydraulic system optimized for smooth operation and productivity
  • Single ownership history with documented maintenance records
  • Well-suited for utility work, landscaping, and light demolition applications

This machine represents an opportunity to acquire a mid-life excavator from a reputable Japanese manufacturer. The SK75 combines maneuverability with sufficient digging force for general earthmoving tasks. Located in Sichuan province, the unit is available for inspection by qualified buyers.

SpecificationsValue
No.1084785
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1084785

Brand Name:

Kobelco

Model Number:

SK75

Year:

2017

Location:

Sichuan China

Pub Date
