Product Description

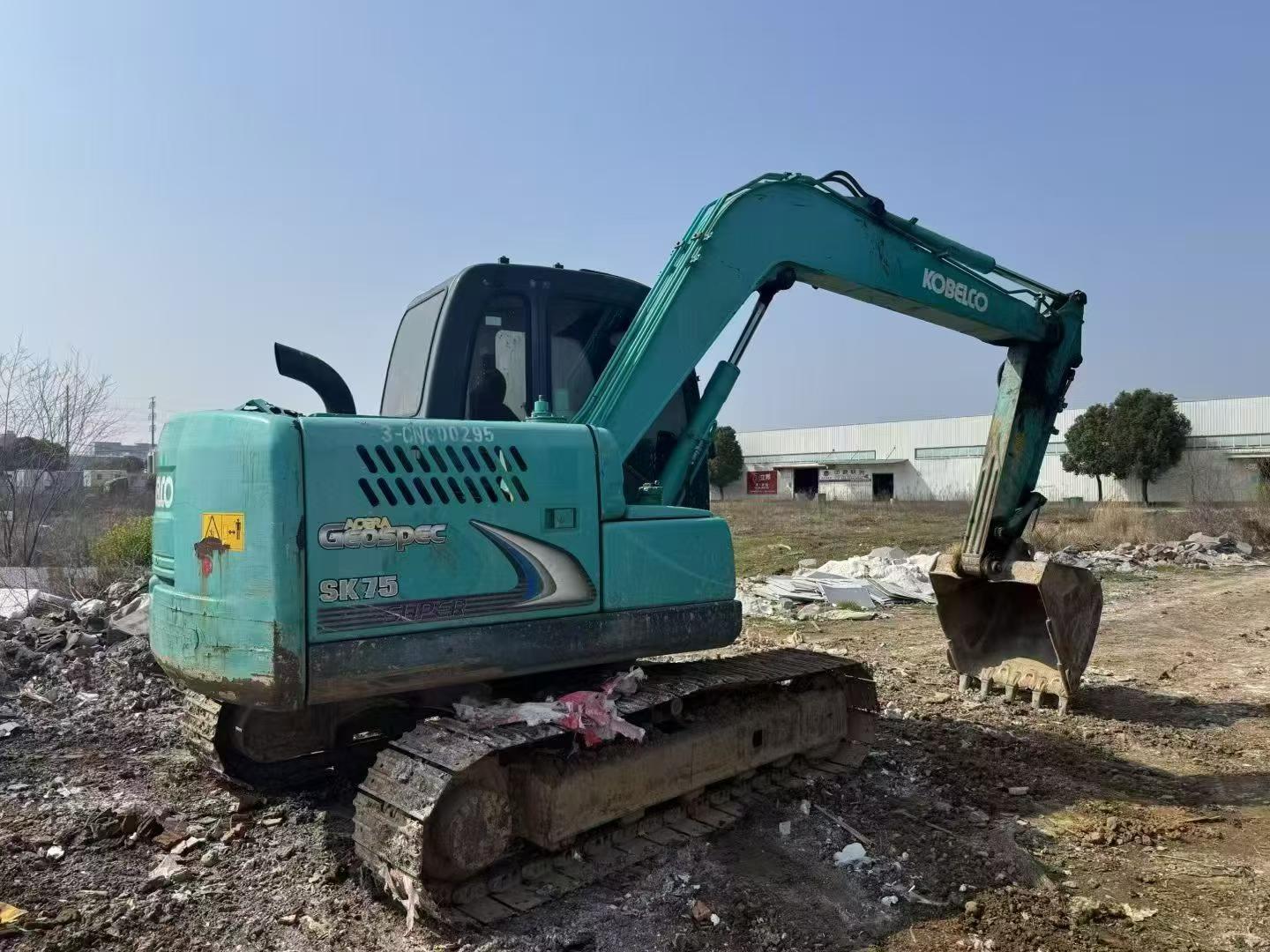

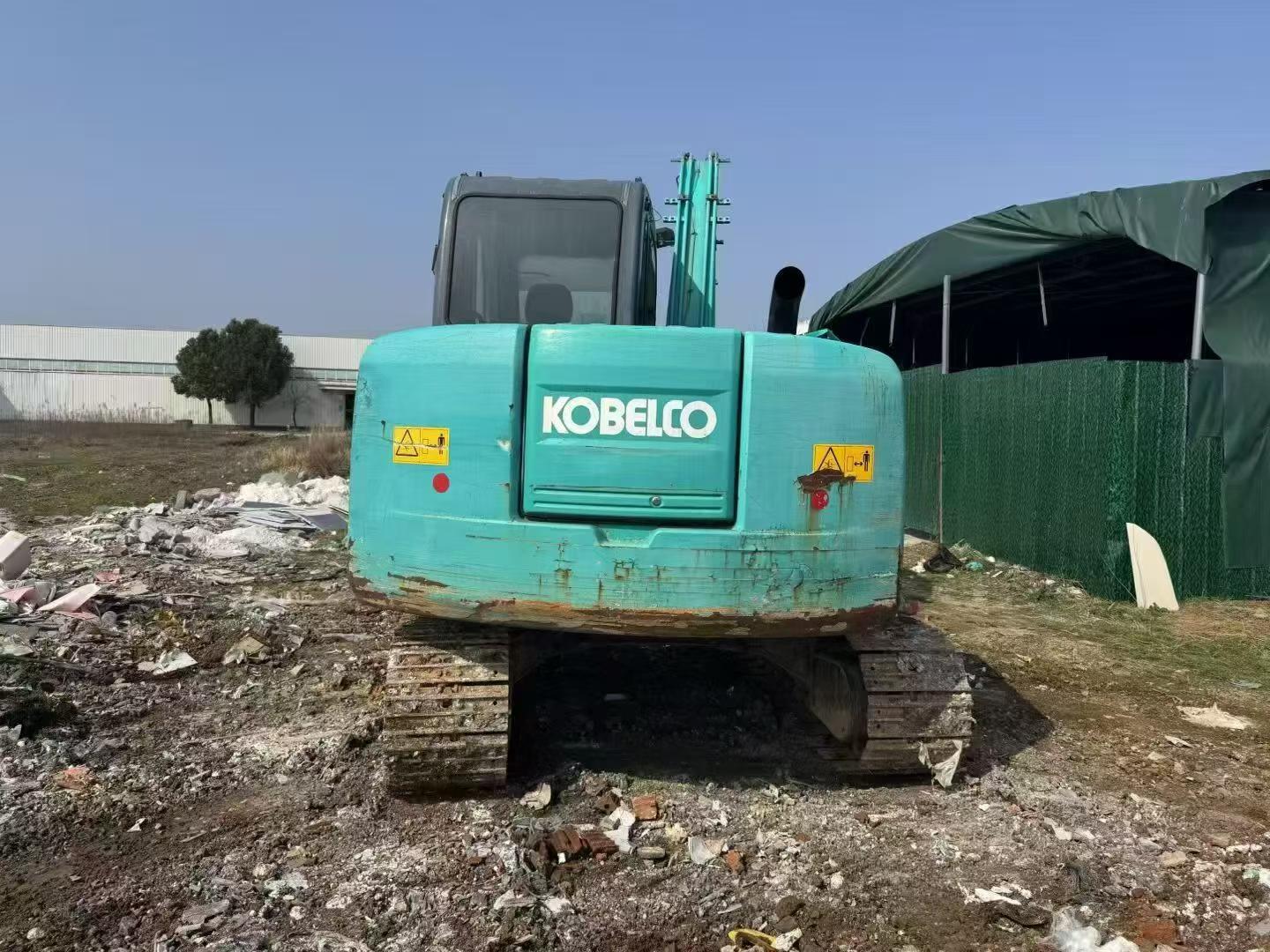

Available now in Anhui, this 2018 Kobelco SK75 mini excavator eliminates factory lead times and accelerates project timelines. Powered by a reliable ISUZU AU4LE2X engine delivering 41kW at 2200 rpm, this 7-ton workhorse combines Japanese engineering with immediate availability. Skip the wait—deploy this machine to your site within days, not months.
Engineered for versatile performance, the SK75 offers a maximum digging depth of 4,160mm and a maximum reach of 6,460mm. Water-cooled efficiency meets hydraulic precision through its double variable displacement axial piston pump system, operating at 29.4 MPa for consistent power delivery. Compact dimensions—2,630mm transport height and 1,290mm rear turning radius—enable maneuverability in confined spaces while maintaining serious excavation capability.
- Working weight: 7,000 kg (approx.)
- Maximum digging height: 7,390mm
- Travel speed: 2.8/5.3 km/h
- Fuel capacity: 120L
- Hydraulic tank: 72L
- Ready for immediate dispatch from Anhui
Secure your operational advantage with fast logistics and proven Kobelco reliability. Contact Fair Trade Machinery today for rapid deployment.
| Specifications | Value |
|---|---|
| No. | 1027220 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

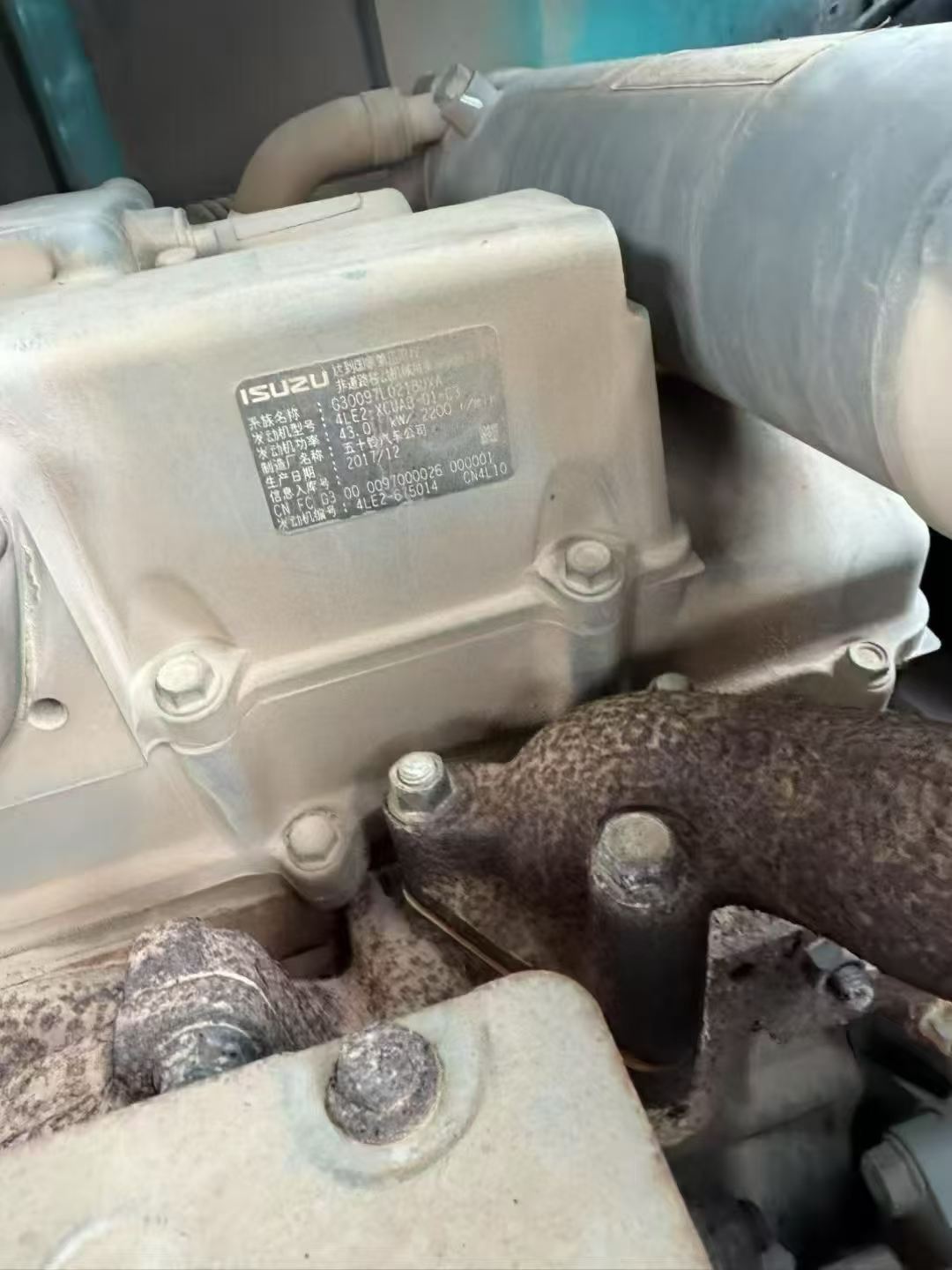

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
