2018 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6

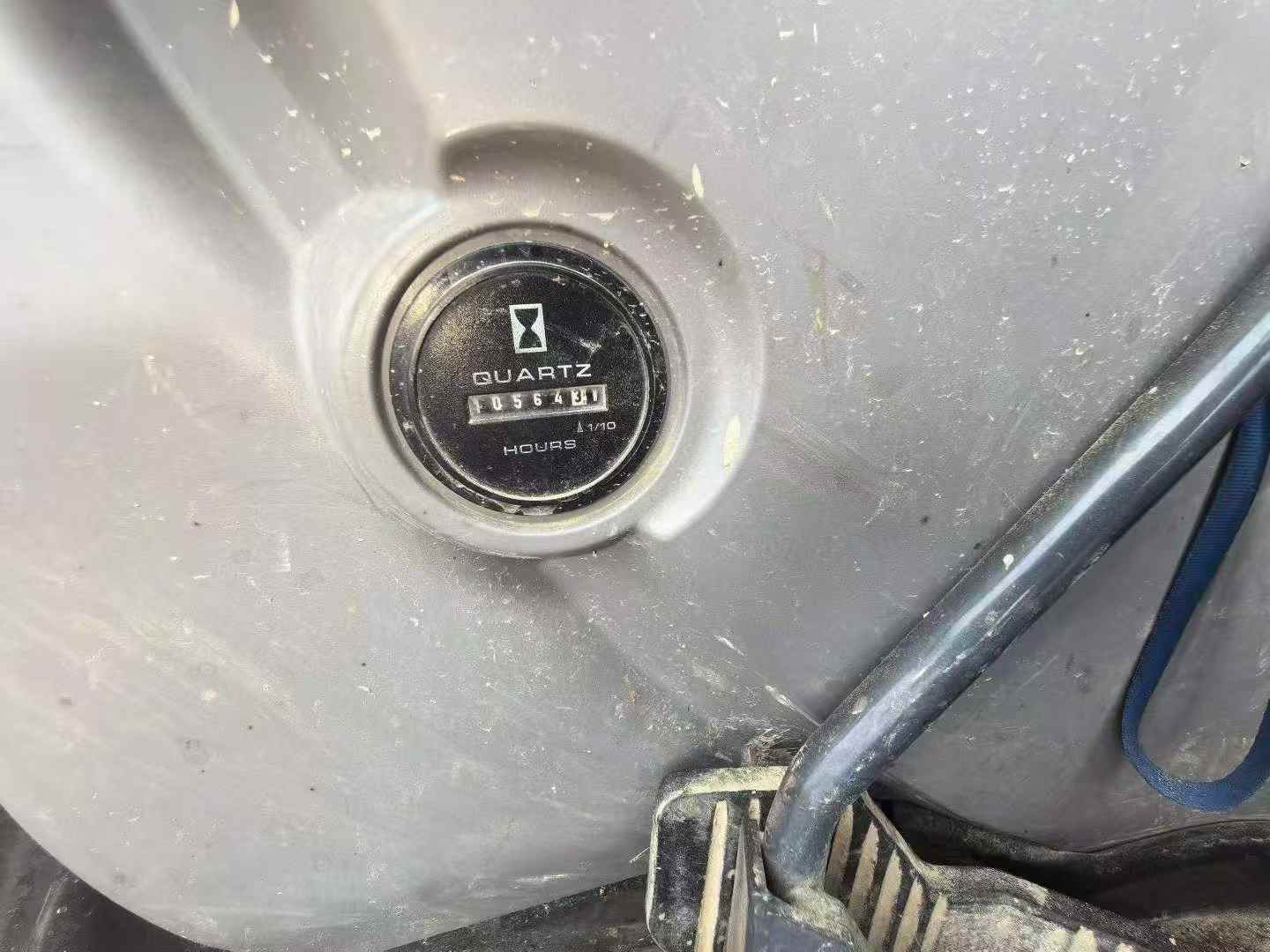

Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

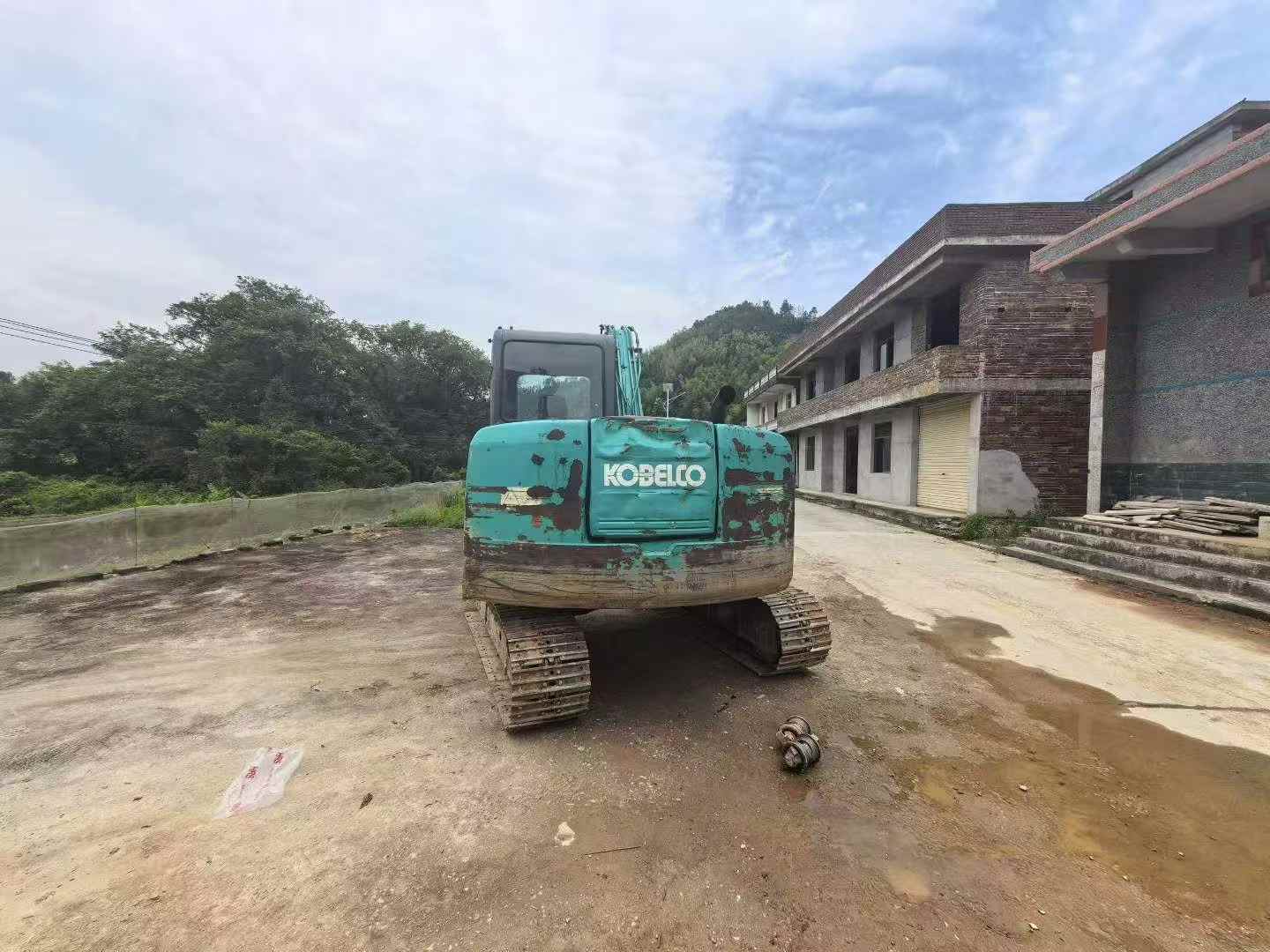

This 2018 Kobelco SK75SR-3 midi excavator is available from Hunan, China. The machine comes equipped with a hydraulic breaker attachment and standard bucket, offering versatility for demolition and earthmoving applications. The SK75SR-3 is known for its compact footprint and reliable Isuzu engine, making it suitable for urban construction sites and utility work.

Key features include:

  • Kobelco SK75SR-3 midi excavator
  • Model year: 2018

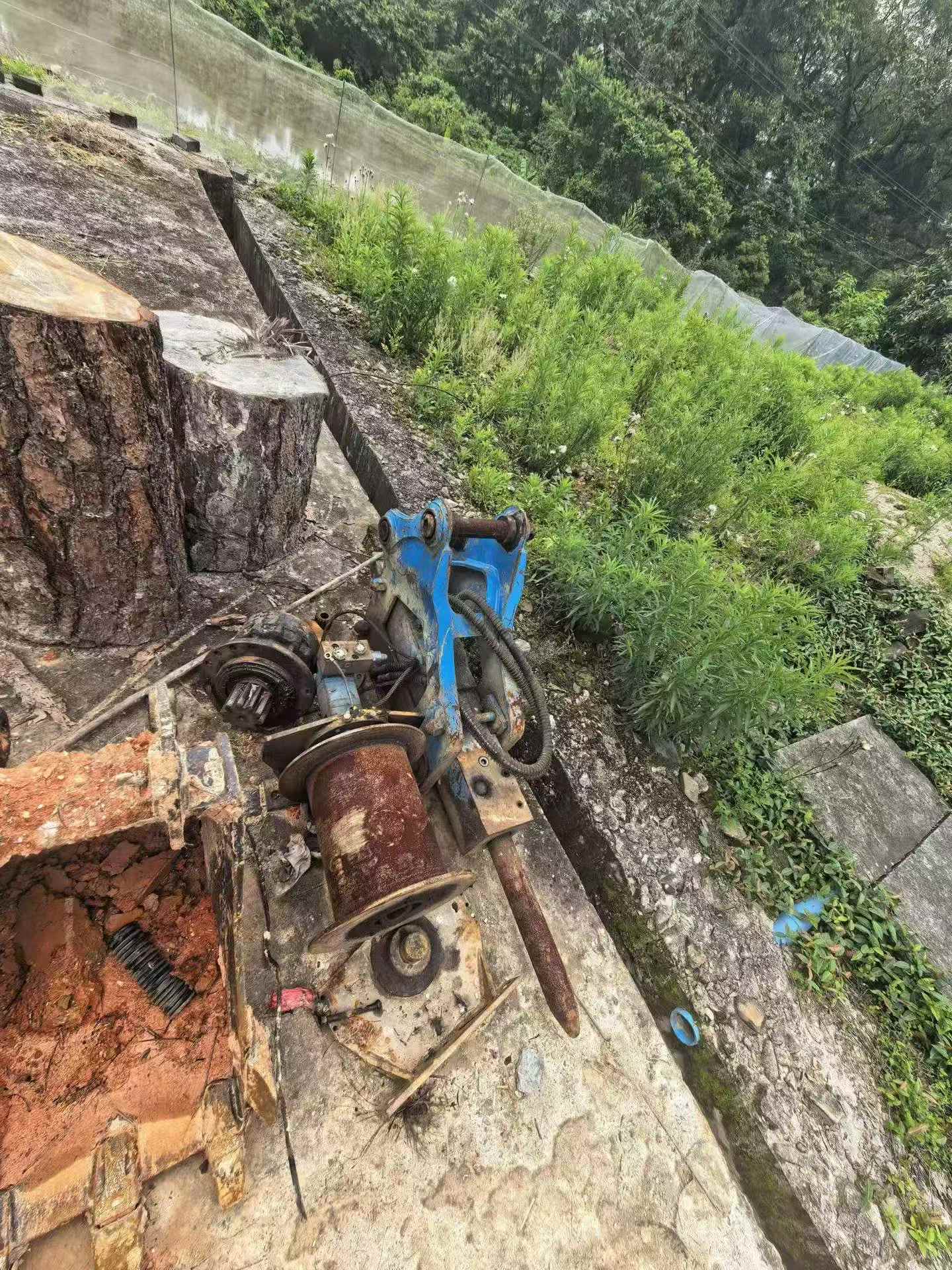

  • Includes hydraulic breaker and bucket
  • Operating weight: approximately 7.5 tonnes
  • Located in Hunan Province, China
  • Asking price: CNY 105,000

This unit represents a cost-effective solution for contractors seeking a reliable midi excavator with auxiliary hydraulic capabilities. Inspection and negotiation are welcomed. Contact us for additional specifications, service records, and shipping arrangements.

SpecificationsValue
No.1074391
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

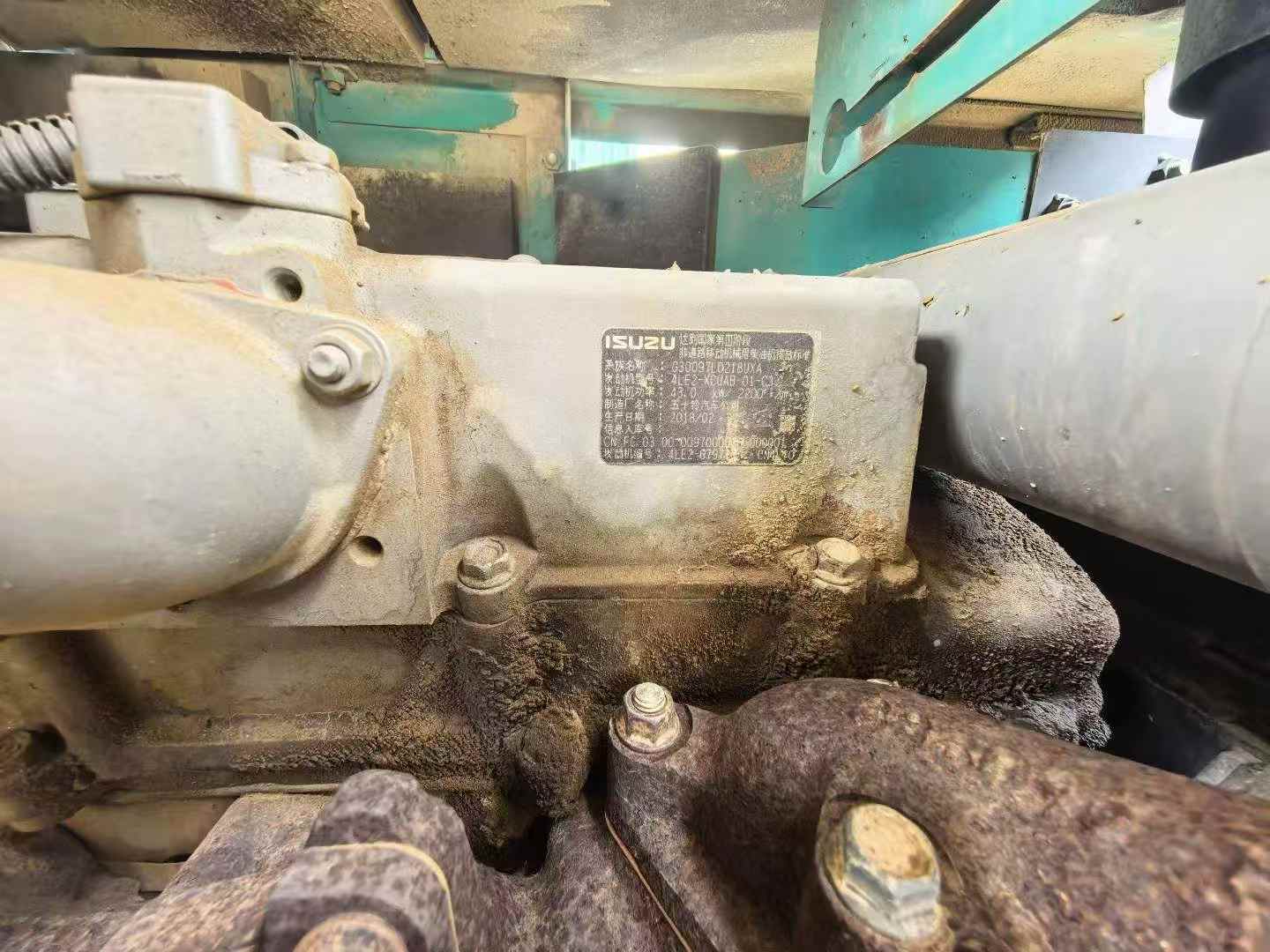

Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1074391

Brand Name:

Kobelco

Model Number:

SK75

Year:

2018

Location:

Hunan China
