Product Description

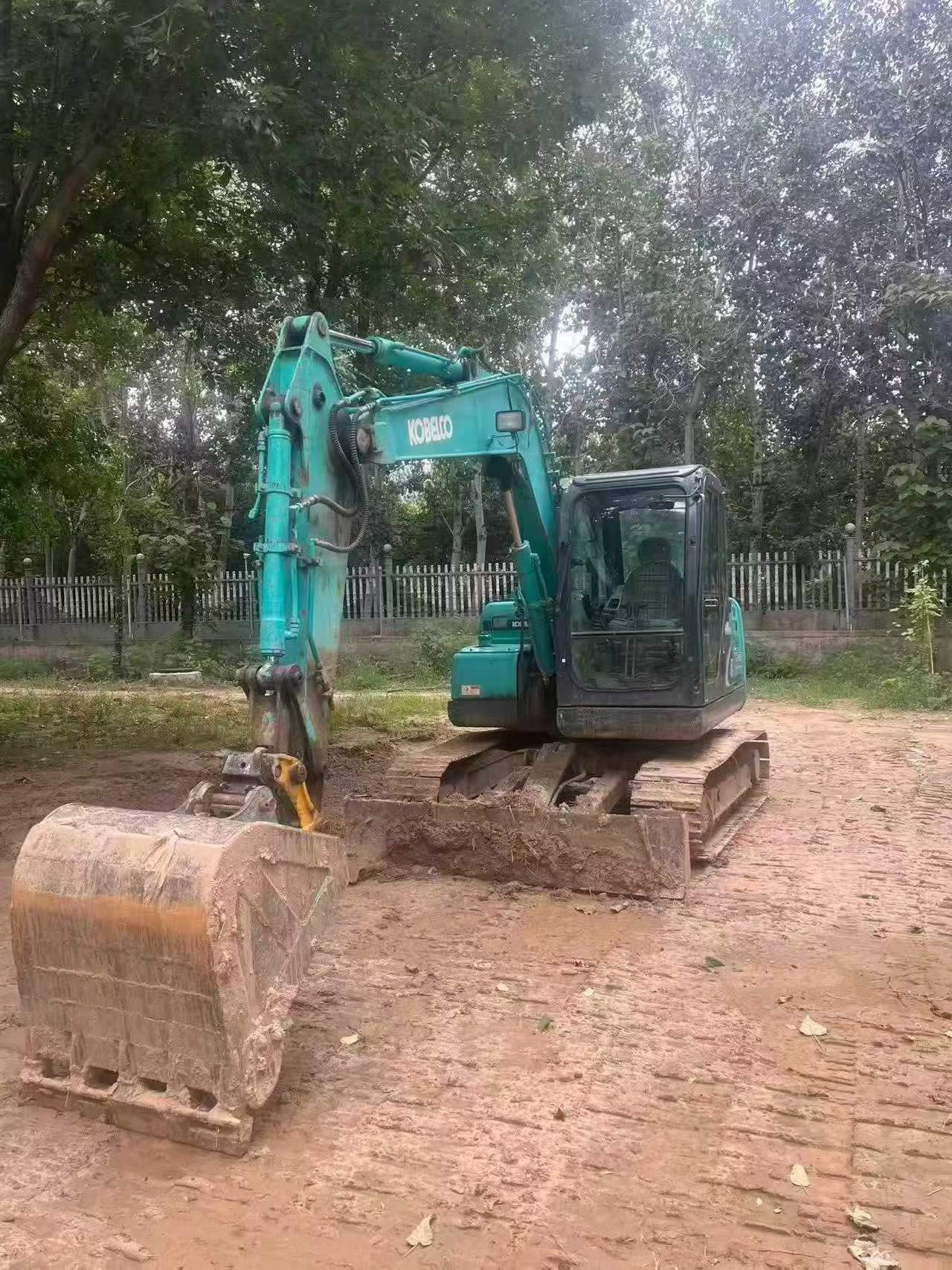

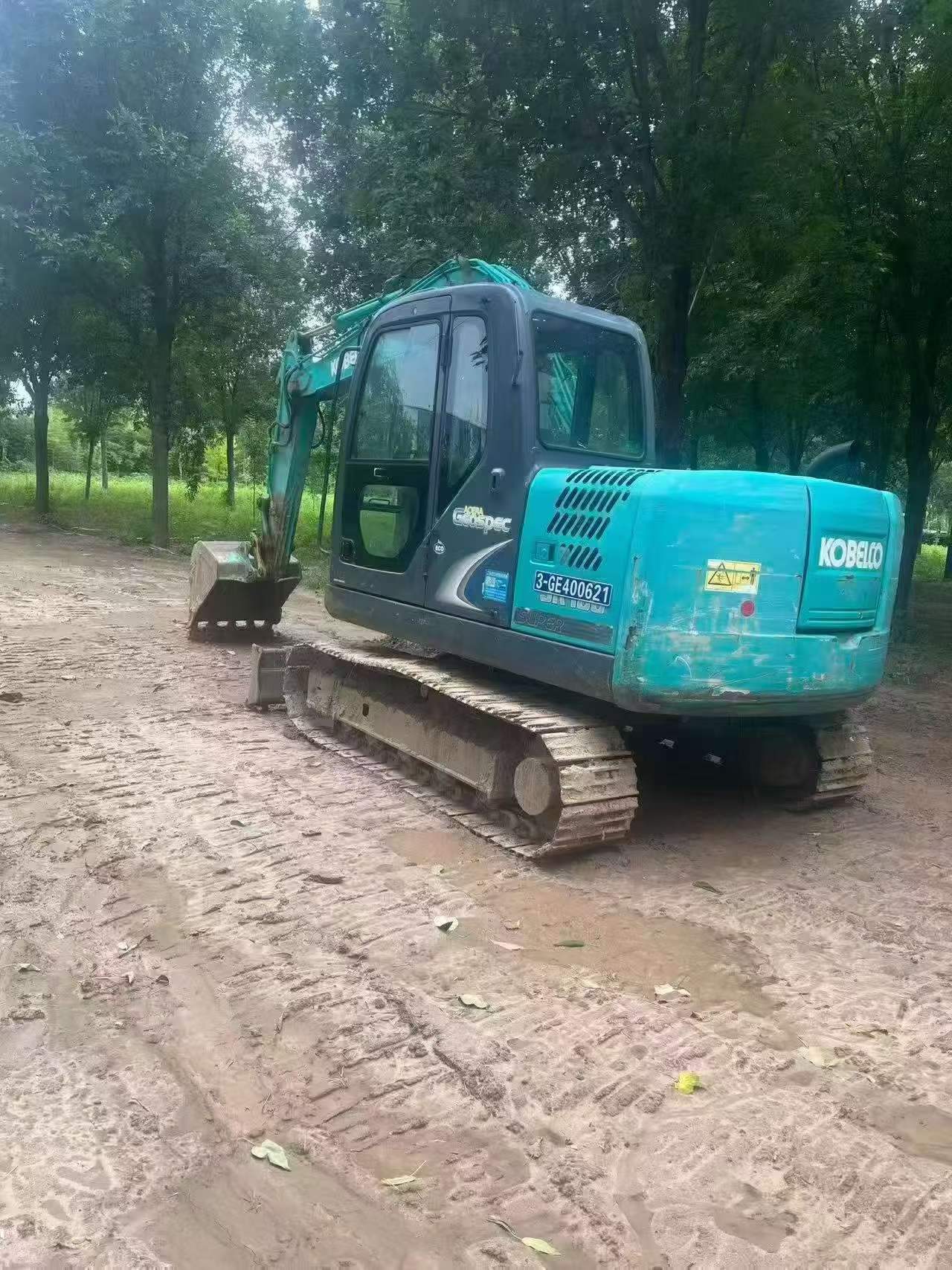

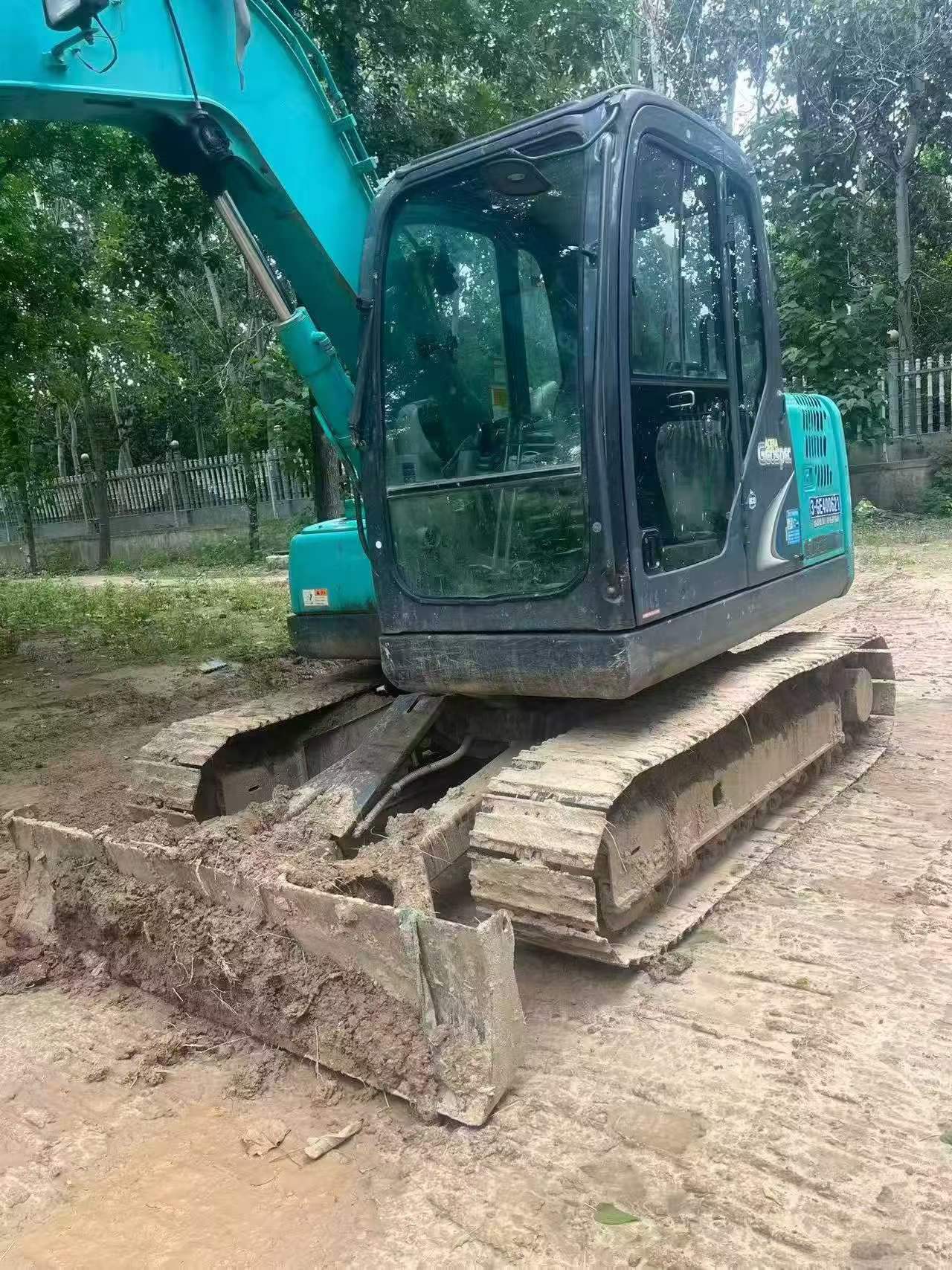

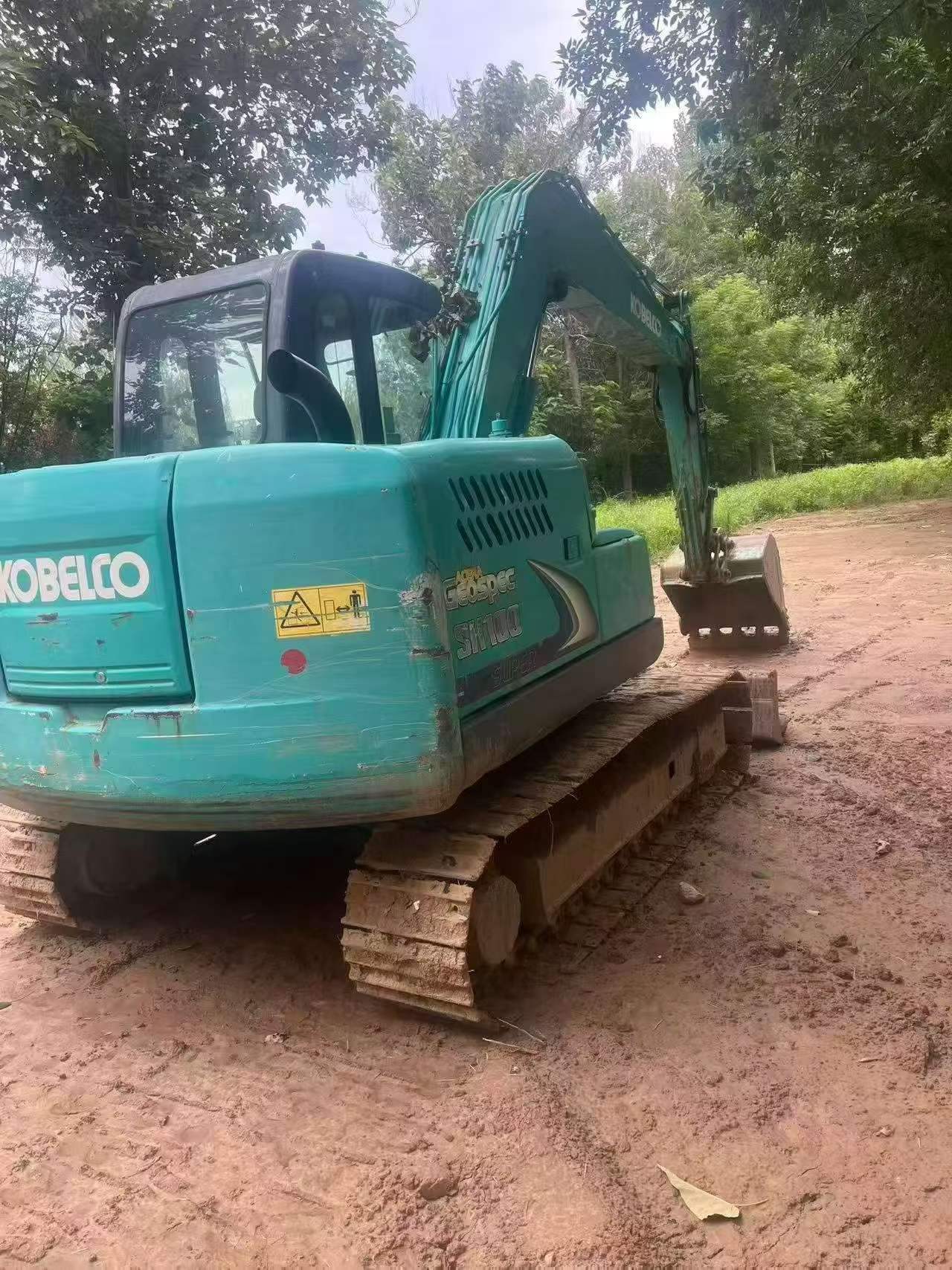

This 2019 Kobelco SK75 midi excavator offers reliable performance for contractors and fleet operators. With approximately 6,000 operating hours, this machine represents a well-maintained option for earthmoving, grading, and utility installation projects.
The SK75 features Kobelco's proven hydraulic system and fuel-efficient design, delivering consistent productivity in a compact footprint suitable for urban jobsites and confined spaces. Currently located in Shandong, China, this unit is available for international shipping coordination.
- Year of Manufacture: 2019

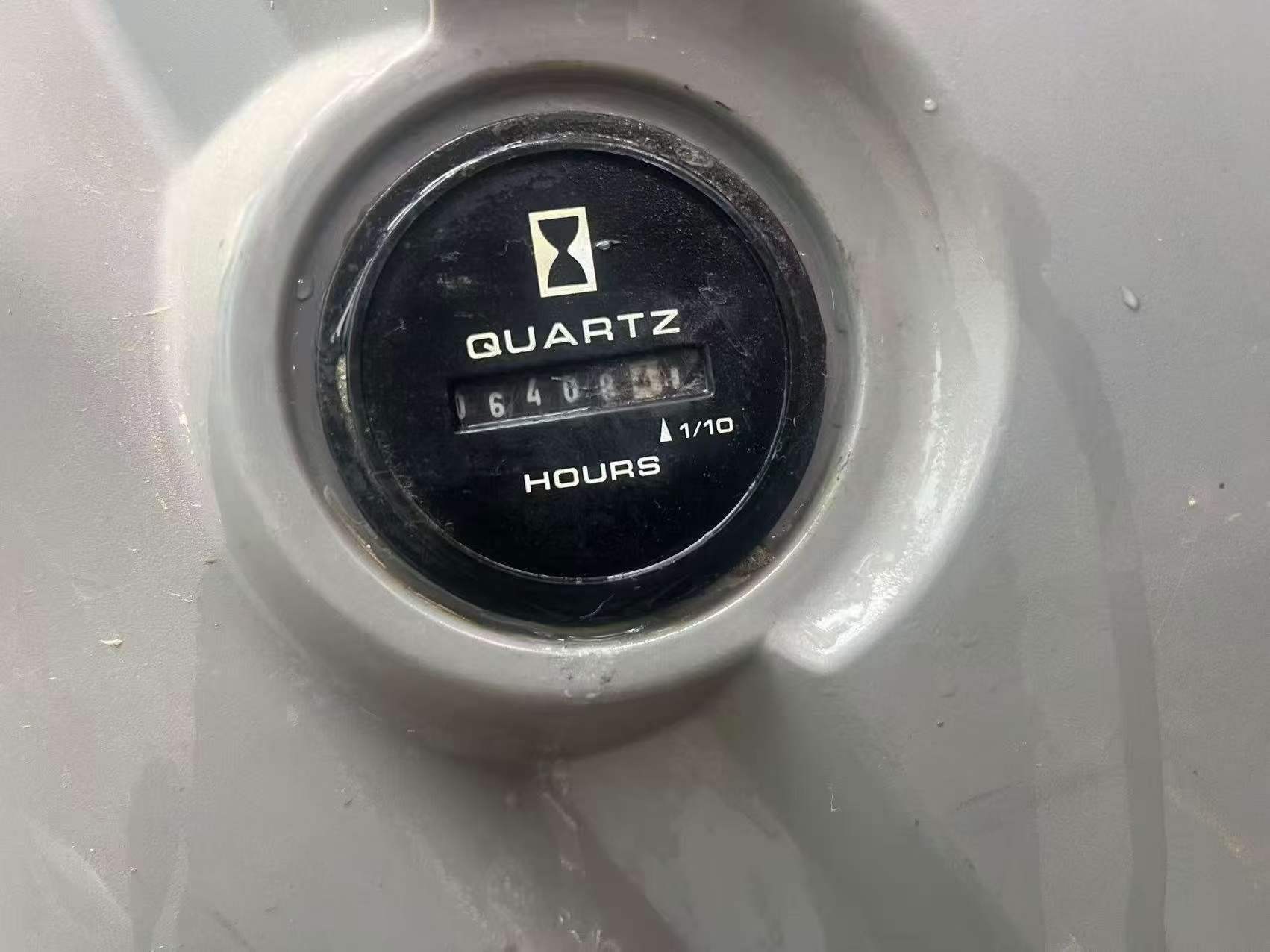

- Operating Hours: Approximately 6,000
- Machine Type: Midi Excavator
- Location: Shandong Province, China
- Condition: Used, operational
Ideal for construction companies seeking dependable equipment with moderate usage. Contact us for additional specifications, inspection reports, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1138012 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

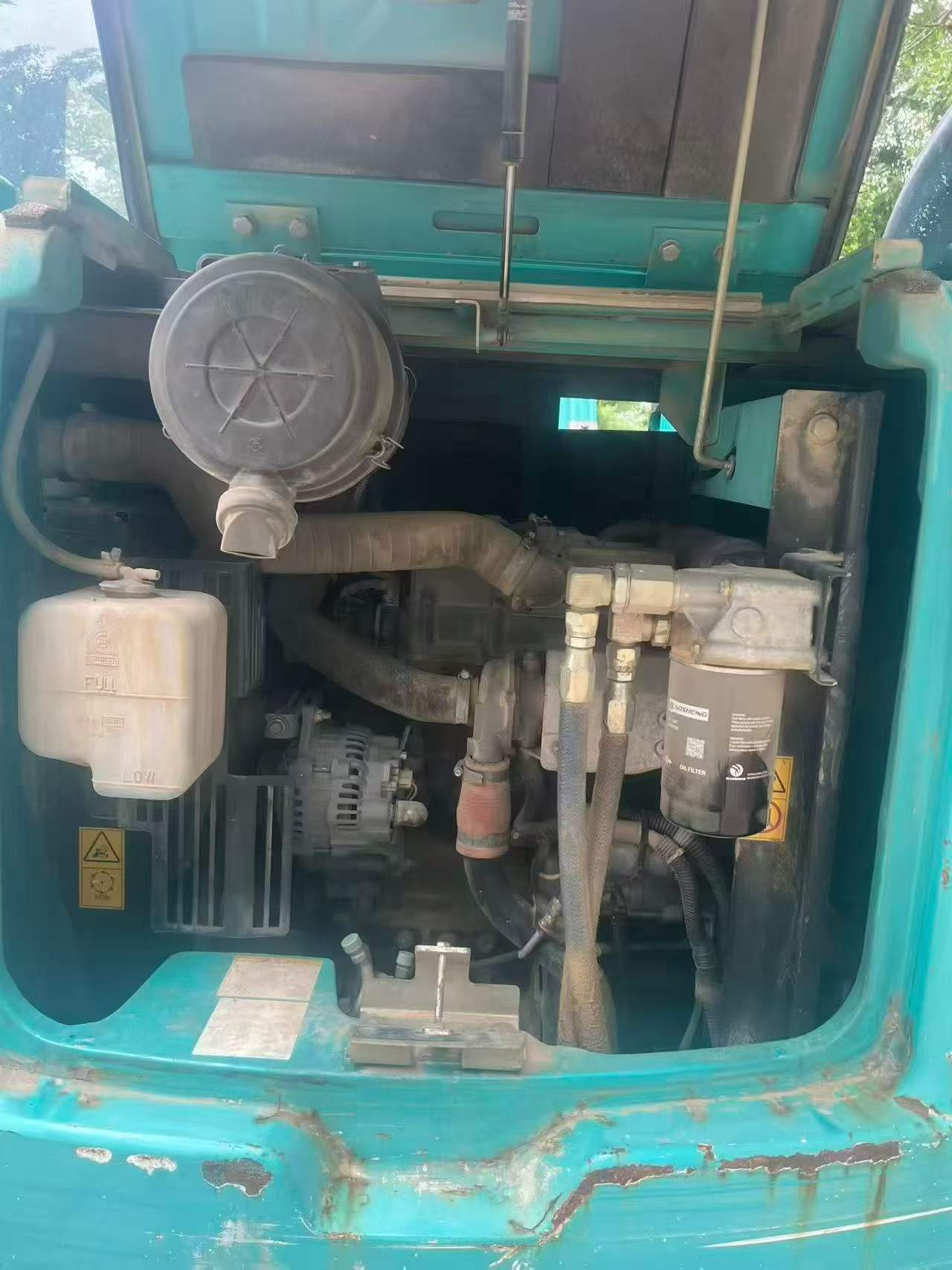

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
