Product Description

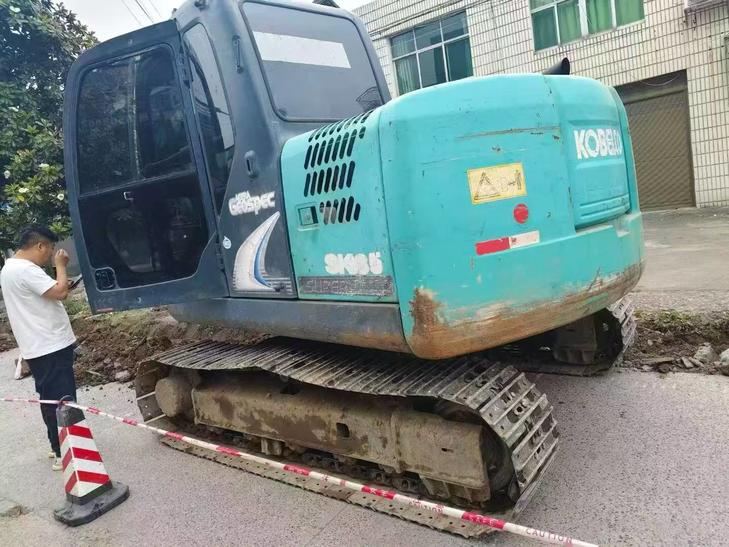

This 2020 Kobelco SK75 mini excavator is currently available from our Hunan, China location. The SK75 is a proven performer in the 7-ton class, delivering reliable hydraulic power and compact maneuverability for construction, utility, and landscaping applications. Kobelco's reputation for fuel efficiency and reduced noise levels makes this model particularly suitable for urban jobsites and noise-sensitive environments.
Key features of the SK75 include:
- Compact radius design for confined work areas
- Efficient hydraulic system for responsive control
- Durable undercarriage built for extended service life
- Versatile attachment compatibility
- Operator-focused cab design
This unit represents solid value for contractors seeking dependable performance in a mid-size excavator. For detailed specifications, current condition reports, and shipping options to your location, please contact our sales team.
| Specifications | Value |
|---|---|
| No. | 1083921 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
