Product Description

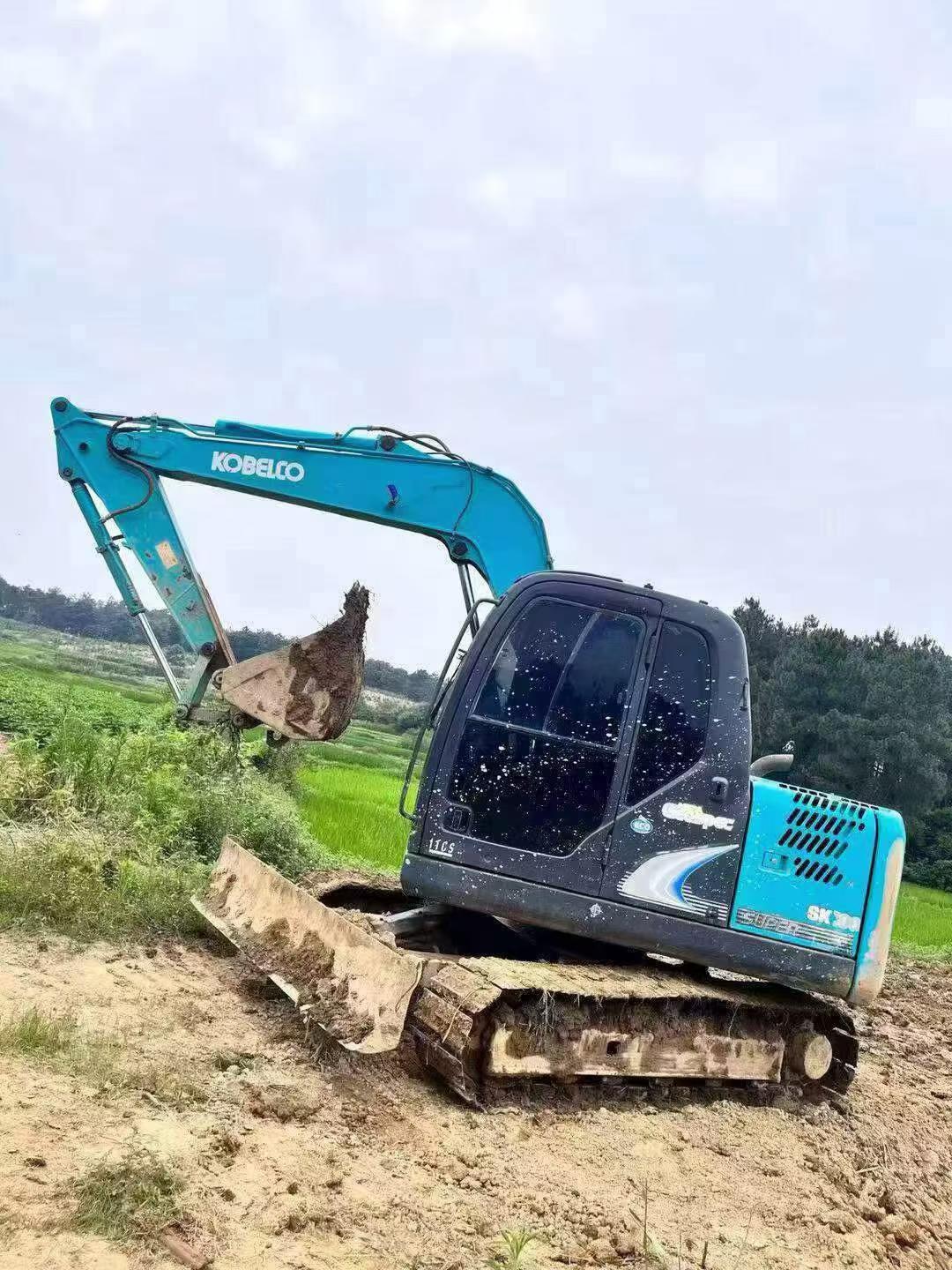

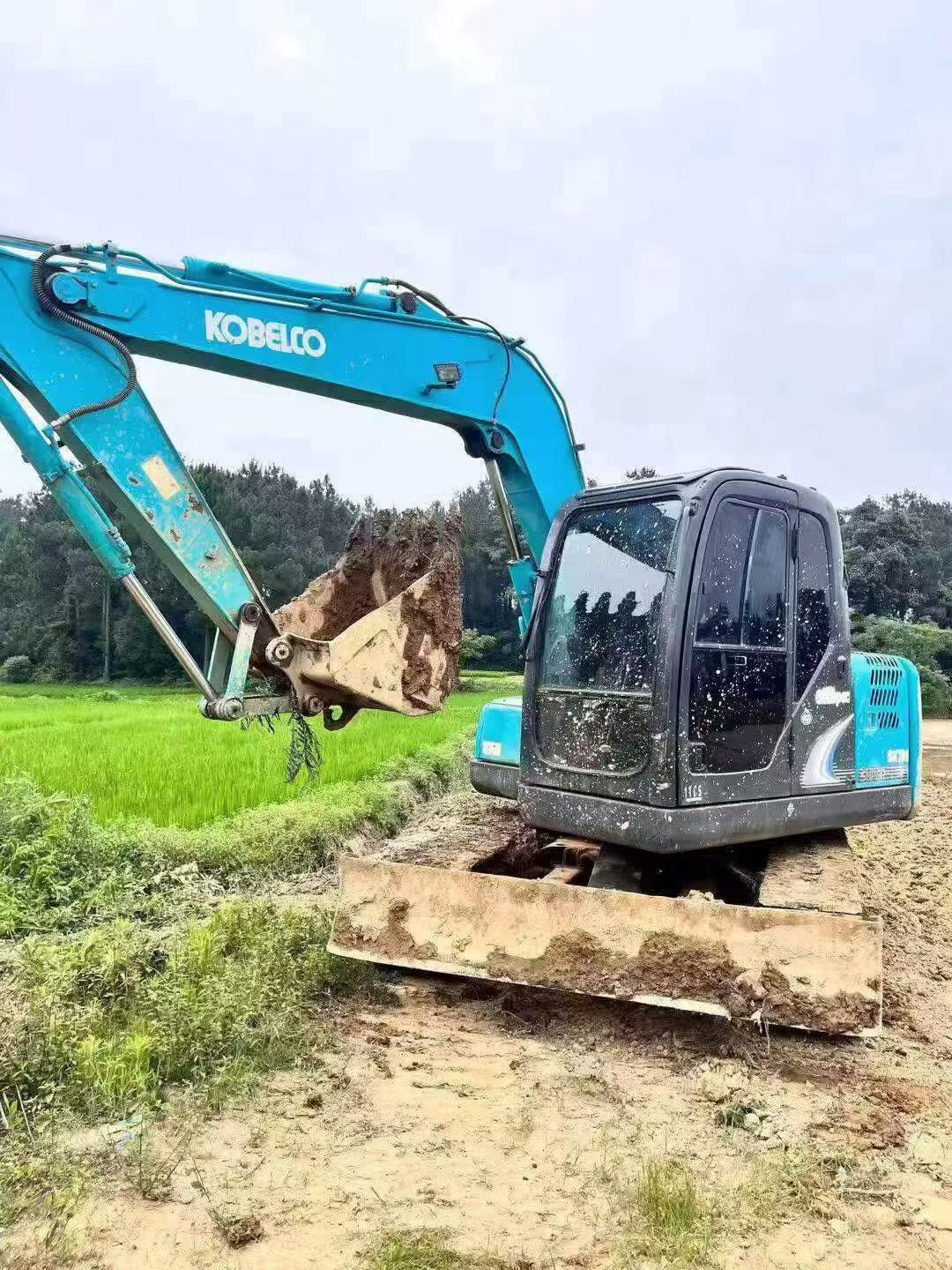

This 2020 Kobelco SK75 compact excavator is available from Jiangxi, China, offering reliable performance for contractors and earthmoving professionals. Factory-equipped with a bulldozer blade for enhanced grading and backfilling capabilities, this machine provides versatile functionality on diverse job sites.
Maintained in rural operating conditions, the unit presents well-maintained exterior appearance with core components in dry, serviceable condition. The original factory air conditioning system remains fully operational, ensuring operator comfort during extended work shifts.
- Year: 2020
- Model: Kobelco SK75
- Configuration: Bulldozer blade equipped
- Location: Jiangxi Province, China
- Condition: Operational and work-ready
- Inspection: Available for on-site evaluation
Prospective buyers are welcome to arrange inspection appointments at the current work location to evaluate operational performance and mechanical condition firsthand.
| Specifications | Value |
|---|---|
| No. | 1094251 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

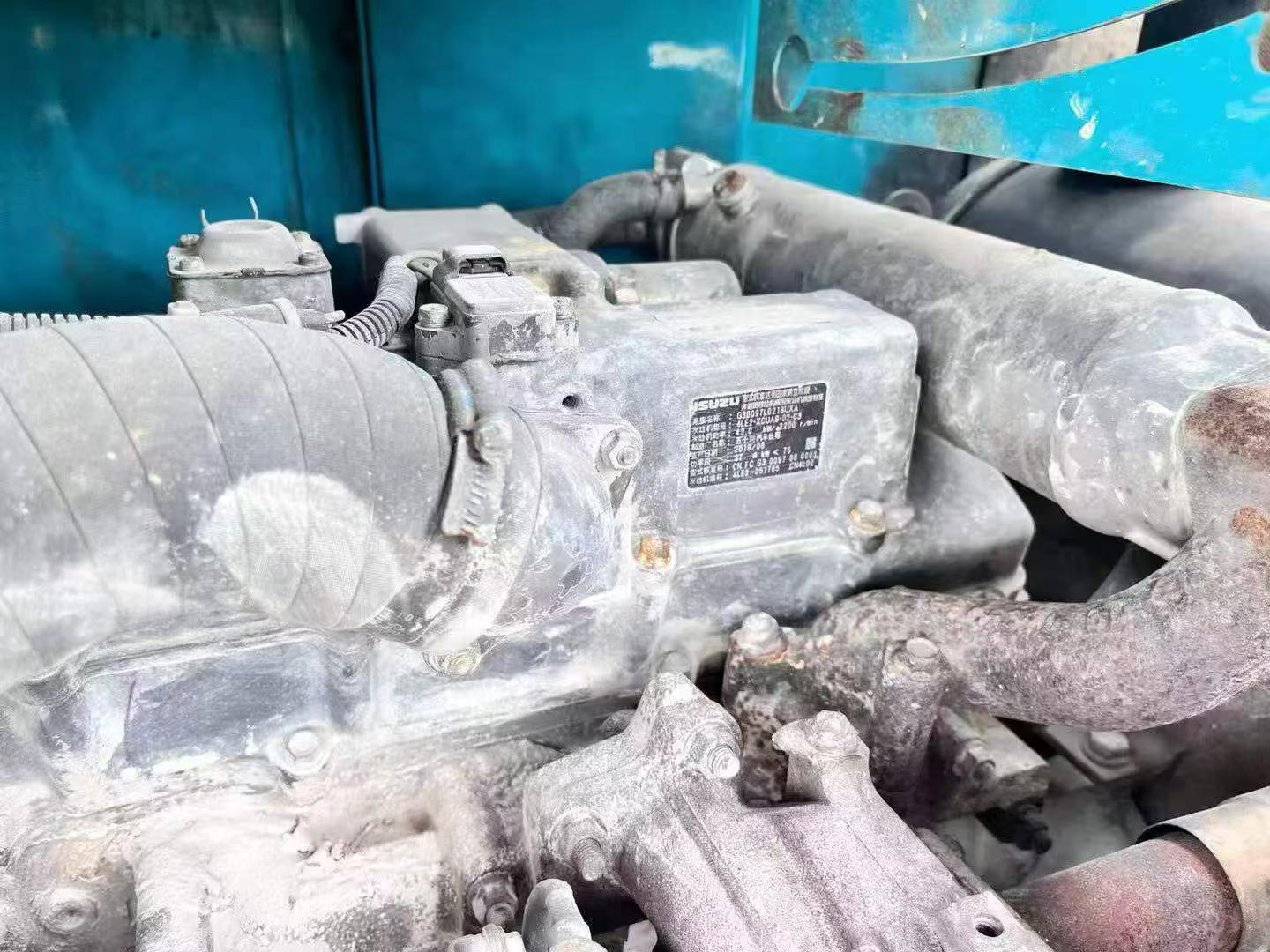

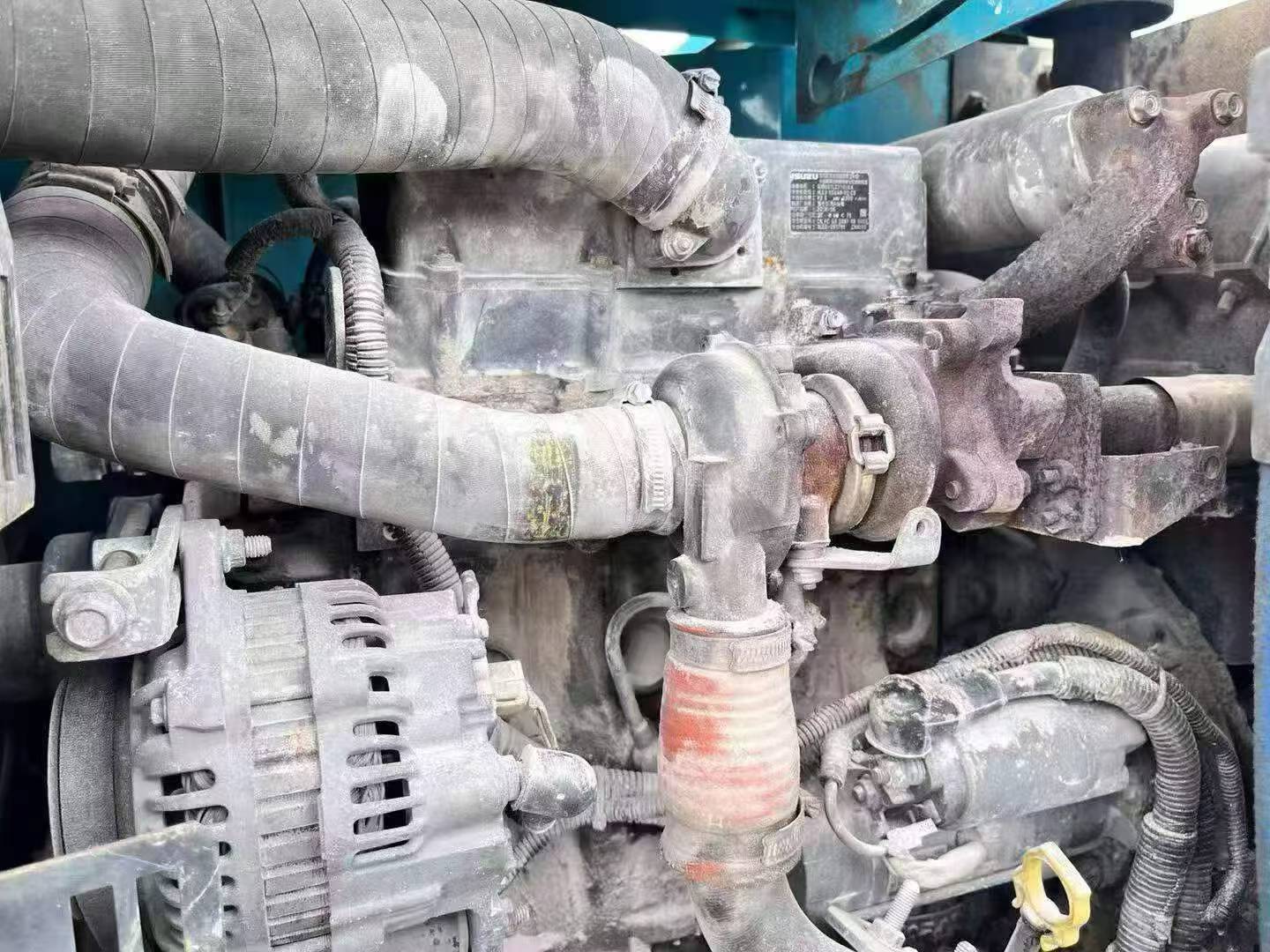

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

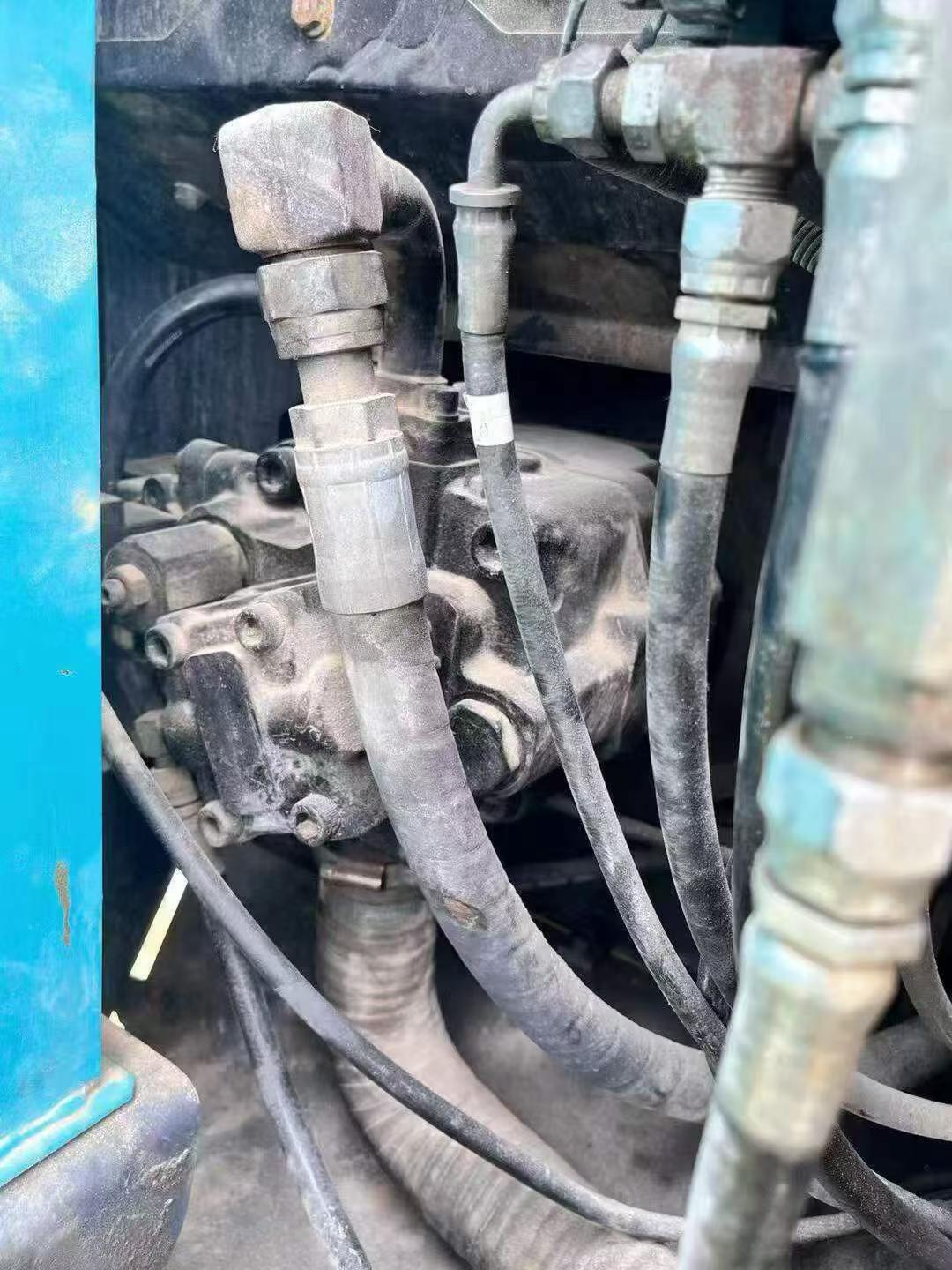

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
