2020 Kobelco SK75

1/9
Buy Kobelco SK75 Used Excavator / 1

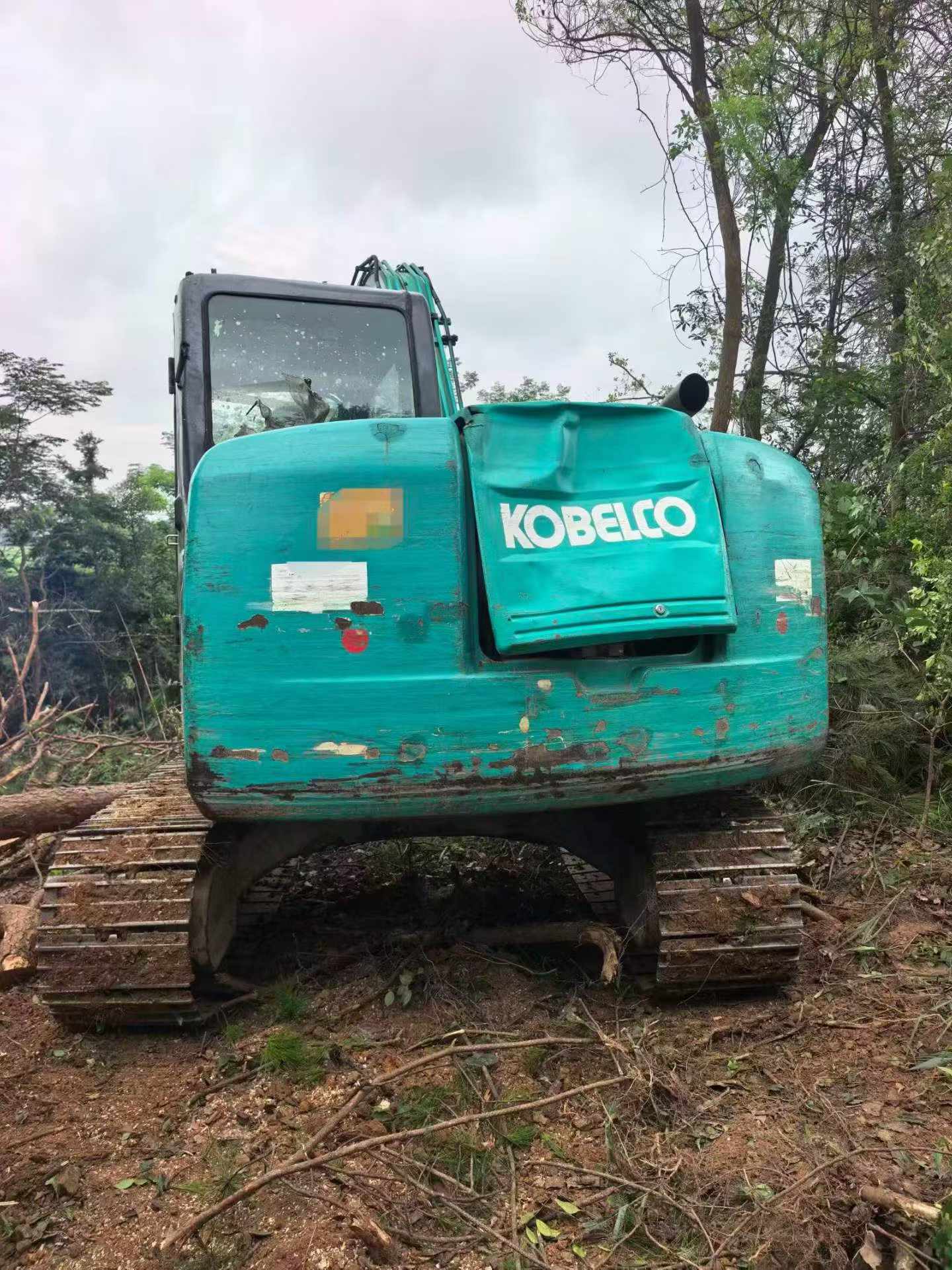

Buy Kobelco SK75 Used Excavator / 2

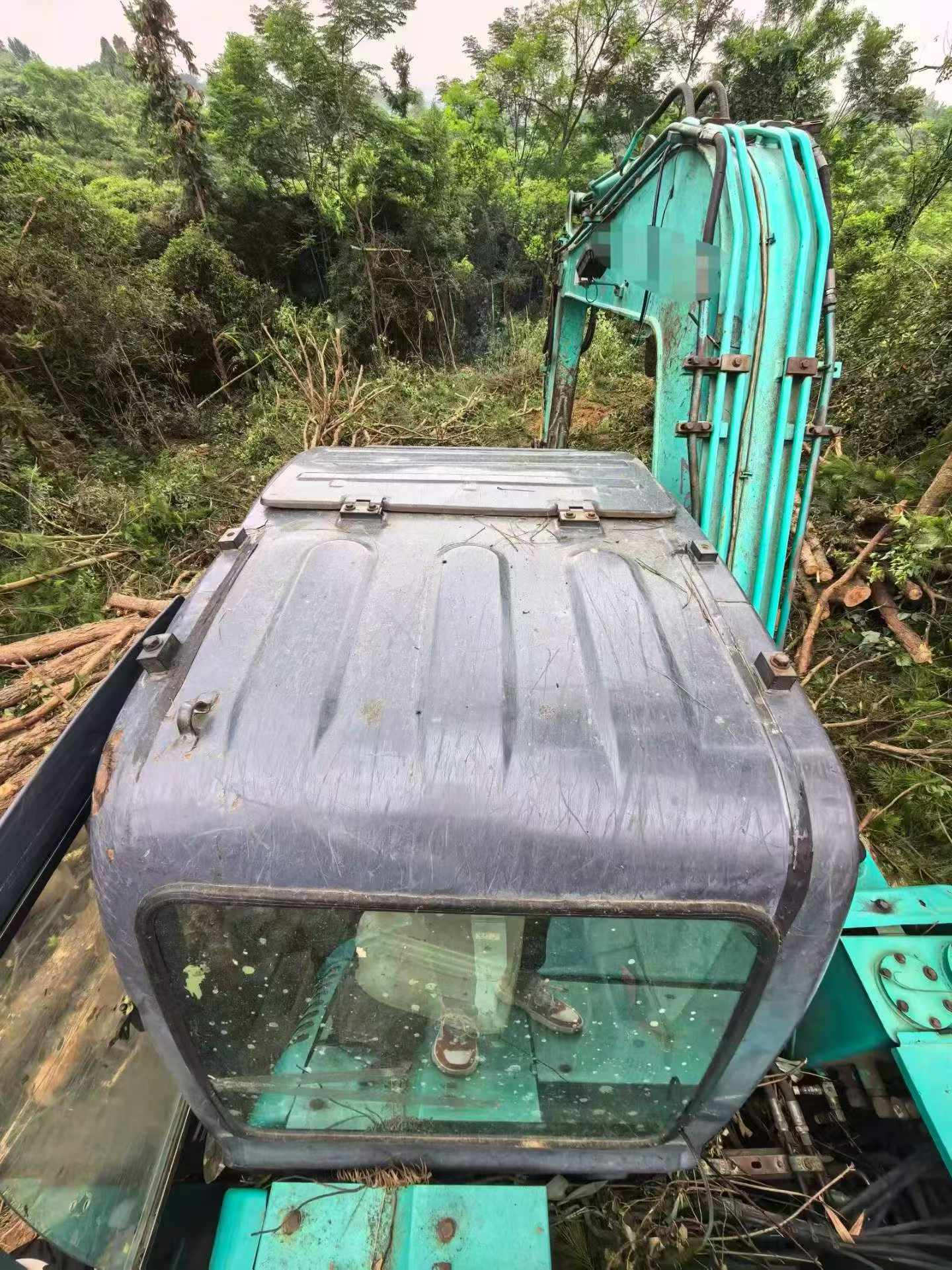

Buy Kobelco SK75 Used Excavator / 3

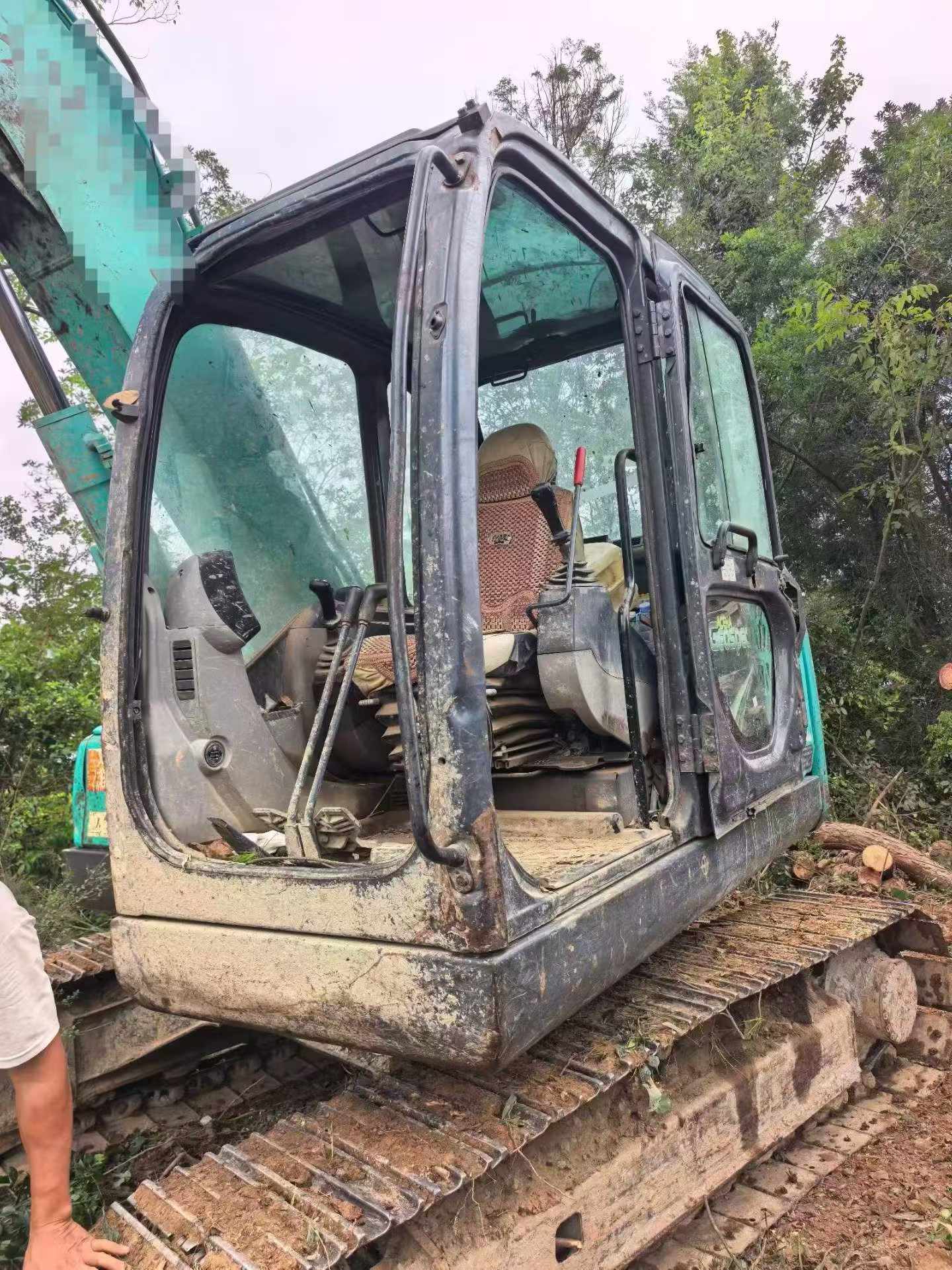

Buy Kobelco SK75 Used Excavator / 4

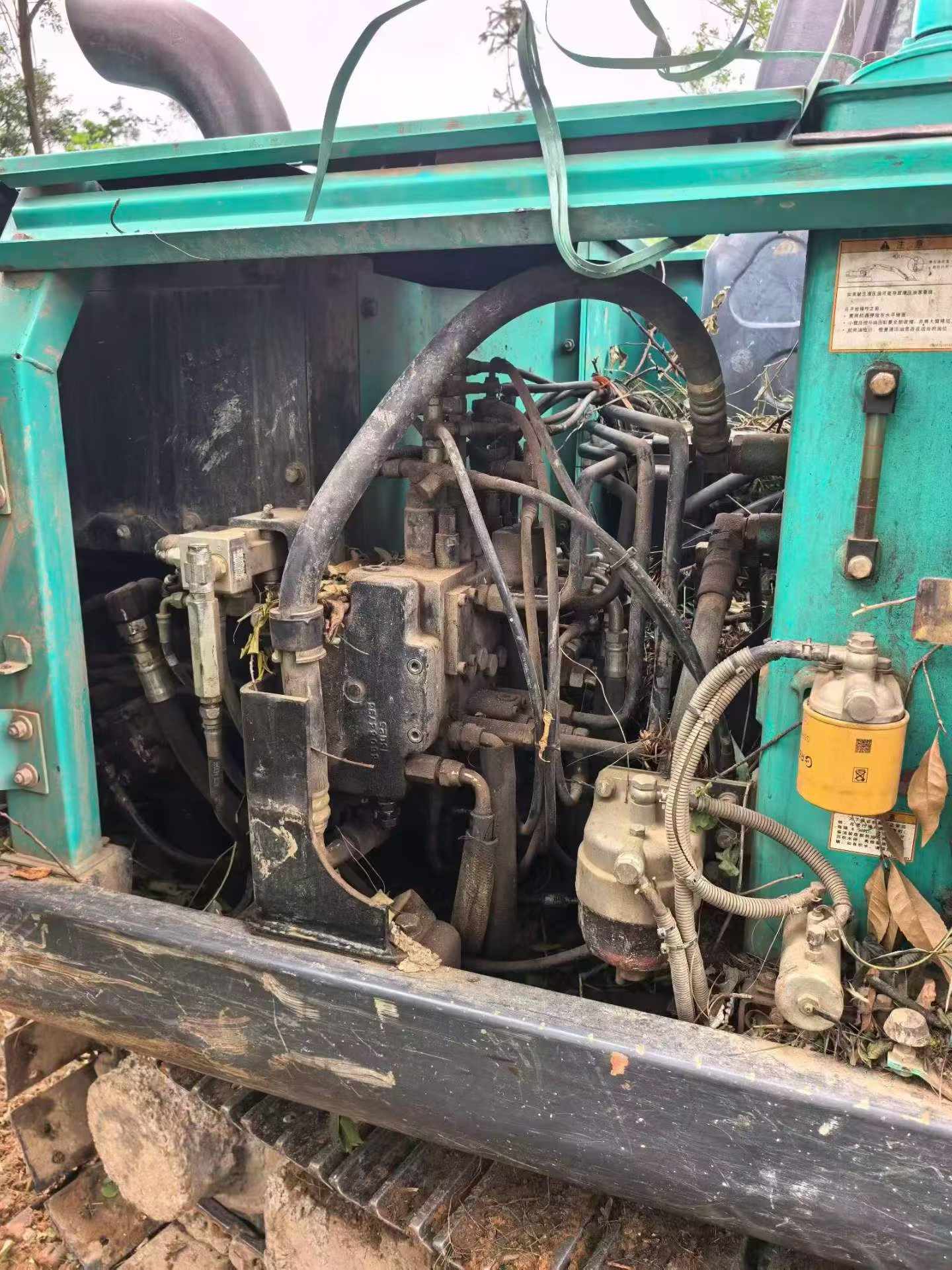

Buy Kobelco SK75 Used Excavator / 5

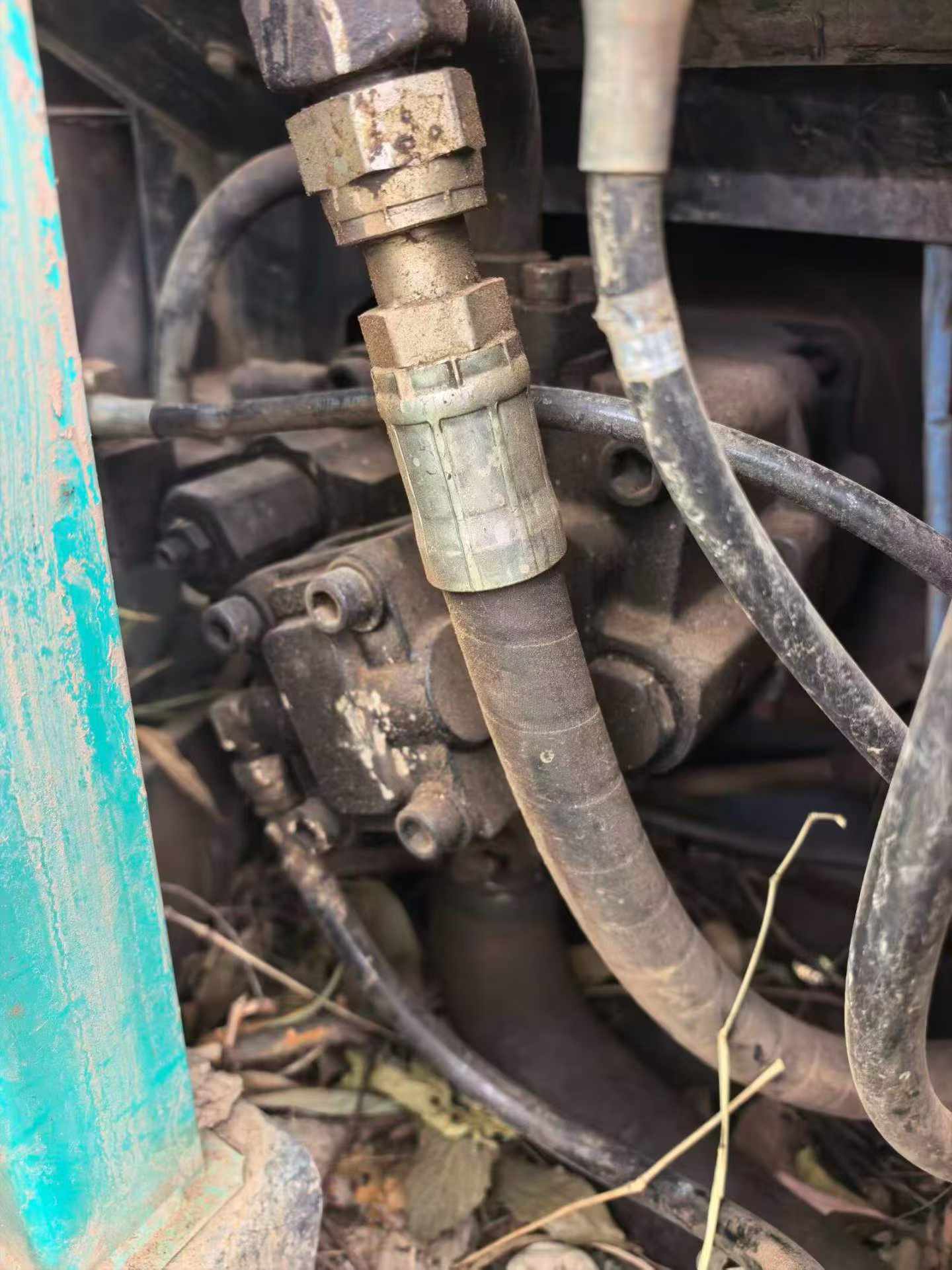

Buy Kobelco SK75 Used Excavator / 6

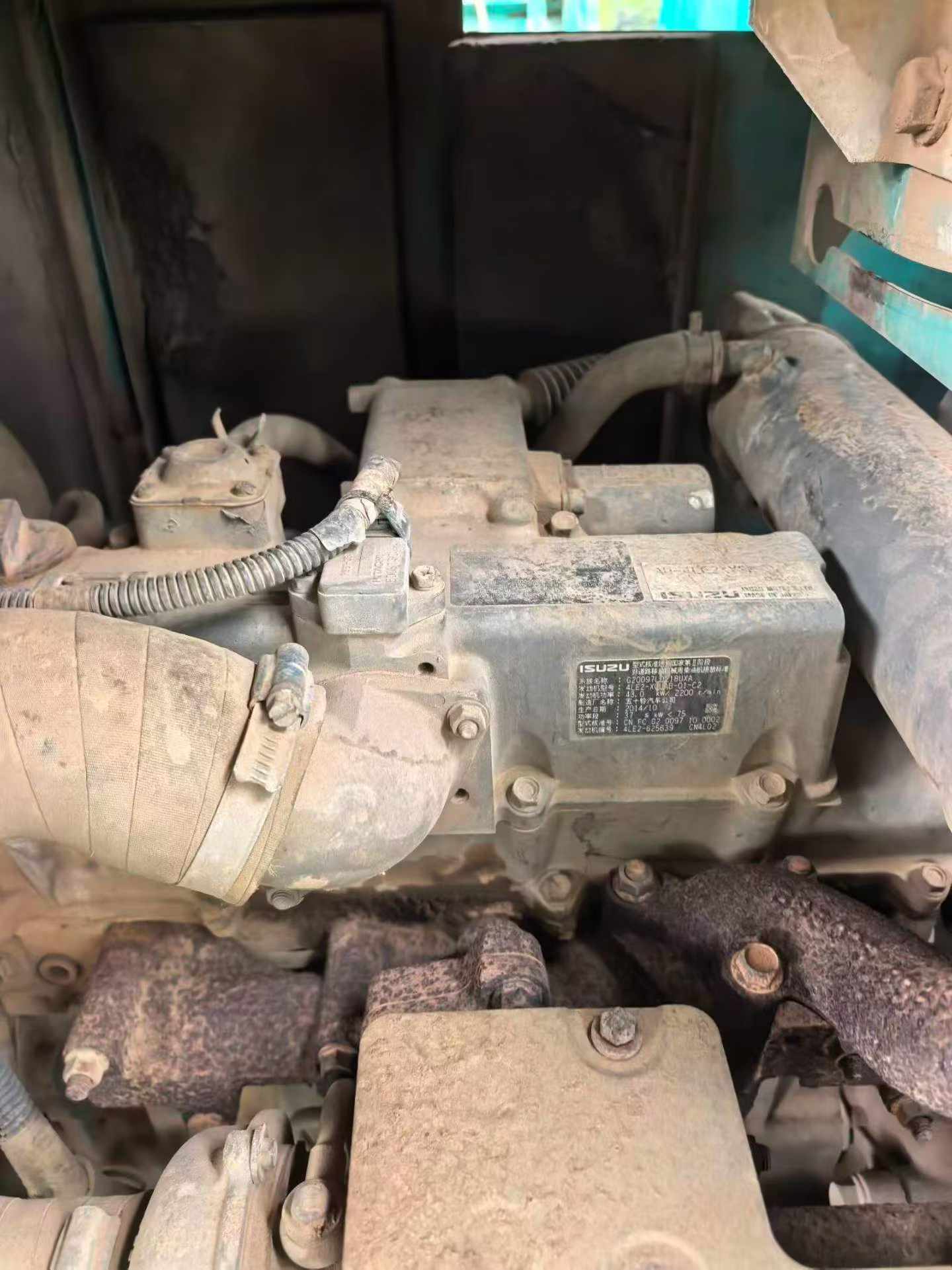

Buy Kobelco SK75 Used Excavator / 7

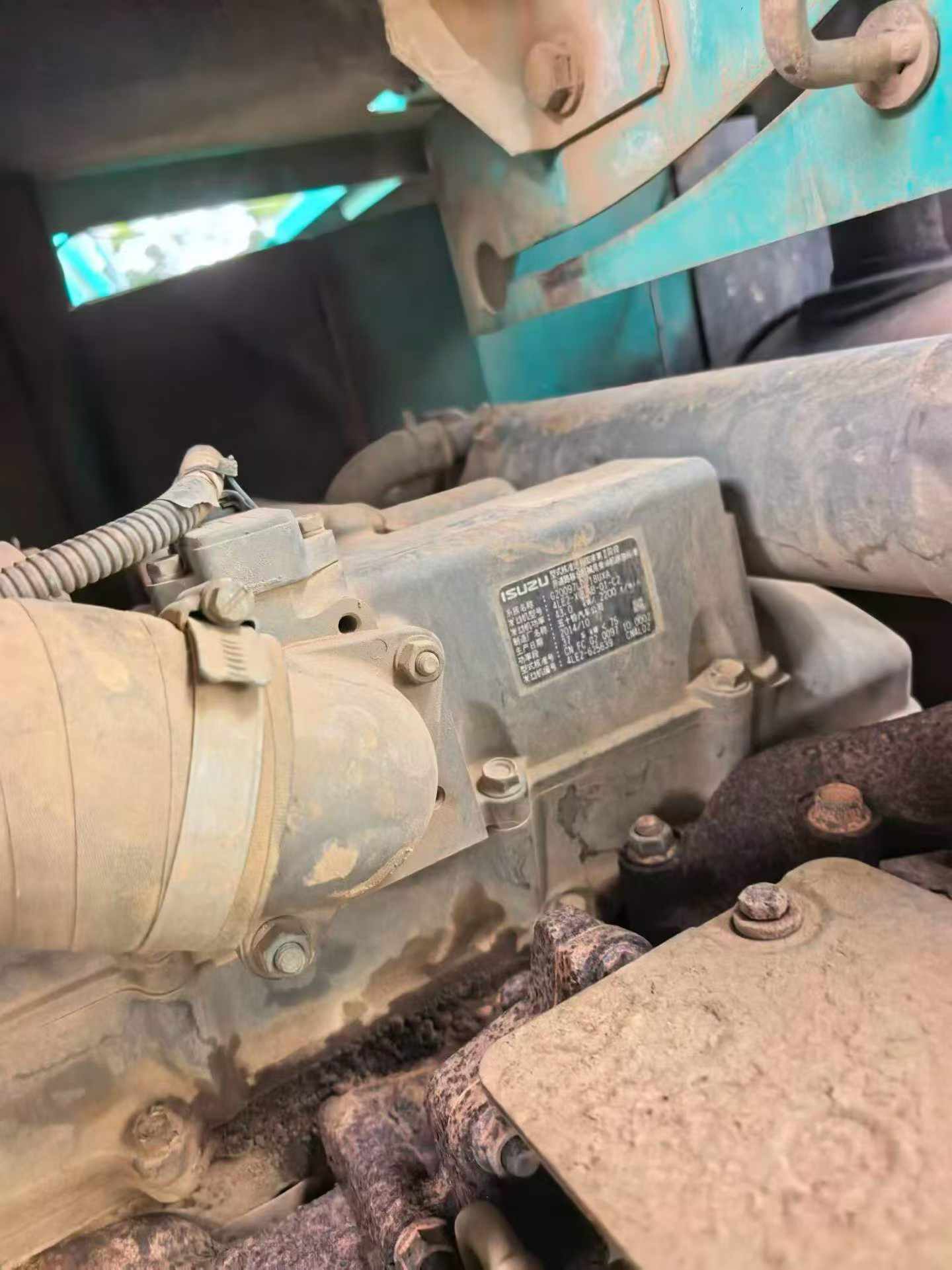

Buy Kobelco SK75 Used Excavator / 8

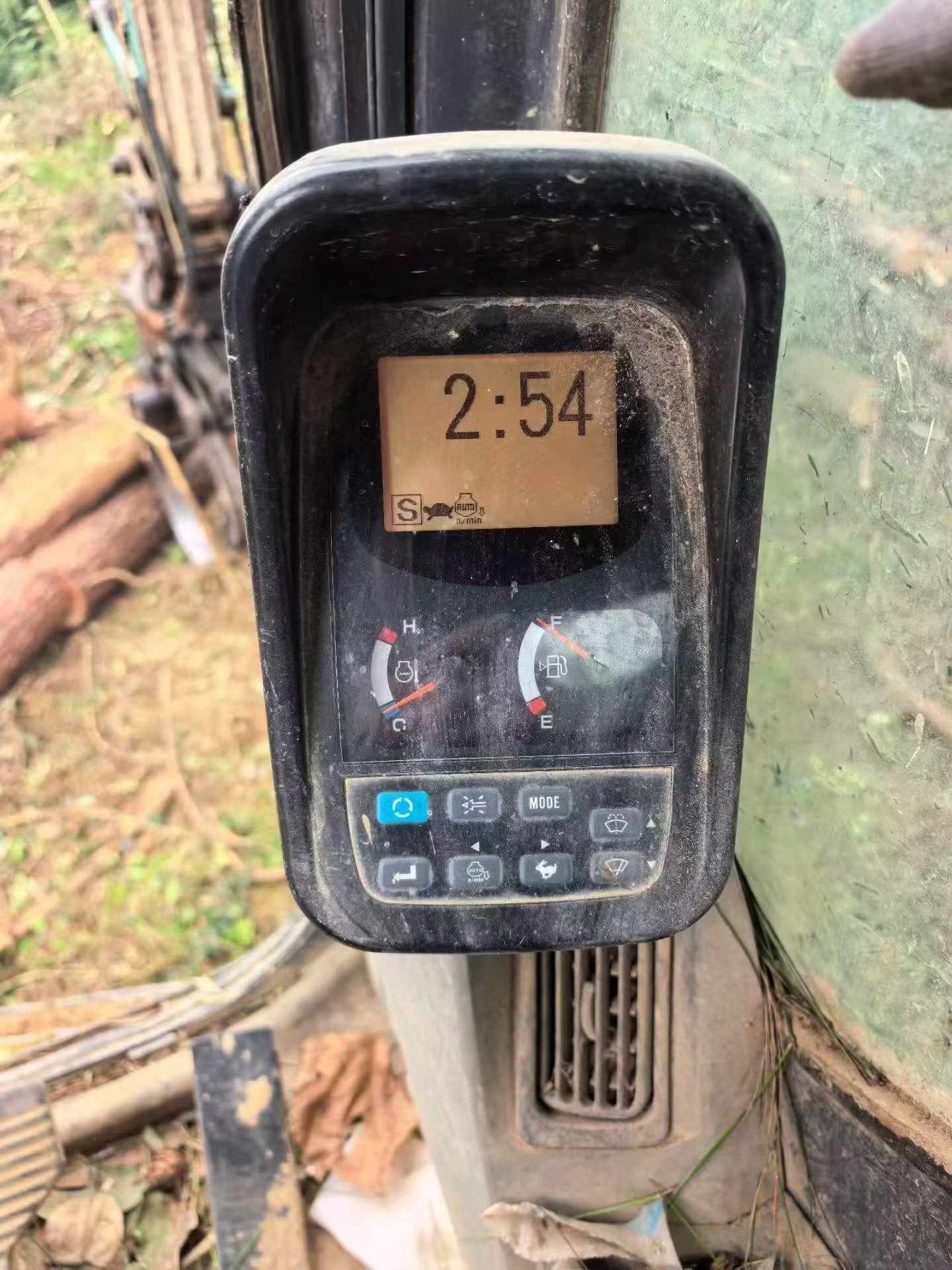

Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2020 Kobelco SK75SR-3 midi excavator offers reliable performance for contractors seeking quality Japanese engineering. Currently located in Hunan, China, this machine is available for immediate delivery with standard bucket attachment included.

The SK75SR-3 features Kobelco's proven hydraulic system and compact footprint, making it suitable for urban construction, utility work, and general excavation applications. With approximately 4 years of service, this unit represents solid value in the 7-ton class segment.

  • Operating weight: Approximately 7,500 kg
  • Bucket width: Standard configuration
  • Hydraulic thumb attachment: Not included (quoted price reflects bucket-only configuration)
  • Ready for inspection and shipment

Competitive pricing reflects current market conditions for well-maintained midi excavators. Contact us for detailed specifications, service records, and export documentation assistance.

SpecificationsValue
No.1121236
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1121236

Brand Name:

Kobelco

Model Number:

SK75

Year:

2020

Location:

Hunan China

Pub Date
