Product Description

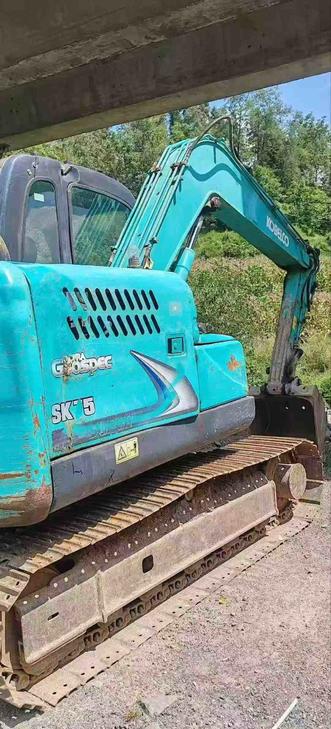

This 2020 Kobelco SK75 midi excavator is currently located in Sichuan, China. The SK75 is a proven performer in the 7-ton class, known for its fuel efficiency and reliability in confined jobsites. This unit features Kobelco's signature hydraulic system, delivering smooth operation and precise control for grading, trenching, and utility work.
Key features of the SK75 include:
- Operating weight approximately 7,500 kg
- Compact footprint suitable for urban construction
- Fuel-efficient engine meeting emission standards
- Robust undercarriage for extended service life
- Versatile attachment compatibility
This machine represents solid value for contractors seeking dependable performance in a mid-sized excavator. Ideal for landscaping, site development, and utility installation projects. Available for inspection in Sichuan province.
| Specifications | Value |
|---|---|
| No. | 1141221 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
