Product Description

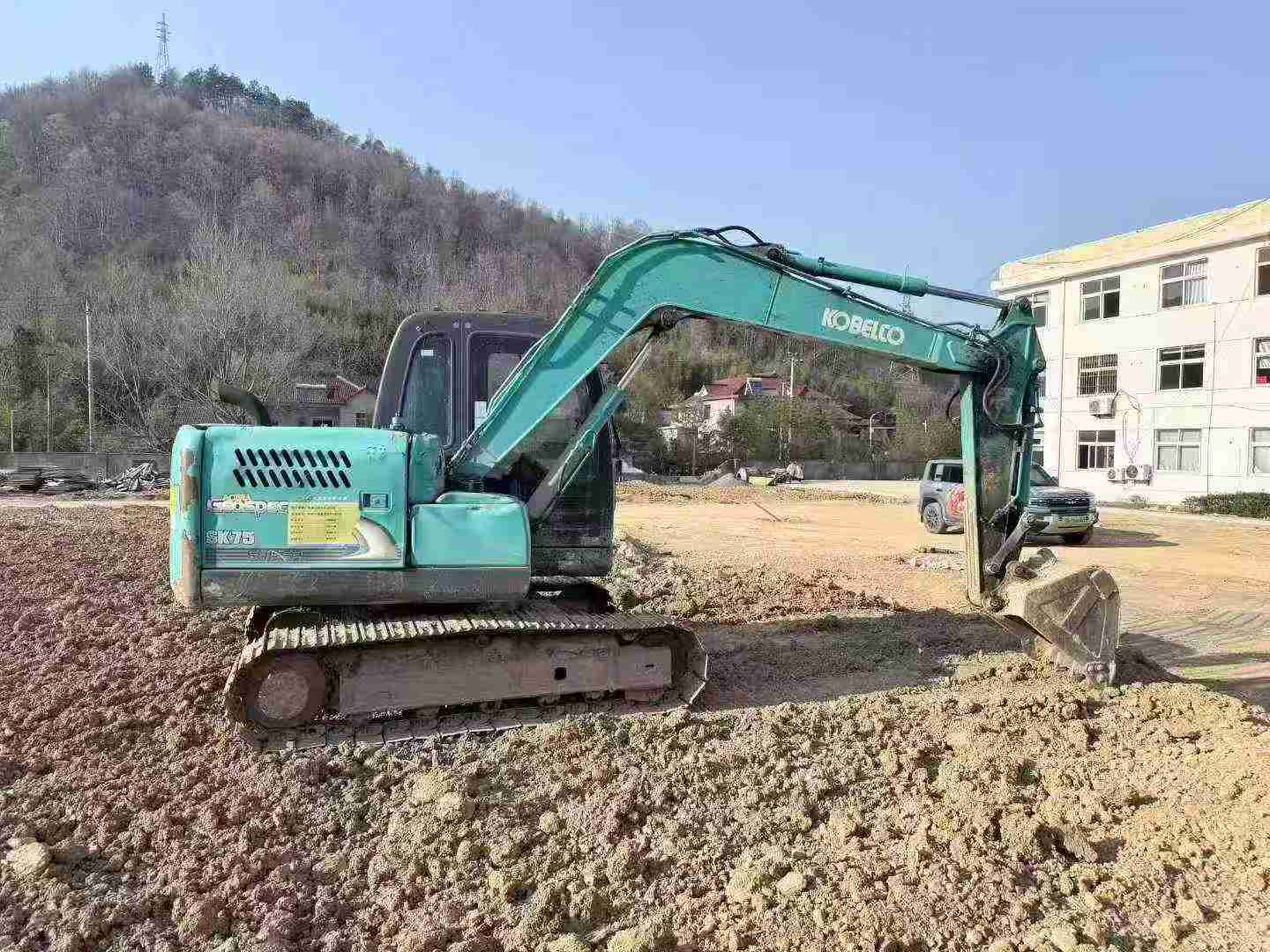

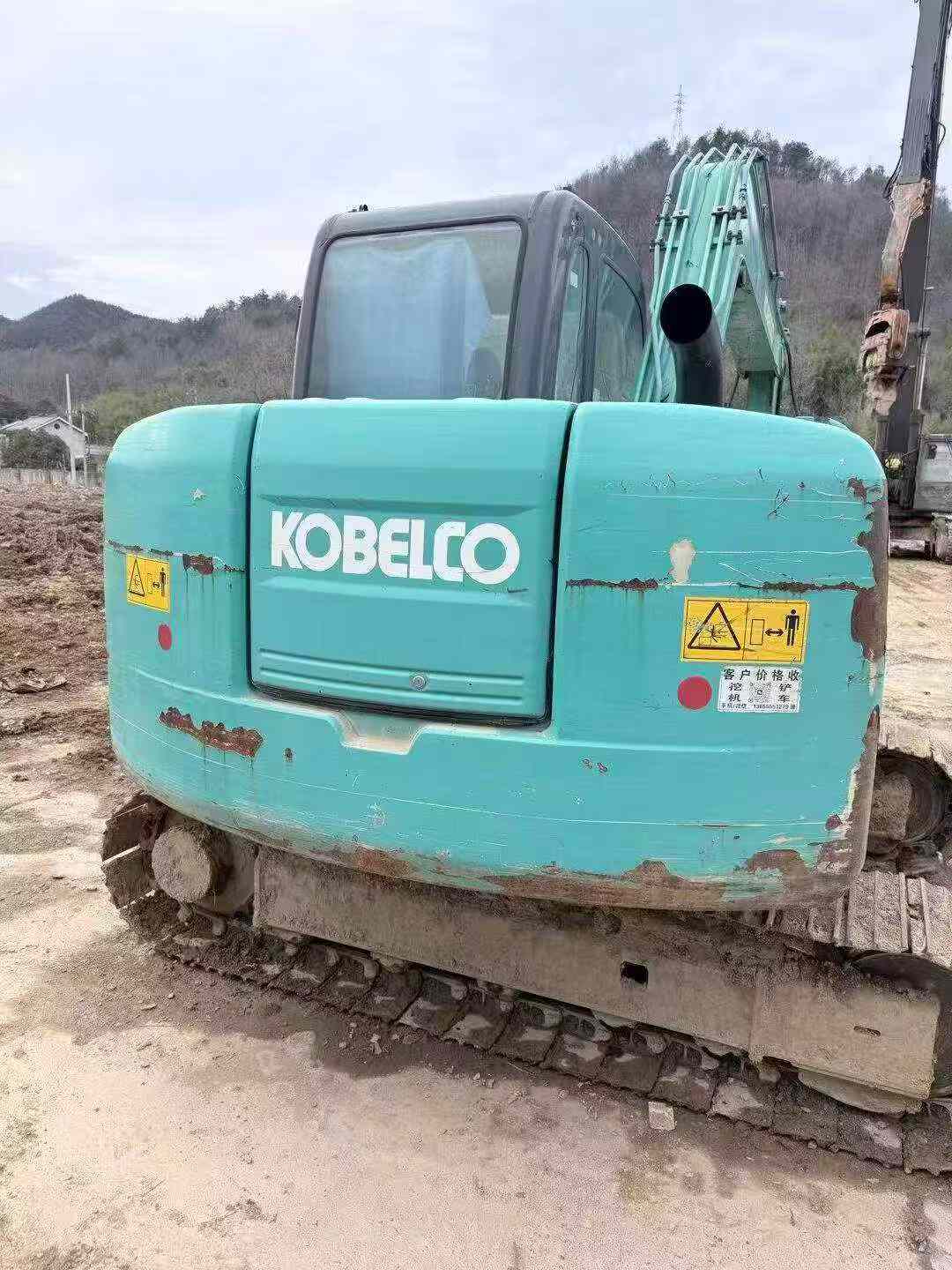

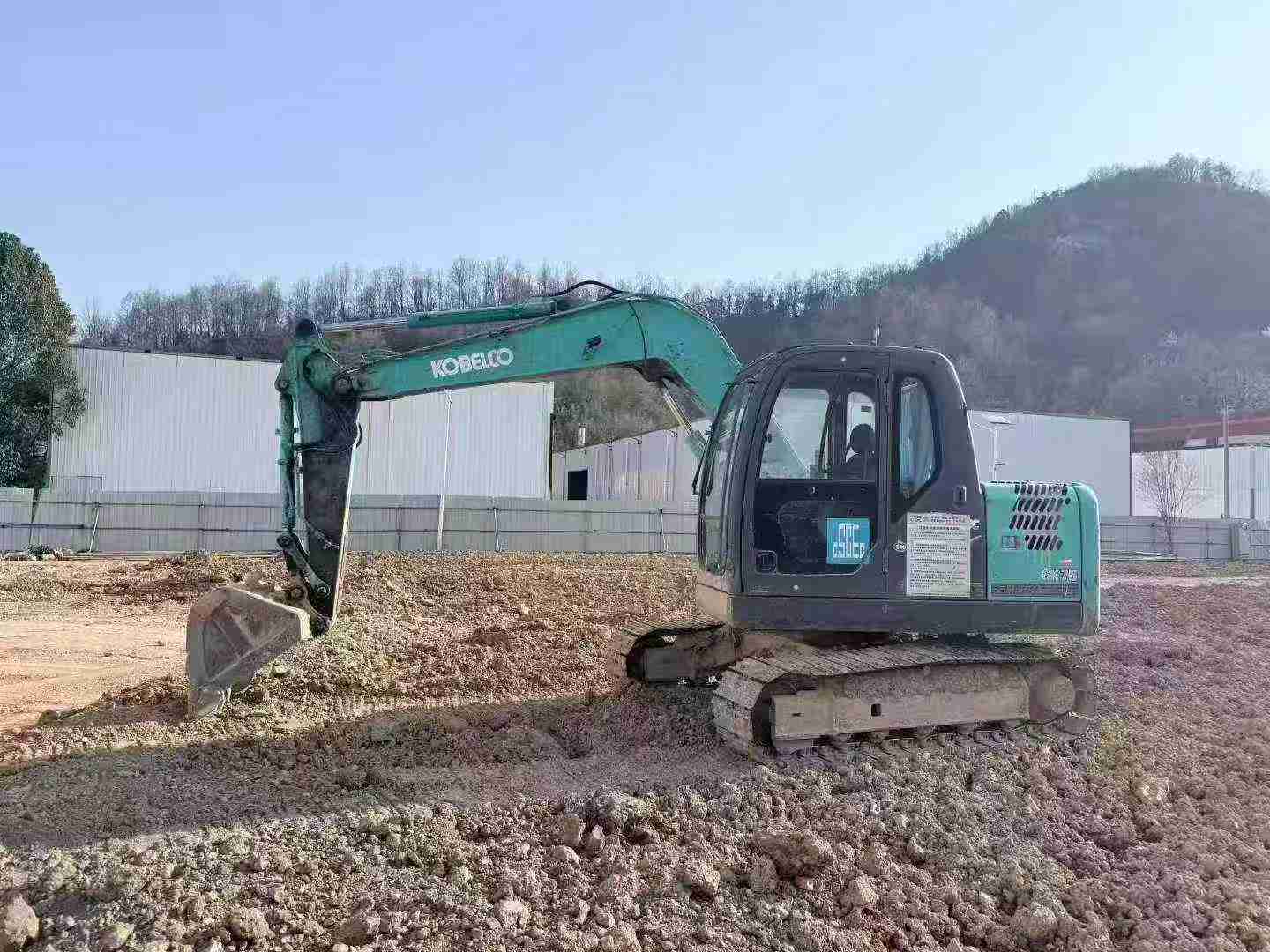

Built in 2021, this Kobelco SK75 mini excavator delivers proven reliability in a compact 7-ton package. Powered by a robust ISUZU AU4LE2X engine producing 41kW at 2200 rpm, this machine combines fuel efficiency with consistent performance across demanding jobsites. Kobelco's reputation for engineering excellence translates directly into lower operating costs and exceptional resale value in the used equipment market.
Currently located in Lishui, Zhejiang, this SK75 features a water-cooled 4-cylinder engine with 2.179L displacement and advanced hydraulic systems including double variable displacement axial piston pumps. With a maximum digging depth of 4160mm and reach of 6460mm, it handles excavation tasks with precision while maintaining a compact footprint—just 1760mm minimum turning radius.
- Working weight: 7000kg with superior stability
- Dual travel speeds: 2.8/5.3 km/h for versatility
- 120L fuel capacity for extended operation
- Proven ISUZU powertrain ensures parts availability worldwide
- Kobelco's strong dealer network supports long-term ownership
Investing in a used Kobelco means accessing OEM parts through established supply chains and benefiting from a brand
| Specifications | Value |
|---|---|
| No. | 1031778 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

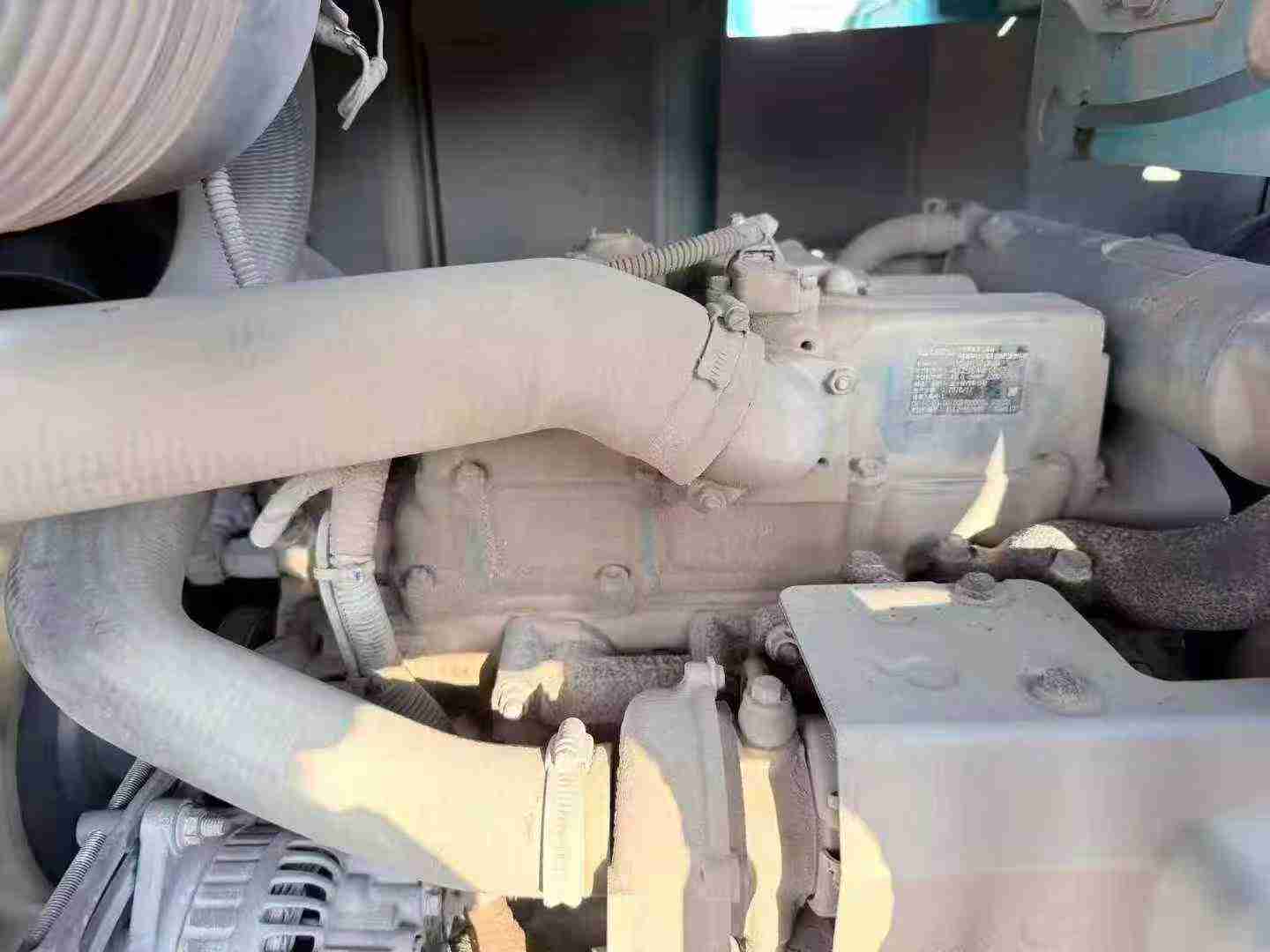

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

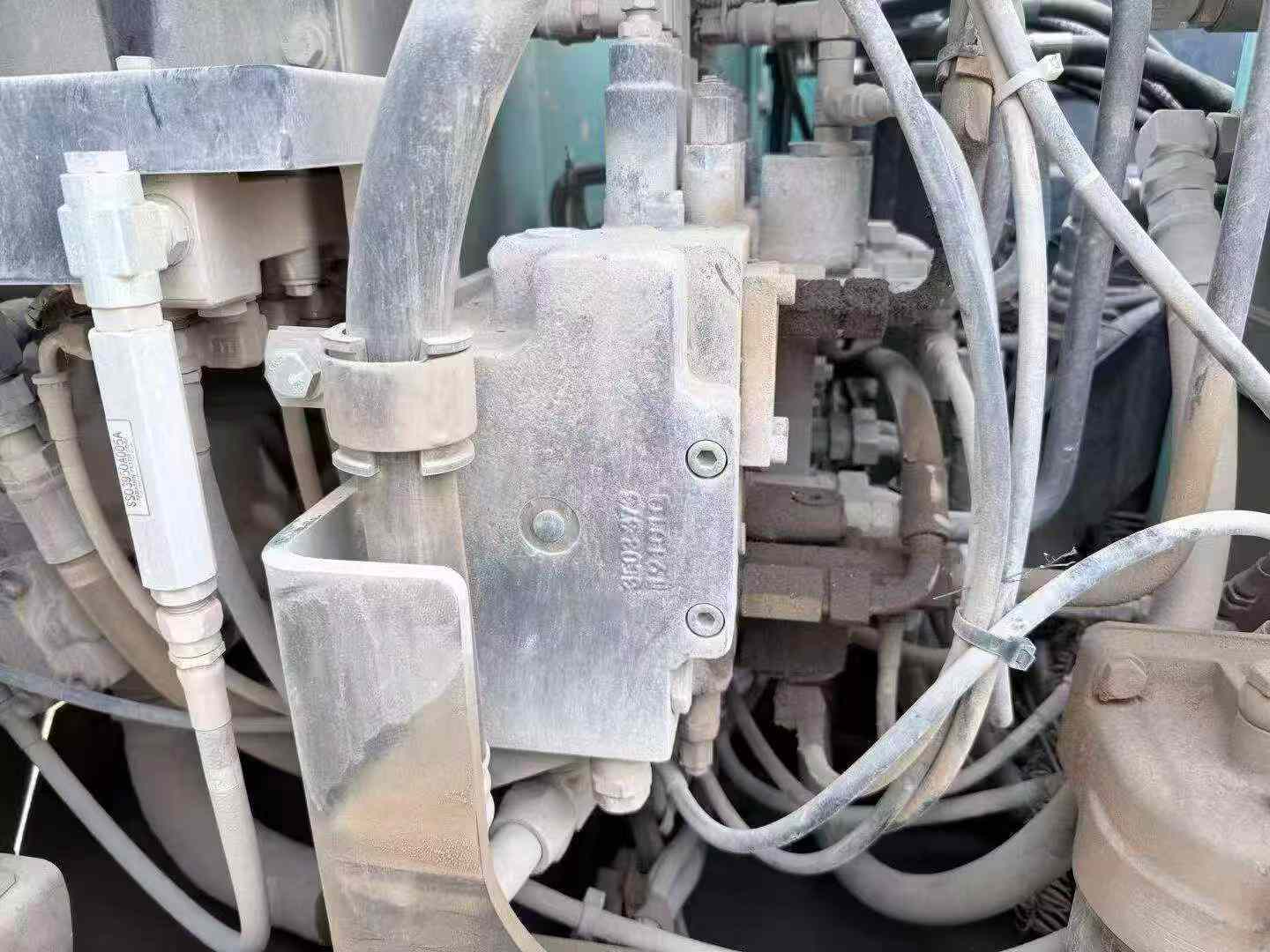

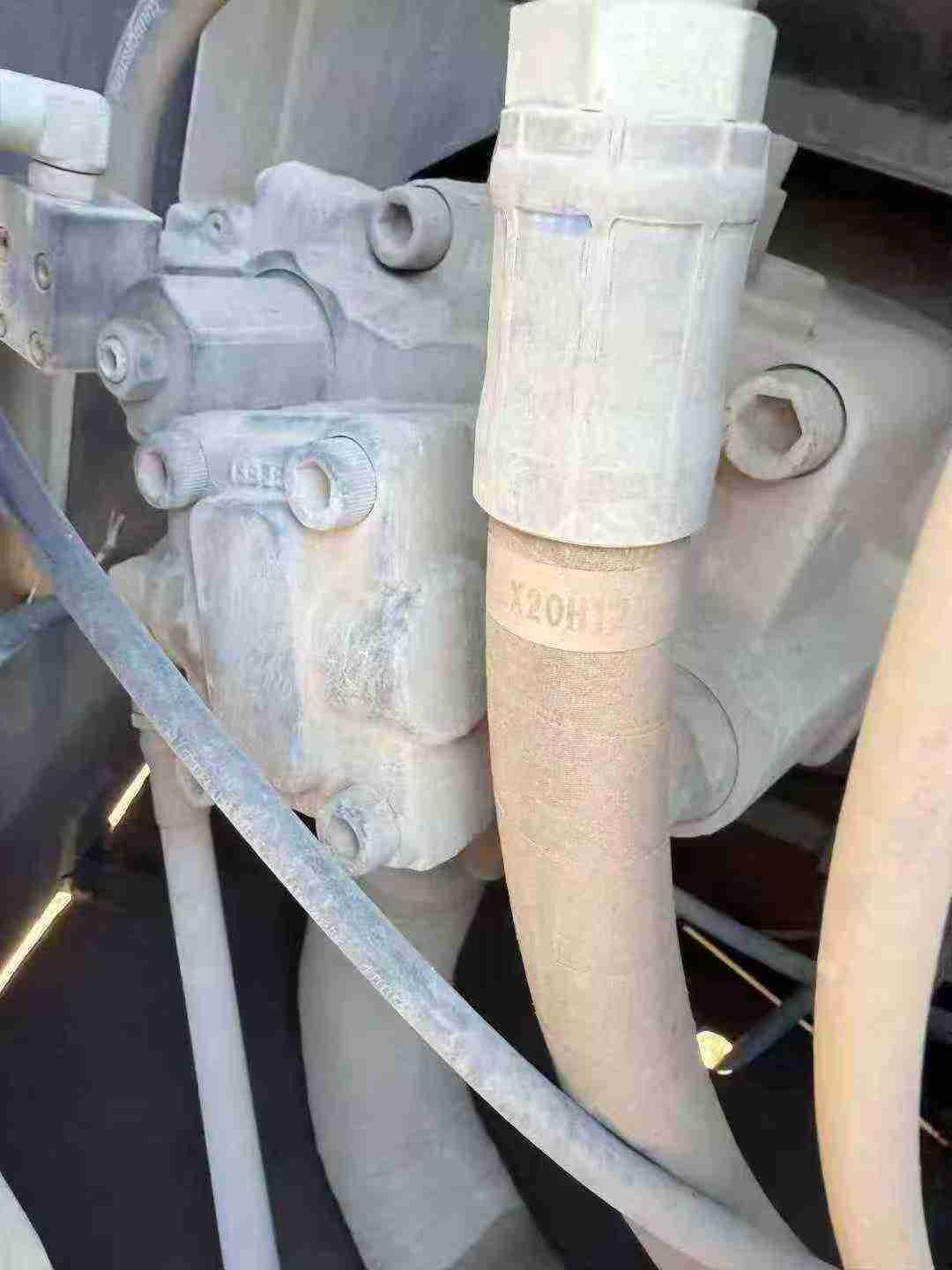

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
