Product Description

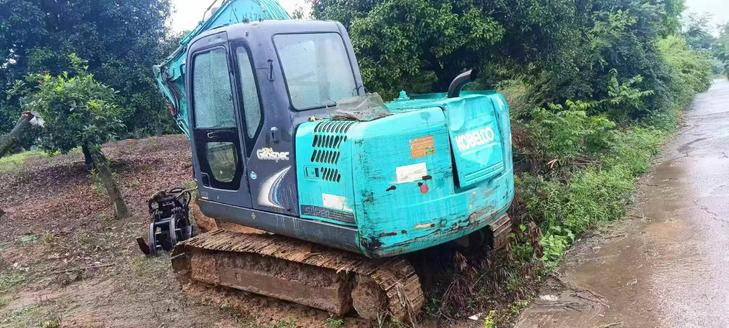

Discover the reliability and efficiency of the 2015 Kobelco SK75-8, a robust excavator designed for versatile performance. Located in Fujian, China, this used machine is available at an attractive price point of 59,000 RMB, making it an excellent investment for construction and excavation projects. The SK75-8 is known for its powerful digging force, smooth operation, and fuel efficiency, ensuring optimal productivity on any job site.
- Year: 2015
- Brand: Kobelco
- Model: SK75-8
- Location: Fujian, China
- Price: 59,000 RMB
| Specifications | Value |
|---|---|
| No. | 1121500 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6850 |
| Bucket capacity (m³) | 0.4 |
| Rod length (mm) | 1710 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | An ISUZU |
| Rated power (kw/rpm) | 42/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85*96 |
| Maximum torque (N.m) | 211/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 30.8 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 52.7 |
| Rod digging force (kN) | 39.4 |
| Maximum tractive force (kN) | 72.2 |
| Travel speed (km/h) | 5.3/2.8 |
| Maximum flow of main pump (l/min) | 1*132 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | Variable displacement axial piston pump |
| Pilot pump flow (L/min) | 1*18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*80*735 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*833 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*110*916 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 67 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 107 |
| Total transport length (mm) | 6200 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 375 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2830 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3480 |
| Bulldozer lift or depth (mm) | 475/305 |
| Dodging plate width × height (mm) | 2320*460 |
| Maximum excavation radius of stop surface (mm) | 6310 |
| Maximum effective digging depth (mm) | 3810 |
