Product Description

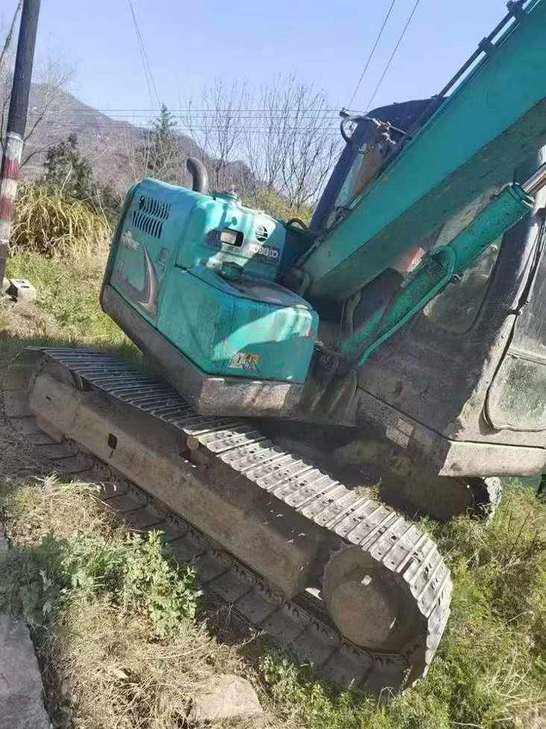

Designed for operator efficiency and precision, this 2016 Kobelco SK75-8 delivers reliable performance in a compact 7-ton platform. Powered by an ISUZU 4-cylinder turbocharged engine producing 42kW at 2200 rpm, this mini excavator combines responsive hydraulics with exceptional maneuverability for demanding jobsites. The variable displacement axial piston pump ensures smooth control across all functions, while the water-cooled engine maintains consistent power output during extended operations.
Operator-focused features include:
- Superior visibility from the cabin with 6460mm maximum digging radius and 2650mm transport height
- Precise handling supported by 11.5 rpm rotation speed and dual-speed travel (5.3/2.8 km/h)
- Enhanced stability with 30.8 Kpa ground pressure and 1870mm track gauge
- Powerful digging force: 52.7kN bucket and 39.4kN arm
- Compact footprint (2320mm width) for confined spaces without sacrificing reach
Currently located in Hangzhou, Zhejiang, this joint venture-manufactured excavator offers proven reliability with straightforward maintenance access. Built for all-day comfort and control, it remains an excellent choice for contractors prioritizing pro
| Specifications | Value |
|---|---|
| No. | 1035923 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6850 |
| Bucket capacity (m³) | 0.4 |
| Rod length (mm) | 1710 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | An ISUZU |
| Rated power (kw/rpm) | 42/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85*96 |
| Maximum torque (N.m) | 211/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 30.8 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 52.7 |
| Rod digging force (kN) | 39.4 |
| Maximum tractive force (kN) | 72.2 |
| Travel speed (km/h) | 5.3/2.8 |
| Maximum flow of main pump (l/min) | 1*132 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | Variable displacement axial piston pump |
| Pilot pump flow (L/min) | 1*18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*80*735 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*833 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*110*916 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 67 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 107 |
| Total transport length (mm) | 6200 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 375 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2830 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3480 |
| Bulldozer lift or depth (mm) | 475/305 |
| Dodging plate width × height (mm) | 2320*460 |
| Maximum excavation radius of stop surface (mm) | 6310 |
| Maximum effective digging depth (mm) | 3810 |
