Product Description

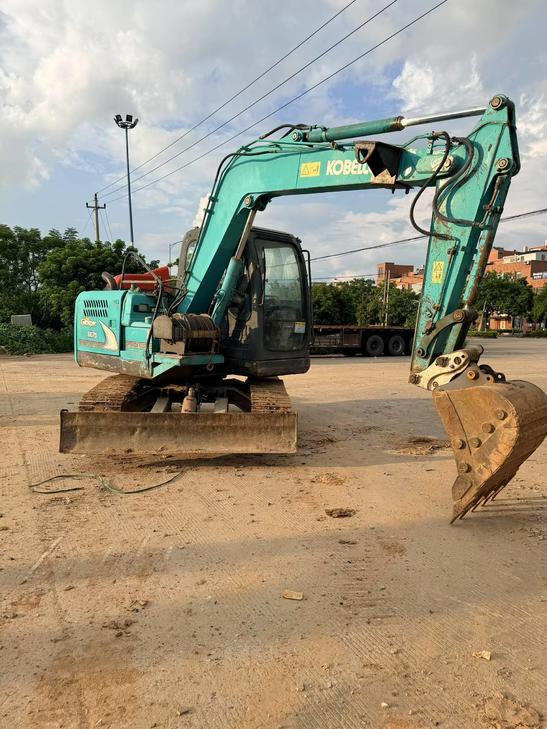

Discover the 2020 Kobelco SK75-8, a robust and reliable excavator currently available in Guangdong, China. This machine is equipped with a dozer blade, enhancing its versatility for various construction and excavation tasks. Priced at 93,000 RMB, it offers an excellent value for your investment. Visual documentation, including videos and images, is available to provide a comprehensive view of the machine's condition and performance.
- Year: 2020
- Brand: Kobelco
- Model: SK75-8
- Location: Guangdong, China
- Price: 93,000 RMB
- Equipped with a dozer blade
- Includes video and photo documentation
| Specifications | Value |
|---|---|
| No. | 1136281 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6850 |
| Bucket capacity (m³) | 0.4 |
| Rod length (mm) | 1710 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | An ISUZU |
| Rated power (kw/rpm) | 42/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85*96 |
| Maximum torque (N.m) | 211/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Working form | Direct injection, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 30.8 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 52.7 |
| Rod digging force (kN) | 39.4 |
| Maximum tractive force (kN) | 72.2 |
| Travel speed (km/h) | 5.3/2.8 |
| Maximum flow of main pump (l/min) | 1*132 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | Variable displacement axial piston pump |
| Pilot pump flow (L/min) | 1*18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*80*735 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*95*833 |
| Boom cylinders - Number × diameter × stroke (mm) | 1*110*916 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 67 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 107 |
| Total transport length (mm) | 6200 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 375 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2830 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3480 |
| Bulldozer lift or depth (mm) | 475/305 |
| Dodging plate width × height (mm) | 2320*460 |
| Maximum excavation radius of stop surface (mm) | 6310 |
| Maximum effective digging depth (mm) | 3810 |
