Product Description
Powered by a robust Komatsu SAA4D107E-1 engine, the 2022 HB215LC-1 delivers a rated power of 104 kW at 2000 rpm. This hybrid-powered excavator, with a working weight of 21,500 kg, features advanced hydraulics that provide a bucket digging force of 149 kN and a rod digging force of 108 kN. Engineered for precision and efficiency, it boasts a maximum digging depth of 6,620 mm and a maximum excavation height of 10,000 mm. The machine's total transport dimensions are 9,425 mm in length, 2,980 mm in width, and 3,040 mm in height, ensuring easy transportation to any job site. With a travel speed of up to 5.5 km/h, the HB215LC-1 is designed for optimal performance and maneuverability. Built in Jining, Shandong Province, this model series exemplifies the high standards of engineering and reliability expected from Komatsu.
| Specifications | Value |
|---|---|
| No. | 1057083 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1 |
| Country of origin | Jining, Shandong Province |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

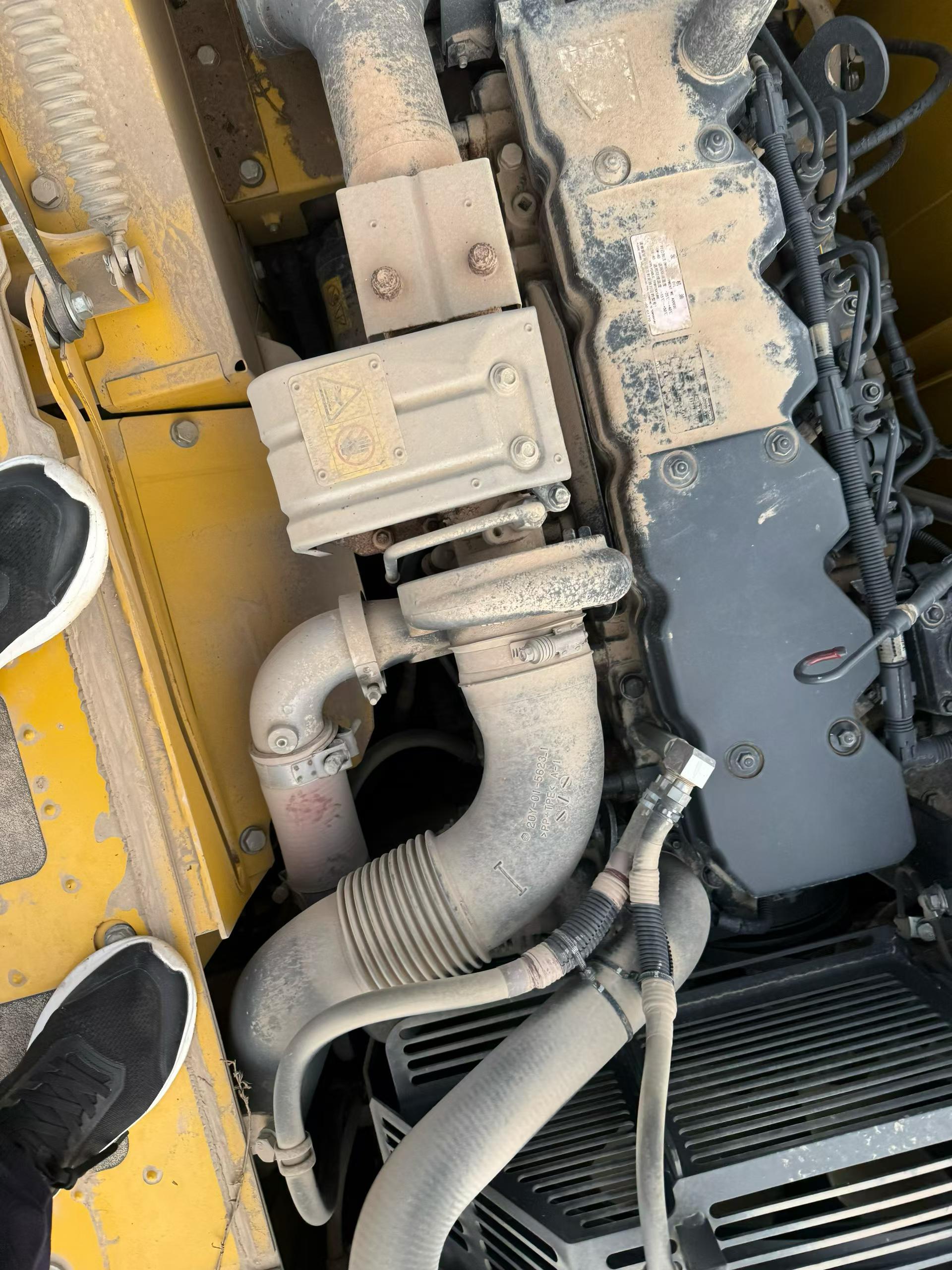

| Engine type | Komatsu SAA4D107E-1 |
| Rated power (kw/rpm) | 104/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 4.46 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3040 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9700 |
