Product Description

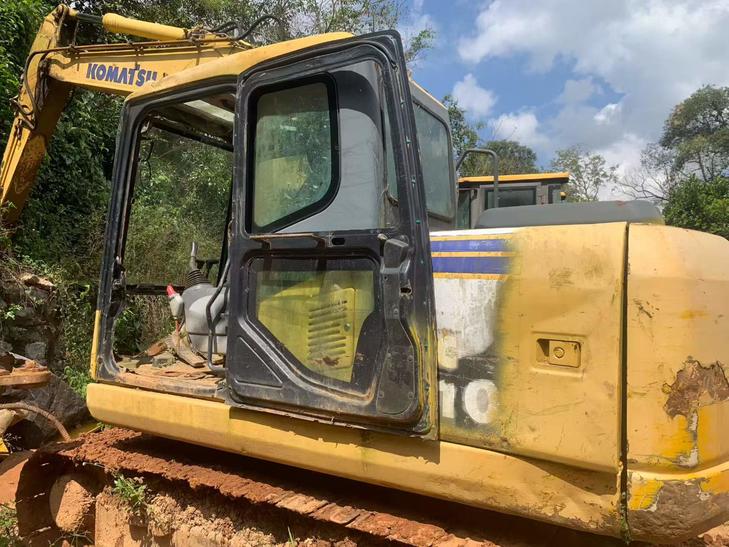

With a working weight of 10,980 kg and a bucket capacity of 0.48 m³, this 2011 Komatsu PC110-7 excavator is an ideal fleet addition for busy contractors. Powered by a reliable Komatsu SAA4D95LE-3 engine, it delivers 65 kW at 2200 rpm, ensuring robust performance on any job site. Featuring a 4-stroke, water-cooled design, this machine complies with 2001 EPA/EU/Japan Level 2 emission standards, making it a sustainable choice.
- Boom length: 4260 mm, rod length: 2260 mm
- Travel speed: 2.7-5.5 km/h
- Bucket digging force: 86 kN, rod digging force: 56 kN
- Maximum digging radius: 7730 mm, maximum digging depth: 5060 mm
- Fuel tank capacity: 247 L, hydraulic tank: 90 L
Located in 云南昆明, this excavator is ready to integrate into your fleet, providing the necessary support and reliability for demanding projects. Its compact dimensions and versatile capabilities make it an excellent backup or primary unit for various construction tasks.
| Specifications | Value |
|---|---|
| No. | 1023118 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 10980 |
| Bucket capacity (m³) | 0.48 |
| Boom length (mm) | 4260 |
| Rod length (mm) | 2260 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 65/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 115 |
| Displacement (L) | 3.26 |
| Working form | 4 stroke, after cooling, direct injection; Comply with 2001 EPA/EU/ Japan Level 2 emission standards. |
| Ground specific pressure (Kpa) | 0.37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 86 |
| Rod digging force (kN) | 56 |
| Travel speed (km/h) | 2.7-5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355 |
| Rotary Hydraulic Circuit (Mpa) | 295 |
| Control Hydraulic Circuit (Mpa) | 325 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 104 x 885 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 133 * 1005 * 75 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 * 980 * 65 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7170 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2810 |
| Full cab height (mm) | 2810 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3435 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2705 |
| Maximum digging radius (mm) | 7730 |
| Maximum digging depth (mm) | 5060 |
| Maximum excavation height (mm) | 7910 |
| Maximum unloading height (mm) | 5650 |
| Maximum vertical digging depth (mm) | 4570 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 7600 |
| Maximum effective digging depth (mm) | 4730 |
