Product Description

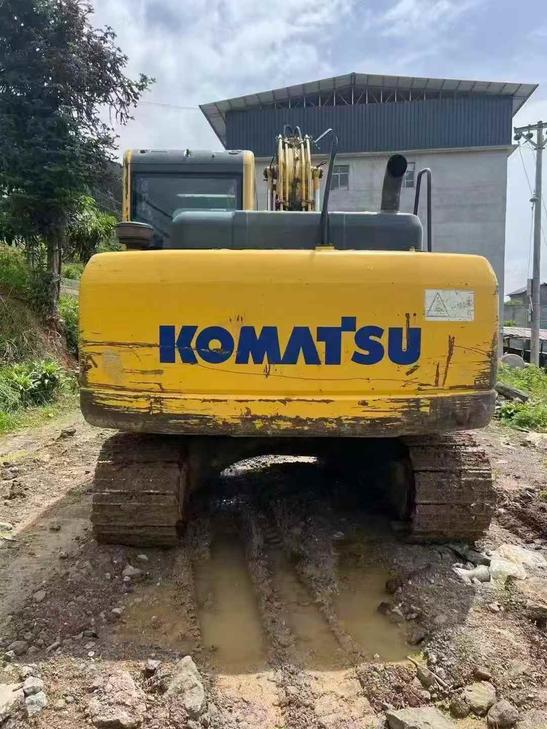

Built for serious work, the 2017 Komatsu PC110-7 delivers proven 11-ton excavator performance at a fraction of new equipment cost. Sourced from Guizhou, China, this machine runs on Komatsu's SAA4D95LE-3 engine — 65 kW at 2,200 rpm, water-cooled, EPA/EU/Japan Level 2 compliant — giving you reliable, efficient power without the premium price tag of a new unit.
For contractors and fleet managers focused on return on investment, the numbers speak clearly:
- Bucket digging force: 86 kN — rod digging force: 56 kN
- Maximum digging depth: 5,060 mm | Maximum digging radius: 7,730 mm
- Maximum excavation height: 7,910 mm | Unloading height: 5,650 mm
- Travel speed: 2.7–5.5 km/h | Climbing ability: 70% (30°)
- Main pump max flow: 226 L/min | Fuel tank: 247 L
- Transport dimensions: 7,170 × 2,490 × 2,810 mm
Axial piston hydraulic motors on both swing and travel circuits, a 0.48 m³ backhoe bucket, and a low ground pressure of 0.37 kPa make this PC110-7 a capable, versatile machine across a wide range of job sites. Solid specs, proven reliability, smart value.
| Specifications | Value |
|---|---|
| No. | 1071228 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 10980 |
| Bucket capacity (m³) | 0.48 |
| Boom length (mm) | 4260 |
| Rod length (mm) | 2260 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 65/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 115 |
| Displacement (L) | 3.26 |
| Working form | 4 stroke, after cooling, direct injection; Comply with 2001 EPA/EU/ Japan Level 2 emission standards. |
| Ground specific pressure (Kpa) | 0.37 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 86 |
| Rod digging force (kN) | 56 |
| Travel speed (km/h) | 2.7-5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355 |
| Rotary Hydraulic Circuit (Mpa) | 295 |
| Control Hydraulic Circuit (Mpa) | 325 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 104 x 885 x 60 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 133 * 1005 * 75 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 * 980 * 65 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7170 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2810 |
| Full cab height (mm) | 2810 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3435 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2705 |
| Maximum digging radius (mm) | 7730 |
| Maximum digging depth (mm) | 5060 |
| Maximum excavation height (mm) | 7910 |
| Maximum unloading height (mm) | 5650 |
| Maximum vertical digging depth (mm) | 4570 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 7600 |
| Maximum effective digging depth (mm) | 4730 |
