Product Description

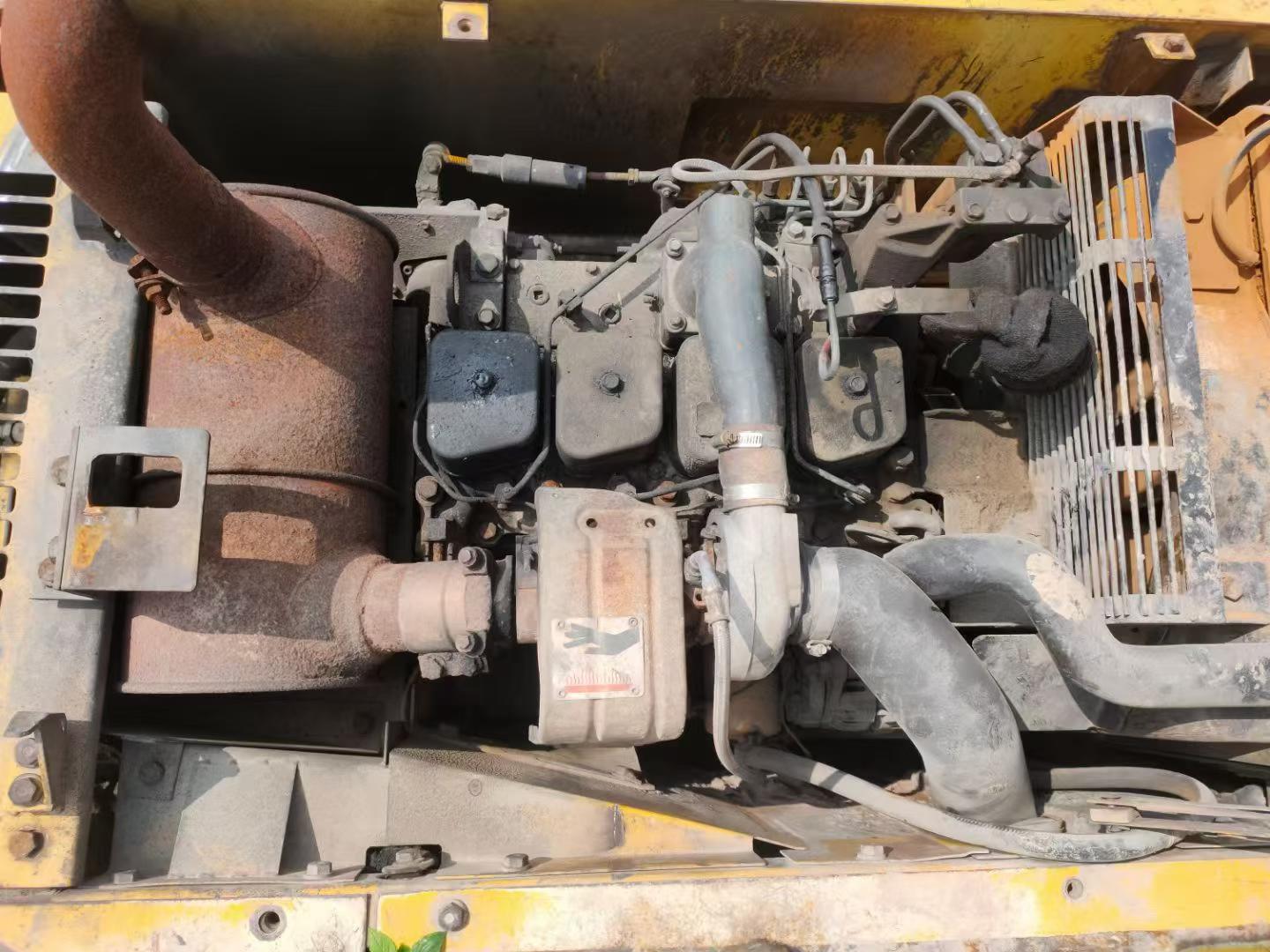

Maximize your equipment budget with this 2016 Komatsu PC120-6 excavator, delivering proven performance at a fraction of new equipment costs. Powered by the reliable Komatsu SAA4D95LE-3 engine generating 64kW at 2200 rpm, this 12-ton workhorse combines efficiency with robust capability. Currently located in Taizhou, Zhejiang, this machine offers exceptional value for contractors seeking dependable mid-size excavation power.
- Operating Weight: 12,030 kg with 0.5 m³ bucket capacity
- Performance: 8,290 mm max digging reach, 5,520 mm max digging depth
- Hydraulics: 226 L/min main pump flow for smooth operation
- Power System: Turbocharged, intercooled diesel with water cooling
- Mobility: 2,880 mm track ground length, 70% gradeability (30°)
- Efficiency: 247L fuel tank, 90L hydraulic reservoir
Invest intelligently in proven Japanese engineering. This PC120-6 provides the reliability and productivity your projects demand without the premium price tag of new machinery. Immediate availability for global shipping.
| Specifications | Value |
|---|---|
| No. | 1024784 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |
| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
