Product Description

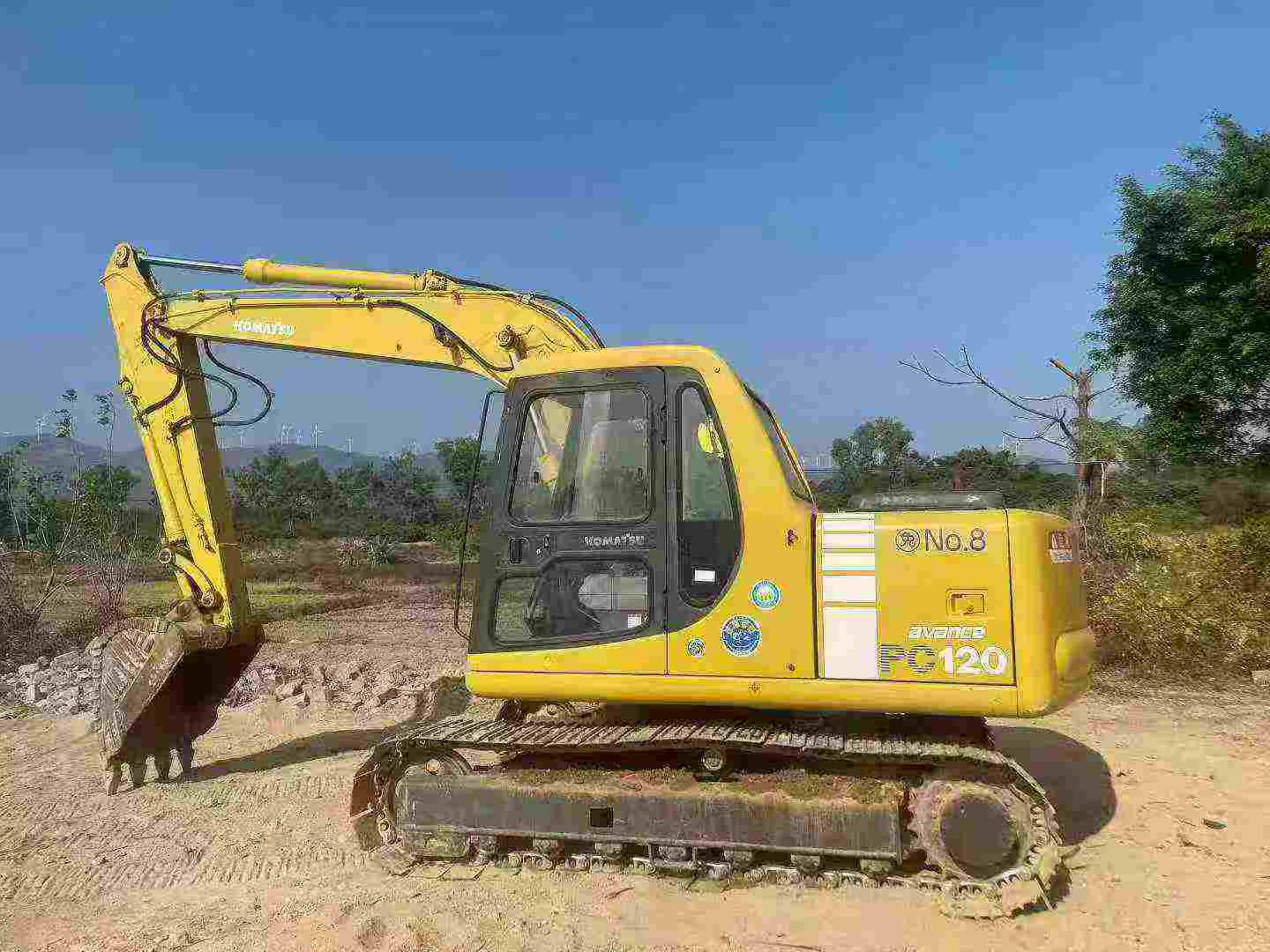

Expand your operational capacity with this 2016 Komatsu PC120-6, a proven 12-ton workhorse engineered for demanding jobsites. Powered by the reliable Komatsu SAA4D95LE-3 turbocharged diesel engine delivering 64kW at 2200rpm, this excavator provides consistent performance when your primary machines are deployed elsewhere. Its 0.5m³ bucket capacity and 2100mm rod length deliver efficient digging cycles, while the 8290mm maximum reach and 5520mm digging depth handle diverse applications from utility work to foundation excavation.
- 12,030kg working weight balances stability with transportability
- 8800kN bucket digging force tackles compacted materials confidently
- 226L/min hydraulic flow ensures responsive control across functions
- Water-cooled 3.26L engine maintains optimal operating temperatures
- 2880mm track ground length provides superior traction on varied terrain
- Currently located in揭阳, Guangdong for immediate inspection
Built by Komatsu's proven joint-venture manufacturing standards, this PC120-6 slots seamlessly into mixed fleets as a reliable backup unit or dedicated support machine. Ready to minimize downtime and maximize project continuity.
| Specifications | Value |
|---|---|
| No. | 1026773 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |
| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

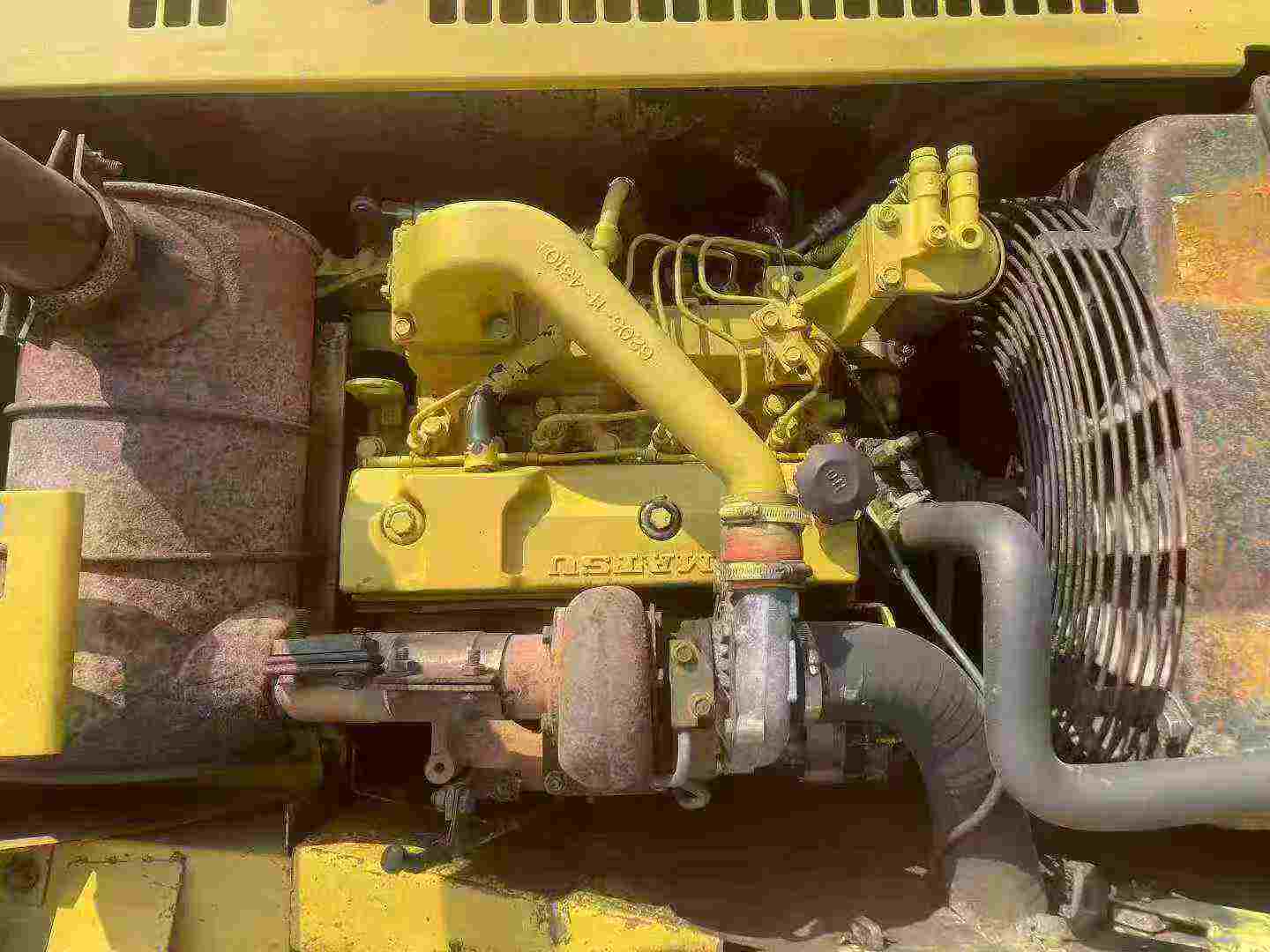

| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |

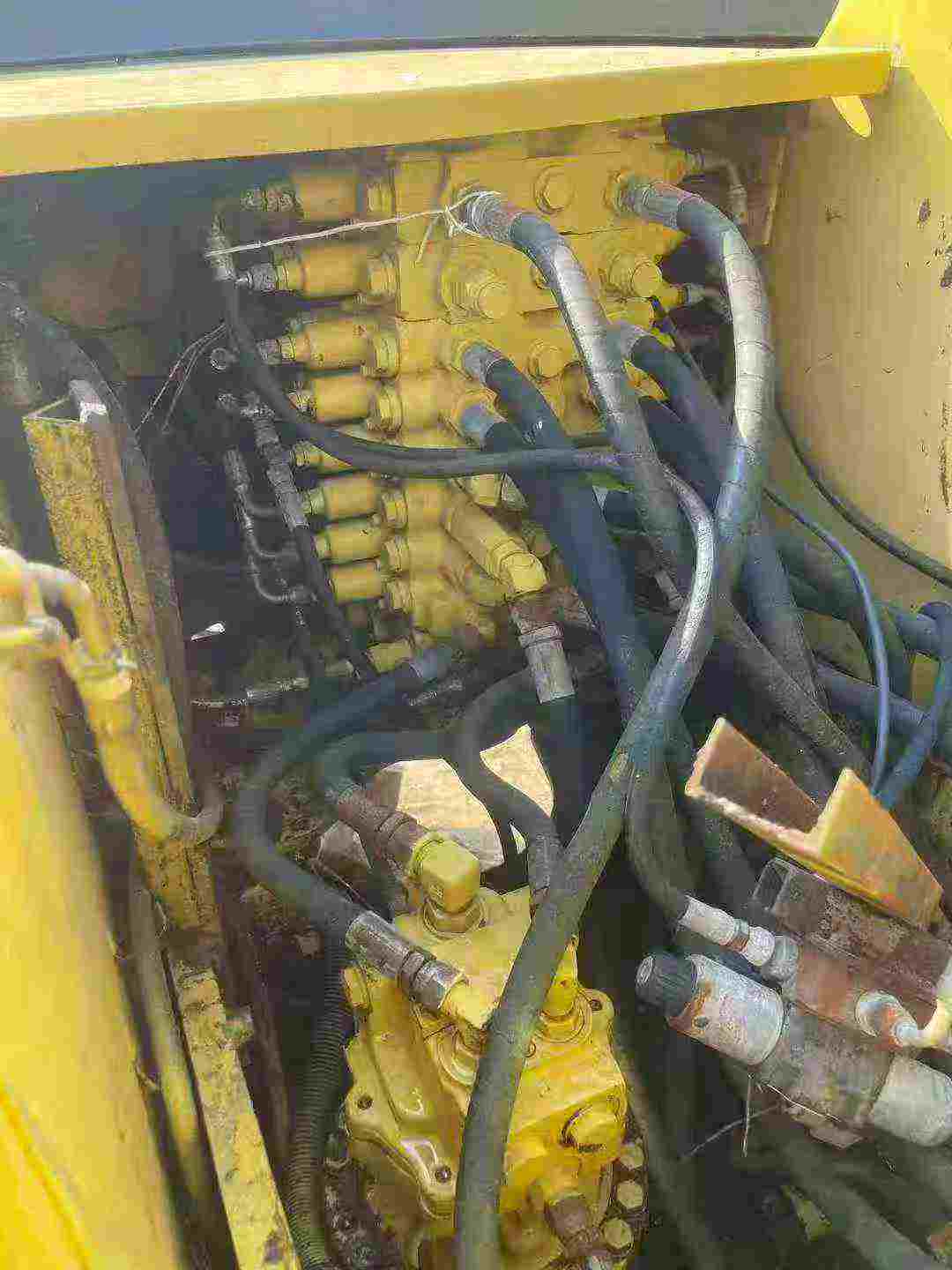

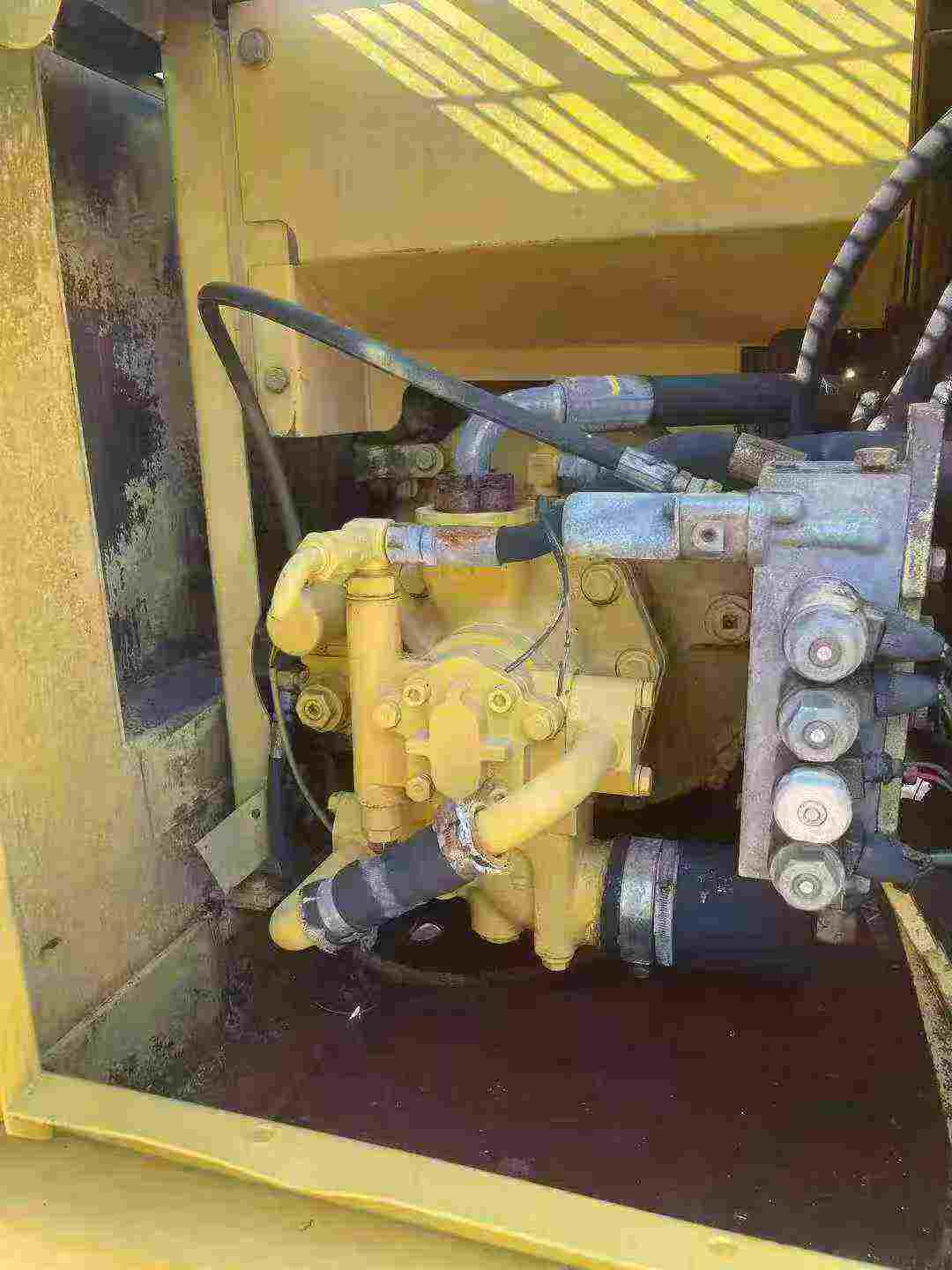

| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
