2017 Komatsu PC120-6

1/9

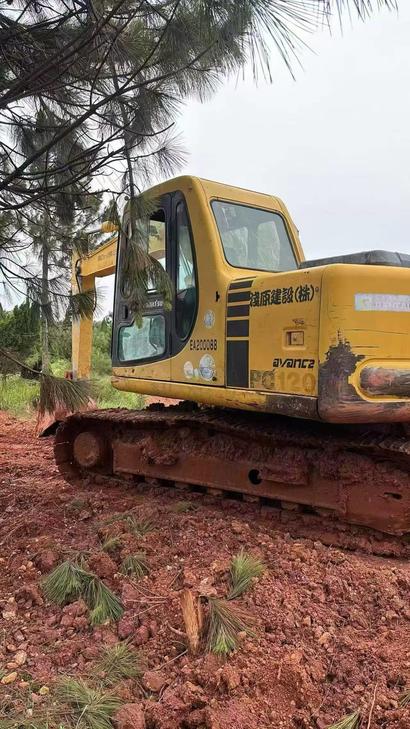

Buy Komatsu PC120-6 Used Excavator / 1
Buy Komatsu PC120-6 Used Excavator / 2
Buy Komatsu PC120-6 Used Excavator / 3
Buy Komatsu PC120-6 Used Excavator / 4
Buy Komatsu PC120-6 Used Excavator / 5
Buy Komatsu PC120-6 Used Excavator / 6
Buy Komatsu PC120-6 Used Excavator / 7
Buy Komatsu PC120-6 Used Excavator / 8
Buy Komatsu PC120-6 Used Excavator / 9

Product Description

This 2017 Komatsu PC120-6 excavator represents a well-maintained addition to any construction or earthmoving fleet. Originally purchased in Shenzhen and currently located in Jiangxi, China, this machine offers proven performance backed by Komatsu's engineering reliability.

Key features include:

  • Factory-installed air conditioning system for operator comfort
  • Smooth hydraulic operation with responsive controls
  • Single-owner history with documented maintenance
  • Standard PC120-6 specifications: 12-ton operating weight class, suitable for medium-duty excavation, trenching, and site preparation

This unit has been operated in controlled conditions and shows consistent performance characteristics. The PC120-6 platform is known for fuel efficiency and serviceability, with parts availability throughout Asia-Pacific markets. Ideal for contractors seeking reliable used equipment with verifiable provenance.

SpecificationsValue
No.1082111
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1082111

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2017

Location:

Jiangxi China

Pub Date
