Product Description

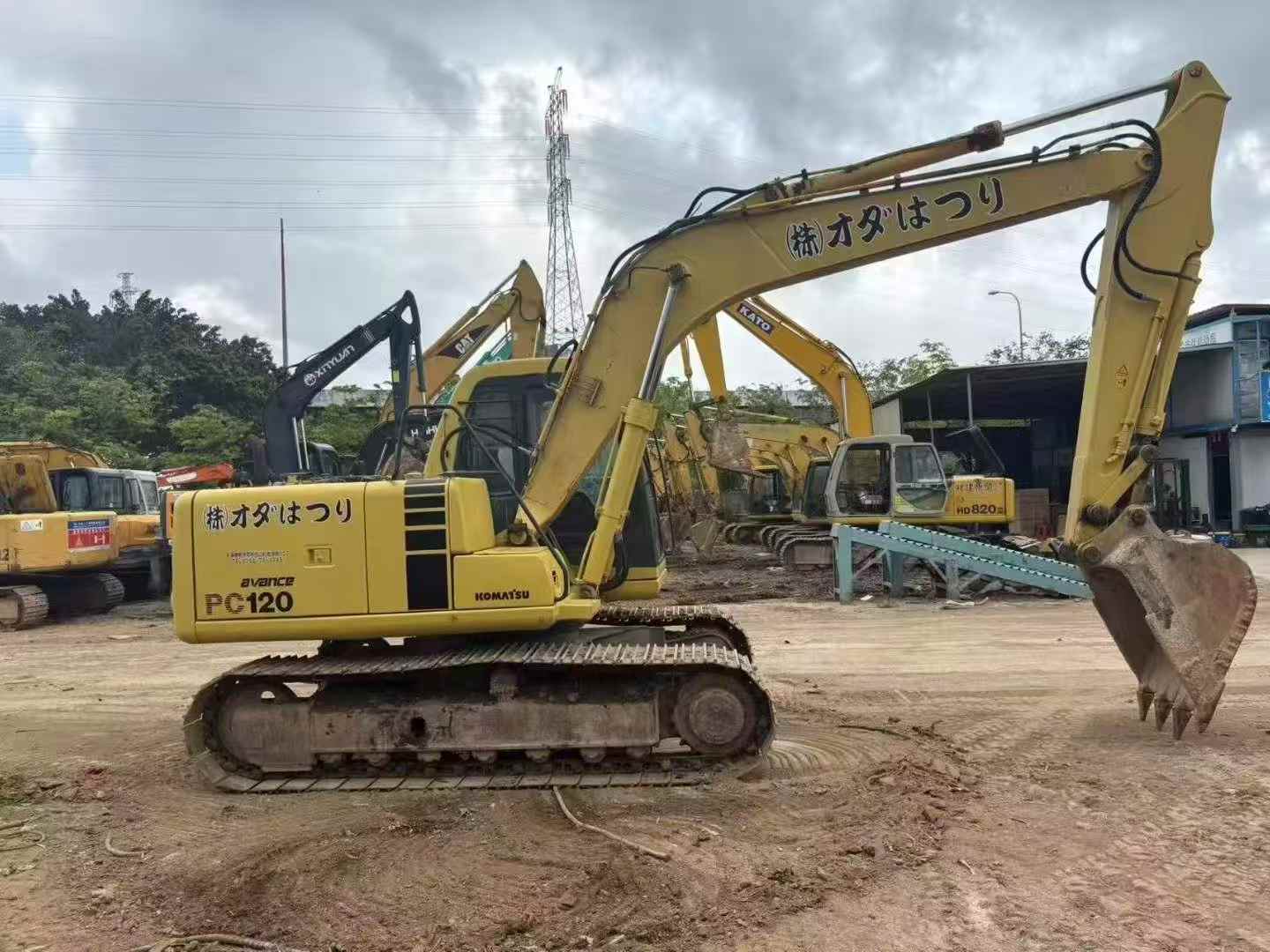

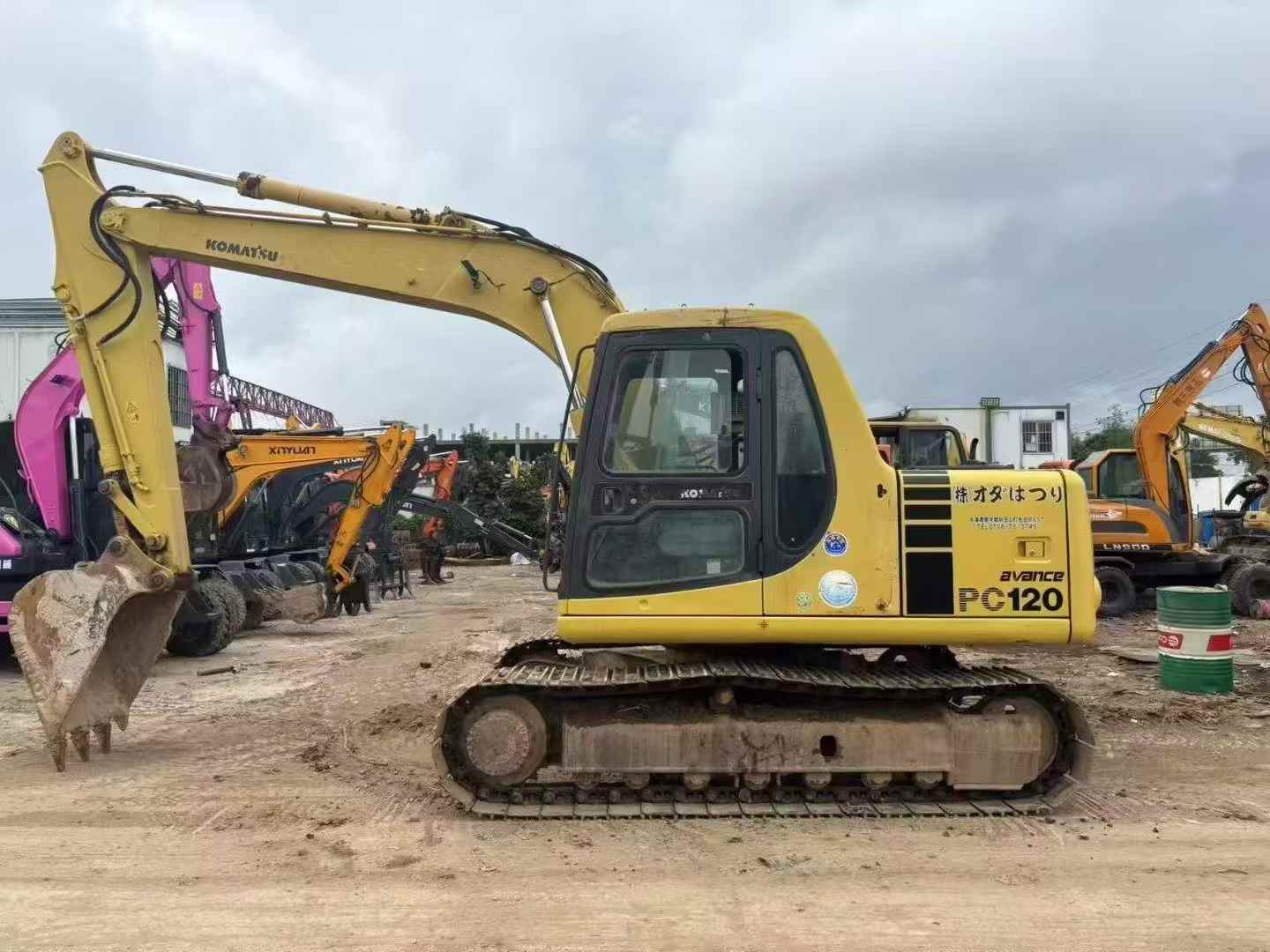

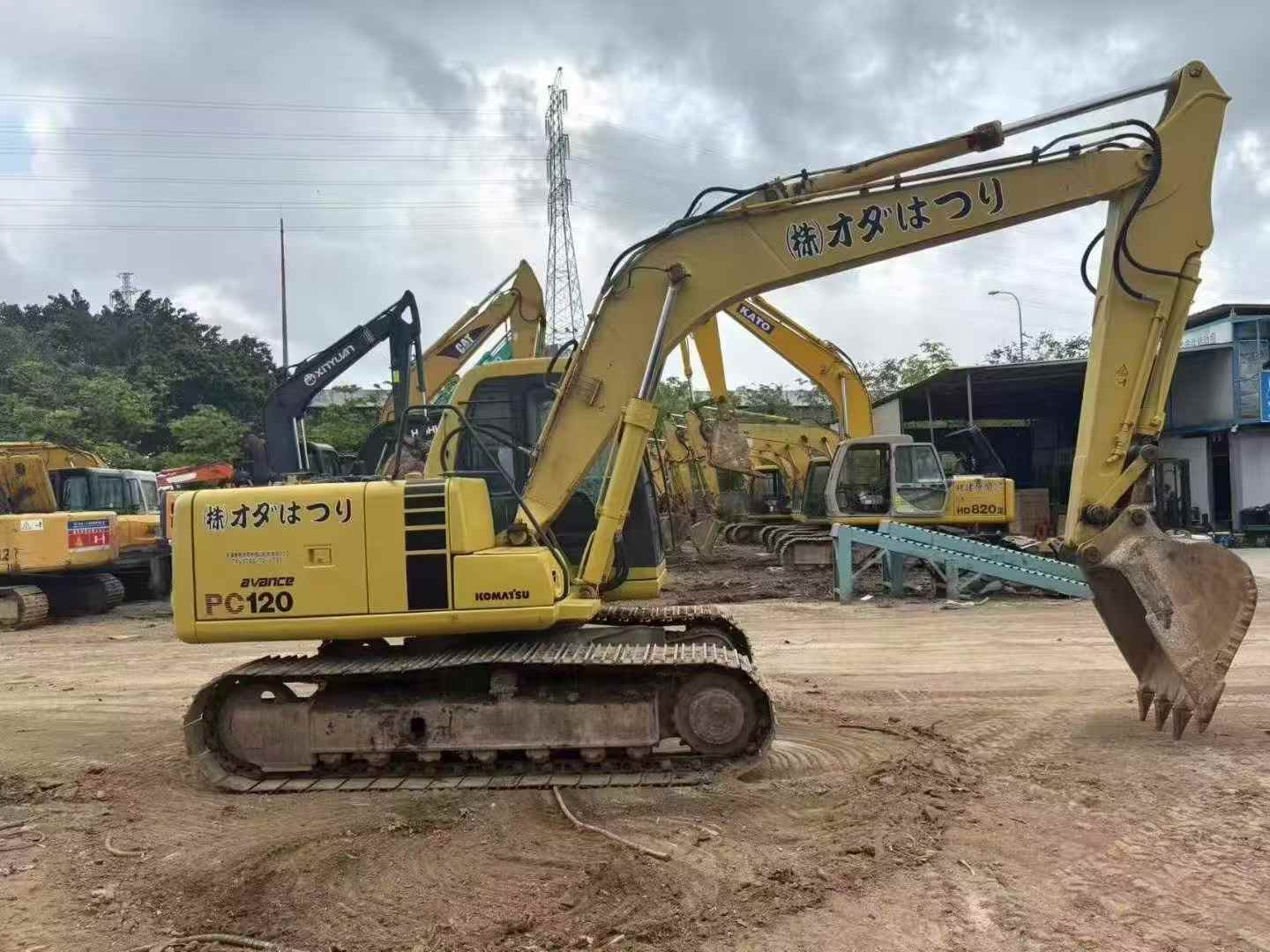

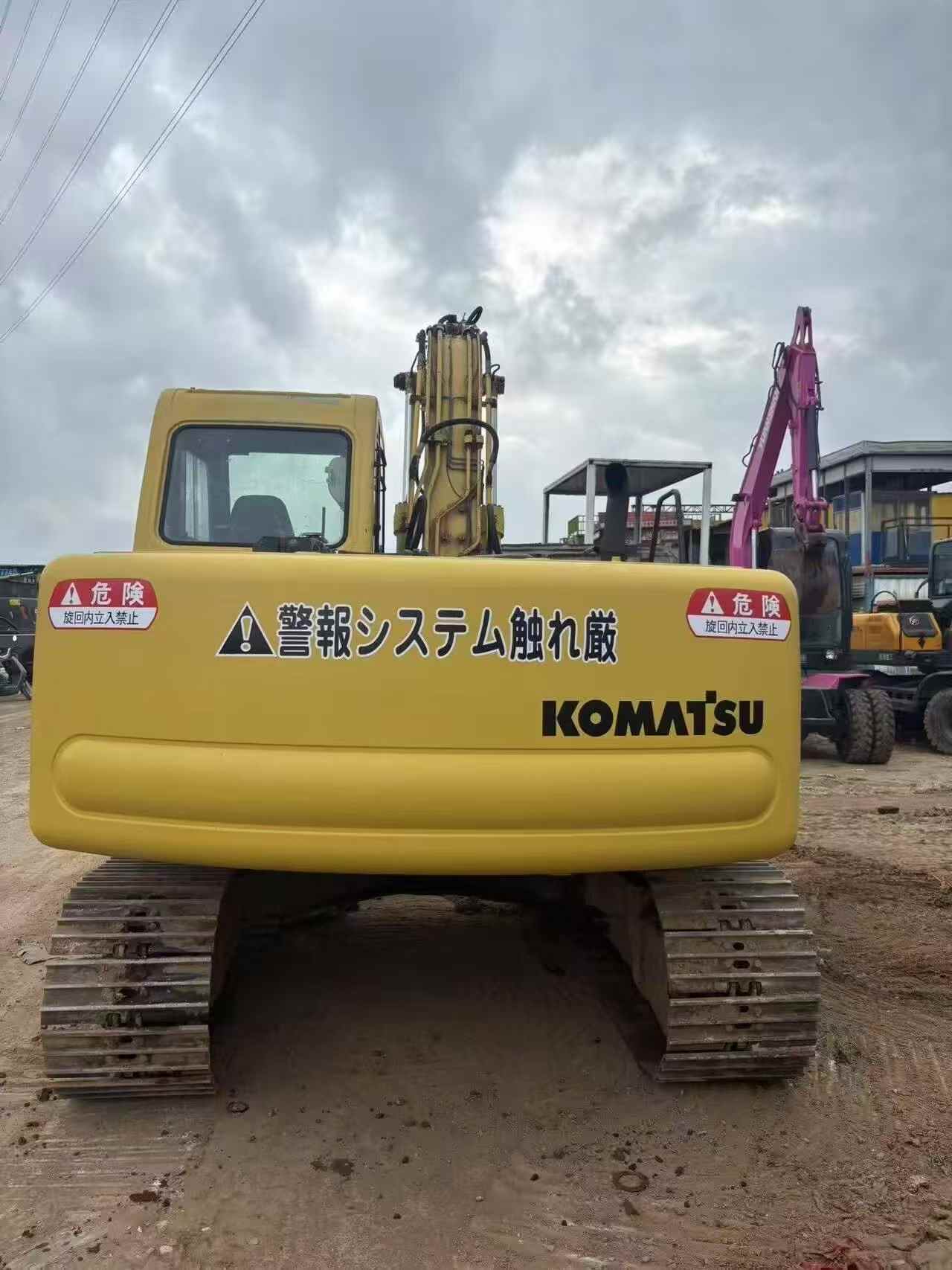

Built for serious work and priced for smart buyers, this 2020 Komatsu PC120-6 delivers proven 12-ton excavator performance at a fraction of new equipment cost. Sourced directly from Guangdong, China, this machine represents a high-value acquisition for contractors, rental fleets, and infrastructure operators who demand reliability without overpaying.

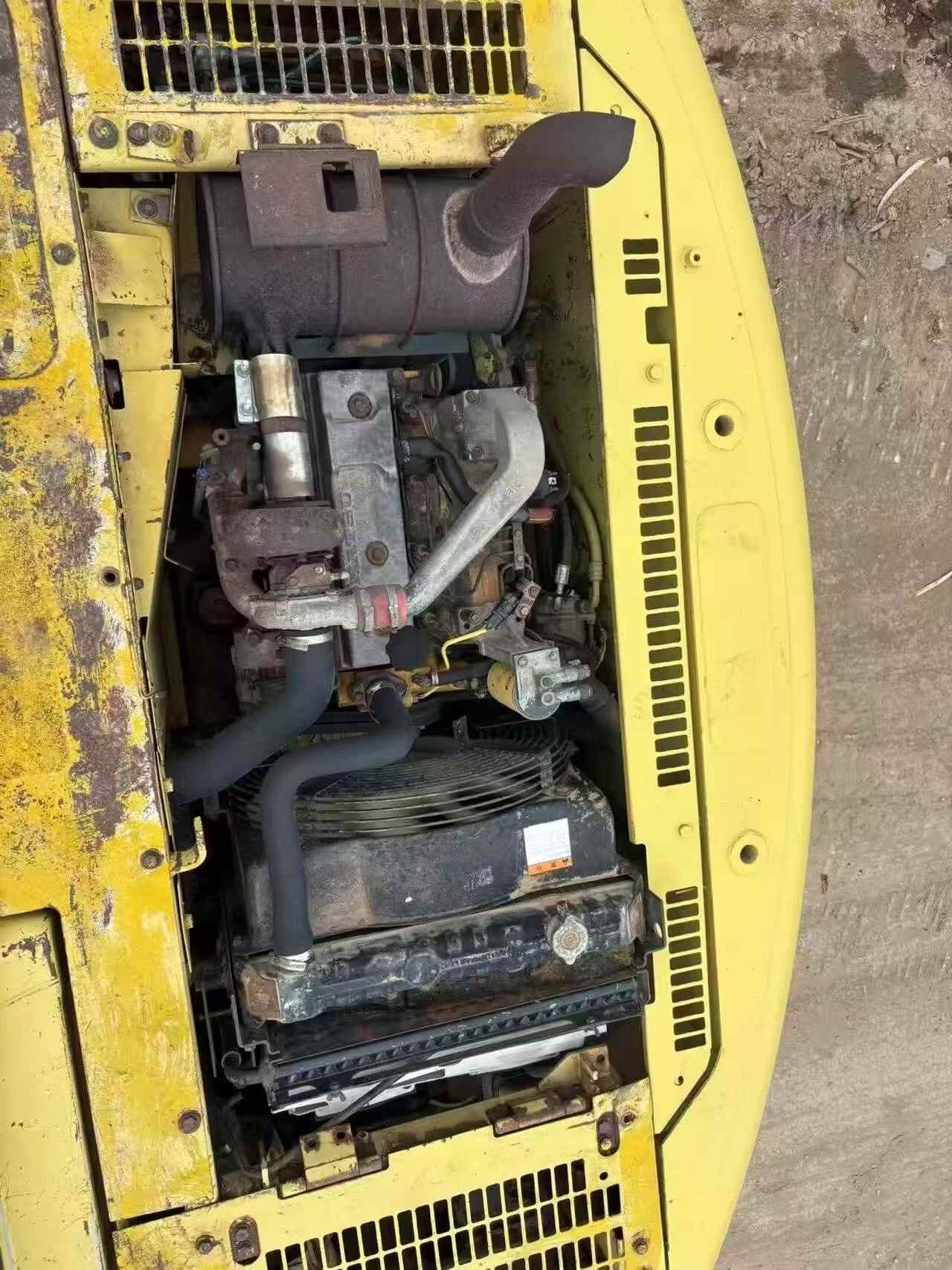

Powered by the Komatsu SAA4D95LE-3 water-cooled diesel engine producing 64 kW at 2,200 RPM, this unit runs a direct injection, turbocharged, and intercooled configuration — engineered for fuel efficiency and long service intervals in demanding conditions.
- Working Weight: 12,030 kg | Bucket Capacity: 0.5 m³
- Max Digging Depth: 5,520 mm | Max Digging Radius: 8,290 mm
- Bucket Digging Force: 88 kN | Arm Digging Force: 63 kN
- Travel Speed: 2.7–5.5 km/h | Climbing Ability: 70% / 30°
- Main Pump Max Flow: 226 L/min | Fuel Tank: 247 L
- Track Plate Width: 500 mm | Ground Pressure: 0.39 kg/cm²
For operations where capital efficiency matters, this PC120-6 delivers class-standard productivity with lower acquisition cost and immediate availability. Contact Fair Trade Machinery for inspection reports and shipping options from Guangdong.
| Specifications | Value |
|---|---|
| No. | 1056468 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |
| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |

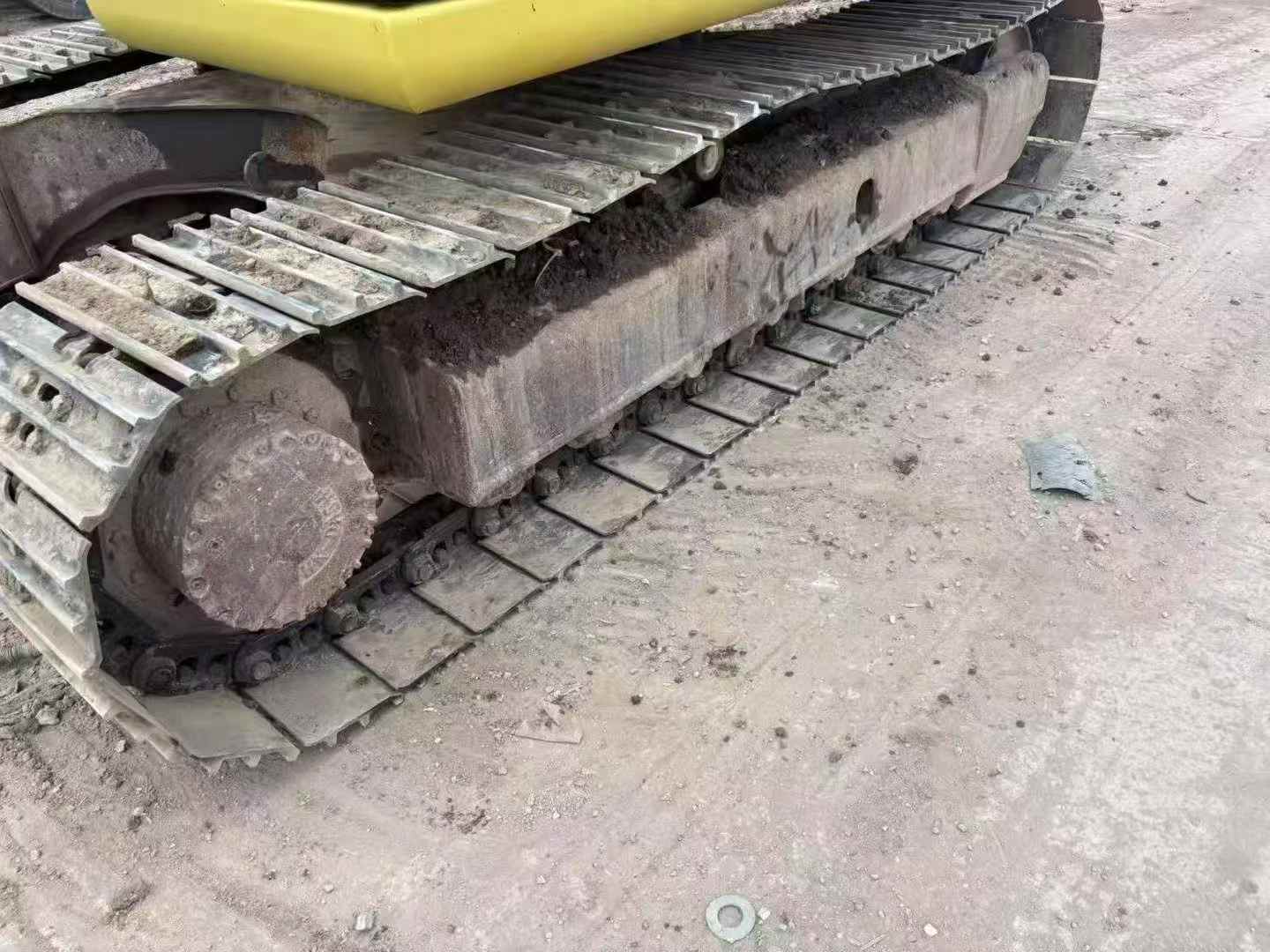

| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
