Product Description

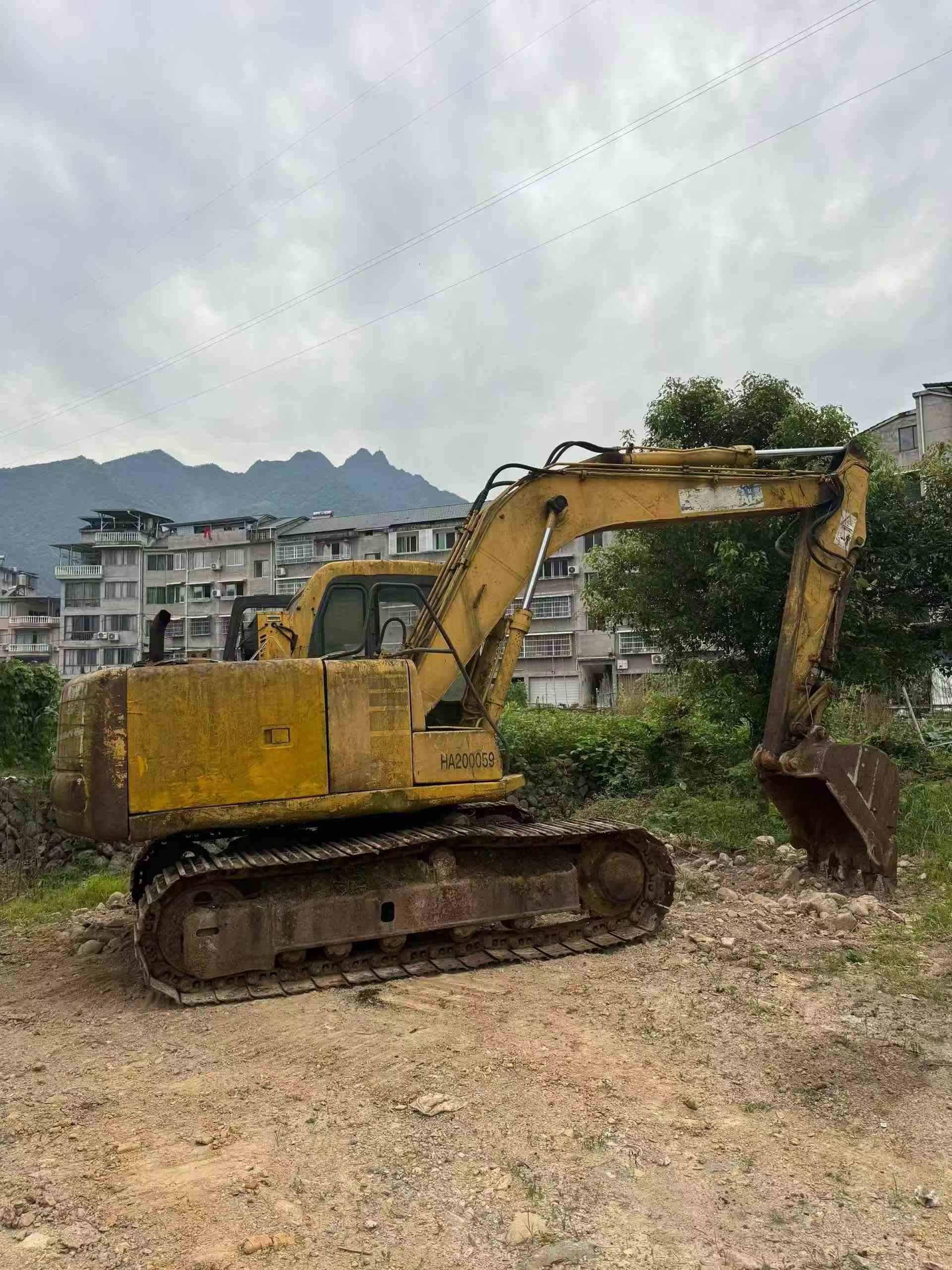

With a working weight of 12,030 kg and a robust 12-ton capacity, the Komatsu PC120-6 stands as a paragon of durability and reliability. Featuring a powerful Komatsu SAA4D95LE-3 engine, this 2020 model delivers 64 kW at 2200 rpm, ensuring consistent performance in demanding environments. Equipped with a 0.5 m³ bucket and a 2100 mm rod length, it excels in various excavation tasks. Built to last, this excavator boasts a proven track record, making it a trusted workhorse for construction and mining operations. Its water-cooled, direct injection, turbocharged, and intercooled diesel engine ensures efficient and reliable operation, even in challenging conditions.
- Maximum digging depth: 5520 mm
- Bucket digging force: 8800 kN
- Travel speed: 2.7-5.5 km/h
- Fuel tank capacity: 247 L
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1057077 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |

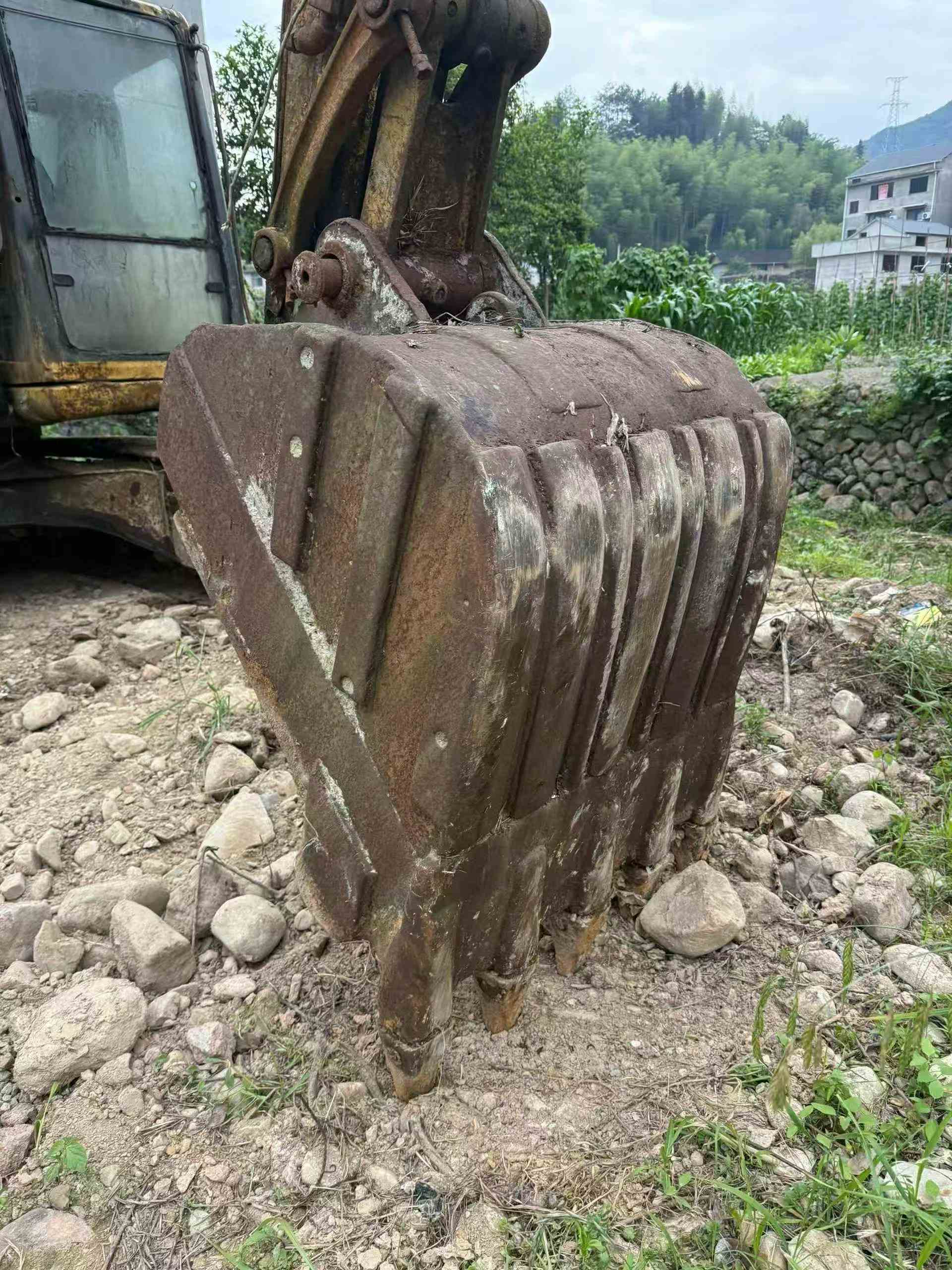

| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

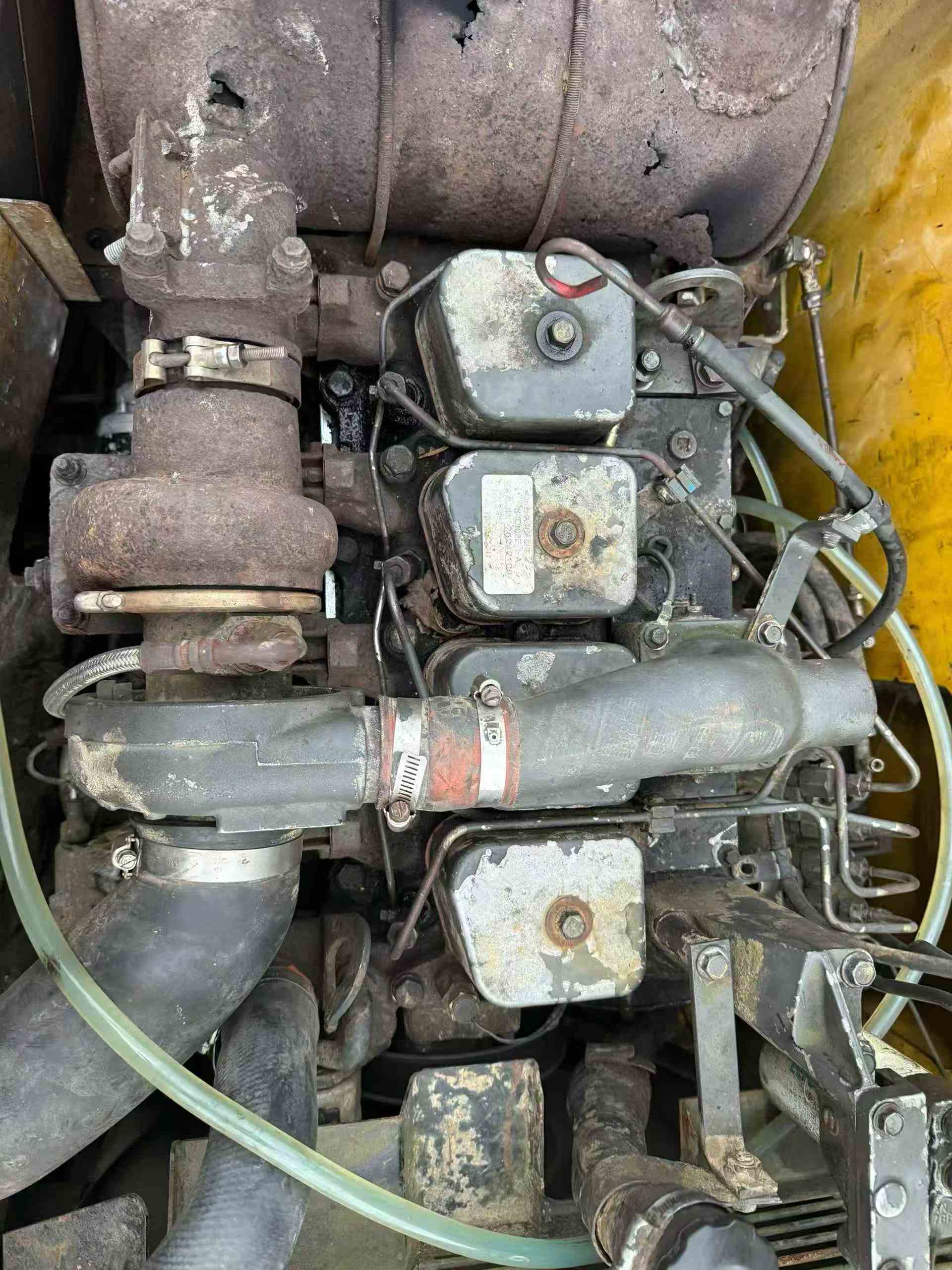

| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |

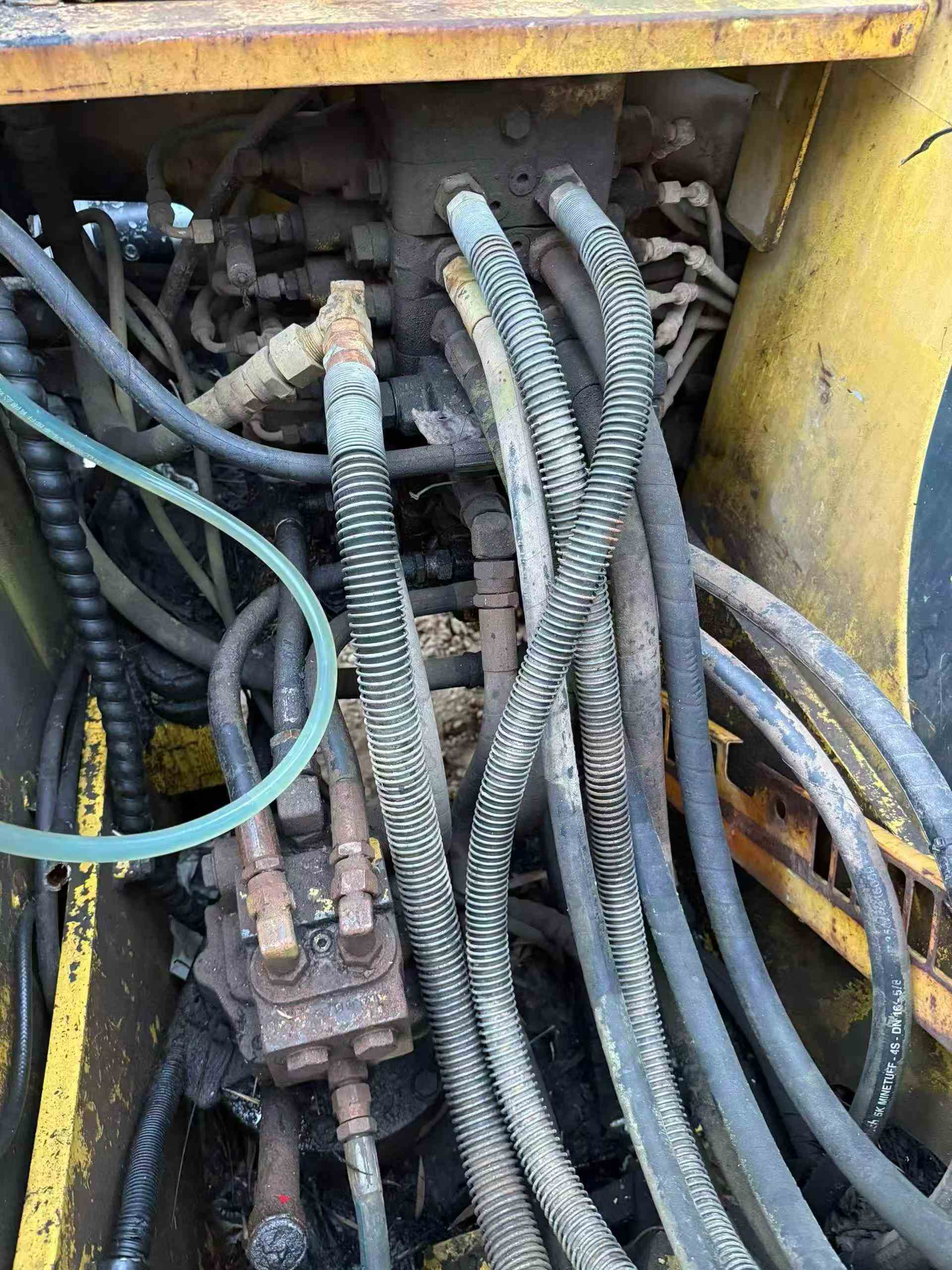

| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |

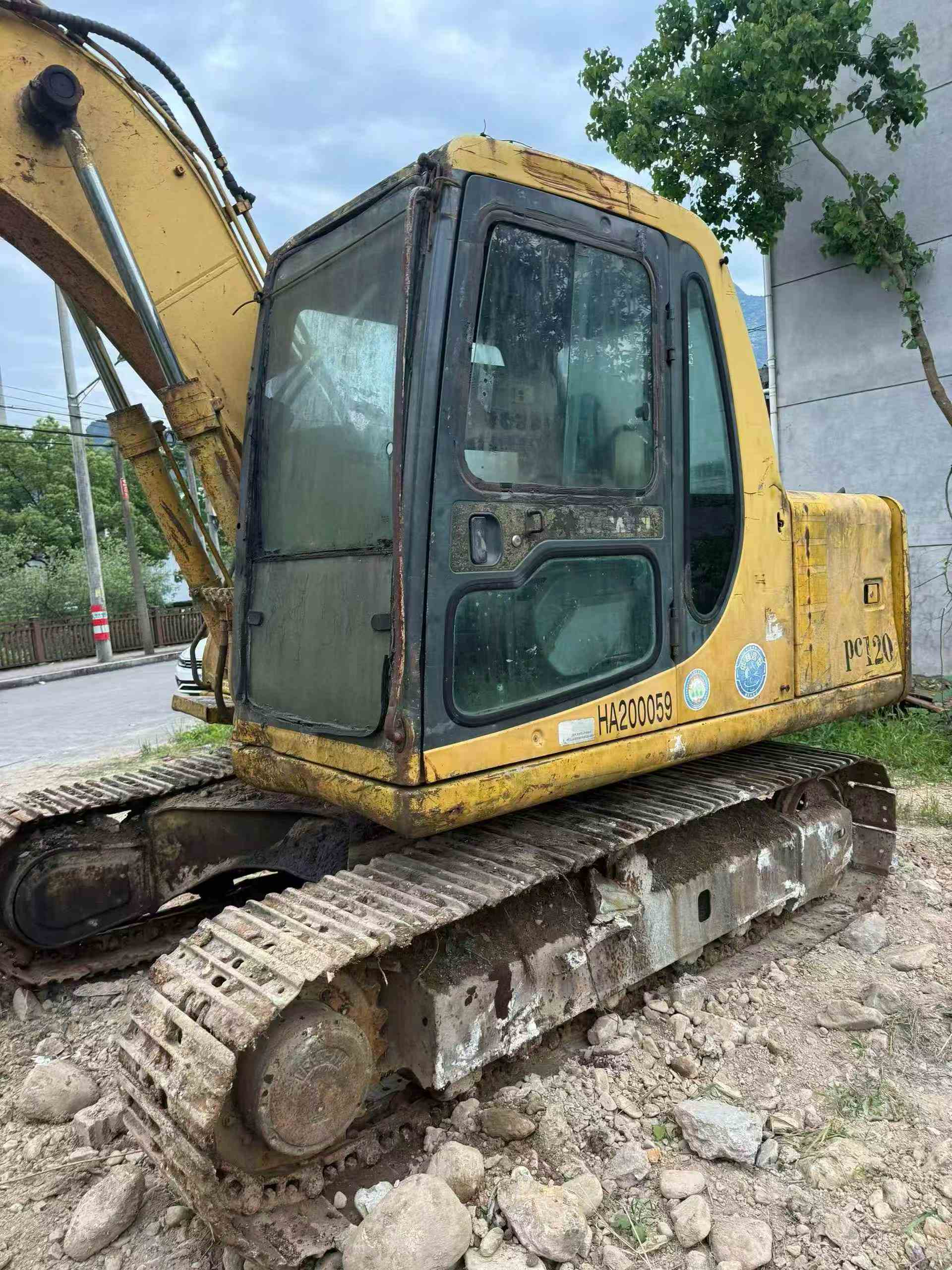

| Full cab height (mm) | 2175 |

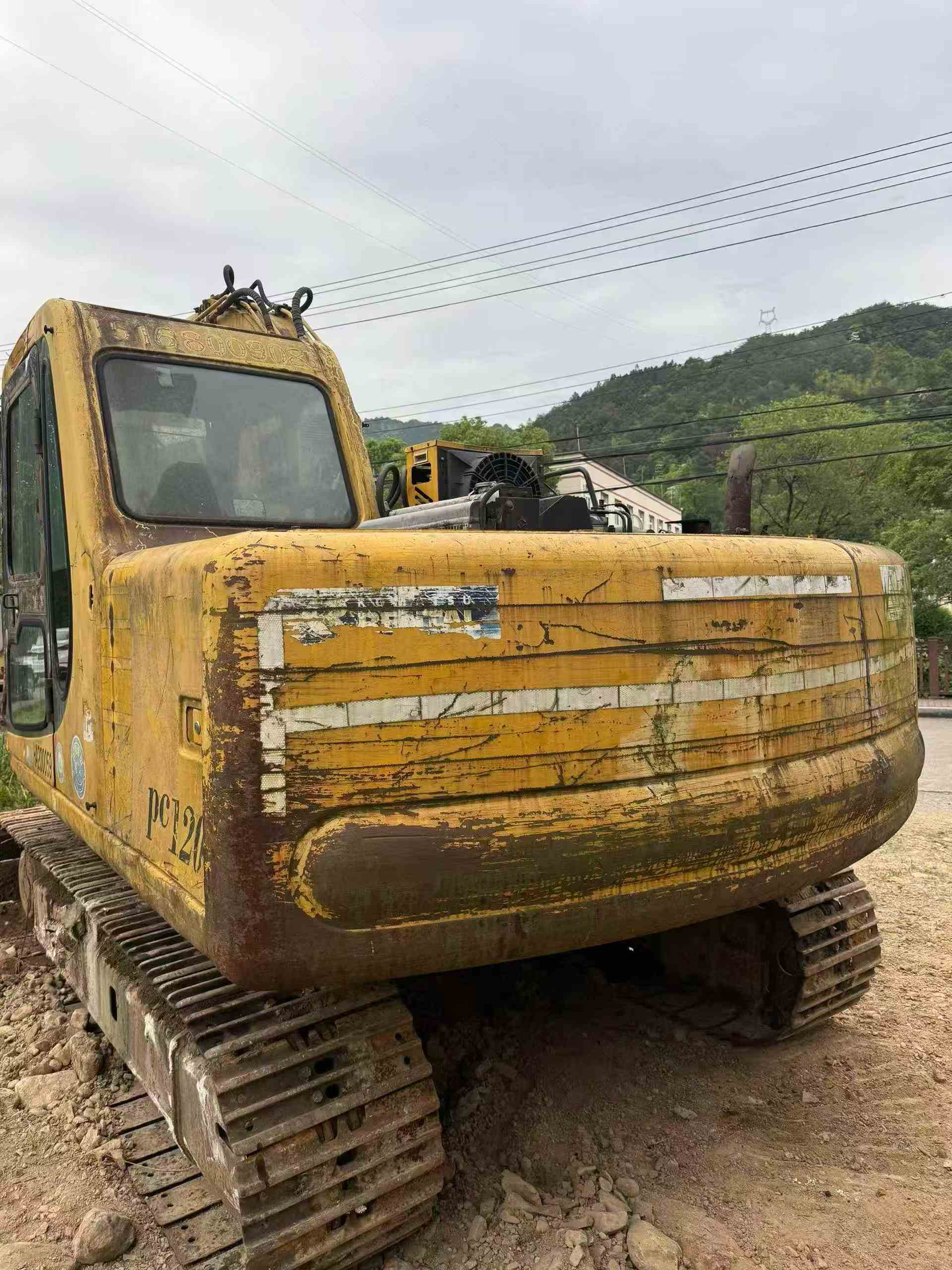

| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |

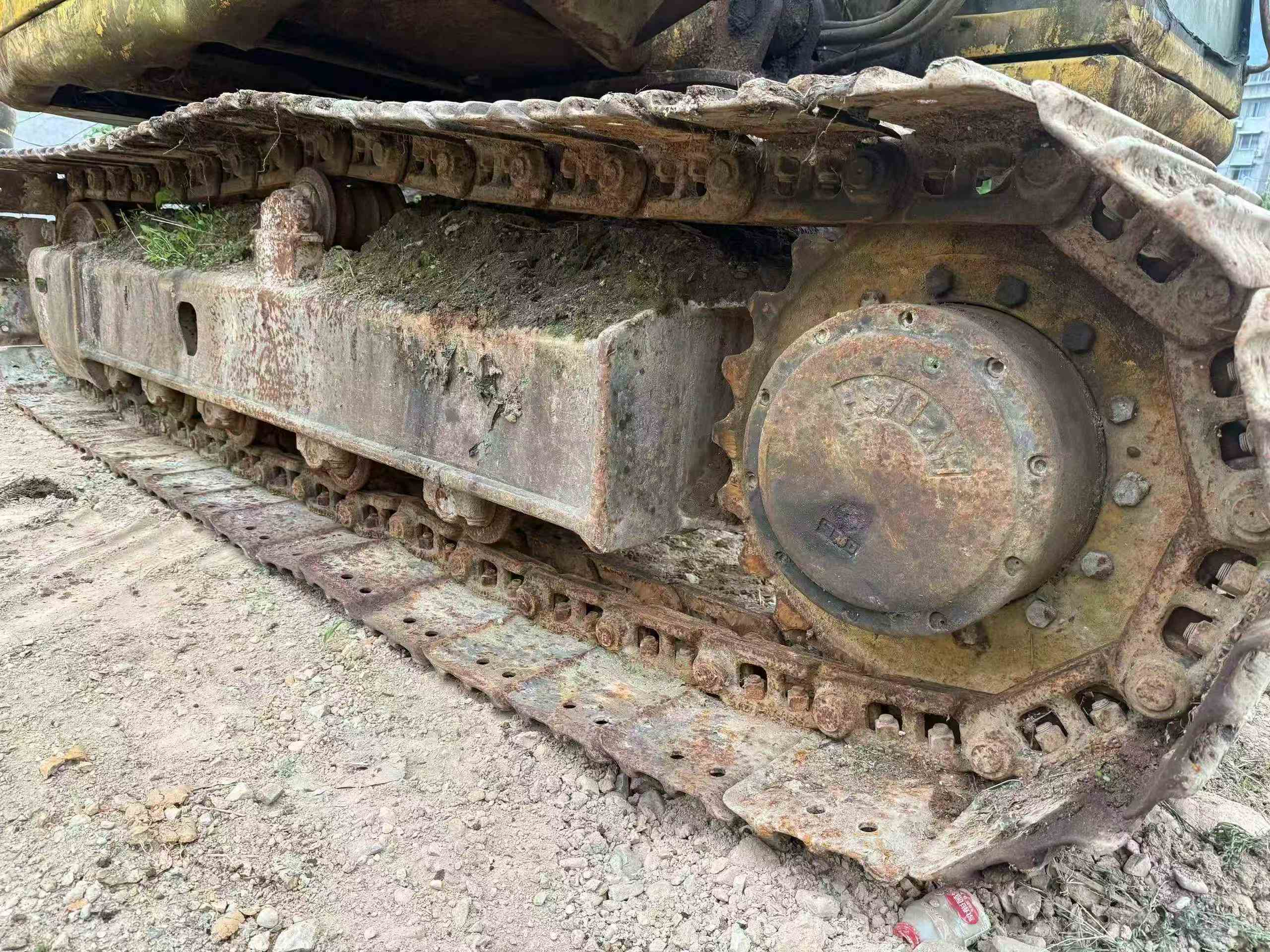

| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |

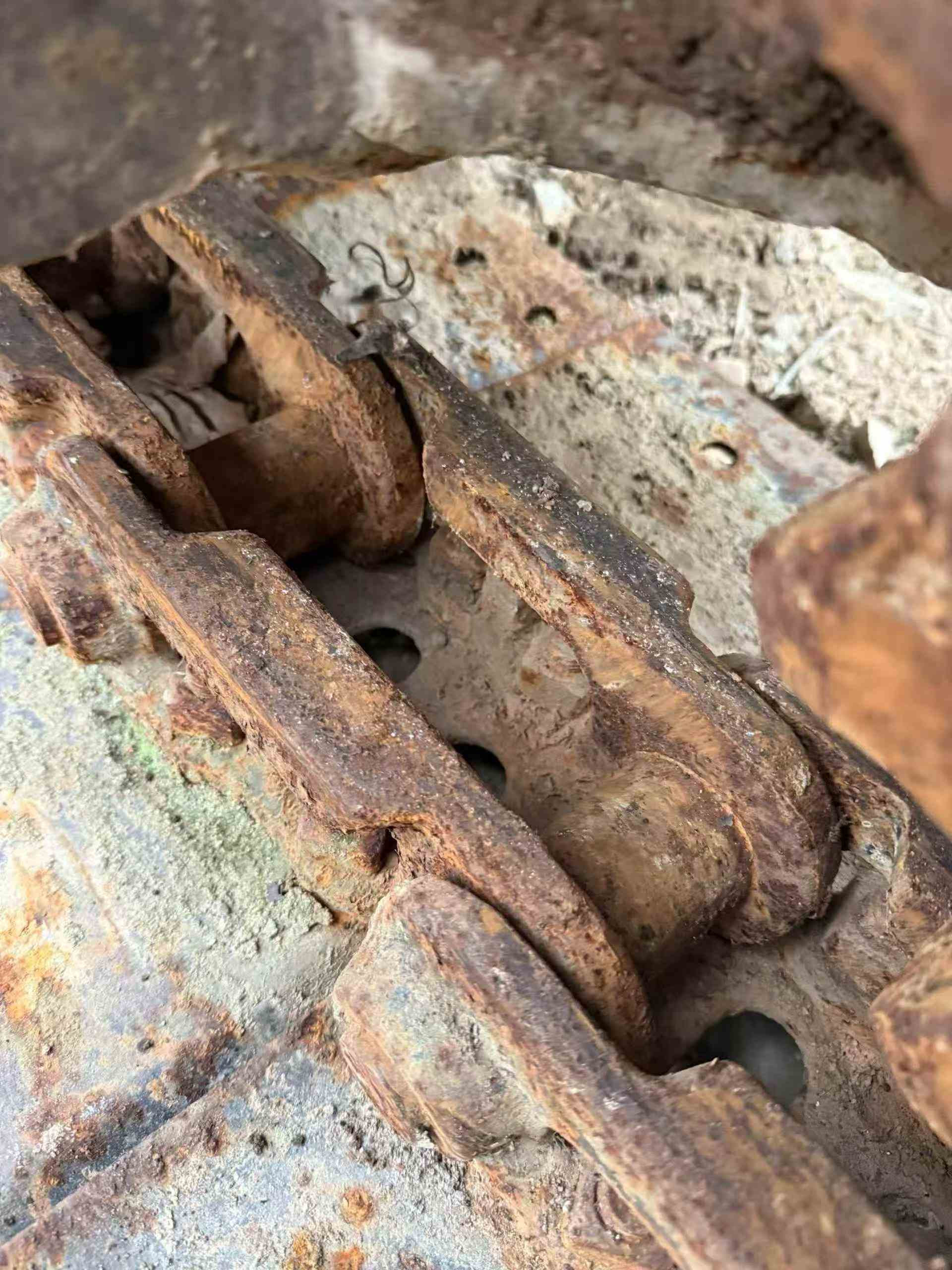

| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
