2020 Komatsu PC120-6

1/4
Buy Komatsu PC120-6 Used Excavator / 1

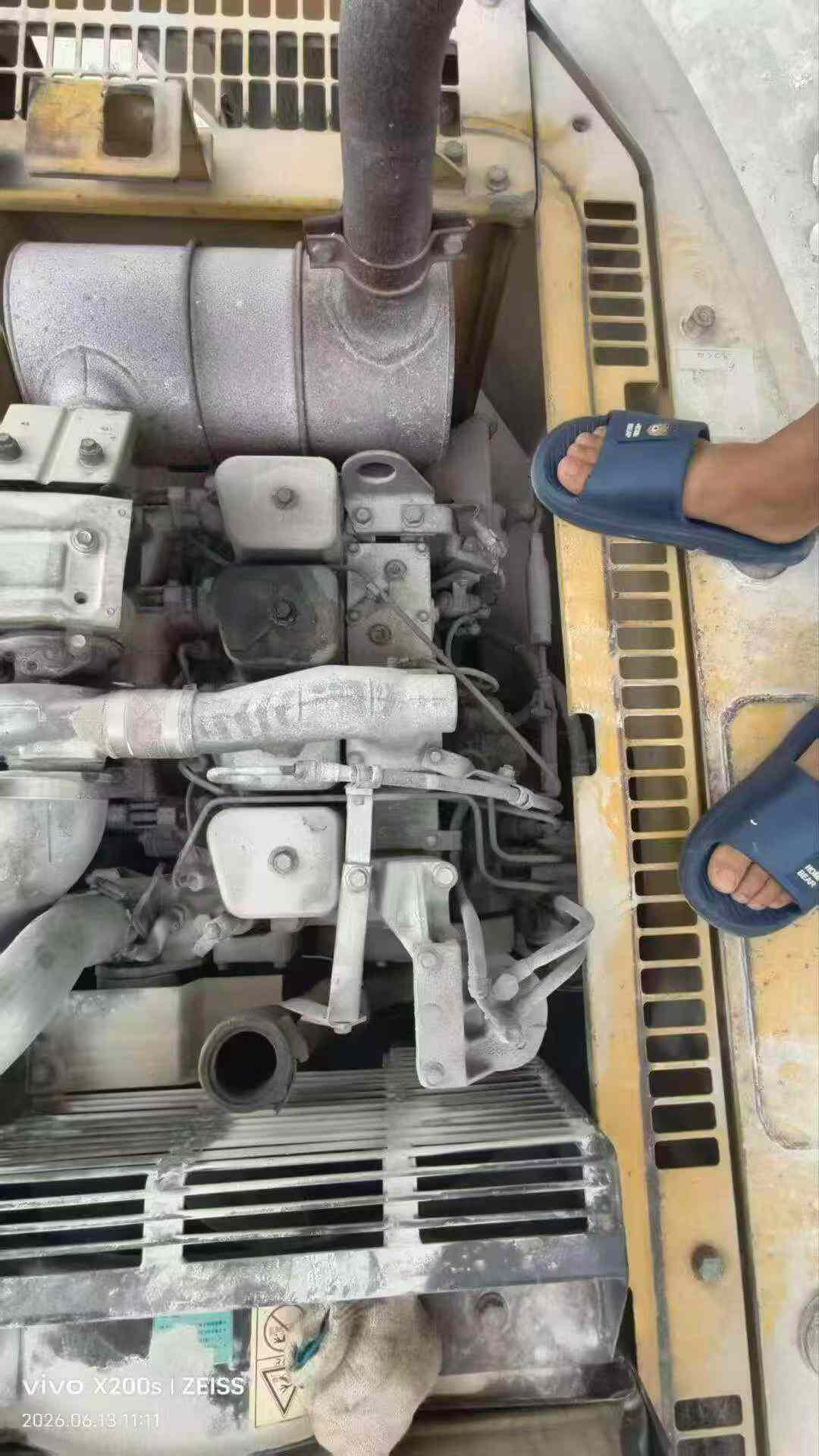

Buy Komatsu PC120-6 Used Excavator / 2

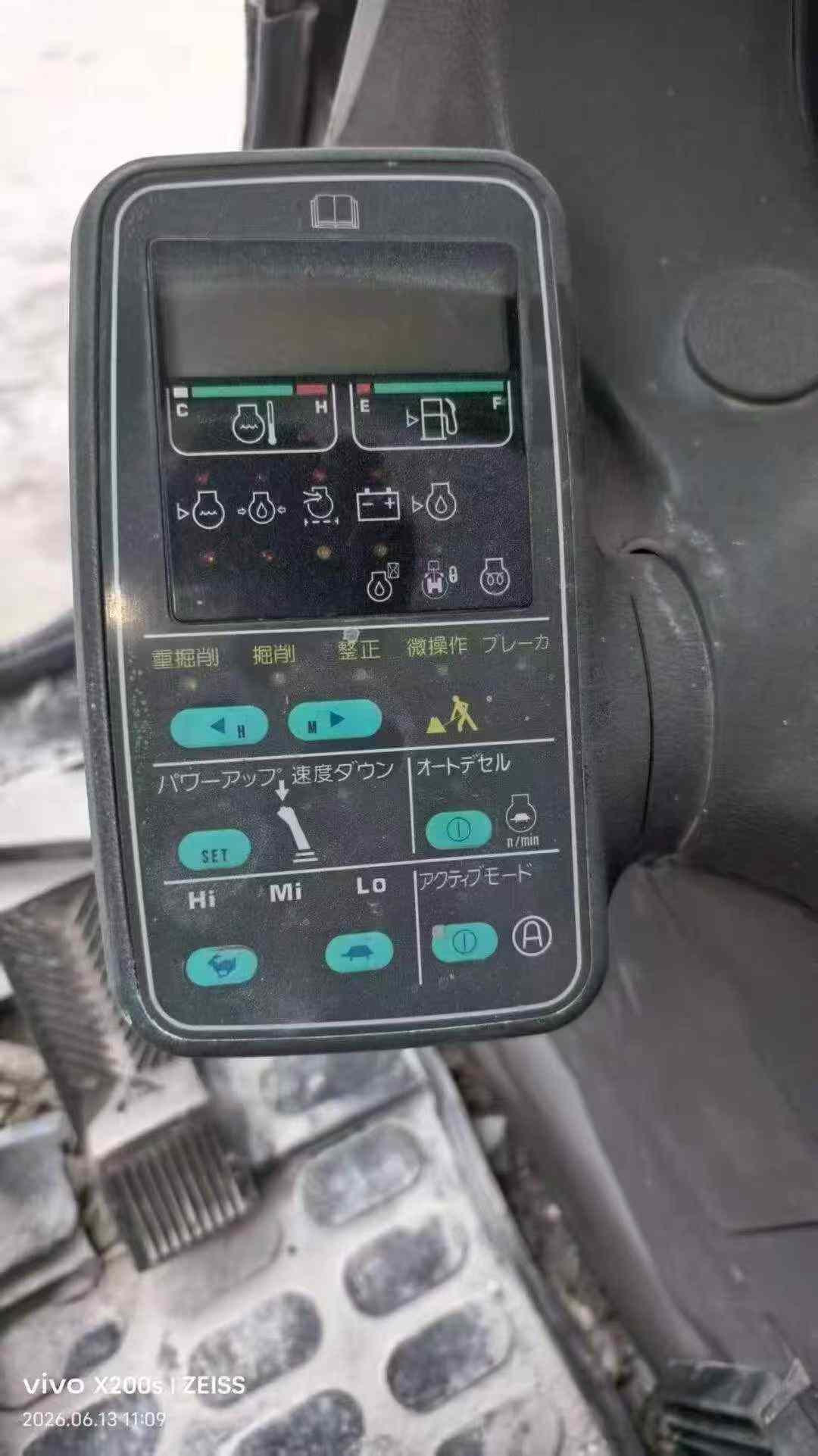

Buy Komatsu PC120-6 Used Excavator / 3

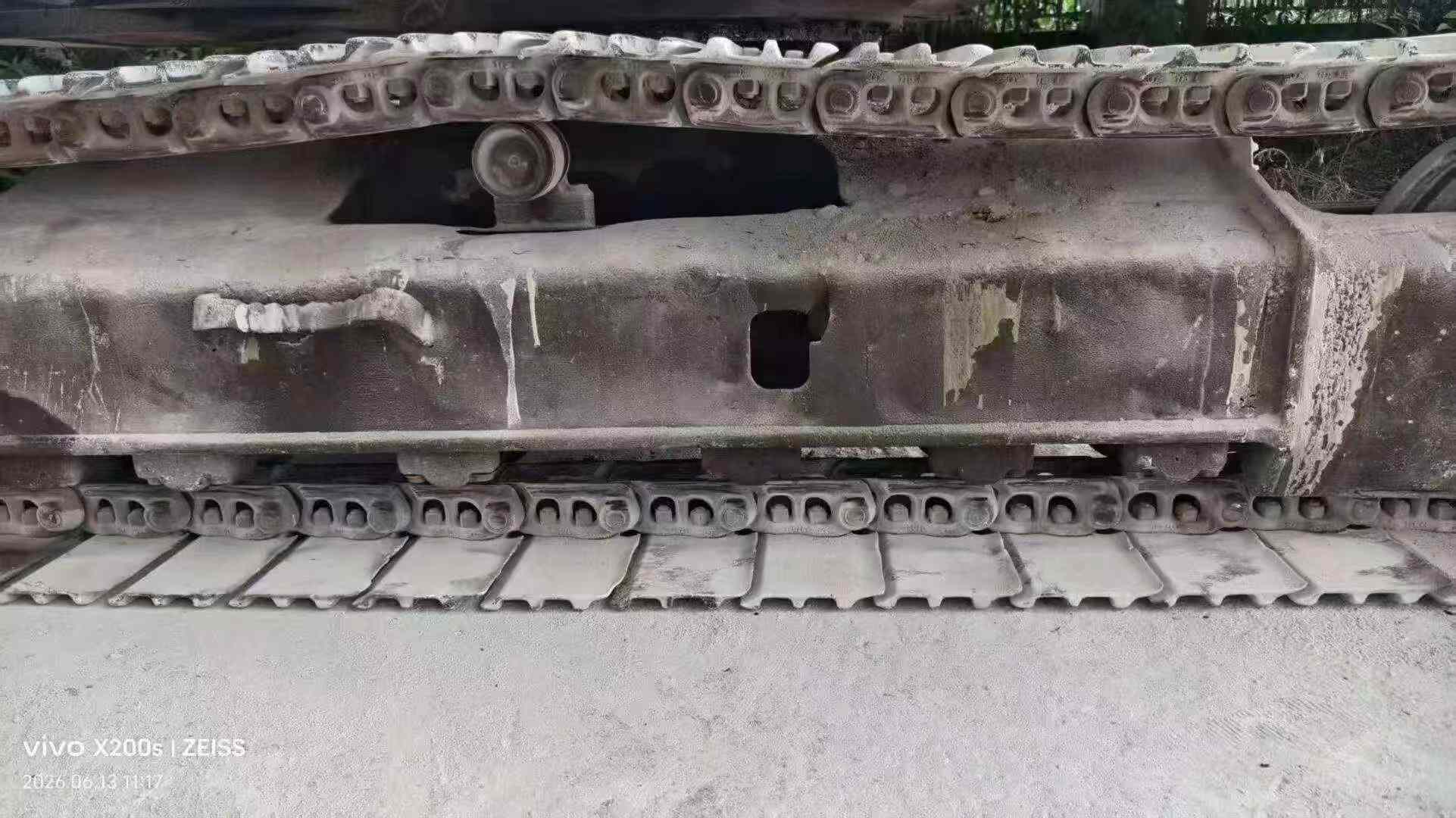

Buy Komatsu PC120-6 Used Excavator / 4

Product Description

Discover the robust and reliable Komatsu PC120-6, a 2020 model excavator available in Sichuan, China. This machine is designed for efficiency and durability, making it an excellent choice for a wide range of construction and excavation projects. With its powerful performance and ease of operation, the PC120-6 is a trusted workhorse in the industry.

  • Year: 2020
  • Brand: Komatsu
  • Model: PC120-6
  • Location: Sichuan, China
  • Priced at 40,000 RMB, offering great value for a high-quality used excavator
SpecificationsValue
No.1087871
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1087871

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2020

Location:

Sichuan China

Pub Date
