Product Description

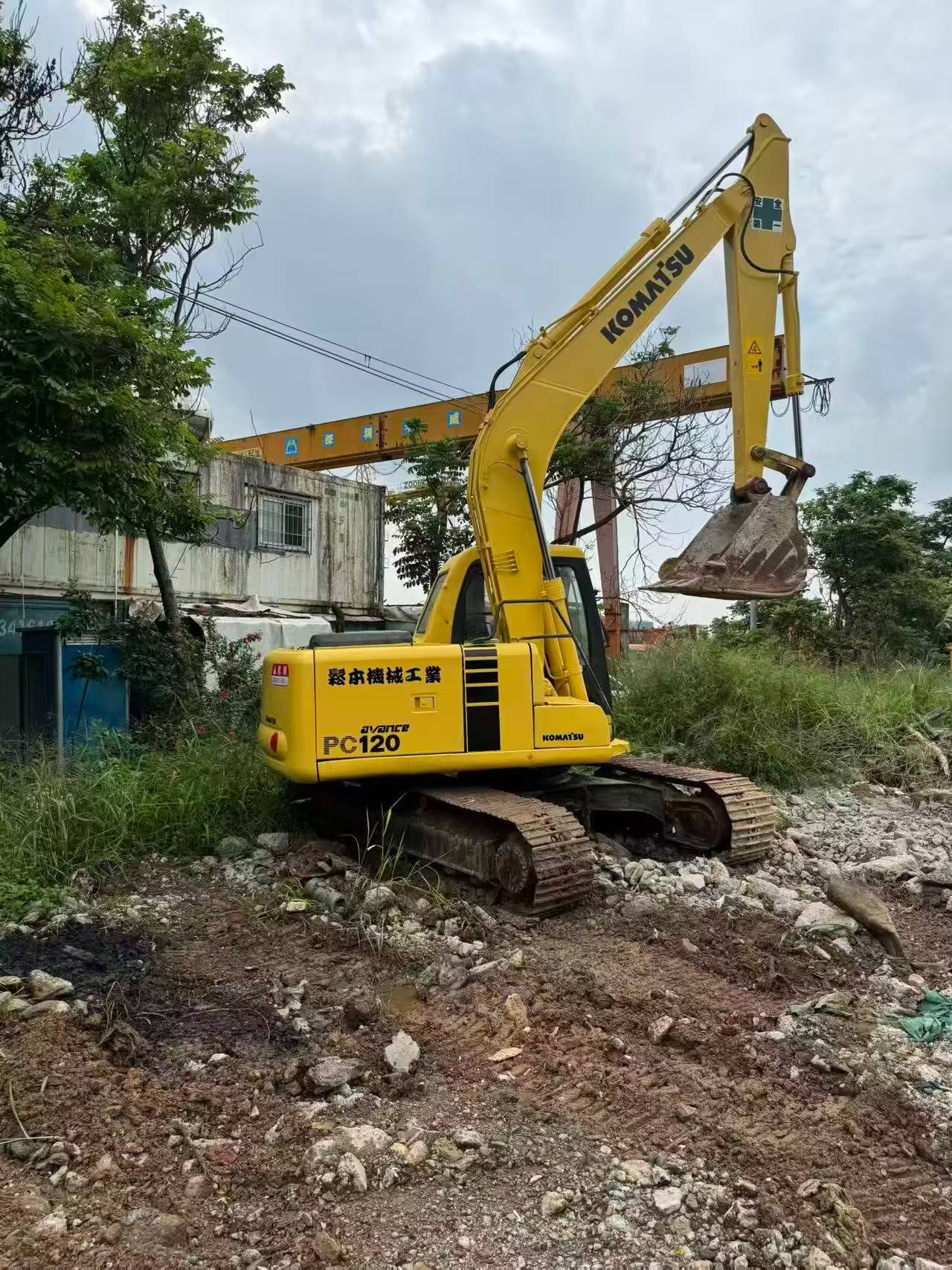

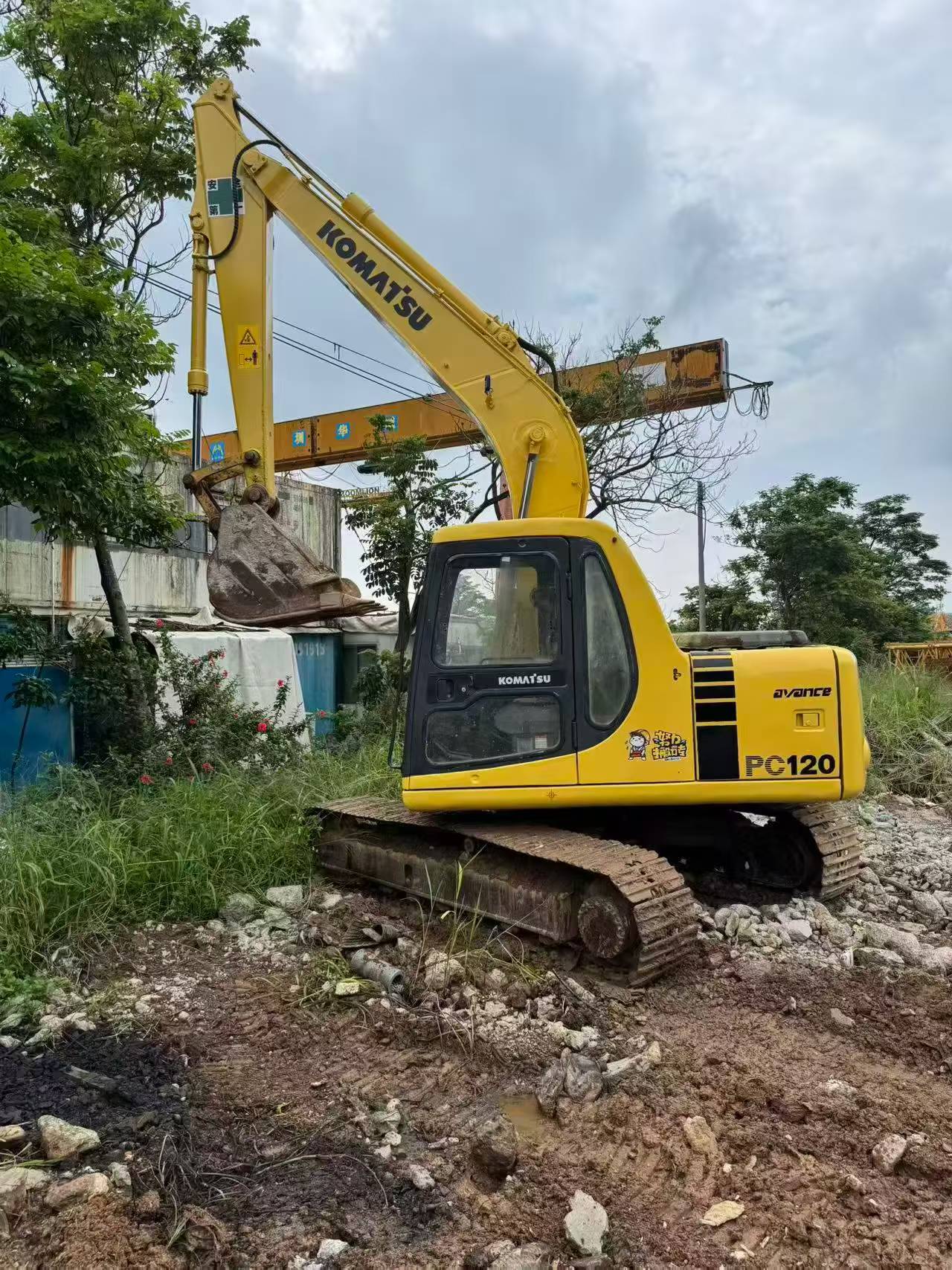

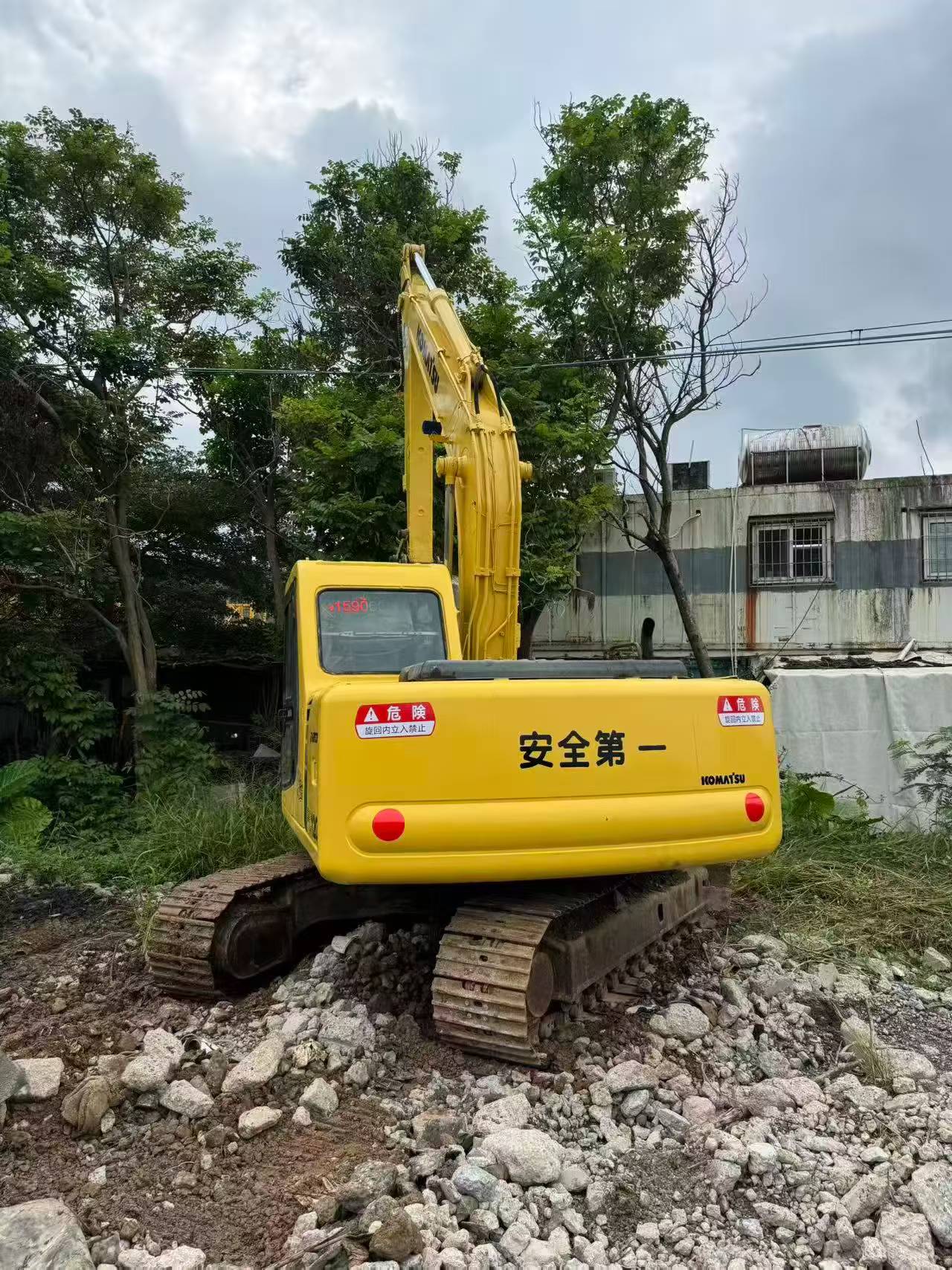

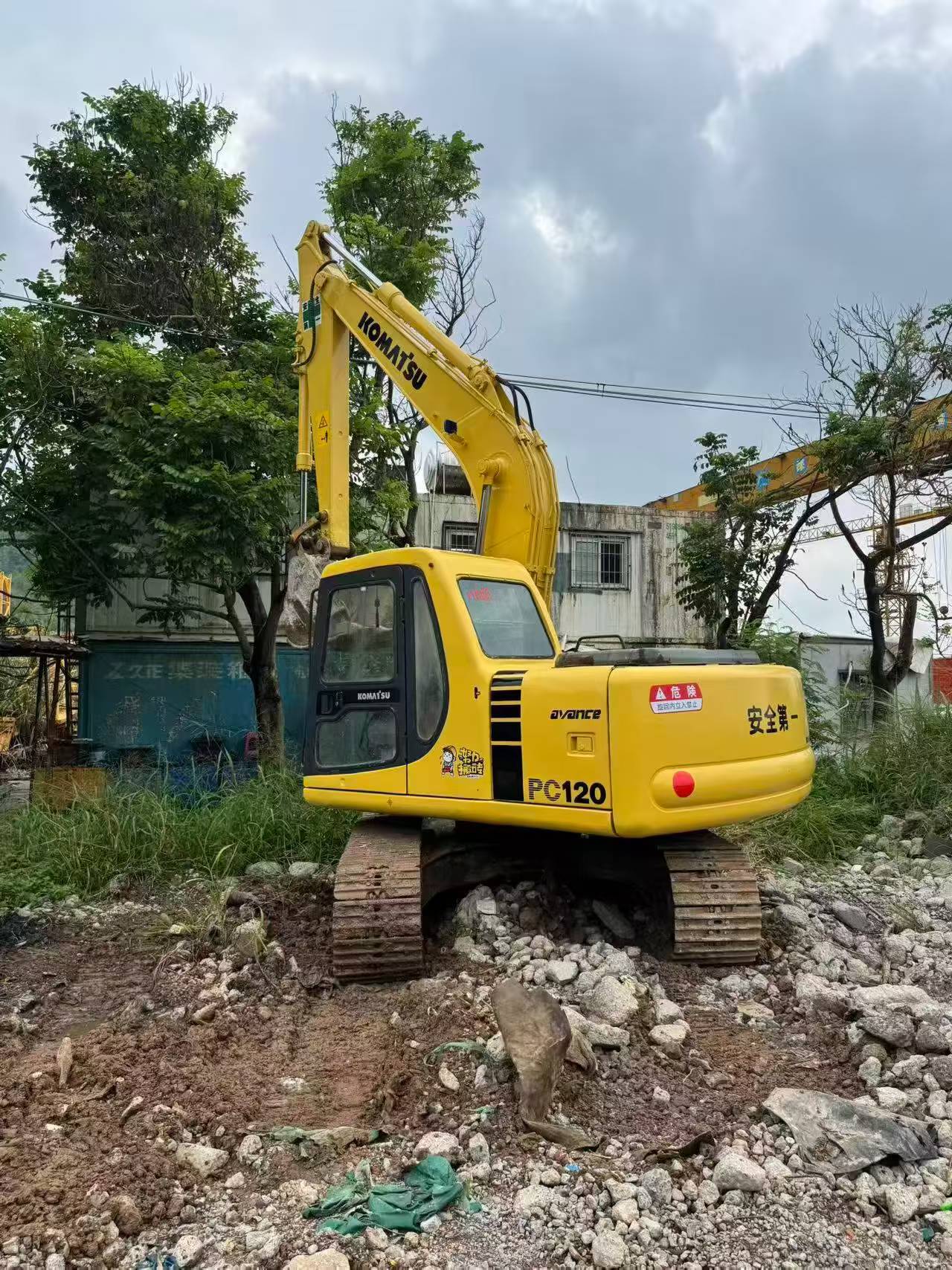

Discover the reliability and efficiency of this 2020 Komatsu PC120-6 excavator, available in Guangdong, China. This machine is in excellent working condition, ideal for a variety of construction and excavation tasks. It features a well-maintained electric throttle and chain, ensuring smooth and responsive operation. The hydraulic system is in top form, providing robust performance and ease of use. Priced affordably at over 50,000, this Komatsu model offers a cost-effective solution without compromising on quality or capability.
- Year: 2020
- Brand: Komatsu
- Model: PC120-6
- Location: Guangdong, China
- Condition: Well-maintained, ready for work
- Key Features: Electric throttle, strong hydraulics
| Specifications | Value |
|---|---|
| No. | 1135594 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12030 |
| Bucket capacity (m³) | 0.5 |
| Rod length (mm) | 2100 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

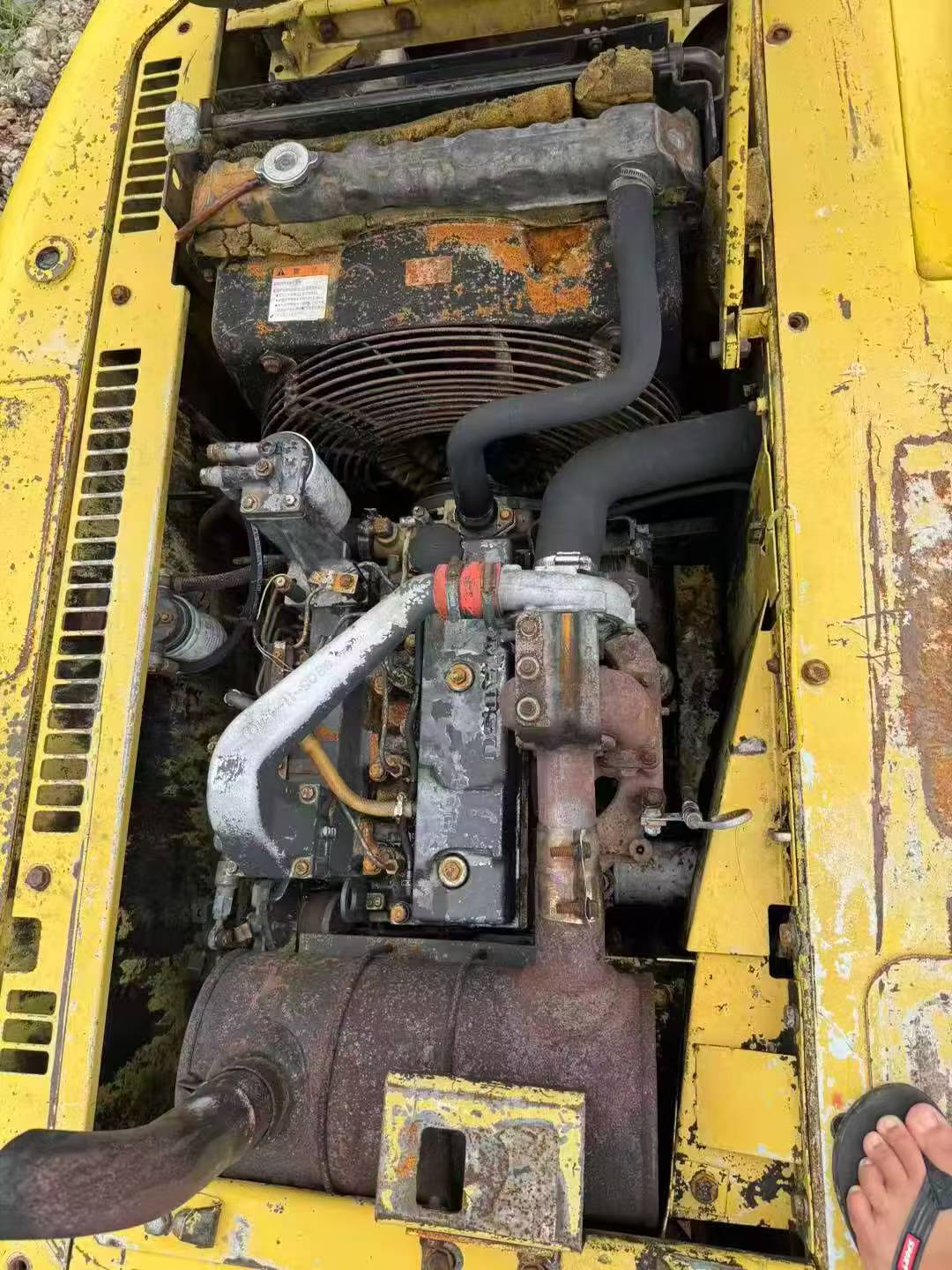

| Engine type | Komatsu Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 64/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 0.39kg/c㎡ |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 8800 |
| Rod digging force (kN) | 6300 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226L/min |
| Traveling Hydraulic Circuit (Mpa) | 355kg/c㎡ |
| Rotary Hydraulic Circuit (Mpa) | 295kg/c㎡ |
| Control Hydraulic Circuit (Mpa) | 30kg/c㎡ |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 325kg/c㎡ |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
