HOME>>Komatsu>>Komatsu PC120-6

2020 Komatsu PC120-6

1/9

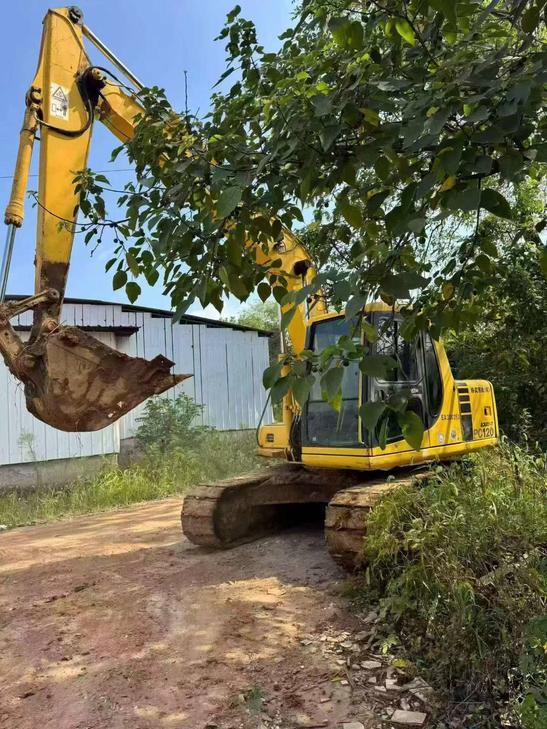

Buy Komatsu PC120-6 Used Excavator / 1
Buy Komatsu PC120-6 Used Excavator / 2
Buy Komatsu PC120-6 Used Excavator / 3
Buy Komatsu PC120-6 Used Excavator / 4
Buy Komatsu PC120-6 Used Excavator / 5
Buy Komatsu PC120-6 Used Excavator / 6
Buy Komatsu PC120-6 Used Excavator / 7
Buy Komatsu PC120-6 Used Excavator / 8
Buy Komatsu PC120-6 Used Excavator / 9

Product Description

2020 Komatsu PC120-6 excavator available from Jiangxi, China. This single-owner machine was originally purchased in Shenzhen as a genuine used unit and has been maintained to reliable working standards. The PC120-6 is a proven 12-ton class hydraulic excavator known for dependable performance in construction, utility work, and light demolition applications.

  • High-specification configuration with factory air conditioning system in excellent working condition
  • Single previous owner with verifiable service history
  • Komatsu's proven hydraulic system and fuel-efficient engine platform
  • Suitable for contractors seeking reliable mid-range excavation capacity
  • Ready for inspection and shipment from Jiangxi Province

This unit represents an opportunity to acquire established Komatsu quality at used equipment value. Contact us for detailed specifications, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1139687
Tonnage (tons)12
Working weight (kg)12030
Bucket capacity (m³)0.5
Rod length (mm)2100
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu Komatsu SAA4D95LE-3
Rated power (kw/rpm)64/2200
Cooling modewater-cooling
Displacement (L)3.26
Working formDirect injection, turbocharged, intercooled diesel engine
Ground specific pressure (Kpa)0.39kg/c㎡
Rotation speed (rpm)11
Climbing ability (%)70/30 °
Bucket digging force (kN)8800
Rod digging force (kN)6300
Travel speed (km/h)2.7-5.5
Maximum flow of main pump (l/min)226L/min
Traveling Hydraulic Circuit (Mpa)355kg/c㎡
Rotary Hydraulic Circuit (Mpa)295kg/c㎡
Control Hydraulic Circuit (Mpa)30kg/c㎡
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)325kg/c㎡
Fuel Tank (L)247
Hydraulic Tank (L)90
Engine Oil changes (L)11
Coolant (L)13.4
Total transport length (mm)7599
Total transport height (mm)2175
Full cab height (mm)2175
Counterweight ground clearance (mm)855
Minimum ground clearance (mm)400
Back end turning radius (mm)2110
Total track length (mm)3610
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2880
Maximum digging radius (mm)8290
Maximum digging depth (mm)5520
Maximum excavation height (mm)8610
Maximum unloading height (mm)6170
Maximum vertical digging depth (mm)4940
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)8170
Maximum effective digging depth (mm)5315
see more

Overview

No.1139687

Brand Name:

Komatsu

Model Number:

PC120-6

Year:

2020

Location:

Jiangxi China

Pub Date
