Product Description

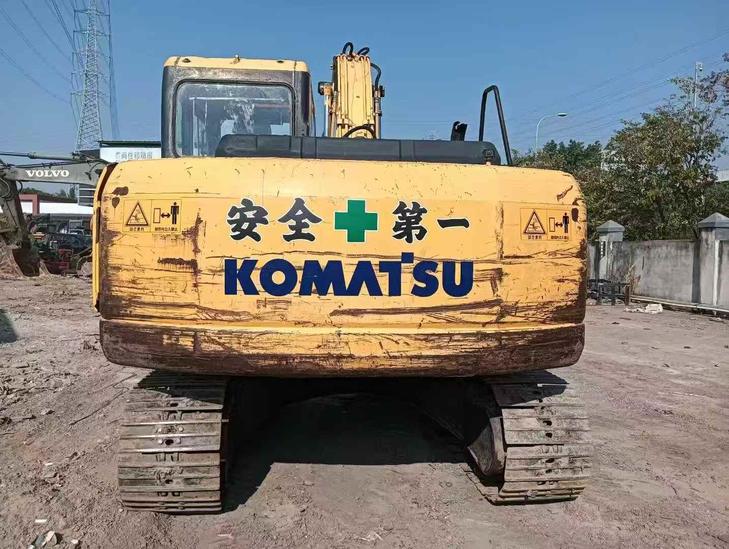

Powering through mid-size excavation projects since 2016, this Komatsu PC130-7 delivers proven reliability backed by one of the industry's most trusted names. Operating at 13 tons with a 0.53 m³ bucket capacity and 66 kW Komatsu SAA4D95LE-3 engine, this machine combines efficiency with the durability Komatsu engineers into every component. Maximum digging depth reaches 5,520 mm while the 8,290 mm working radius handles diverse jobsite demands.
Komatsu's reputation translates directly into lower ownership costs. Parts availability remains exceptional worldwide, minimizing downtime when service is required. Resale values consistently outperform competitors due to the brand's proven longevity and dealer network strength. This Guangzhou-based unit features water-cooled turbocharged diesel technology, hydraulic systems designed for 10,000+ hour service intervals, and construction quality that maintains performance years beyond initial deployment.
- Working Weight: 12,600 kg
- Engine: Komatsu SAA4D95LE-3, 66 kW @ 2,200 rpm
- Digging Force: 93.2 kN (bucket) / 61.8 kN (arm)
- Main Pump Flow: 226 L/min
- Location:
| Specifications | Value |
|---|---|
| No. | 1020892 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12600 |
| Bucket capacity (m³) | 0.53 |
| Rod length (mm) | 2100 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 66/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 93.2 |
| Rod digging force (kN) | 61.8 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 32 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
