Product Description

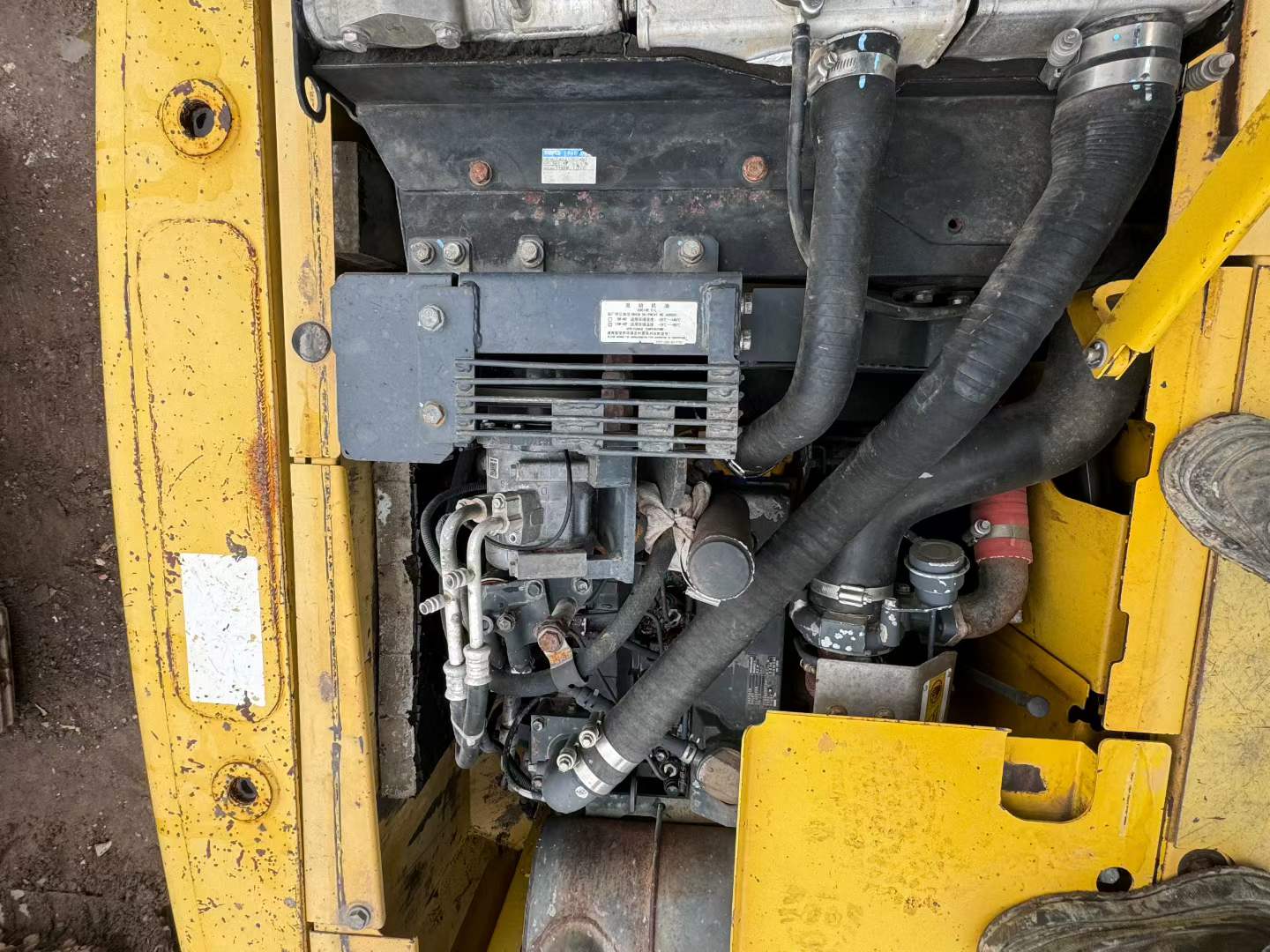

Built for precision and all-day productivity, this 2016 Komatsu PC130-7 delivers 13 tons of stable excavation power with operator-first engineering. Powered by a Komatsu SAA4D95LE-3 turbocharged diesel engine producing 66kW at 2200rpm, this machine combines responsive hydraulics with refined control for demanding jobsites.
- Superior Visibility: Spacious cab design with 2175mm height provides commanding sightlines to bucket, tracks, and surrounding work areas
- Stable Performance: 12,600kg working weight and 2880mm track ground contact ensure solid footing on slopes up to 30° (70% grade)
- Precise Control: 226 l/min hydraulic flow with dedicated circuits (32MPa working, 29MPa rotation) enables smooth, coordinated movements
- Operator Comfort: Water-cooled engine, optimized counterweight clearance (855mm), and 2110mm rear swing radius reduce fatigue during extended shifts
- Proven Reach: 8290mm maximum digging radius and 5520mm depth with 0.53m³ bucket tackle versatile excavation tasks
Currently located in Shenzhen, Guangdong, this joint-venture manufactured excavator represents reliabl
| Specifications | Value |
|---|---|
| No. | 1022211 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12600 |
| Bucket capacity (m³) | 0.53 |
| Rod length (mm) | 2100 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-3 |
| Rated power (kw/rpm) | 66/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.26 |
| Working form | Direct injection, turbocharged, intercooled diesel engine |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/30 ° |
| Bucket digging force (kN) | 93.2 |
| Rod digging force (kN) | 61.8 |
| Travel speed (km/h) | 2.7-5.5 |
| Maximum flow of main pump (l/min) | 226 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 32 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 13.4 |
| Total transport length (mm) | 7599 |
| Total transport height (mm) | 2175 |
| Full cab height (mm) | 2175 |
| Counterweight ground clearance (mm) | 855 |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 2110 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8610 |
| Maximum unloading height (mm) | 6170 |
| Maximum vertical digging depth (mm) | 4940 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8170 |
| Maximum effective digging depth (mm) | 5315 |
