Product Description

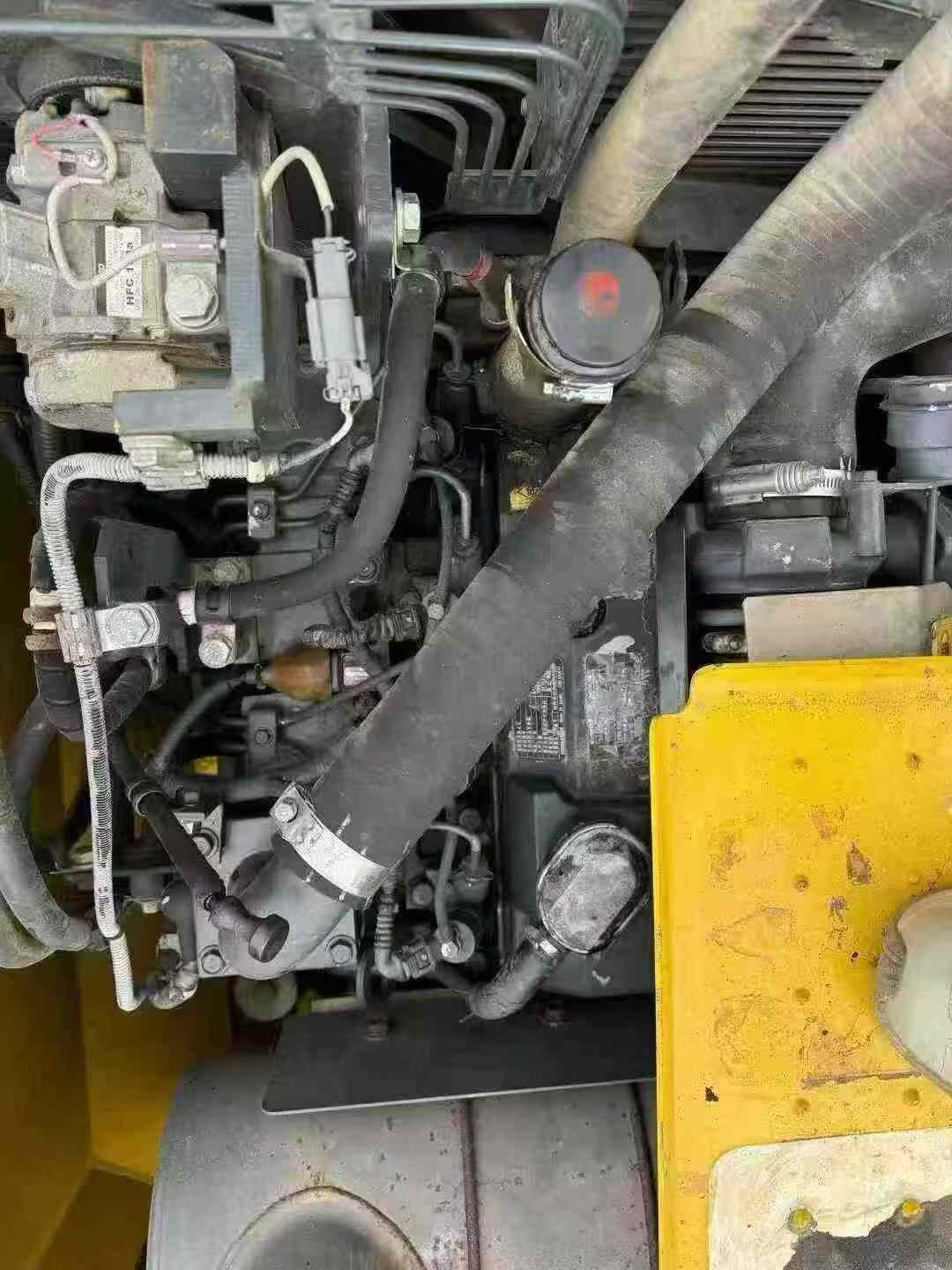

Equipped with a Komatsu SAA4D95LE-5 engine, this 2016 PC130-8M0 delivers 69.6 kW at 2200 rpm, ensuring robust performance and efficiency. Featuring a four-cylinder, four-stroke turbocharged intercooled direct injection engine, it provides reliable power for demanding tasks.

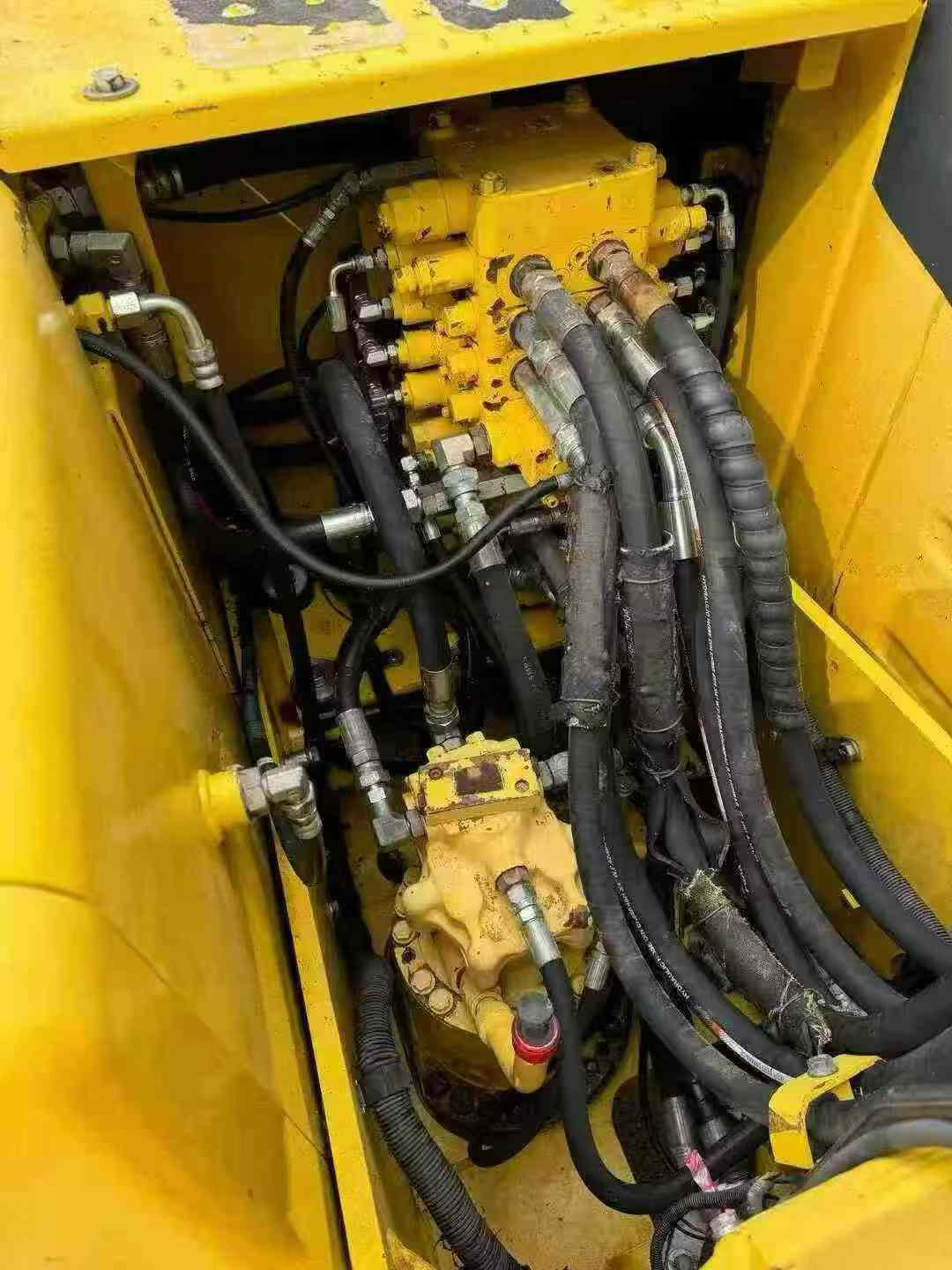

- Hydraulic system: Variable piston pump with a maximum flow of 242 l/min, supporting precise control and high productivity.
- Working hydraulic circuit pressure: 31.9 Mpa, enabling strong digging and lifting capabilities.

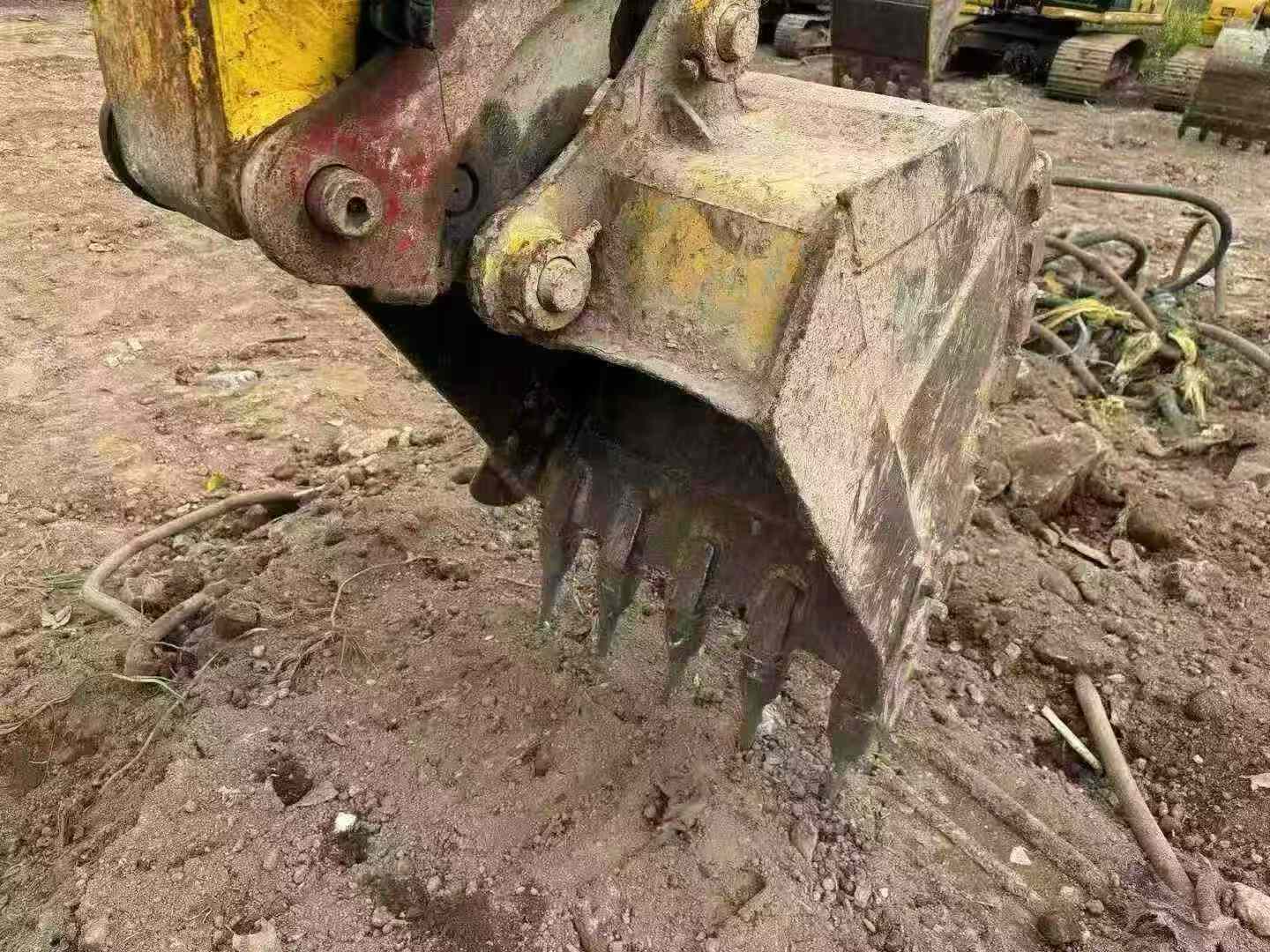

- Bucket capacity: 0.53-0.64 m³, ideal for a variety of excavation needs.
- Maximum digging force: 86 kN (bucket), 72.9 kN (rod), ensuring effective material handling.
- Travel speed: 5.5/2.9 km/h, providing flexibility in different working conditions.
Manufactured in China through a joint venture, this excavator combines advanced engineering and durable construction, making it a trusted choice for construction and mining projects in 广西 and beyond.
| Specifications | Value |
|---|---|
| No. | 1003698 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.53-0.64 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D95LE-5 |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 115 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.26 |
| Working form | Four-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 86 |
| Rod digging force (kN) | 72.9 |
| Maximum tractive force (kN) | 122.6 |
| Travel speed (km/h) | 5.5/2.9 |
| Maximum flow of main pump (l/min) | 242 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 29.2 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90 x 885 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 1175 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 995 |
| Fuel Tank (L) | 247 |
| Hydraulic Tank (L) | 90 |
| Engine Oil changes (L) | 13 |
| Coolant (L) | 13.9 |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2885 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 2190 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 3610 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 43 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5520 |
| Maximum excavation height (mm) | 8650 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 4900 |
| Maximum excavation radius of stop surface (mm) | 8170 |
