Product Description

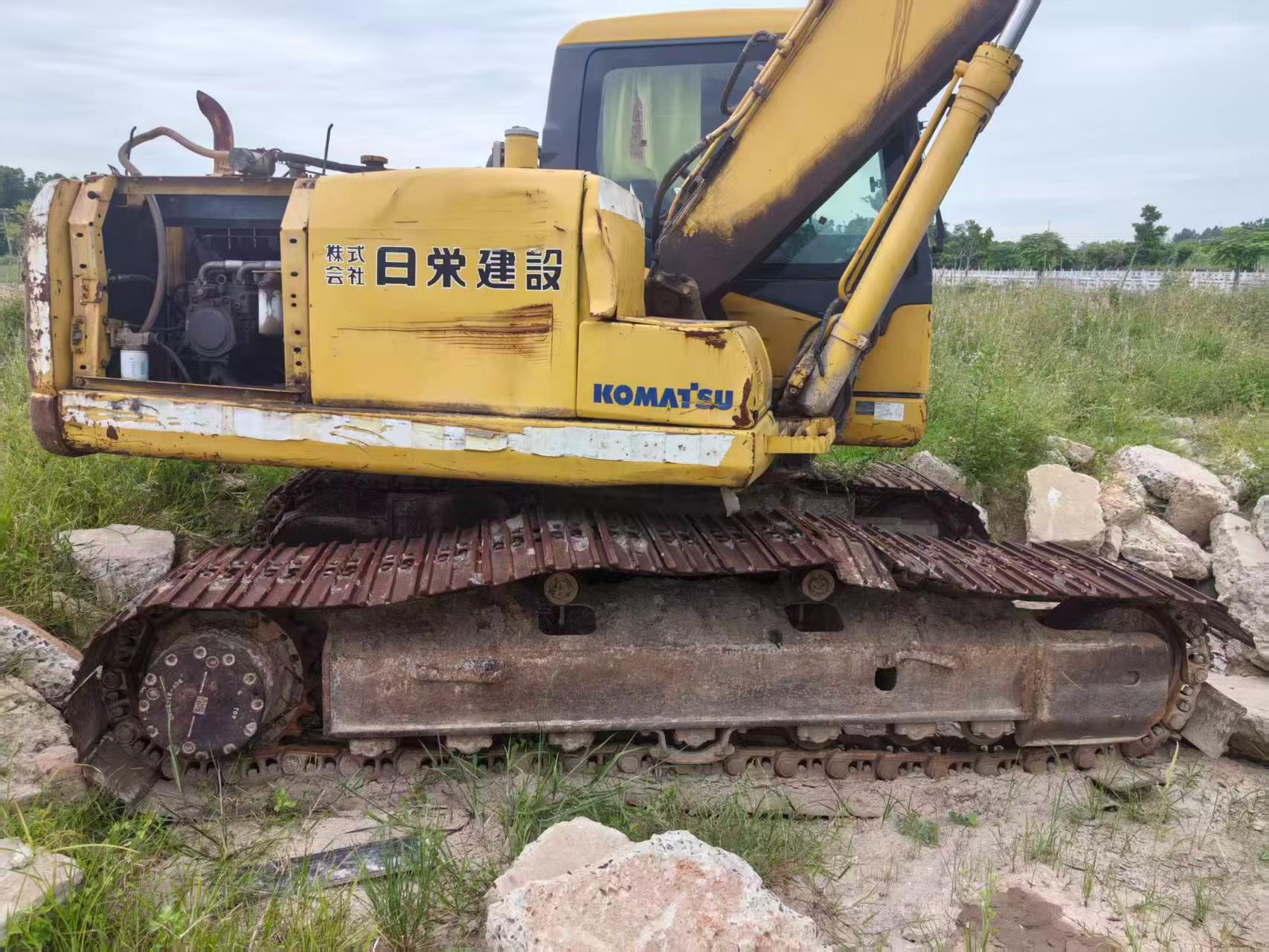

Well-maintained 2020 Komatsu PC160-7 hydraulic excavator available in Guangdong, China. This mid-sized crawler excavator from Komatsu's proven PC-7 series delivers reliable performance for excavation, loading, and site development applications. With approximately 40,000 operating hours, this machine has been actively utilized in demanding work environments while maintaining operational integrity.
Key features of the PC160-7 include:
- Operating weight: approximately 16 tons

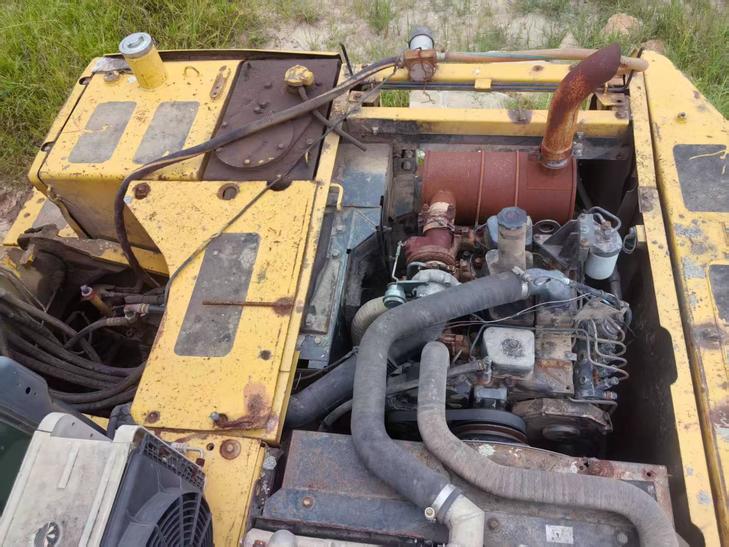

- Komatsu SAA4D102E-2 diesel engine
- Hydraulic system optimized for fuel efficiency
- Spacious operator cab with ergonomic controls
- Durable undercarriage and robust structural design
This excavator is suited for contractors seeking dependable equipment for earthmoving, trenching, and general construction work. Available for immediate inspection in Guangdong province.
| Specifications | Value |
|---|---|
| No. | 1085661 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 16500 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5150 |
| Rod length (mm) | 2610 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D102E-2 |
| Rated power (kw/rpm) | 82.4/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 3.92 |
| Working form | 4 cylinder, direct injection, turbocharged, after cooling, mechanical full speed control; Comply with 2001 EPA/EU/ Japan Level 2 emission standards. |
| Ground specific pressure (Kpa) | 46.1 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 86.3 |
| Travel speed (km/h) | 3.4-5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 312 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 105 * 1027 * 70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 * 1342 * 85 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 * 1175 * 75 |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 121 |
| Engine Oil changes (L) | 14 |
| Coolant (L) | 17.3 |
| Total transport length (mm) | 8565 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2990 |
| Full cab height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1055 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2390 |
| Total track length (mm) | 3965 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 3170 |
| Maximum digging radius (mm) | 8960 |
| Maximum digging depth (mm) | 5960 |
| Maximum excavation height (mm) | 8980 |
| Maximum unloading height (mm) | 6370 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum effective digging depth (mm) | 5740 |
