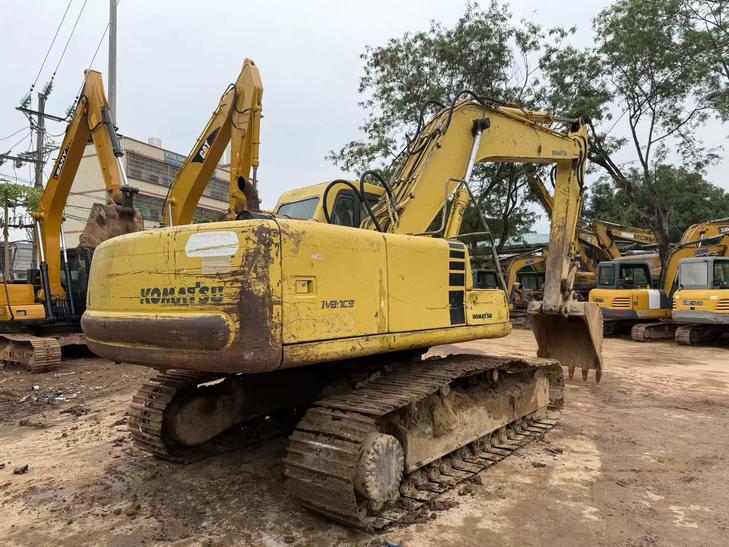

Product Description
With a working weight of 19,180 kg and powered by the reliable Komatsu S6D102E engine, this 20-ton PC200-6 excavator from 2016 showcases exceptional durability. Built to last, it has proven its mettle in various construction sites across the globe. Located in 广东惠州, this Japanese-made machine features a robust 6-cylinder engine with a displacement of 5.9 liters, delivering 99 kW at 2200 rpm. Its 0.8 m³ bucket capacity and 5700 mm boom length ensure efficient digging and loading operations. Equipped with a traditional power system, this excavator offers a travel speed of 5.5 km/h and a climbing ability of 70% or 35°, making it versatile for different terrains. The main pump's maximum flow of 412 l/min and a main overflow set pressure of 34.818 Mpa further enhance its performance. This proven workhorse is ready to tackle your next project with reliability and efficiency.
| Specifications | Value |
|---|---|
| No. | 1020782 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19180 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 1840 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu S6D102E |
| Rated power (kw/rpm) | 99/2200 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.9 |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 34.818 |
| Maximum flow of main pump (l/min) | 412 |
| Fuel Tank (L) | 340 |
| Hydraulic System (L) | 166 |
| Total transport length (mm) | 9510 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2905 |
| Counterweight ground clearance (mm) | 440 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3270 |
| Maximum excavation height (mm) | 8895 |
| Maximum unloading height (mm) | 6065 |
| Maximum vertical digging depth (mm) | 4965 |
