Product Description

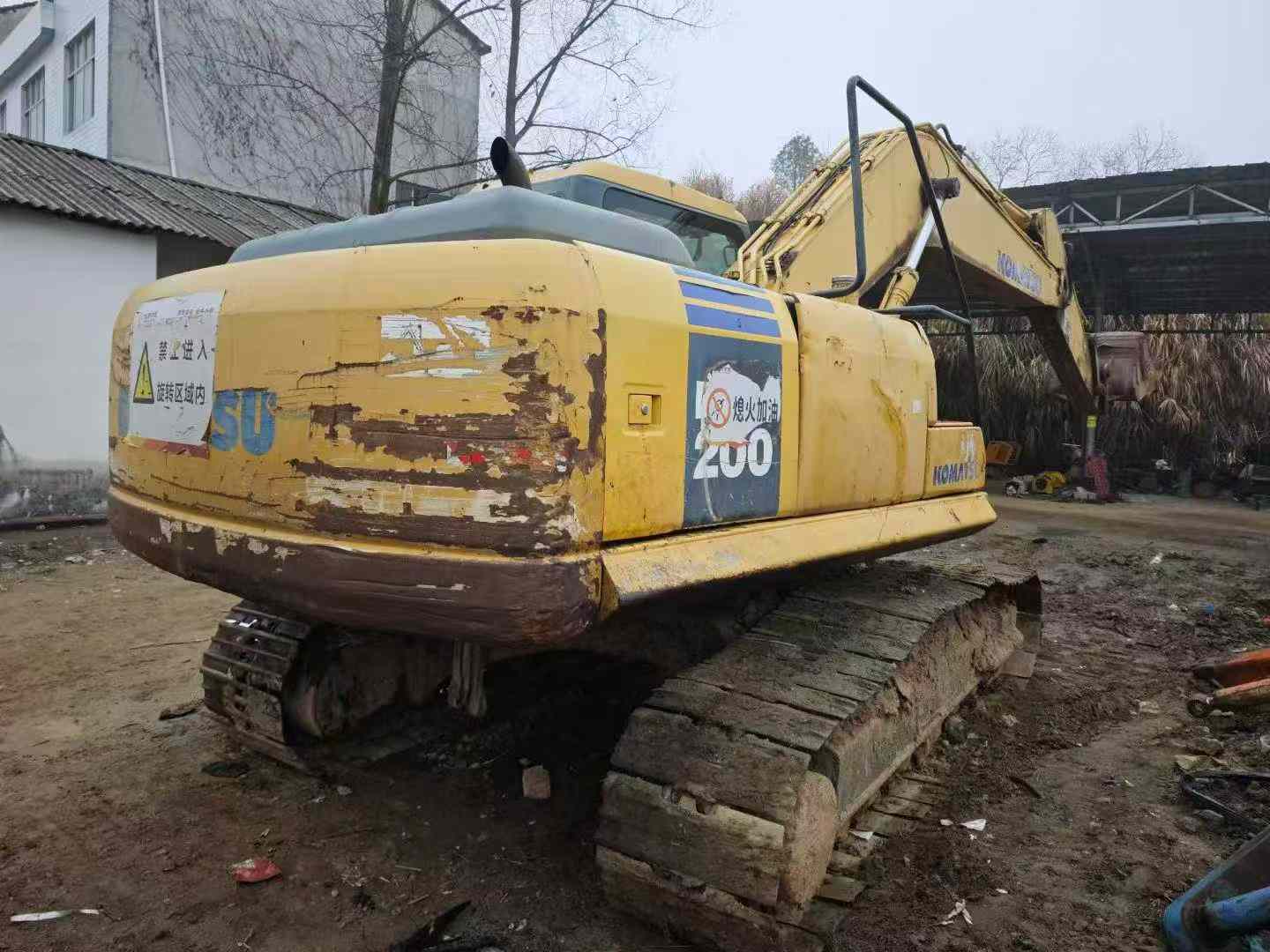

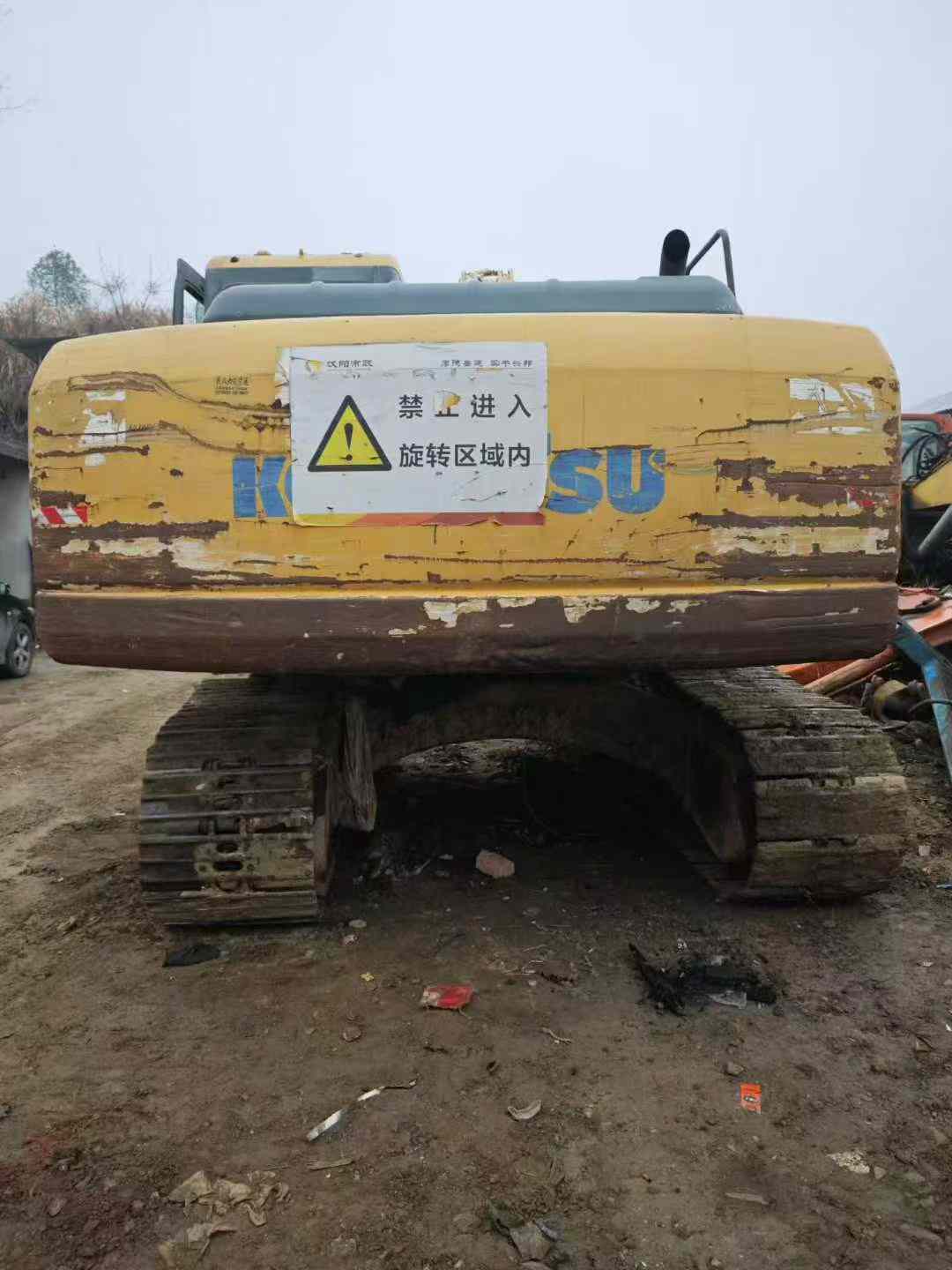

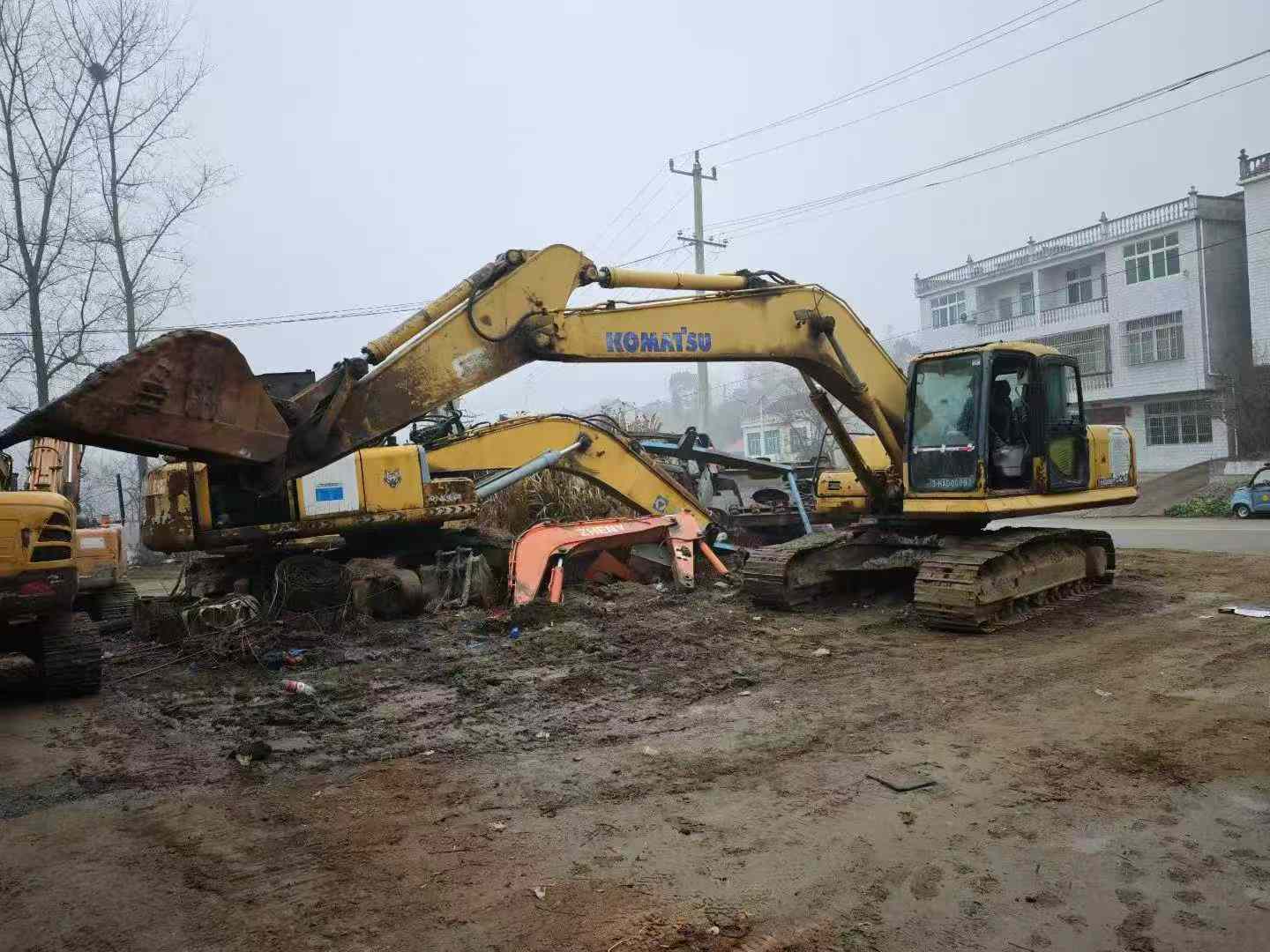

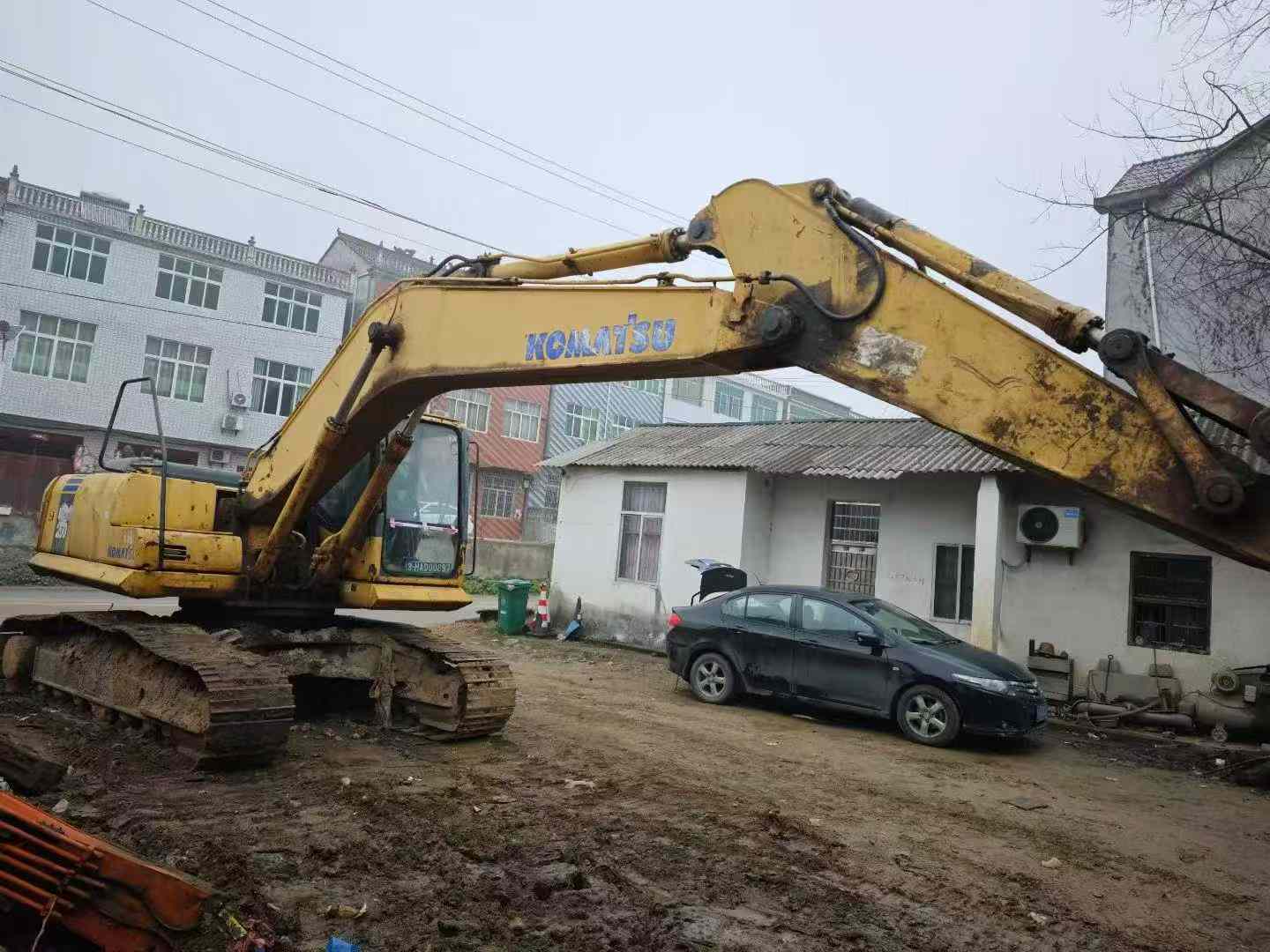

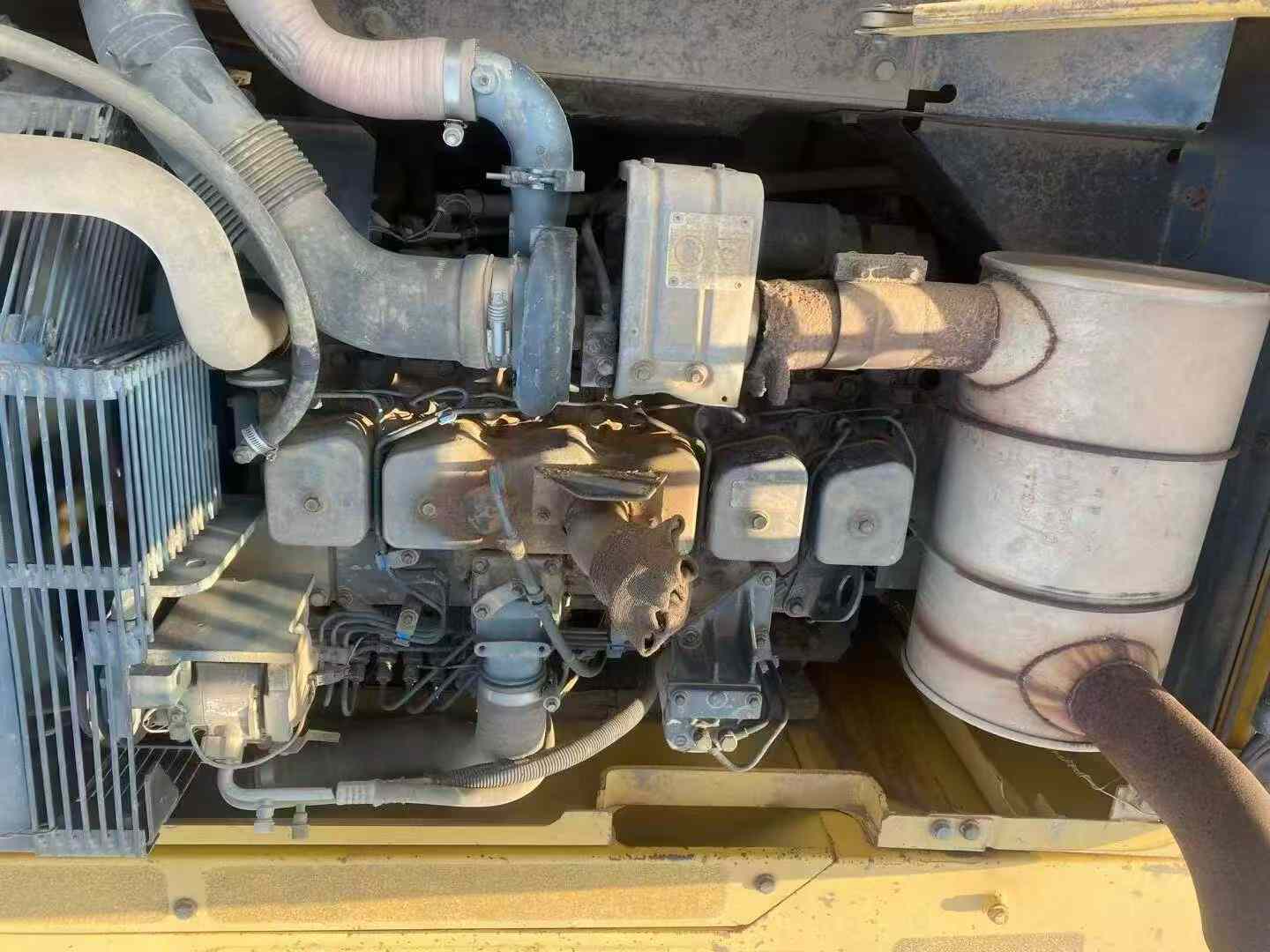

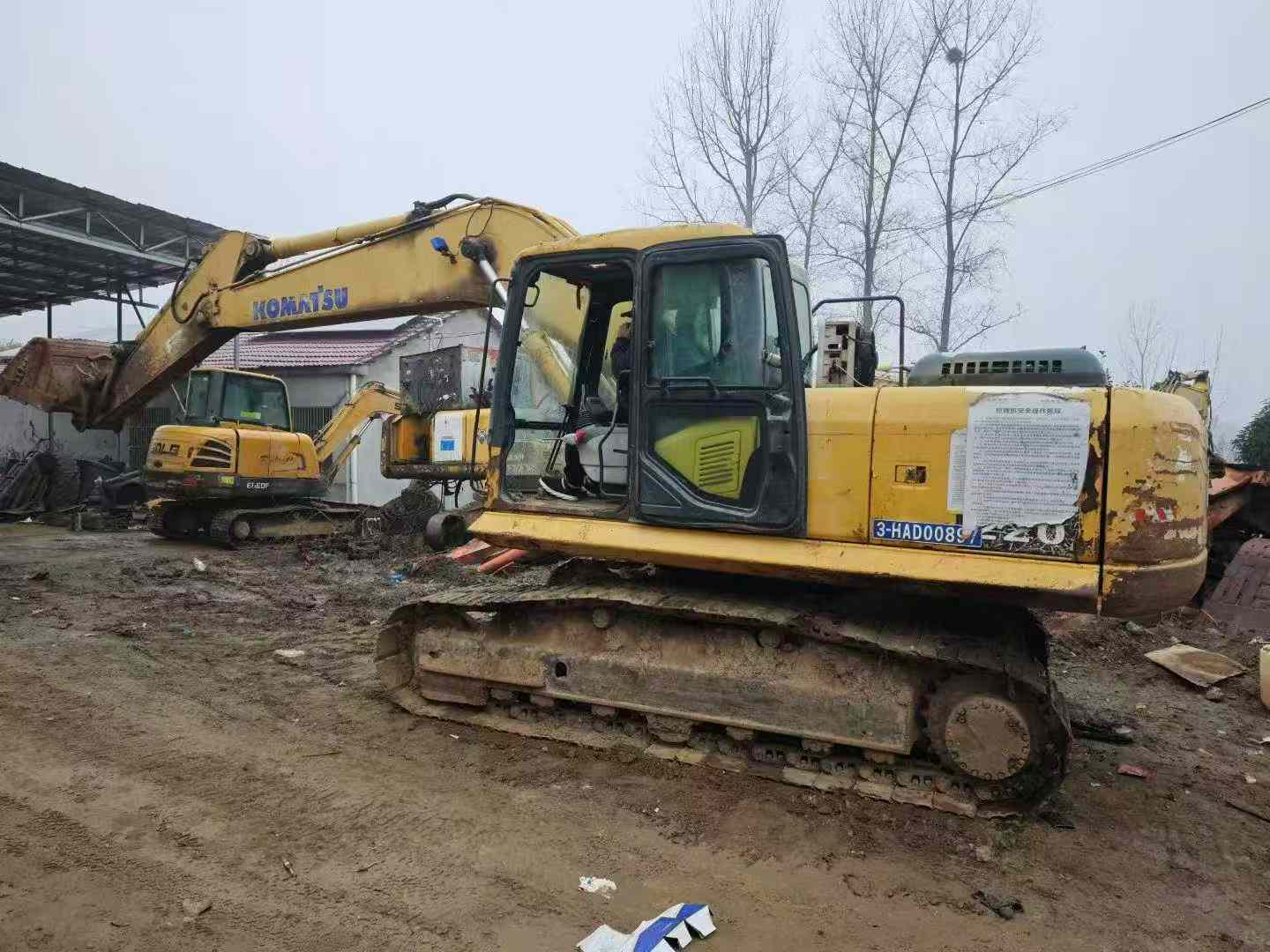

Built for high-output excavation work, this 2007 Komatsu PC200-7 delivers 20-ton performance across digging, grading, and demolition applications. Powered by a Komatsu SAA6D102E-2 engine producing 107 kW, this water-cooled excavator generates 149 kN bucket digging force and reaches a maximum digging depth of 5,380 mm—ideal for foundation work, trenching, and site preparation tasks.

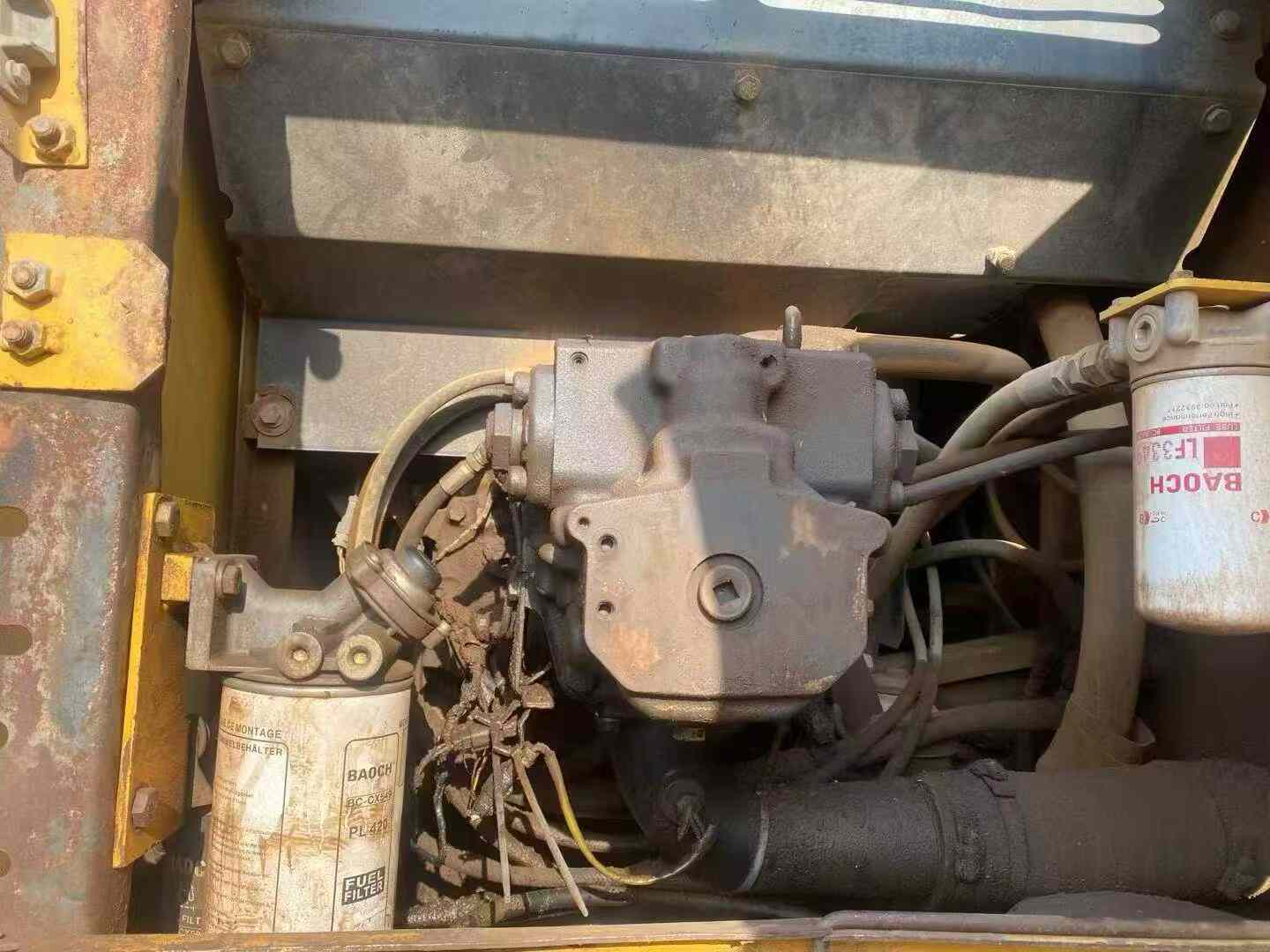

Equipped with dual variable piston pumps supplying 2×214 L/min, hydraulic response remains consistent under load. An 0.8 m³ backhoe bucket handles material efficiently, while the 9,380 mm maximum digging radius provides extensive reach for loading trucks or shaping slopes. With a 400 L fuel tank and 12.4 km/h travel speed, productivity stays high throughout extended shifts.
- Working weight: 20,253 kg with proven Japanese engineering
- Interchangeable rod lengths (1,840/2,410 mm) adapt to job requirements
- 3,270 mm rear turning radius enables confined-space maneuverability
- Currently located in Hangzhou, Zhejiang—ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1027069 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |
| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
