Product Description

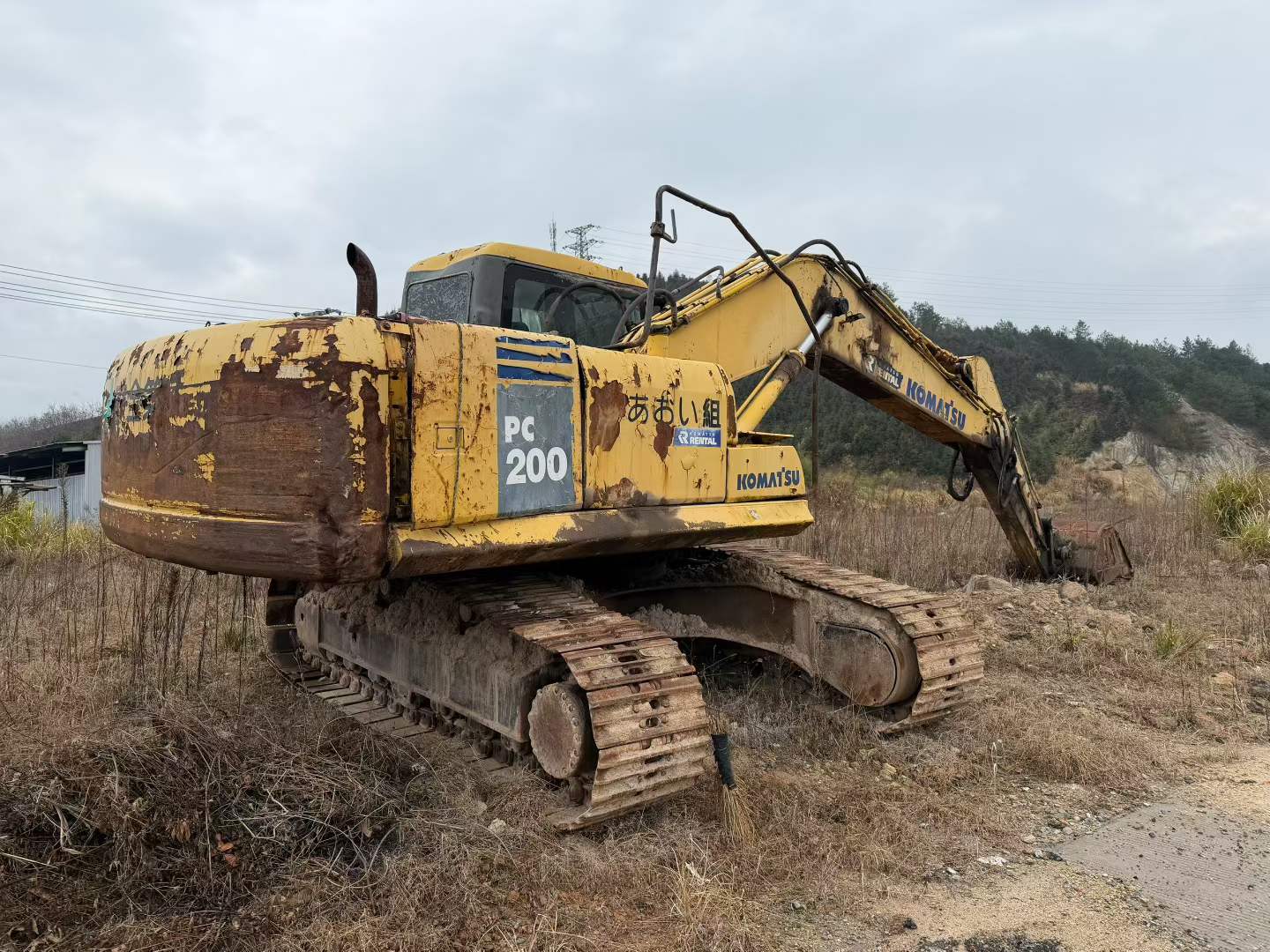

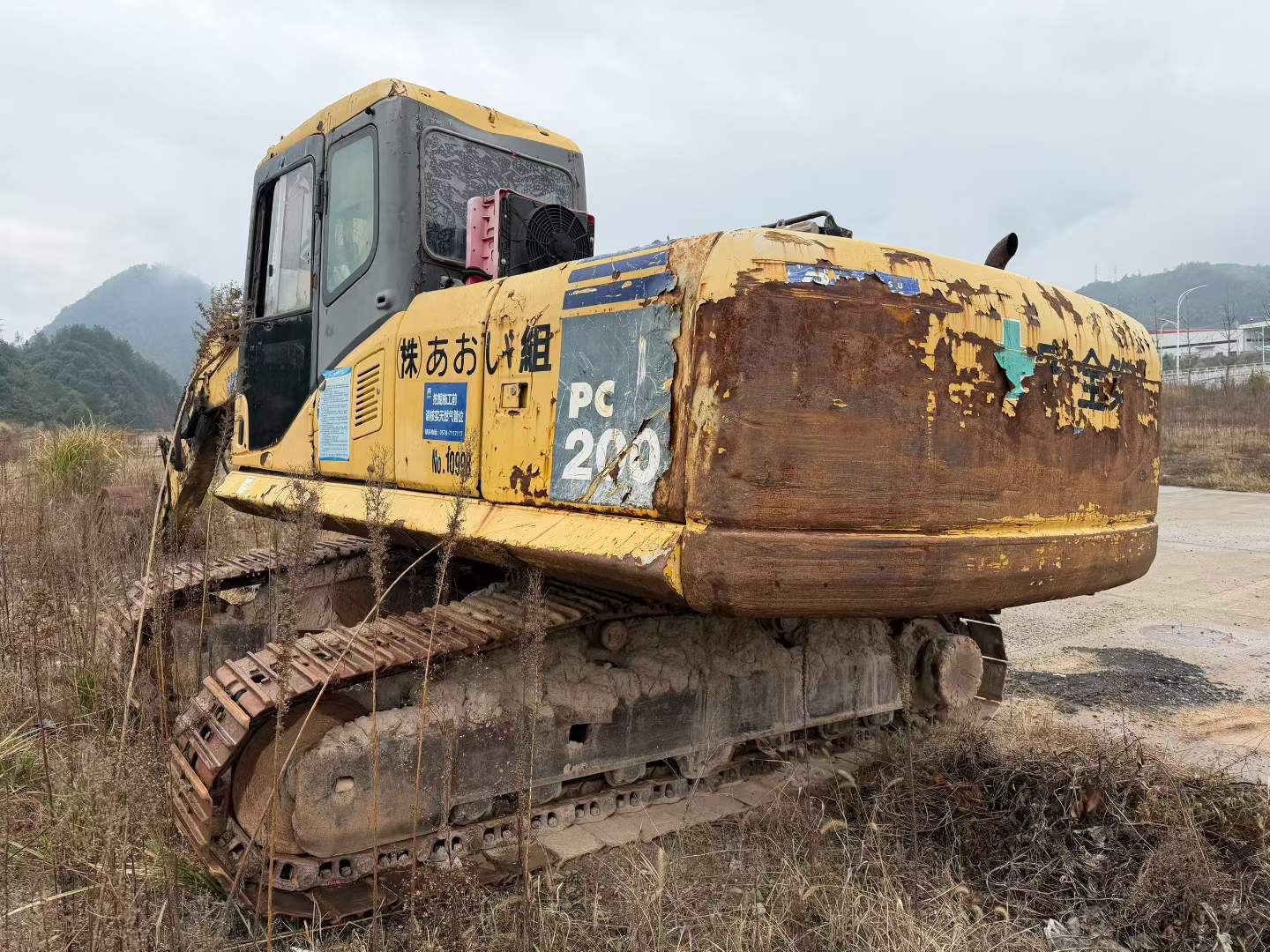

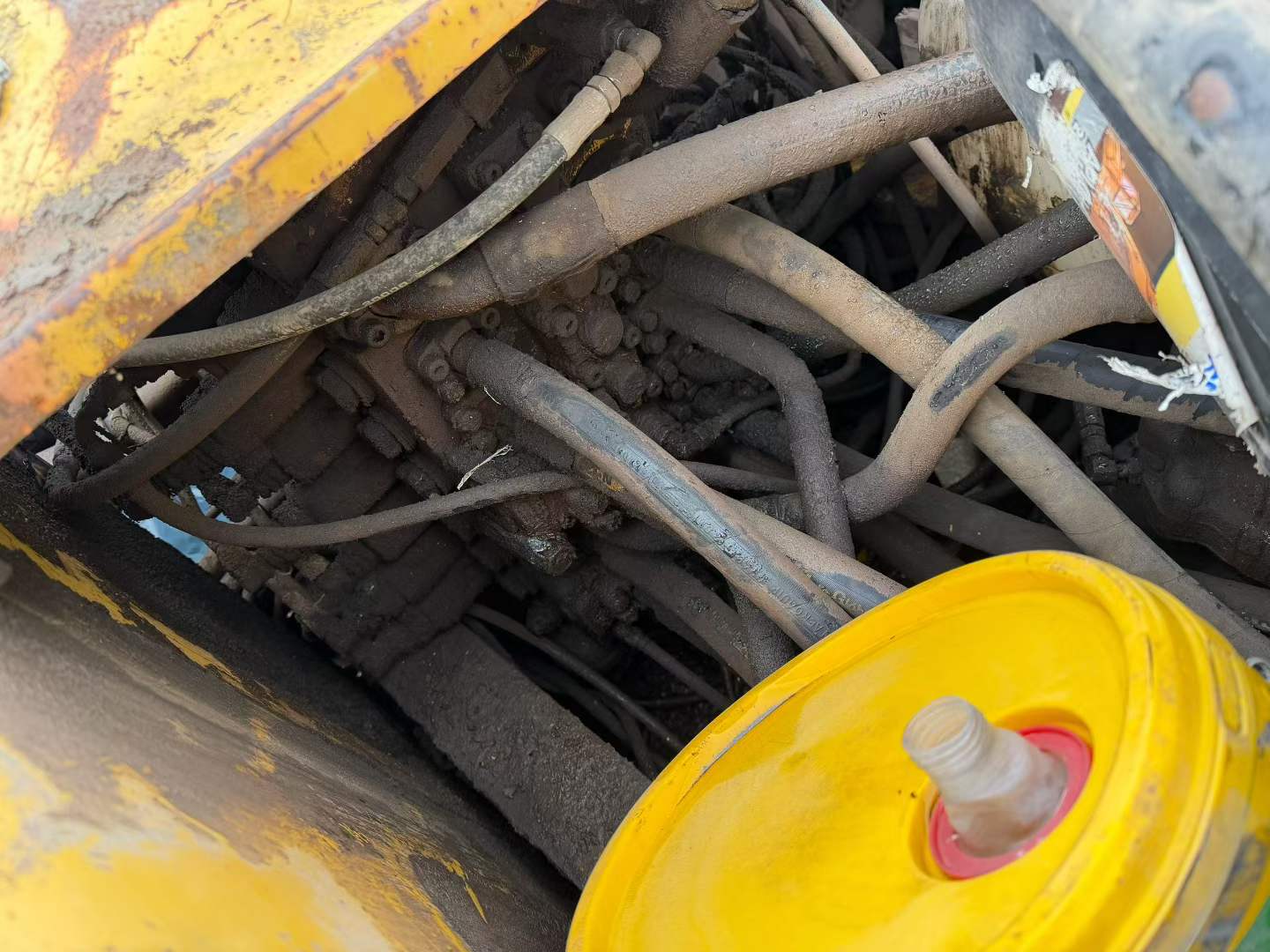

Available now from our Lishui, Zhejiang facility, this 2016 Komatsu PC200-7 delivers proven Japanese engineering without the wait. Skip factory lead times and put this 20-ton workhorse on your site fast. Powered by a reliable Komatsu SAA6D102E-2 engine delivering 107 kW, this excavator combines robust performance with field-tested durability across demanding applications.
- Operating Weight: 20,253 kg with 0.8 m³ bucket capacity
- Reach & Depth: 9,380 mm maximum digging radius, 5,380 mm maximum depth
- Hydraulic Power: Dual variable piston pumps (2 × 214 L/min) for responsive control
- Digging Force: 149 kN bucket force, 145 kN rod force
- Dimensions: 9,480 mm (L) × 3,000 mm (W) × 2,985 mm (H) for transport
Ready for immediate deployment from Zhejiang. Contact Fair Trade Machinery today to arrange inspection and fast delivery to your location. No delays, no excuses—just reliable equipment when you need it.
| Specifications | Value |
|---|---|
| No. | 1019418 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |

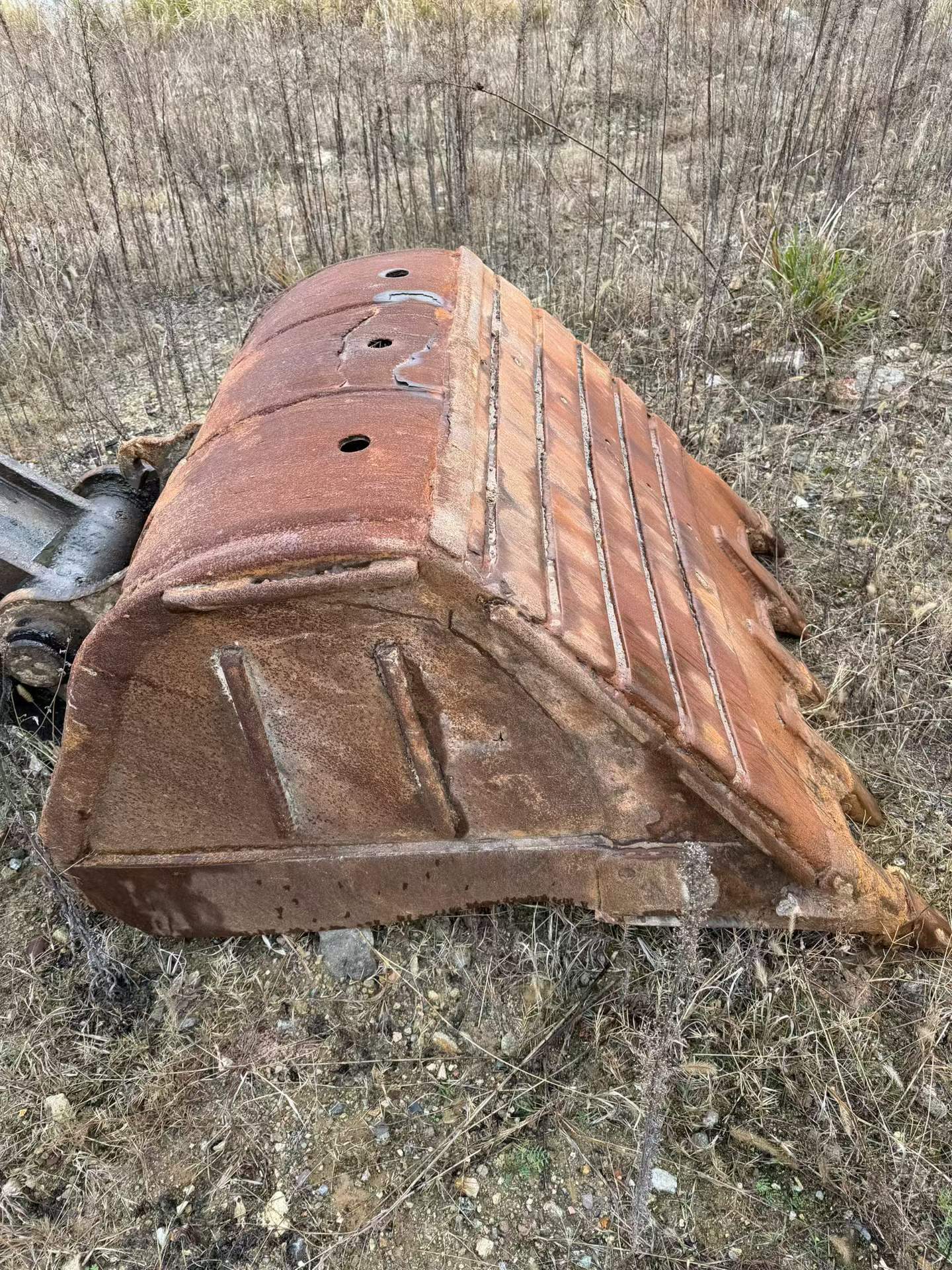

| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

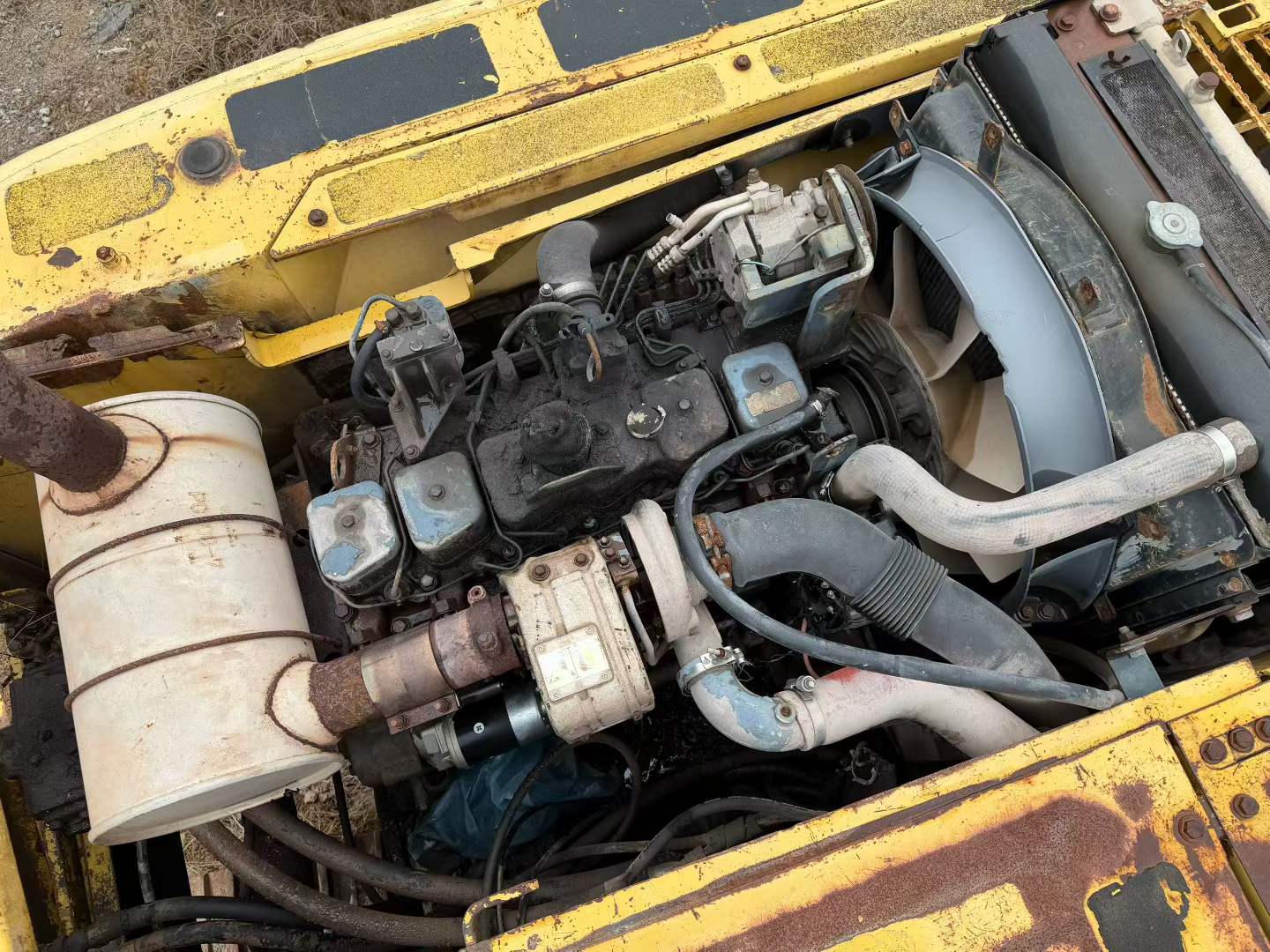

| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |

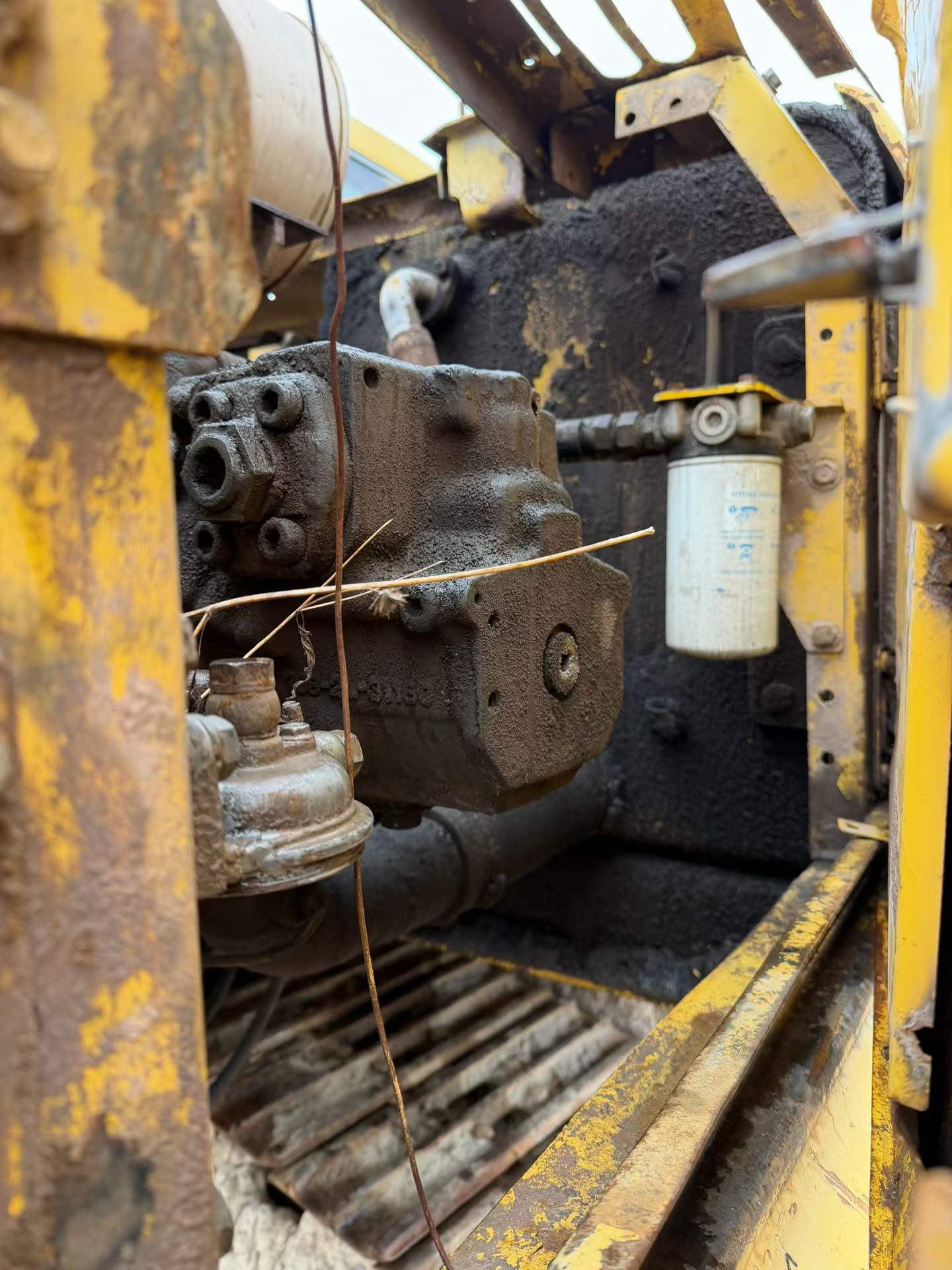

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |

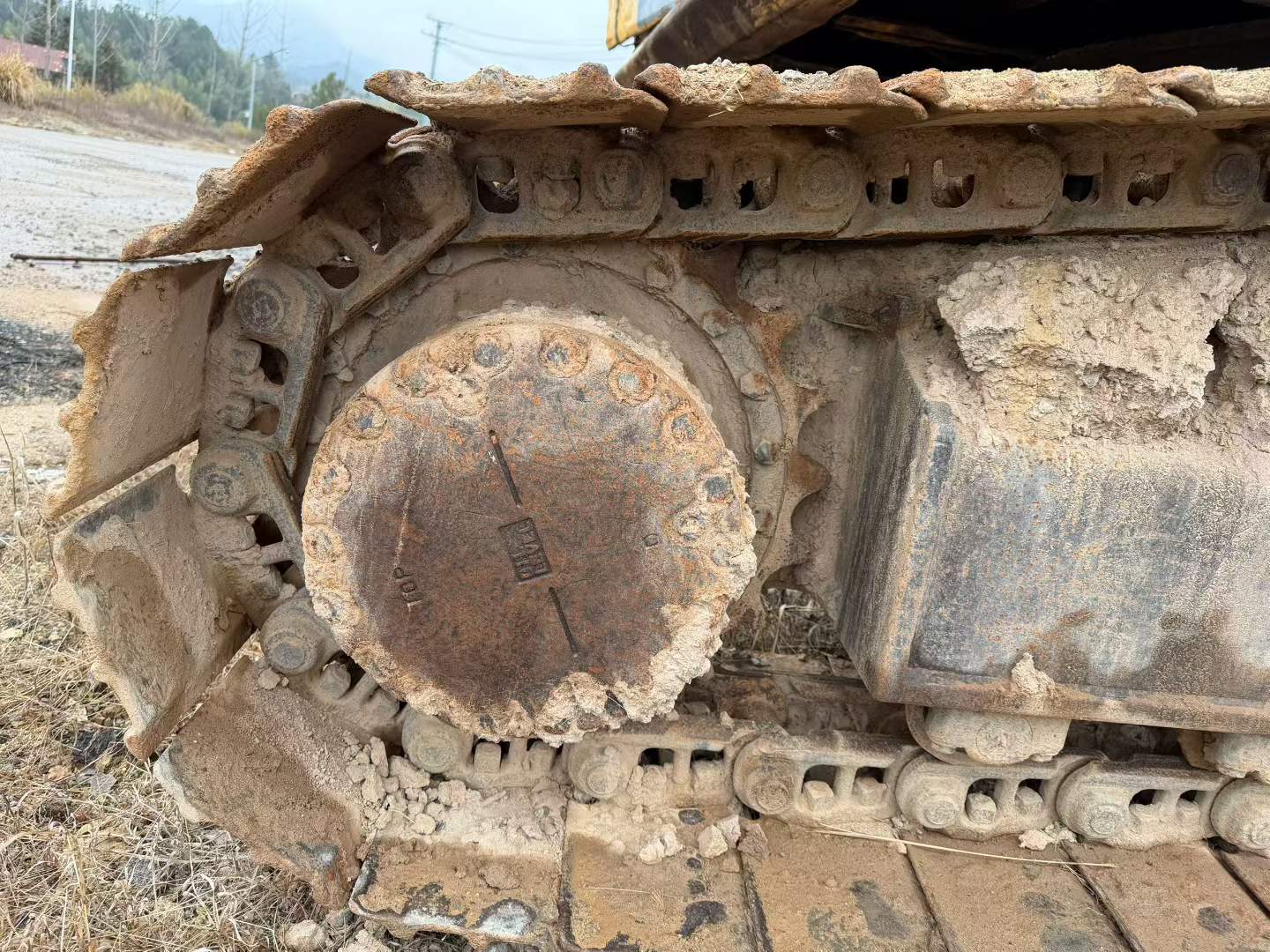

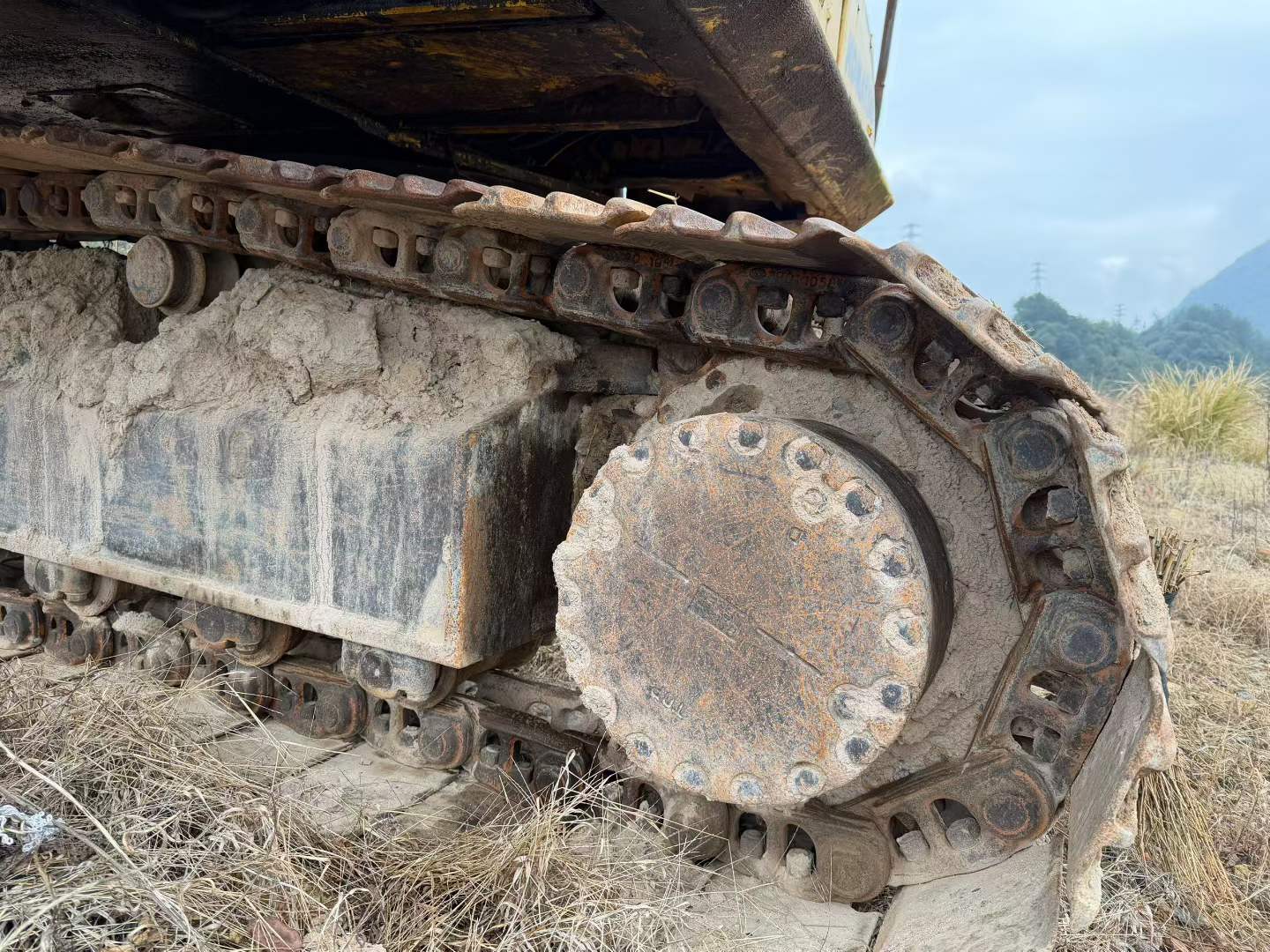

| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
