Product Description

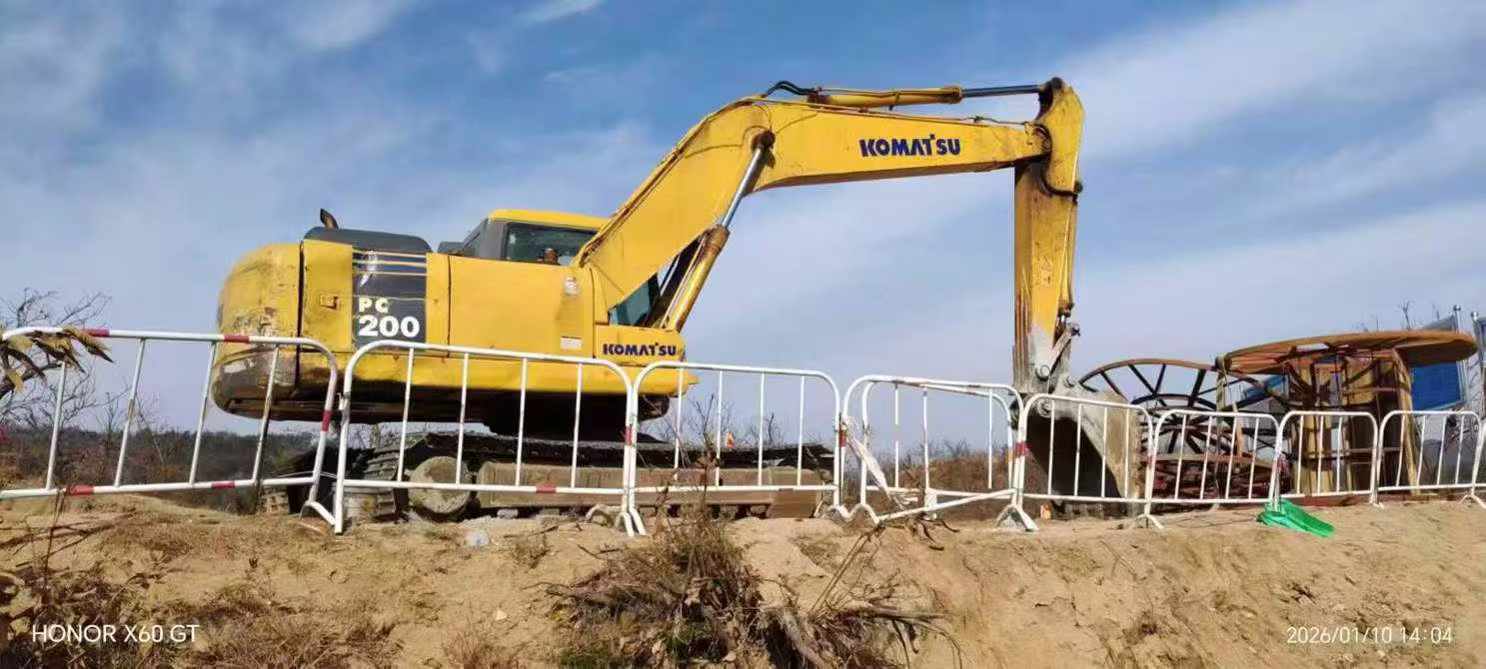

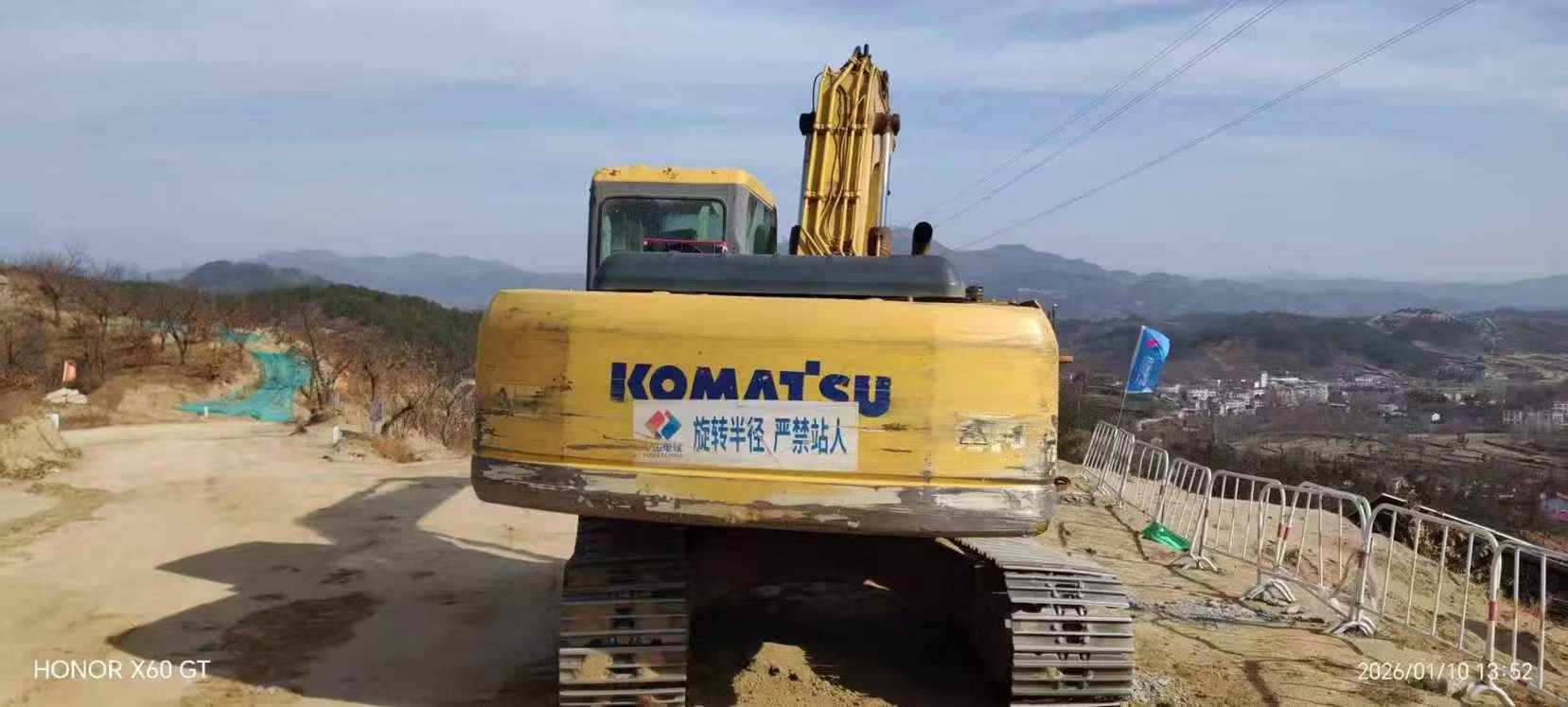

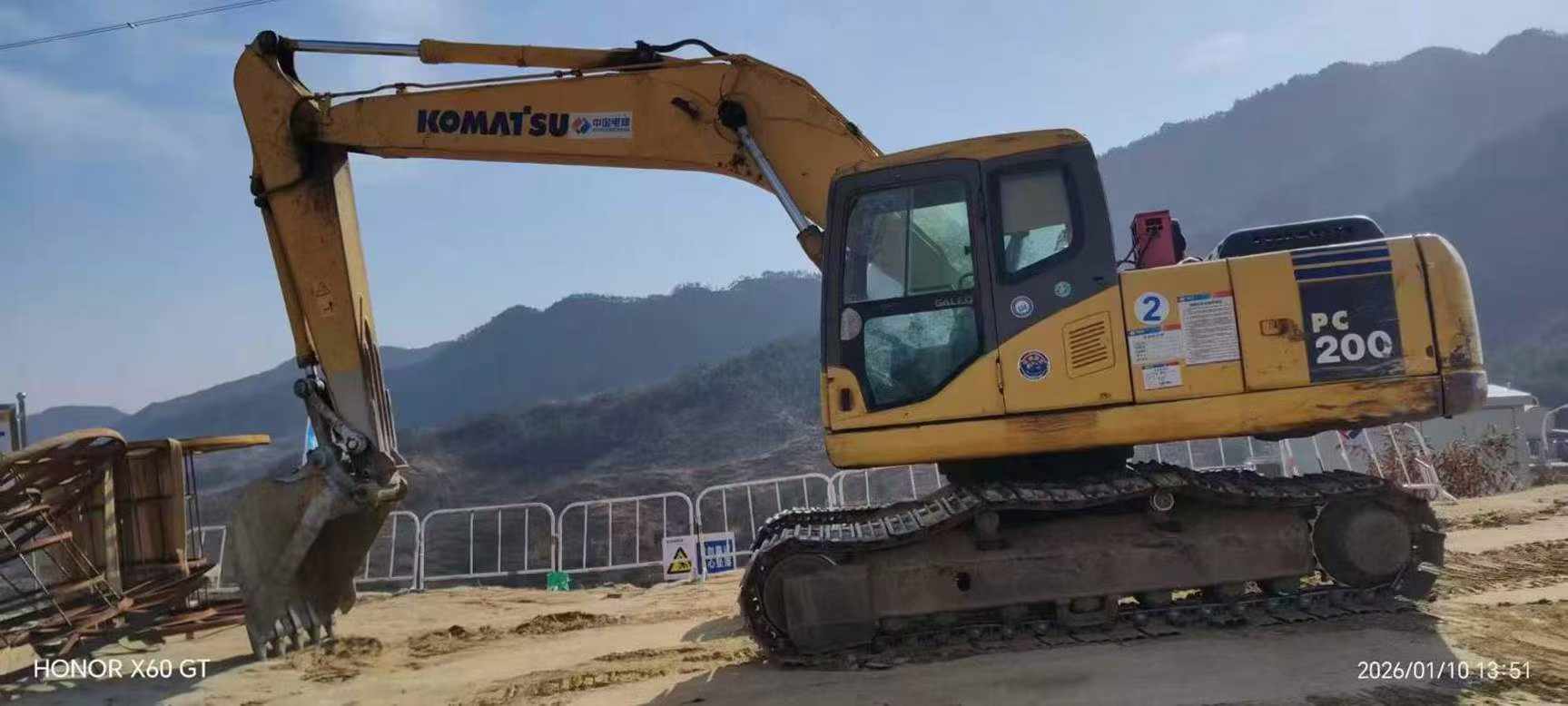

Built for precision and all-day productivity, this 2016 Komatsu PC200-7 delivers the operator-focused engineering that defines Japan's most trusted excavator lineage. At 20 tons operating weight with an 0.8 m³ bucket capacity, this machine balances power and maneuverability across diverse job sites. The spacious cab offers commanding 360-degree visibility, reducing blind spots and enhancing safety during complex operations in confined spaces.

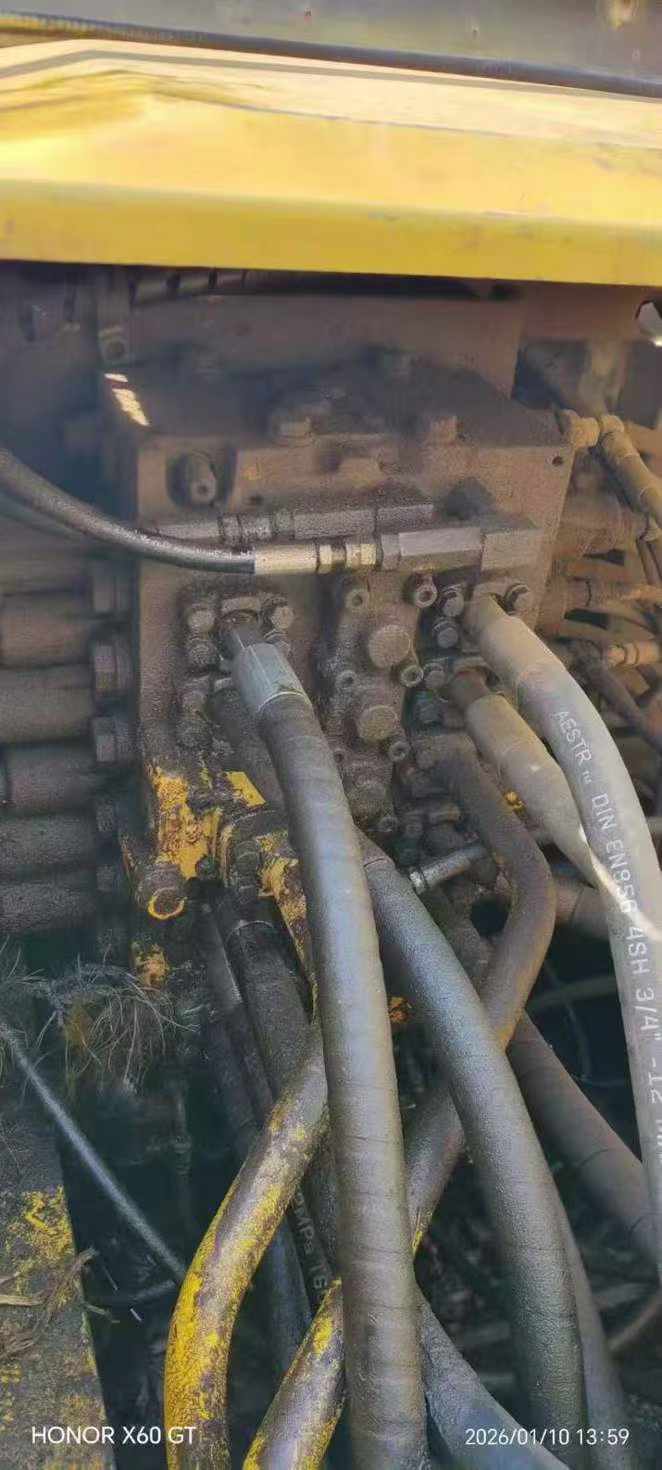

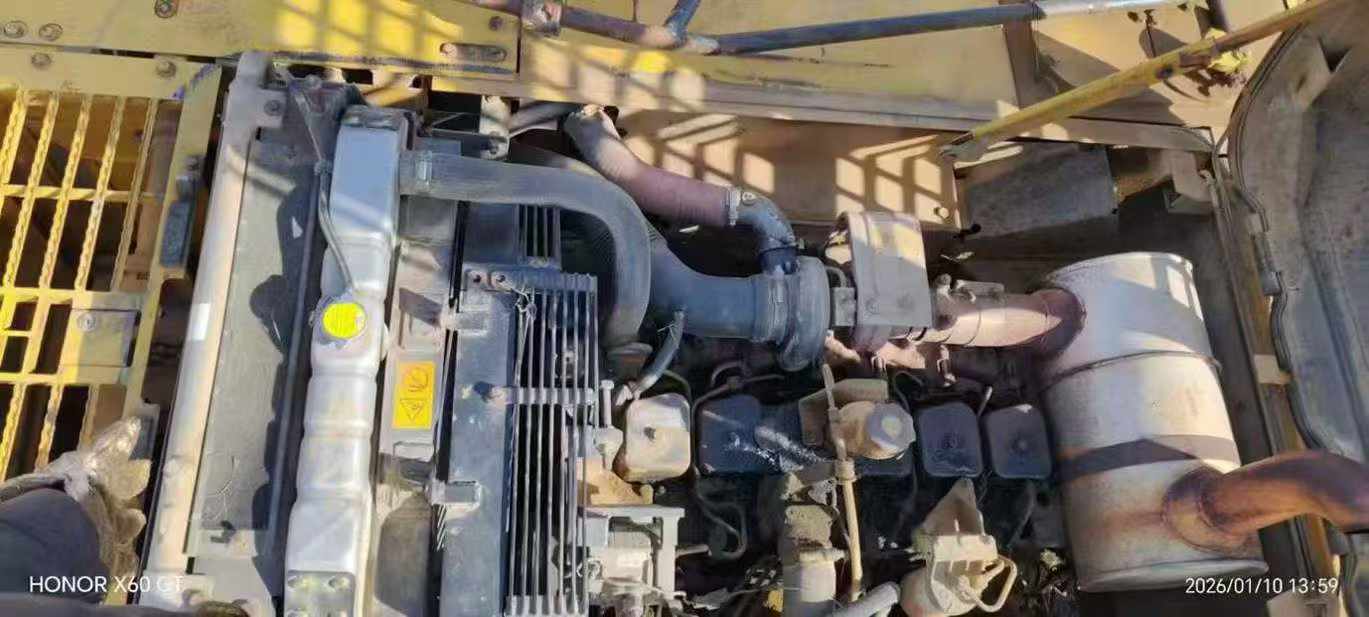

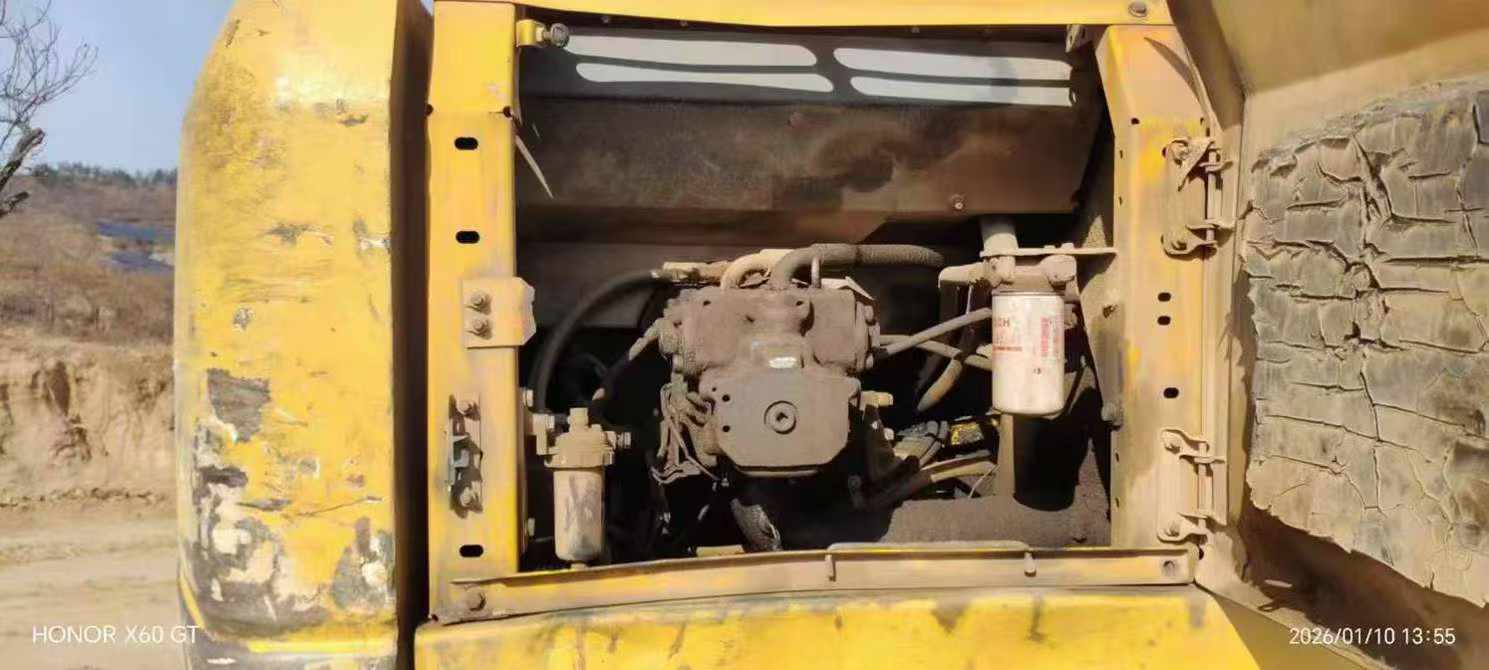

Powered by the proven Komatsu SAA6D102E-2 engine producing 107 kW, responsive hydraulics provide smooth, predictable control through dual 214 l/min variable piston pumps. Operators benefit from intuitive joystick commands, minimal vibration transfer, and reduced noise levels during extended shifts. Stability remains exceptional thanks to the 3000 mm track width and low center of gravity design.
- Maximum digging depth: 5380 mm
- Maximum reach: 9380 mm
- Bucket digging force: 149 kN
- Travel speed: 12.4 km/h
- Fuel capacity: 400 L
- Currently located in Jinhua, Zhejiang
Ready for immediate deployment in earthmoving, trenching, or material handling applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1021380 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |
| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
