Product Description

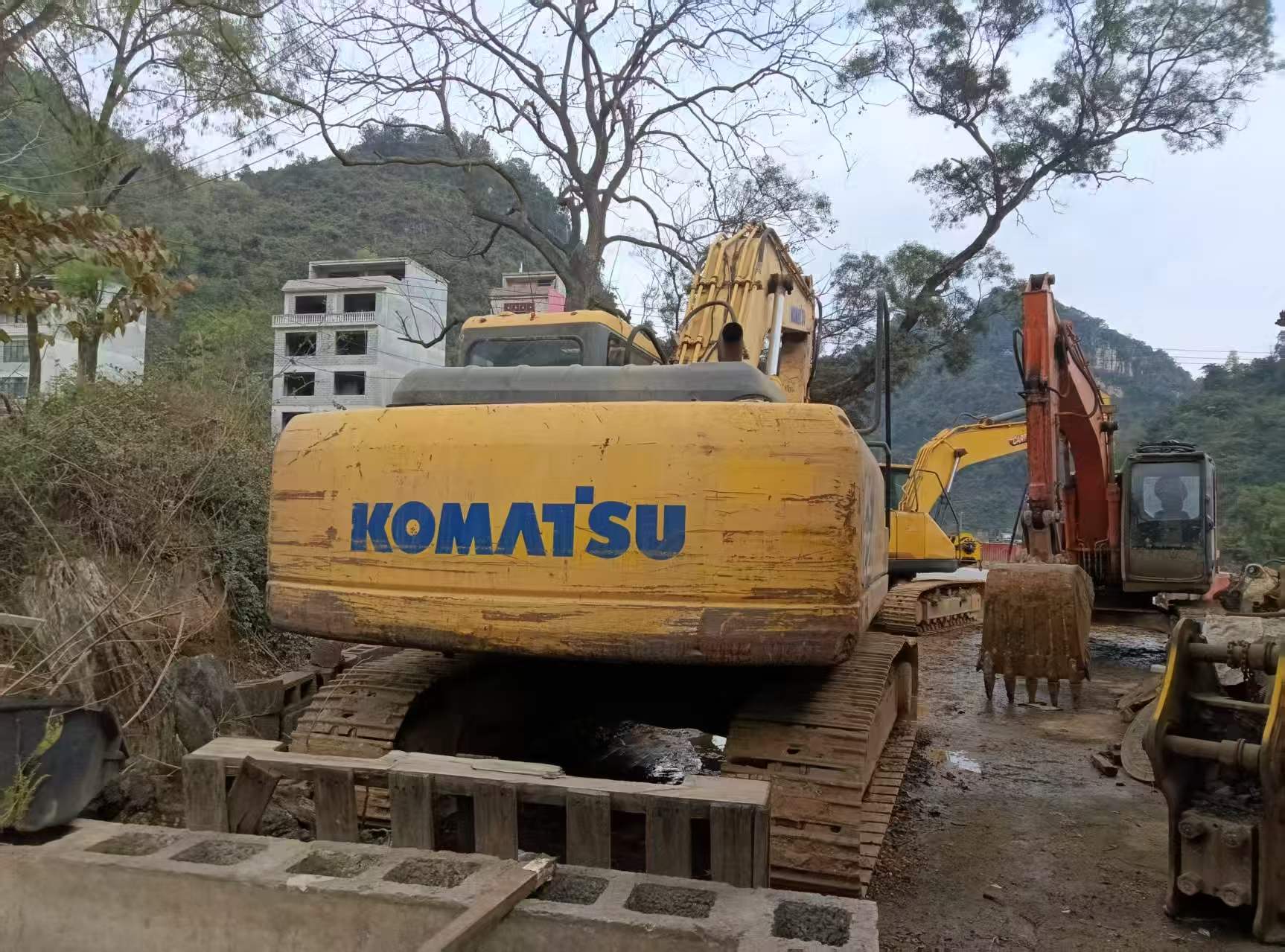

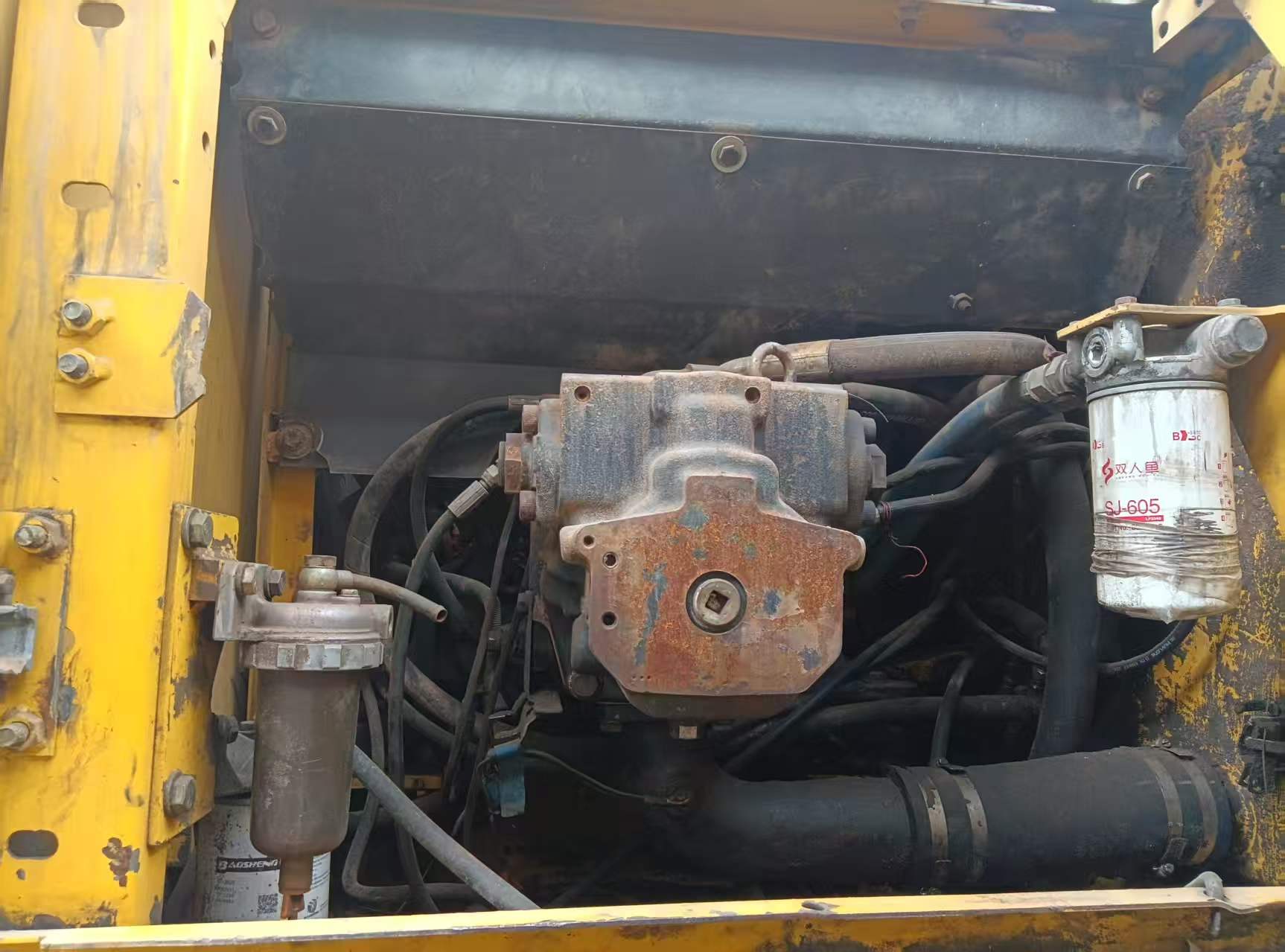

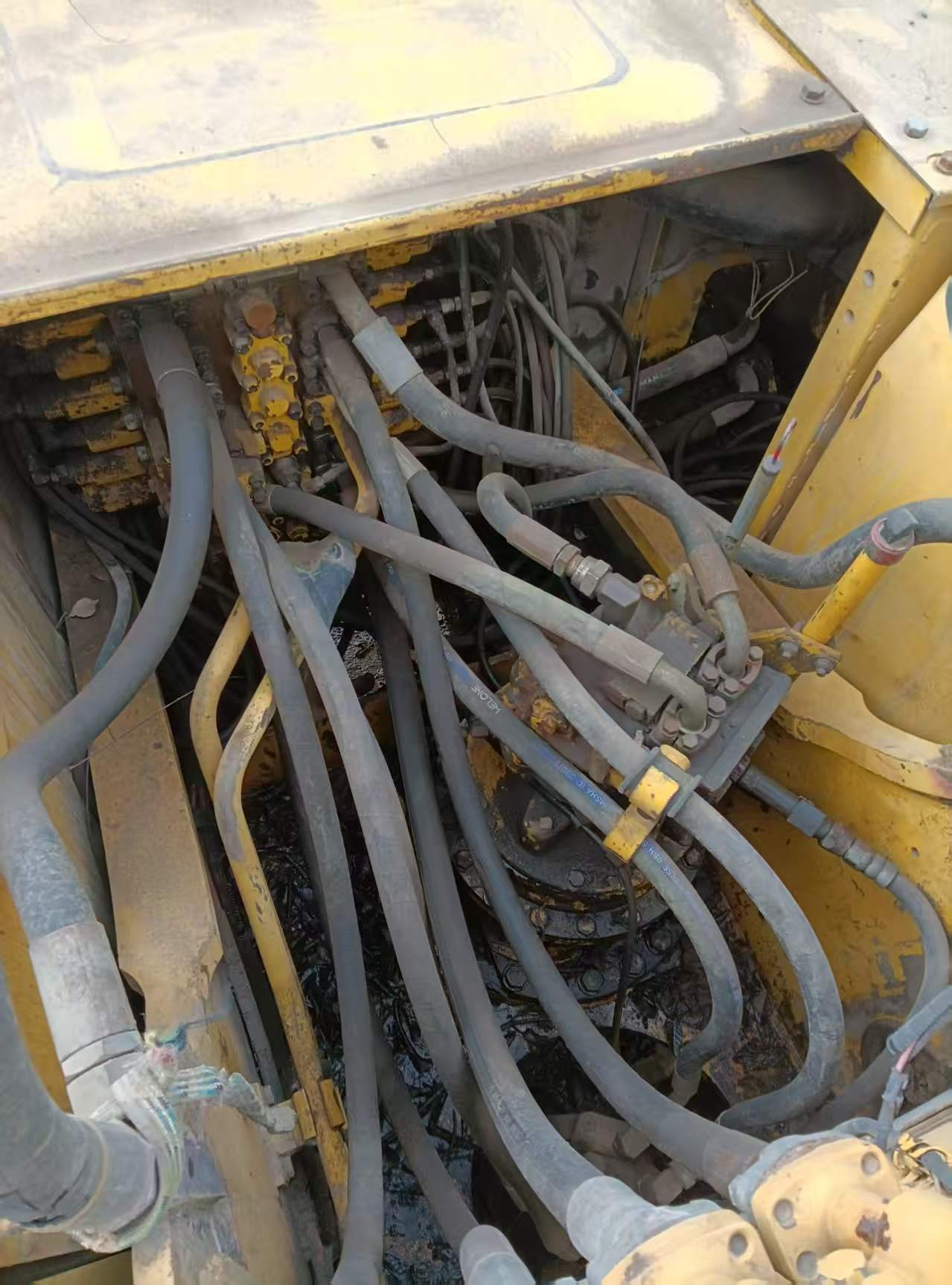

Engineered with Komatsu's proven SAA6D102E-2 powerplant delivering 107 kW of rated output, this 2016 PC200-7 excavator represents Japanese precision in the 20-ton class. Twin variable piston pumps supply 428 l/min combined flow to a robust hydraulic system featuring 37.3 MPa traveling circuit pressure and 149 kN bucket digging force. The water-cooled, 5.883L displacement engine operates through a 4-stroke direct injection configuration, providing reliable performance across demanding applications.
Built for versatility, this joint-venture manufactured unit features dual rod length options (1840/2410 mm) and a 0.8 m³ backhoe bucket. Operating dimensions include a 9380 mm maximum digging radius and 5380 mm maximum depth, while the compact 3270 mm back-end turning radius enables maneuverability in confined spaces. With 400L fuel capacity and 143L hydraulic reservoir, extended operation cycles are standard. Currently located in Maoming, Guangdong, this PC200-7 maintains Komatsu's reputation for hydraulic efficiency and structural durability in medium-class excavation equipment.
| Specifications | Value |
|---|---|
| No. | 1022376 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |
| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
