Product Description

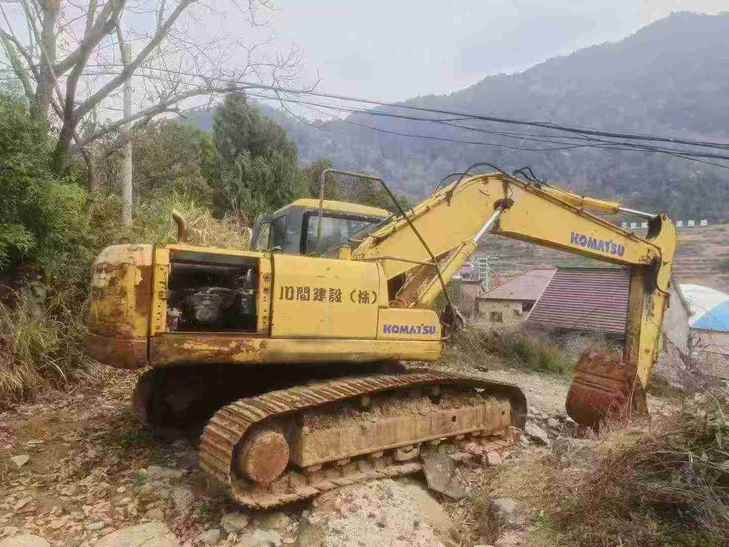

Engineered for productivity and operator comfort, this 2016 Komatsu PC200-7 excavator delivers reliable performance across demanding jobsites. Powered by a Komatsu SAA6D102E-2 engine producing 107 kW, this 20-ton machine combines robust hydraulic force with precise control. Operators benefit from enhanced cabin visibility and ergonomic controls that reduce fatigue during extended shifts.
- Power & Performance: 107 kW water-cooled engine with dual variable piston pumps (2×214 L/min)
- Digging Capacity: 0.8 m³ bucket with 149 kN bucket force and 5,380 mm maximum depth
- Operator Advantages: Spacious cabin with 2,095 mm height, superior sightlines, and intuitive hydraulic controls
- Stability & Reach: 3,270 mm track ground length ensures stable operation with 9,380 mm maximum reach
- Versatility: Dual rod lengths (1,840/2,410 mm) adapt to various excavation requirements
Currently located in Hangzhou, Zhejiang, this Japanese-manufactured excavator represents proven mid-size excavation technology with robust build quality and straightforward maintenance protocols.
| Specifications | Value |
|---|---|
| No. | 1029682 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |
| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
