Product Description

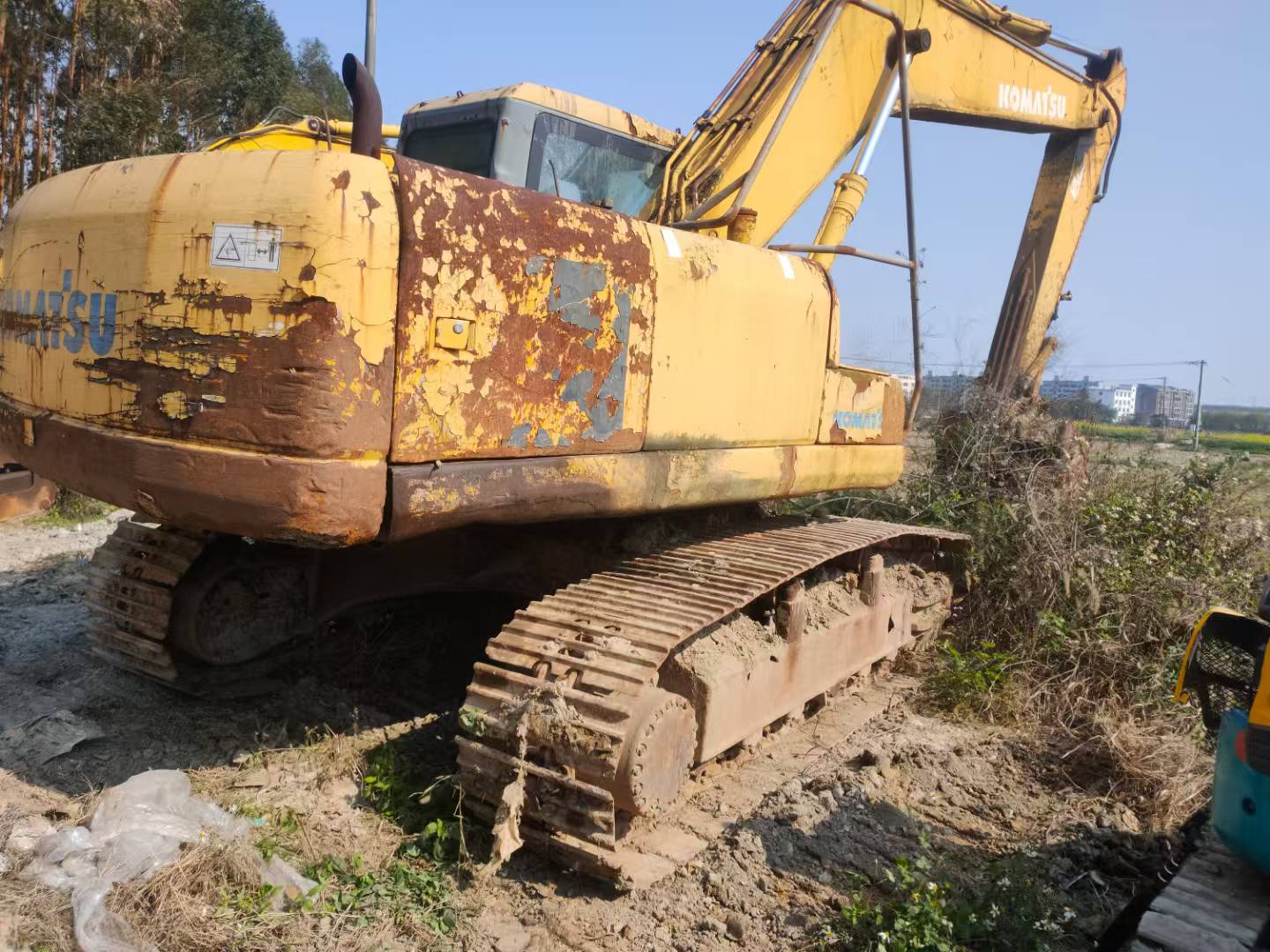

Built in 2016, this PC200-7 delivers proven Komatsu engineering with 20-ton operating capacity and a reliable SAA6D102E-2 engine producing 107 kW. Originally manufactured in Japan, this mid-size excavator combines a 0.8 m³ bucket capacity with impressive reach specifications: 9,380 mm maximum digging radius and 6,890 mm unloading height. Dual variable piston pumps deliver 2×214 L/min hydraulic flow for consistent performance across demanding jobsites.
Komatsu's global parts network ensures low downtime and predictable maintenance costs throughout ownership. The PC200-7 platform maintains exceptional resale value due to widespread demand and proven durability in construction, mining, and infrastructure applications. Water-cooled direct injection engine paired with 400L fuel capacity supports extended operation cycles.
Key Specifications:
- Operating weight: 20,253 kg with superior stability
- Bucket digging force: 149 kN / Rod force: 145 kN
- Travel speed: 12.4 km/h for efficient site mobility
- Transport dimensions: 9,480 × 3,000 × 2,985 mm
- Currently located in Taizhou, Zhejiang
| Specifications | Value |
|---|---|
| No. | 1029684 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20253 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 1840/2410 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 107 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Displacement (L) | 5.883 |
| Working form | 4 stroke, water cooled, direct injection |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 145 |
| Travel speed (km/h) | 12.4 |
| Maximum flow of main pump (l/min) | 2*214 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 22.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 2985 |
| Full cab height (mm) | 2095 |
| Back end turning radius (mm) | 3270 |
| Total track length (mm) | 4080 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3270 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 5380 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum excavation radius of stop surface (mm) | 8660 |
