Product Description

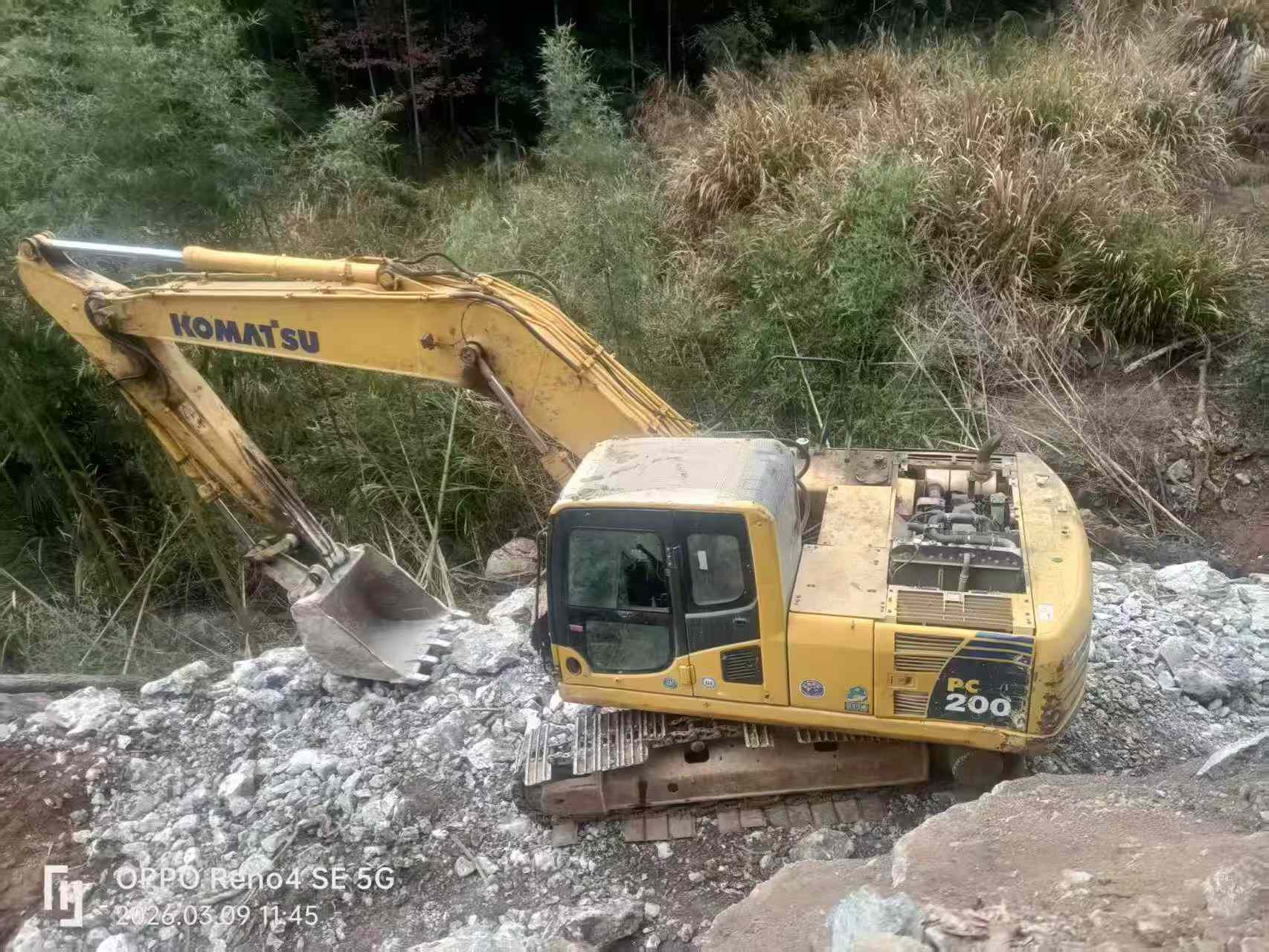

Proven performance meets lasting value in this 2011 Komatsu PC200-8 excavator, currently located in Wenzhou, Zhejiang. Built during Komatsu's peak engineering era, this 20-ton workhorse delivers reliable productivity with its Komatsu SAA6D107E-1 engine generating 110kW at 2000rpm. Operating weight of 19,900kg and a 0.8m³ bucket capacity make it ideal for medium to heavy-duty applications across construction, mining, and infrastructure projects.
Komatsu's reputation in the used equipment market remains unmatched. Global parts availability ensures minimal downtime, while strong resale value protects your investment long-term. This PC200-8 features impressive specifications: 9,875mm maximum digging reach, 6,620mm maximum digging depth, and 149kN bucket digging force. The 5,700mm boom and 2,925mm arm provide exceptional versatility across diverse job sites.
- Fuel-efficient 6.69L turbocharged engine meeting EPA Tier 3 standards
- Advanced hydraulic system with 439 l/min maximum pump flow
- Superior 70% (35°) climbing ability for challenging terrain
- Compact 2,710mm rear turning radius for confined spaces
- Factory-standard specifications maintained throughout service life
B
| Specifications | Value |
|---|---|
| No. | 1048341 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

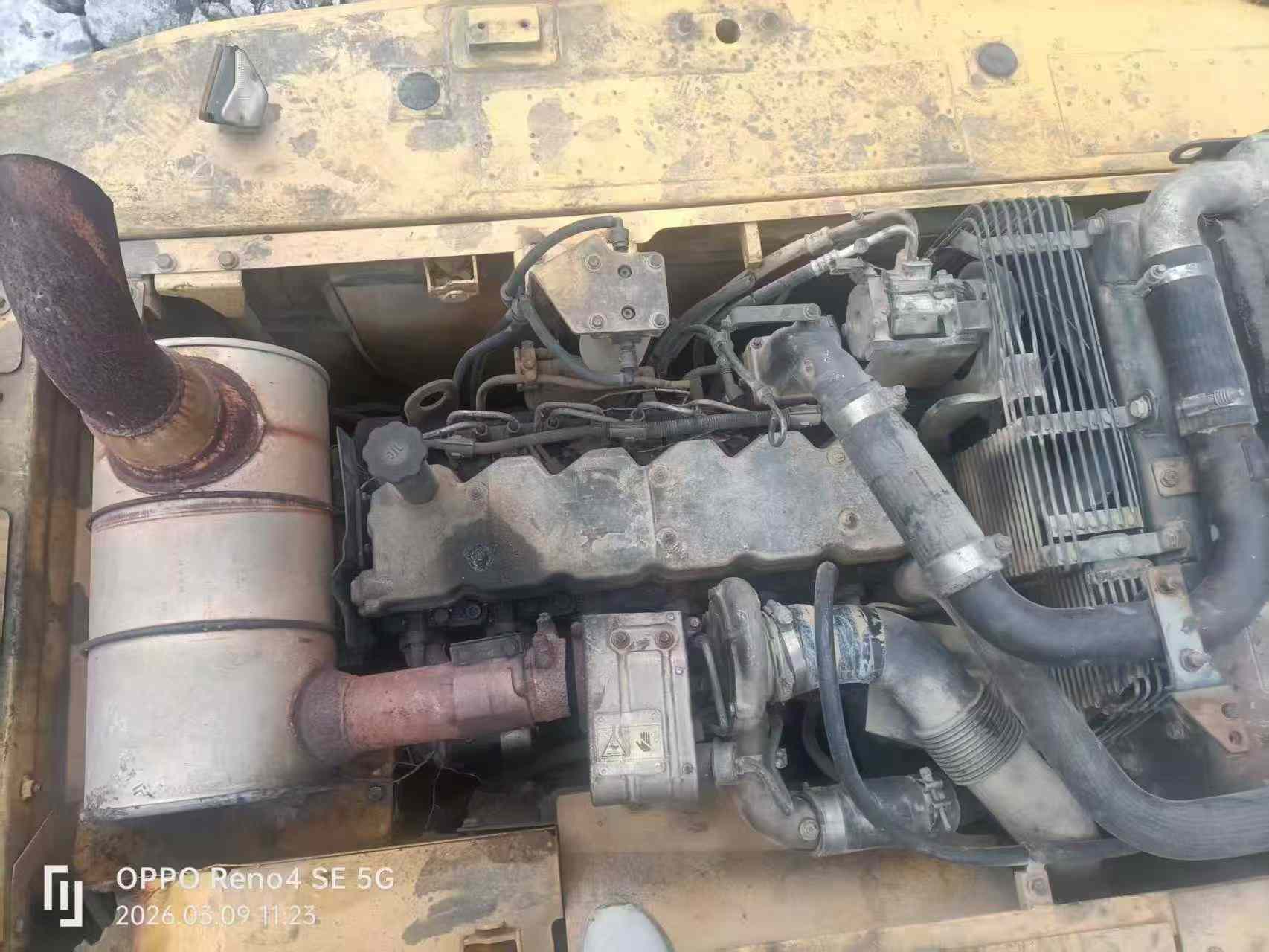

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |

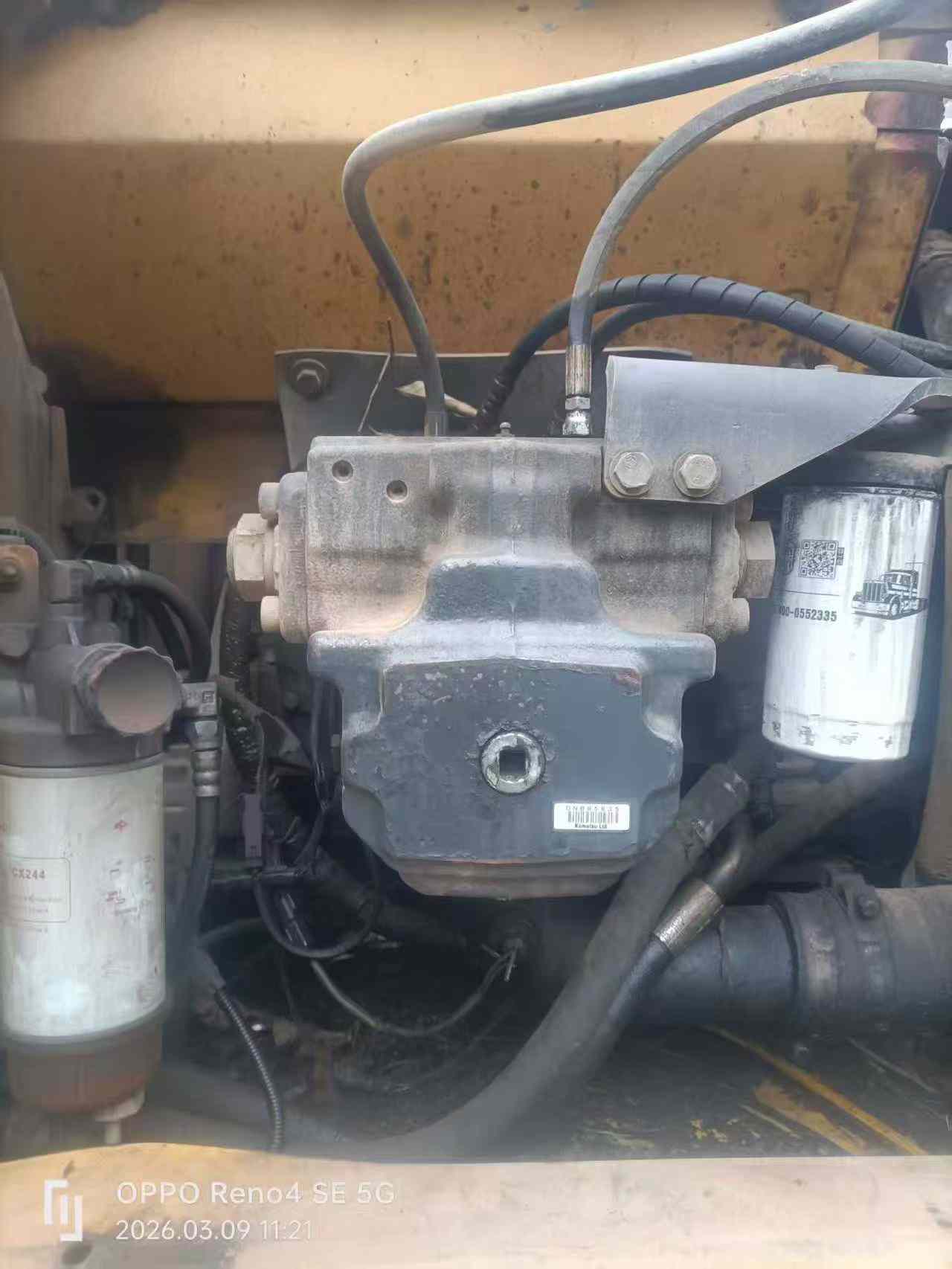

| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
