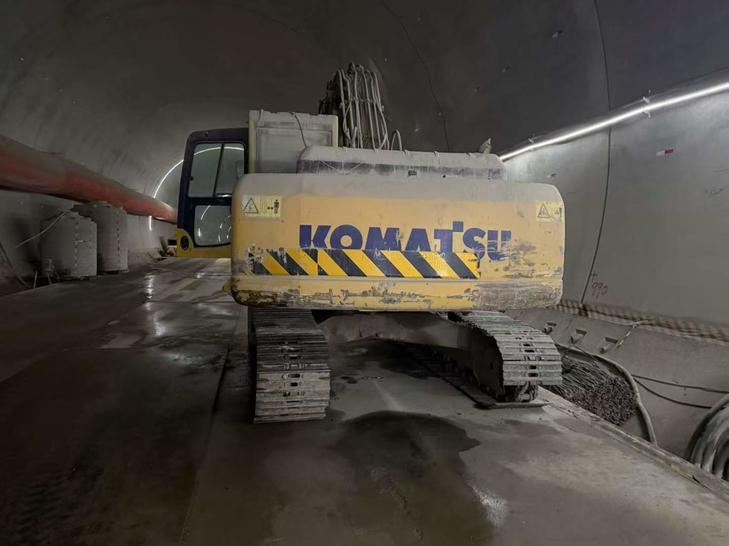

Product Description
Engineered with Komatsu's renowned SAA6D107E-1 turbocharged engine, this PC200-8 delivers 110 kW of rated power at 2000 rpm through a 6.69L displacement system meeting EPA Tier 3 and EU Stage IIIA emissions standards. Hydraulic performance is exceptional: a maximum main pump flow of 439 l/min supports precise control across all functions, while the dual axial piston travel motors and single rotary motor ensure responsive operation under demanding conditions.
Operating at 19,900 kg working weight with a 0.8 m³ bucket capacity, this 20-ton excavator generates 149 kN bucket digging force and 108 kN arm digging force. The 5700mm boom and 2925mm arm configuration achieves a maximum digging reach of 9875mm and depth of 6620mm. Ground-specific pressure remains low at 44.1 kPa across 600mm track plates, enabling work on sensitive terrain.
Key Technical Specifications:
- Komatsu SAA6D107E-1 engine: 110 kW at 2000 rpm
- Hydraulic system: 439 l/min maximum flow, 37.3 MPa travel circuit
- Digging forces: 149 kN bucket / 108 kN arm
- Working envelope: 9875mm reach, 6620mm depth
- Currently located in Putian, Fujian Province
| Specifications | Value |
|---|---|
| No. | 1029715 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
