Product Description

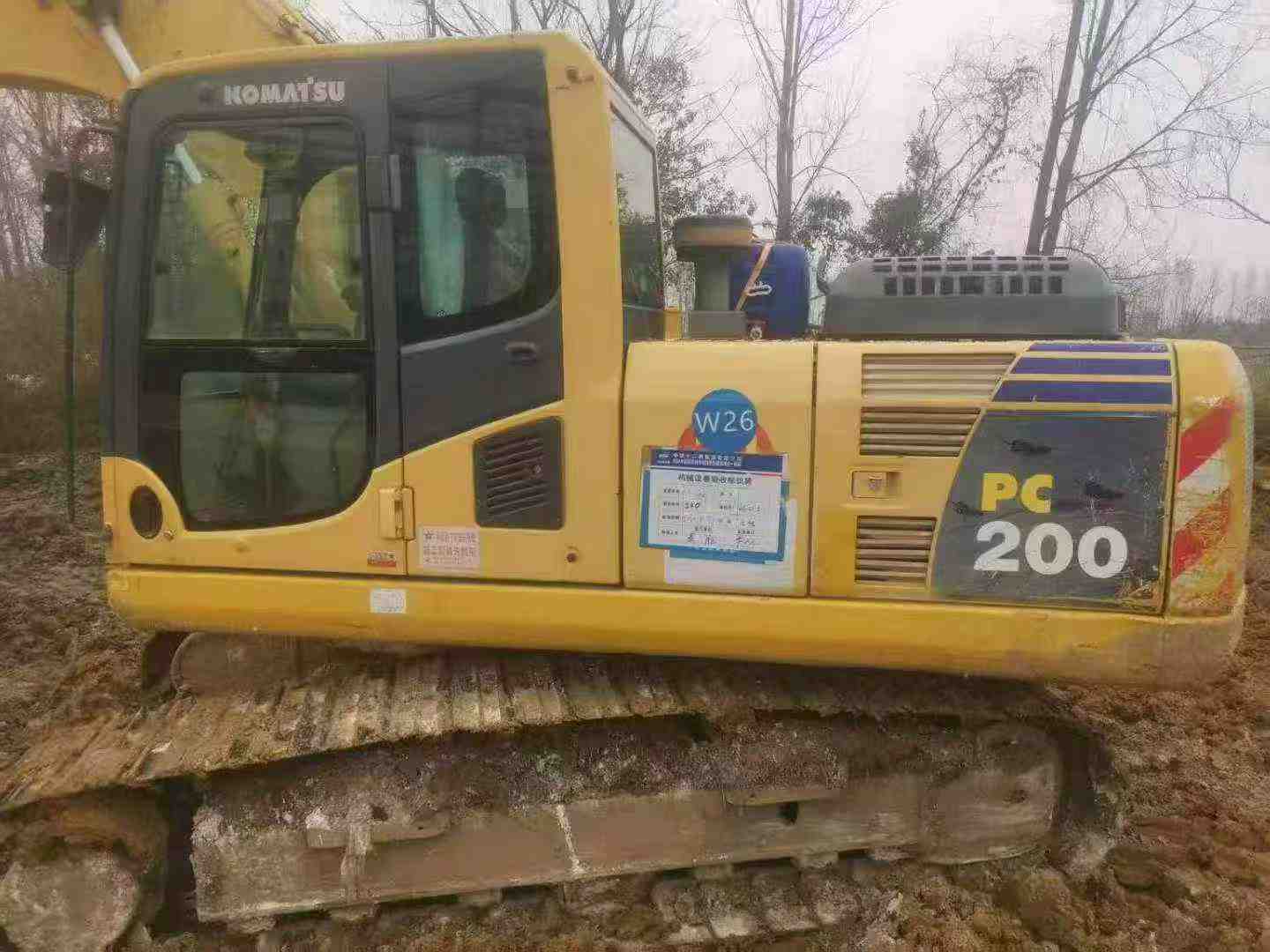

Available now in Hangzhou, Zhejiang, this 2018 Komatsu PC200-8 eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a robust Komatsu SAA6D107E-1 engine producing 110kW at 2000rpm, this 20-ton excavator combines proven reliability with efficient fuel consumption from its 6.69L turbocharged, post-cooled powerplant meeting EPA Tier 3 standards.
Engineered for demanding applications, the machine features a 0.8m³ bucket capacity, 9875mm maximum digging radius, and 6620mm maximum digging depth. With 149kN bucket digging force and 108kN rod digging force, it tackles tough materials with confidence. The 5700mm boom and 2925mm arm provide exceptional reach and versatility across excavation, trenching, and loading operations.
Key specifications:
- Operating weight: 19,900kg with optimal 44.1kPa ground pressure
- Hydraulic system: 439L/min maximum pump flow for responsive control
- Travel speeds: 3.0/4.1/5.5 km/h for efficient site mobility
- Transport dimensions: 9480mm × 2800mm × 3040mm
- Fuel capacity: 400L for extended operating shifts
Skip the lead times—this Hangzhou-based unit ships fast to construction sites a
| Specifications | Value |
|---|---|
| No. | 1040345 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

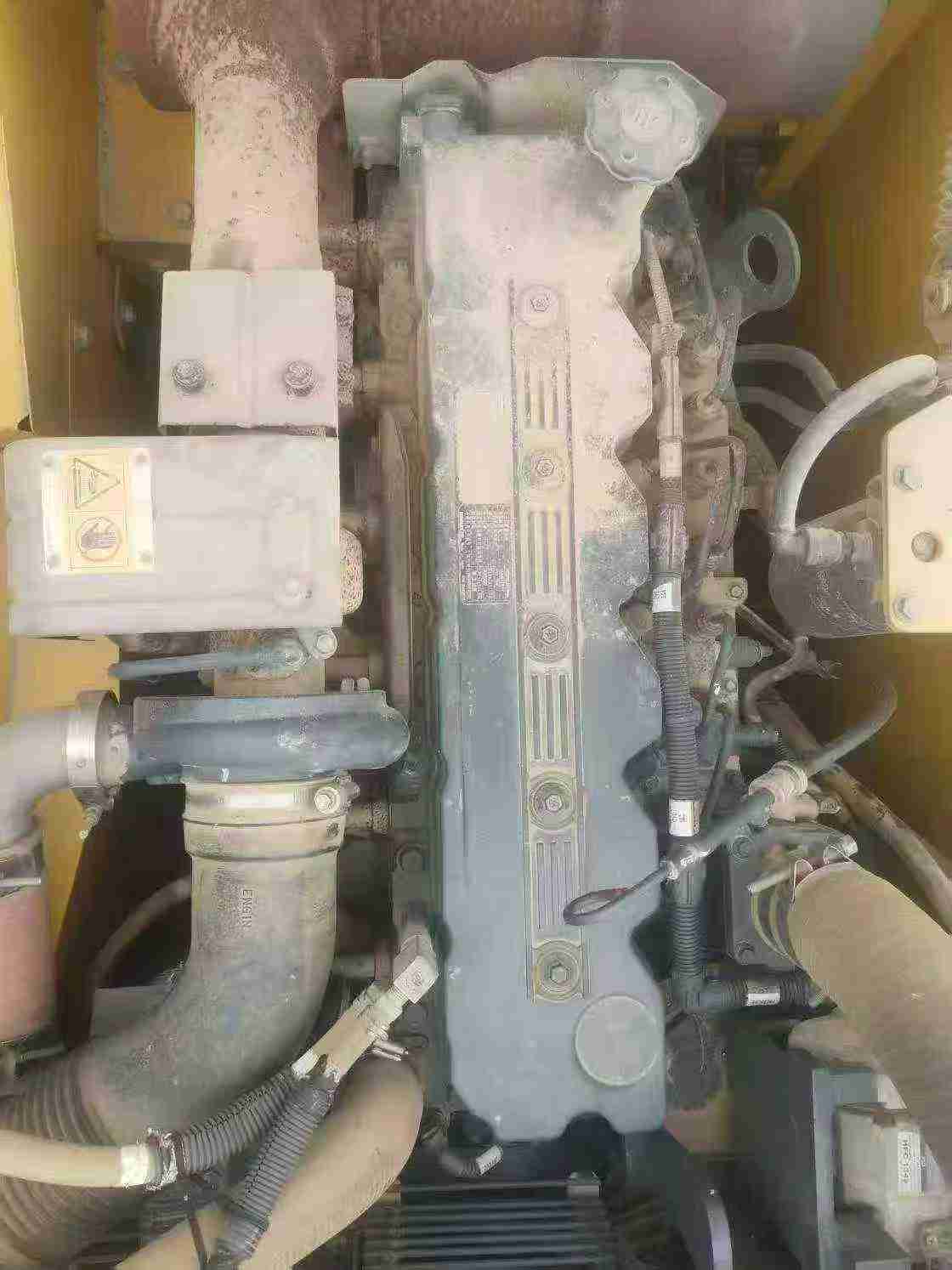

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |

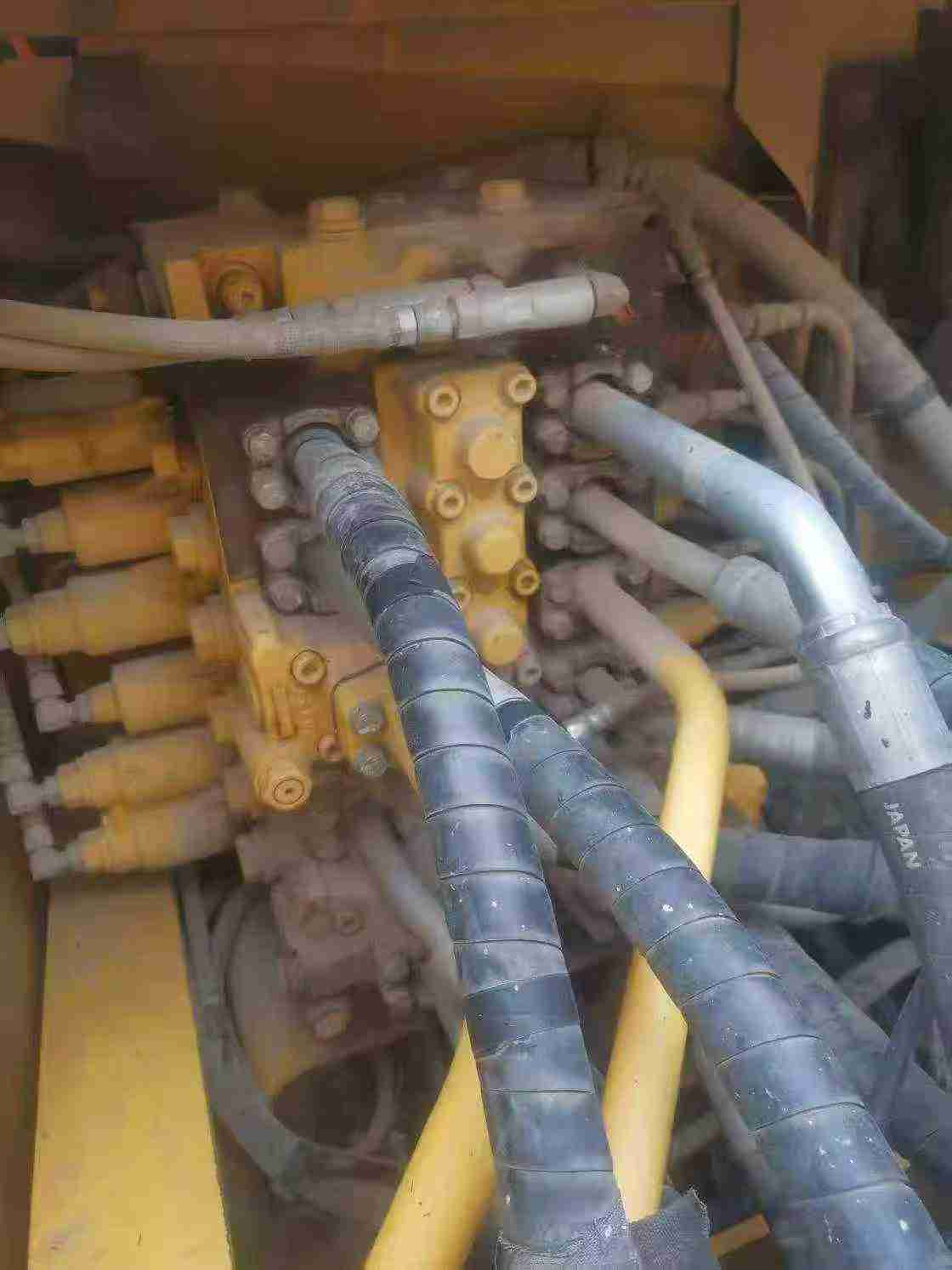

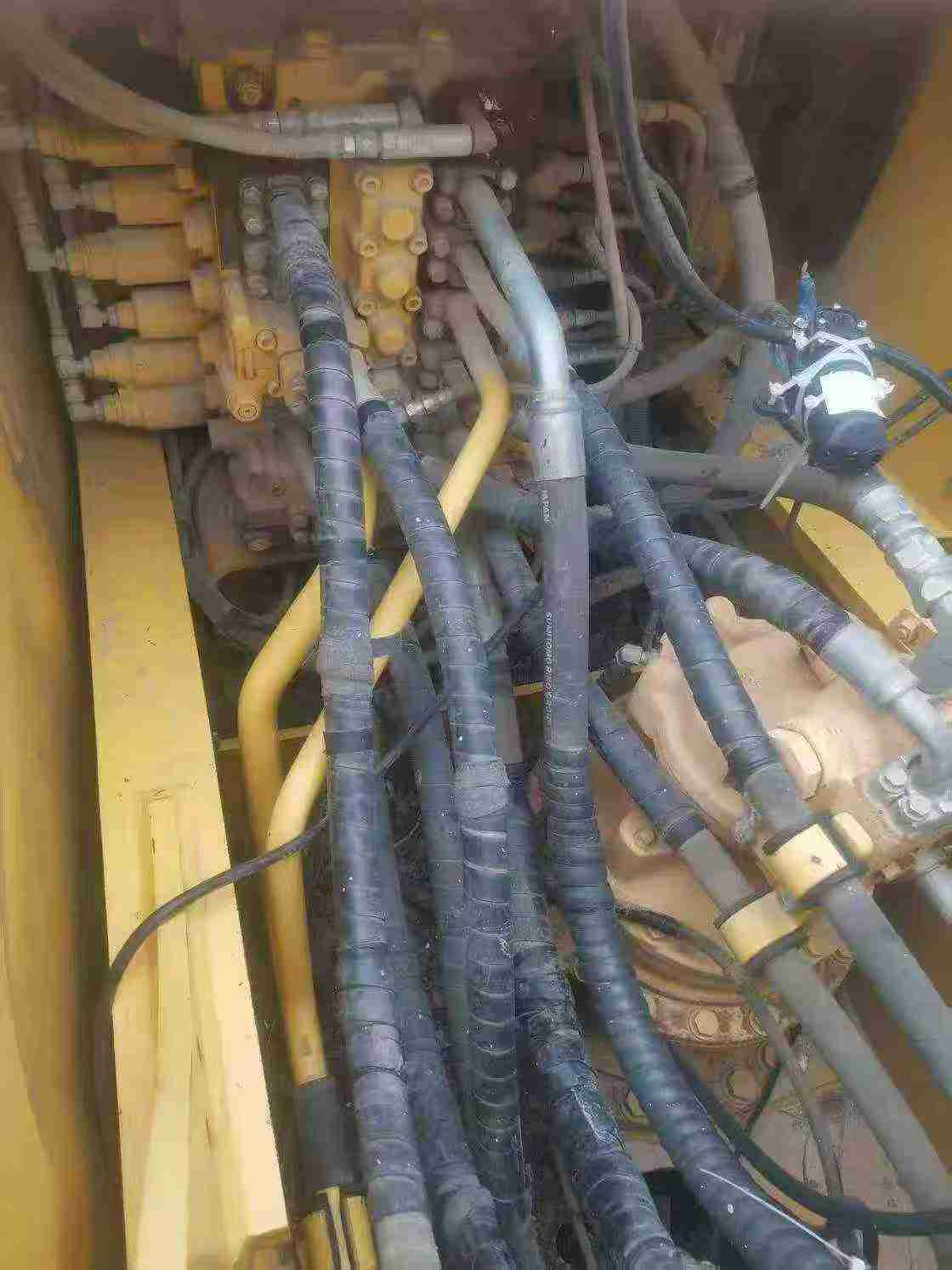

| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |

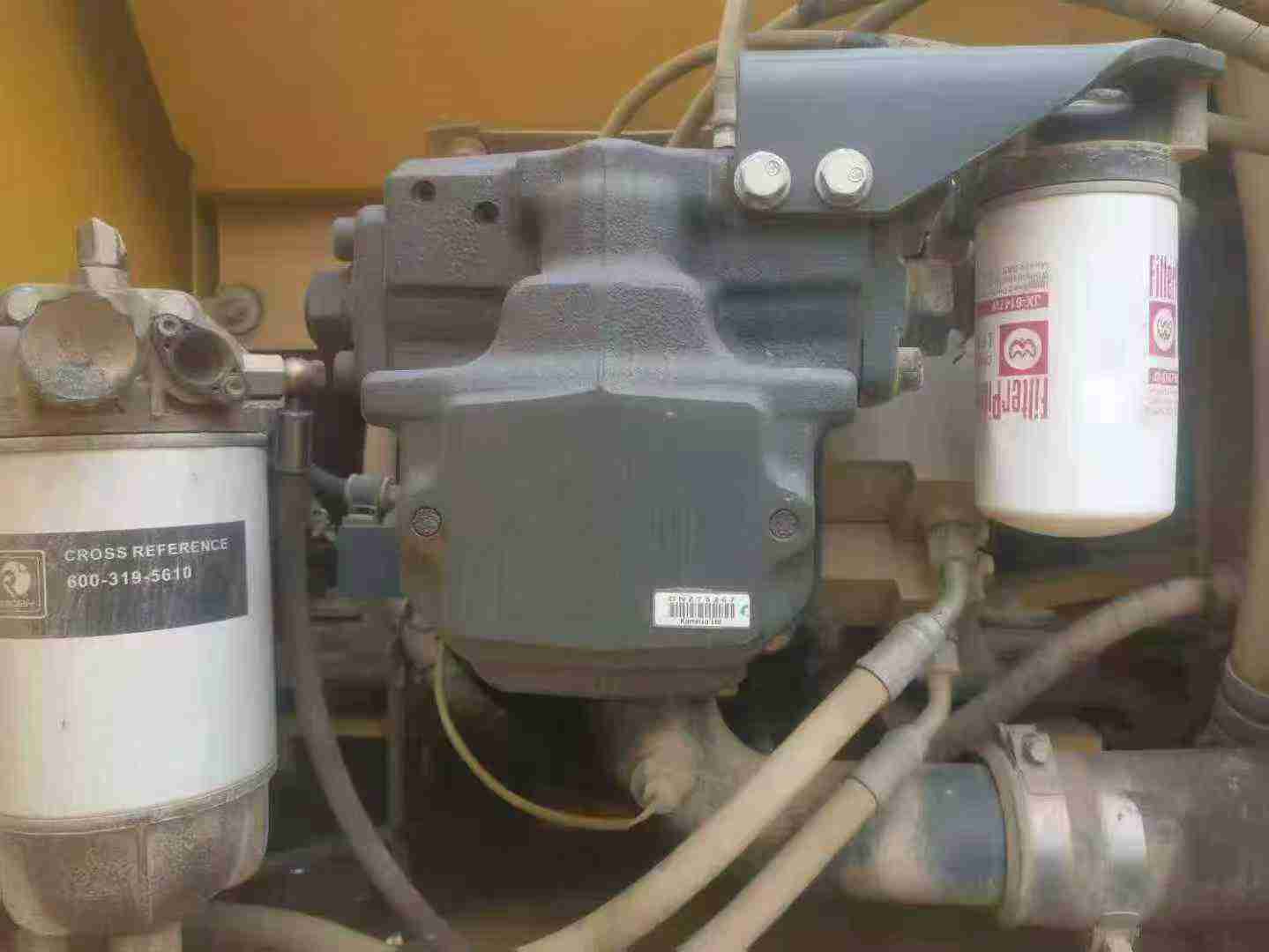

| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
