Product Description

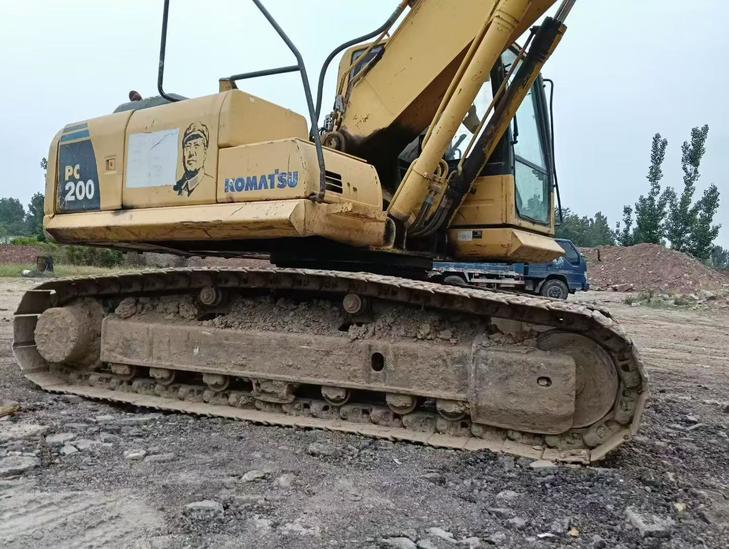

Built for serious earthmoving, the 2020 Komatsu PC200-8 is one of the most trusted 20-ton excavators in the used equipment market. Komatsu's global parts network and long production run of the PC200 series mean components are readily available, downtime stays short, and resale value holds stronger than most competitors in its class.
Powered by the Komatsu SAA6D107E-1 engine — a 6.69L, 6-cylinder turbocharged unit rated at 110 kW / 2000 rpm — this machine meets EPA Tier 3 and EU Stage IIIA emissions standards. With a 0.8 m³ backhoe bucket, 149 kN bucket digging force, and a maximum digging depth of 6,620 mm, it handles demanding dig-and-load cycles with consistent hydraulic performance backed by a 439 L/min main pump output.
- Working weight: 19,900 kg | Bucket capacity: 0.8 m³
- Engine: Komatsu SAA6D107E-1 — 110 kW @ 2,000 rpm, 6.69L displacement
- Bucket digging force: 149 kN | Arm digging force: 108 kN
- Maximum digging depth: 6,620 mm | Maximum digging radius: 9,875 mm
- Maximum excavation height: 10,000 mm | Unloading height: 7,110 mm
- Travel speed: 3.0 / 4.1 / 5.5 km/h | Climbing ability: 70% / 35°
- Track plate width: 600 mm | Ground pressure: 44.1 kPa
- Fuel tank: 400 L | Hydraulic tank: 135 L
- Transport dimensions: 9,480 × 2,800 × 3,040 mm
- Origin: Jining, Shandong Province, China | Currently located: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1069044 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
