Product Description

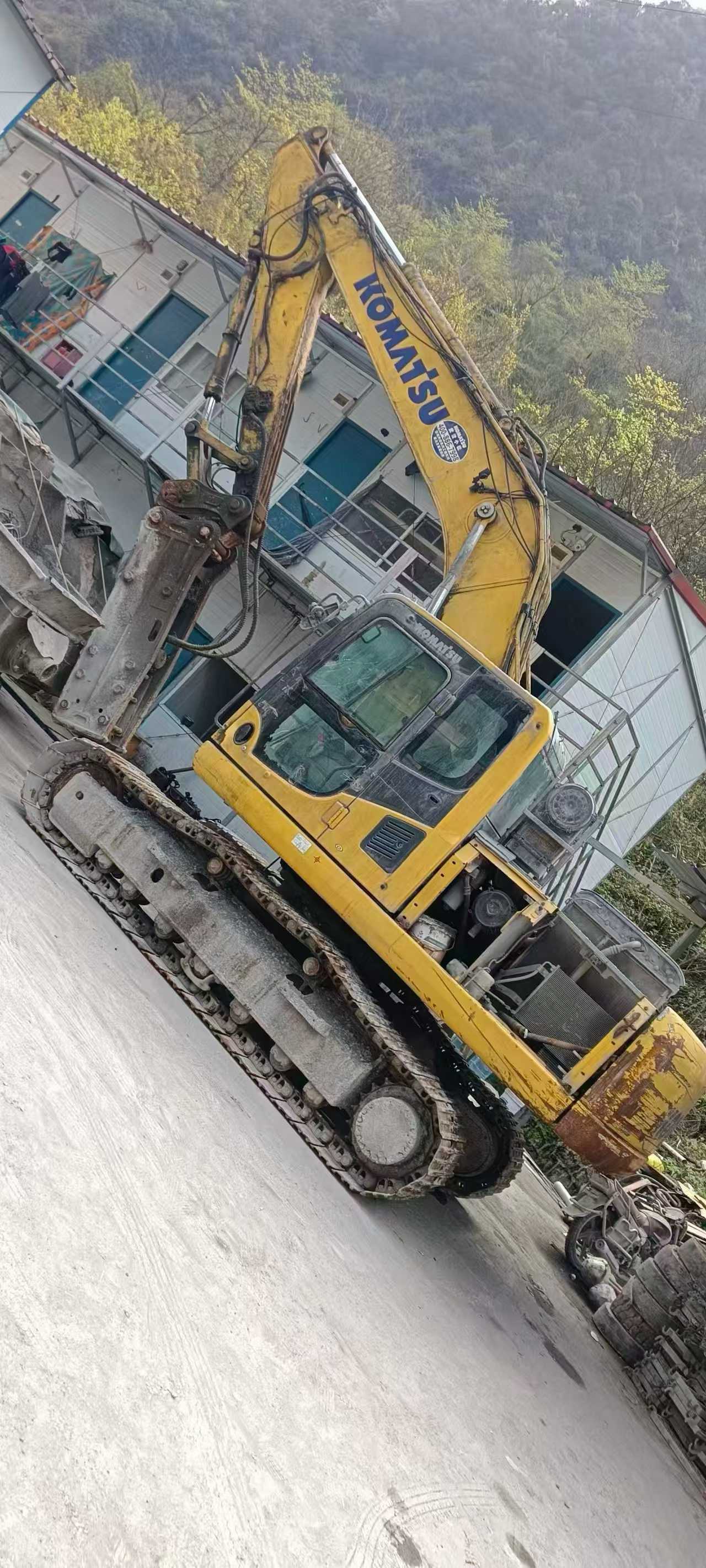

Maximize your equipment budget with this 2022 Komatsu PC200-8 excavator, delivering flagship performance at a fraction of new machine costs. Powered by a robust Komatsu SAA6D107E-1 engine producing 110kW at 2000rpm, this 20-ton workhorse combines proven reliability with exceptional fuel efficiency. Currently located in Kunming, Yunnan, this machine offers immediate deployment capability for contractors seeking premium Japanese engineering without the premium price tag.
- Operating Specs: 0.8m³ bucket capacity, 9875mm maximum digging radius, 6620mm digging depth
- Power System: 6.69L turbocharged, intercooled 6-cylinder engine meeting EPA Tier 3/EUIIIA standards
- Hydraulic Performance: 439L/min main pump flow, 149kN bucket digging force, 108kN stick digging force
- Dimensions: 9480mm transport length, 2800mm width, 3040mm height
- Productivity Features: 12.4rpm rotation speed, 70% grading ability, dual axial piston travel motors with parking brake
Invest smart. This low-hour 2022 model delivers decades of Komatsu durability with substantial capital savings compared to ordering new equi
| Specifications | Value |
|---|---|
| No. | 1038210 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19900 |

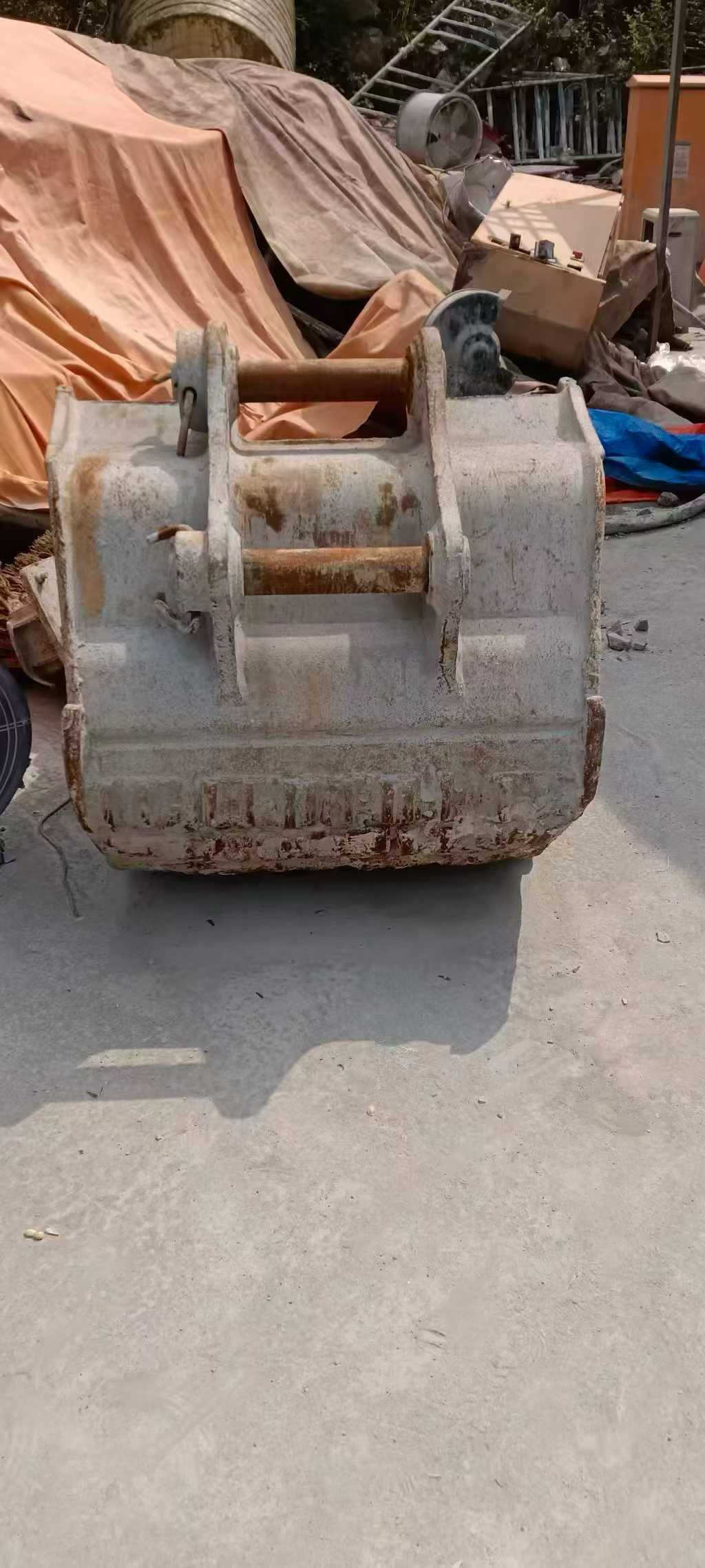

| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

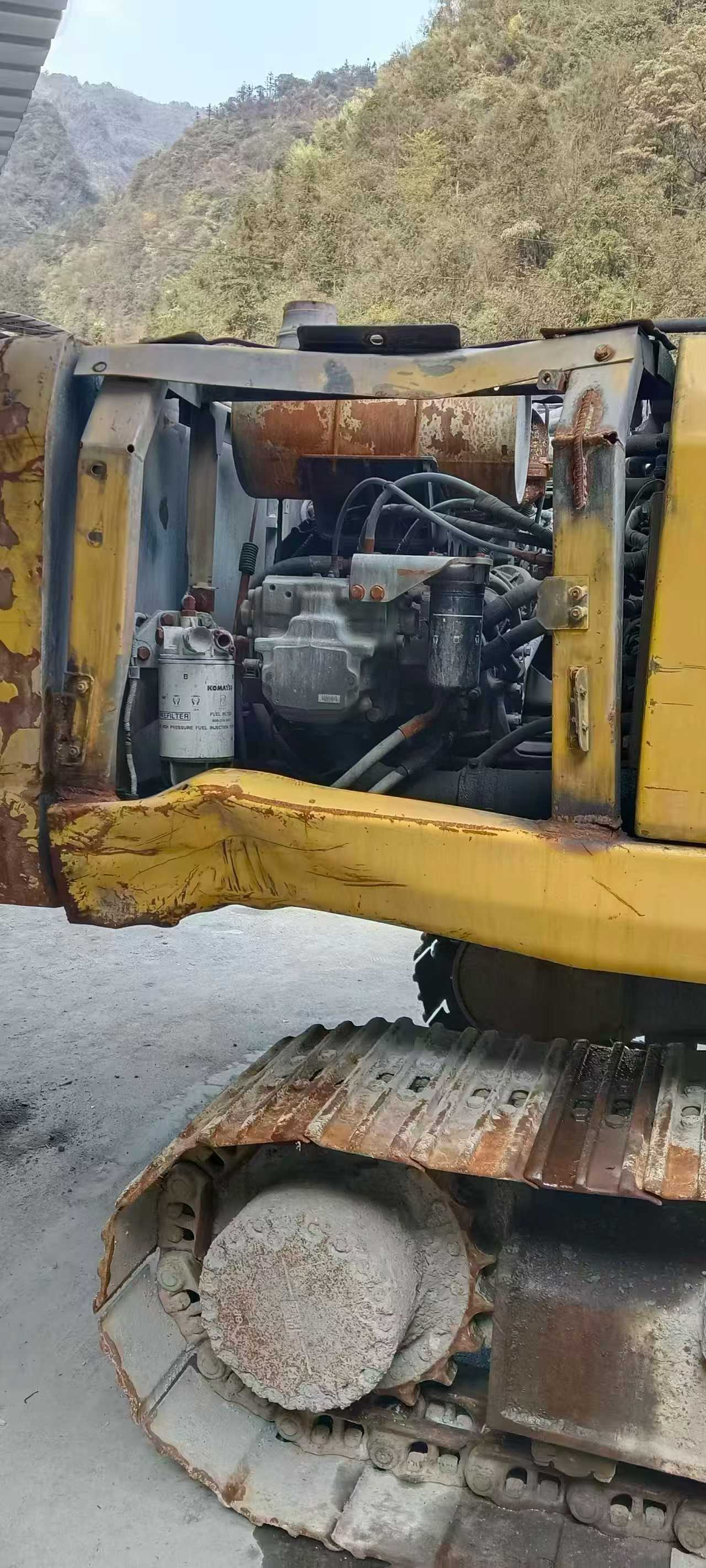

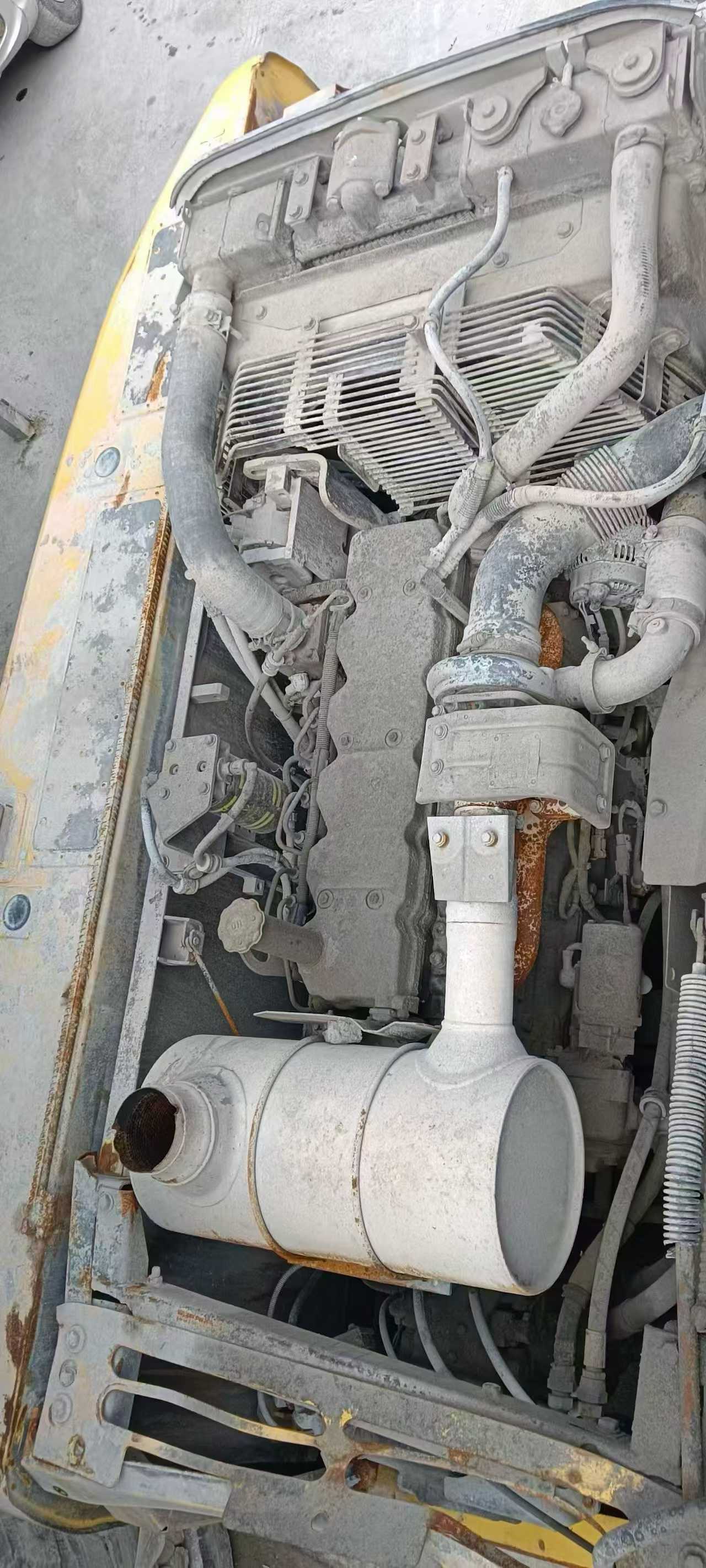

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |

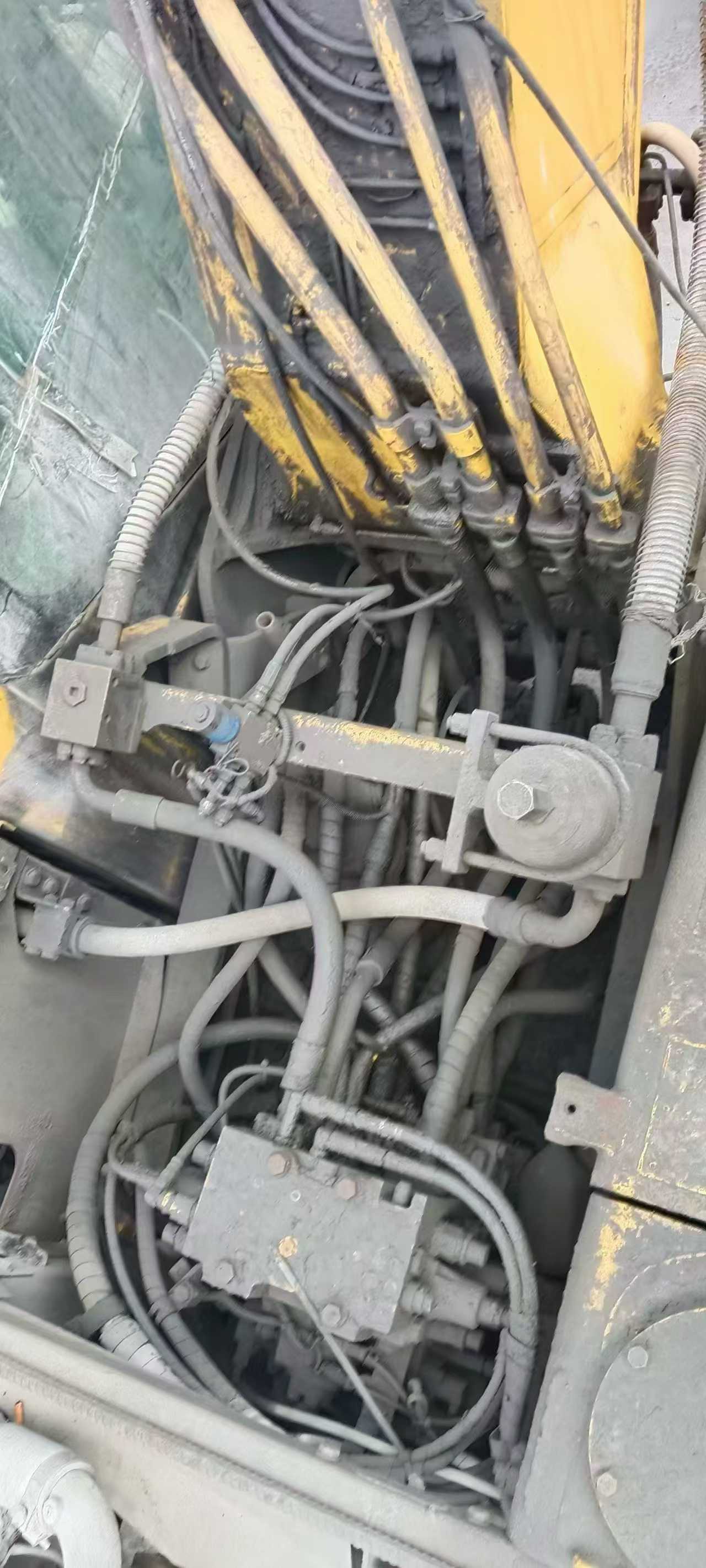

| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9480 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |

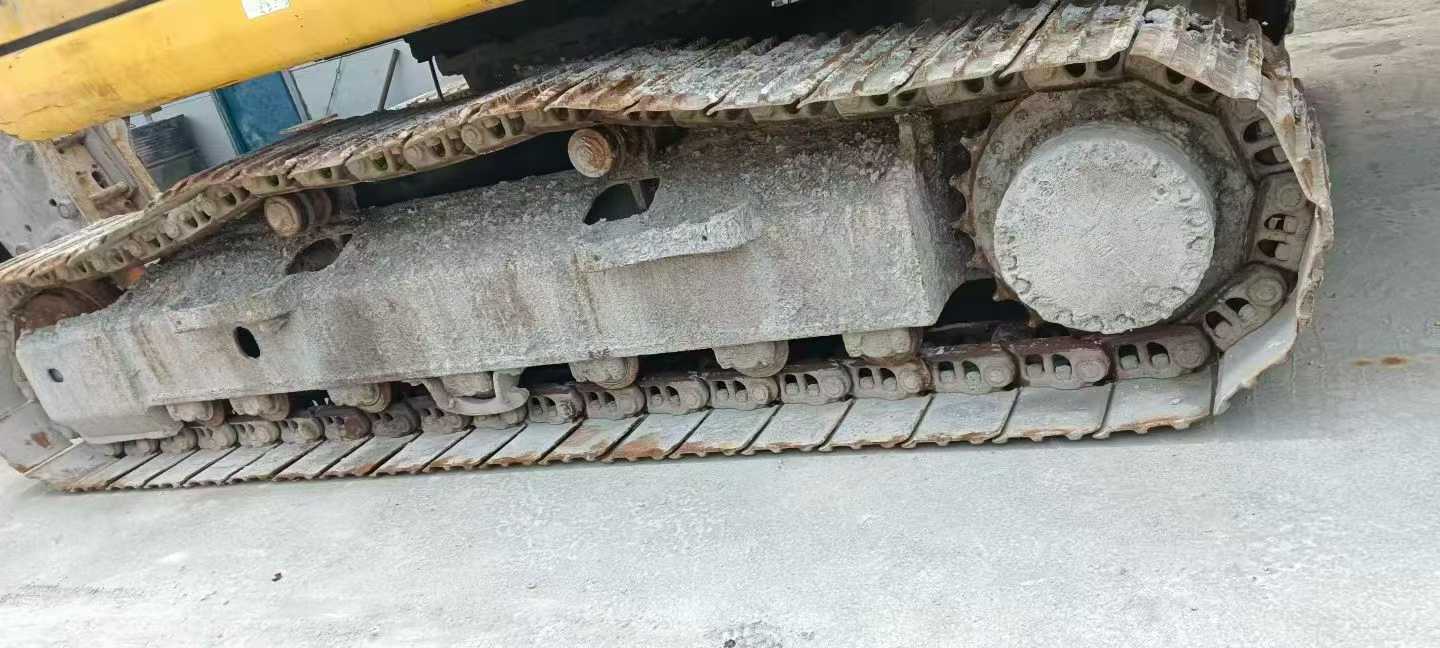

| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
