Product Description

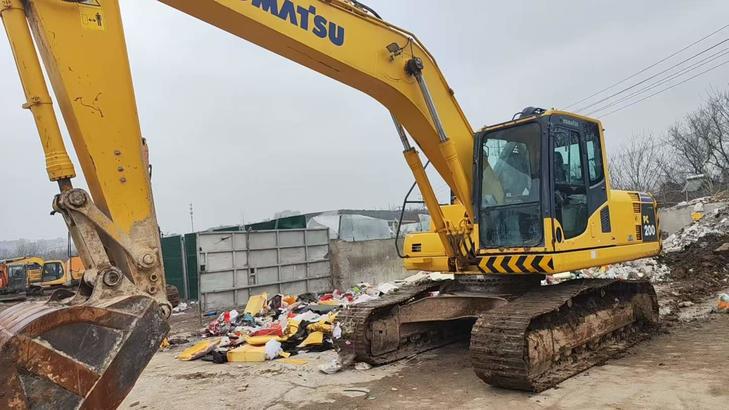

Built to withstand the rigors of demanding excavation projects, this 2020 Komatsu PC200-8M0 represents proven Japanese engineering at its finest. Operating at 20 tons with a robust 103kW Komatsu SAA6D107E-1 engine, this mid-size excavator delivers consistent performance across construction, mining, and infrastructure applications. Its water-cooled, turbocharged powerplant combines fuel efficiency with the reliability Komatsu is renowned for worldwide.
Equipped with a 0.9-1.05m³ bucket capacity and impressive digging forces—149kN bucket force and 108kN arm force—this machine tackles challenging ground conditions with authority. The 5700mm boom and 2410mm arm provide a maximum digging reach of 9380mm and depth of 6095mm, ensuring versatility across diverse jobsites. Currently located in Shenzhen, Guangdong, this proven workhorse maintains the structural integrity and hydraulic precision that define the PC200-8M0 series.
- 20-ton working weight with 9.38m maximum reach
- Komatsu SAA6D107E-1 engine: 103kW at 2000rpm
- Variable piston hydraulic system: 439L/min flow capacity
- 70% gradeability and 12.4rpm swing speed
- Joint venture/import quality standards
| Specifications | Value |
|---|---|
| No. | 1037945 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20150 |
| Bucket capacity (m³) | 0.9~1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2410 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 103/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 46.7 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 178 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115 x 1120 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1490 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1334 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9495 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 6095 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 5430 |
| Maximum excavation radius of stop surface (mm) | 9190 |
