Product Description

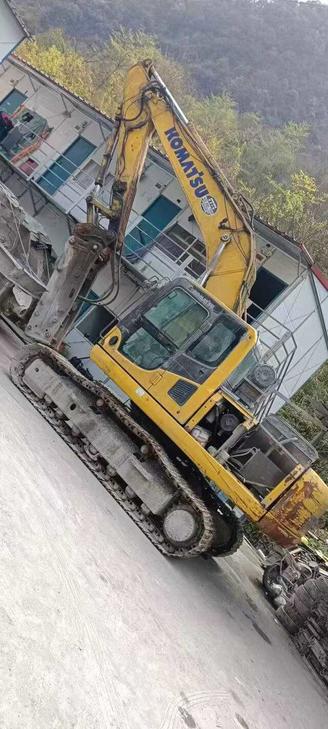

Built for relentless performance, this 2022 Komatsu PC200-8M0 excavator demonstrates exceptional durability with minimal operational hours since deployment. Operating at 20 tons with a robust 0.9-1.05 m³ bucket capacity, this proven workhorse delivers consistent productivity across demanding jobsites. Powered by the reliable Komatsu SAA6D107E-1 engine generating 103 kW at 2000 rpm, it combines a water-cooled, turbocharged system with post-cooling technology for sustained power delivery in challenging conditions.
Key performance specifications include:
- Maximum digging reach of 9,380 mm with 6,095 mm depth capability
- Bucket digging force of 149 kN and rod force of 108 kN for tough excavation
- Variable piston pump system delivering 439 l/min maximum flow
- 70% climbing ability and 12.4 rpm rotation speed for versatile maneuvering
- 400L fuel tank supporting extended operation cycles
Currently located in Putian, Fujian, this joint venture-manufactured machine represents Komatsu's commitment to engineering excellence. With comprehensive hydraulic systems and reinforced undercarriage components, it stands ready for immediate deployment in your heavy construction operations
| Specifications | Value |
|---|---|
| No. | 1035889 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20150 |
| Bucket capacity (m³) | 0.9~1.05 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2410 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 103/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 46.7 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 178 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115 x 1120 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1490 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1334 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9495 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 6095 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 5430 |
| Maximum excavation radius of stop surface (mm) | 9190 |
