Product Description
With a robust 20-ton capacity, the Komatsu PC200-8N1 excavator, manufactured in 2016, ensures efficient and reliable performance. Powered by a Komatsu SAA6D107E-1-A engine, delivering 110 kW at 2000 rpm, this machine is designed for heavy-duty tasks. Its 0.8 m³ bucket and 2900 mm rod length provide substantial digging force, reaching up to 149 kN.

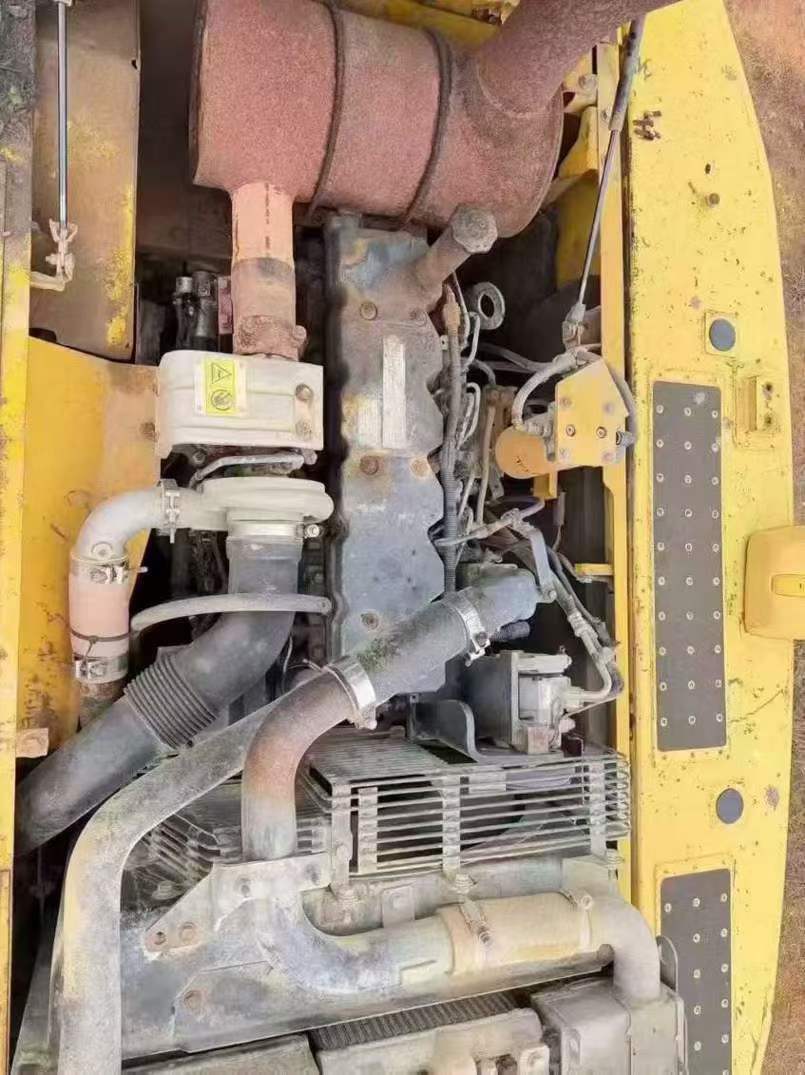

- Located in 湖南, this excavator features a water-cooled, 6-cylinder engine with a displacement of 6.69 L, ensuring consistent power output.

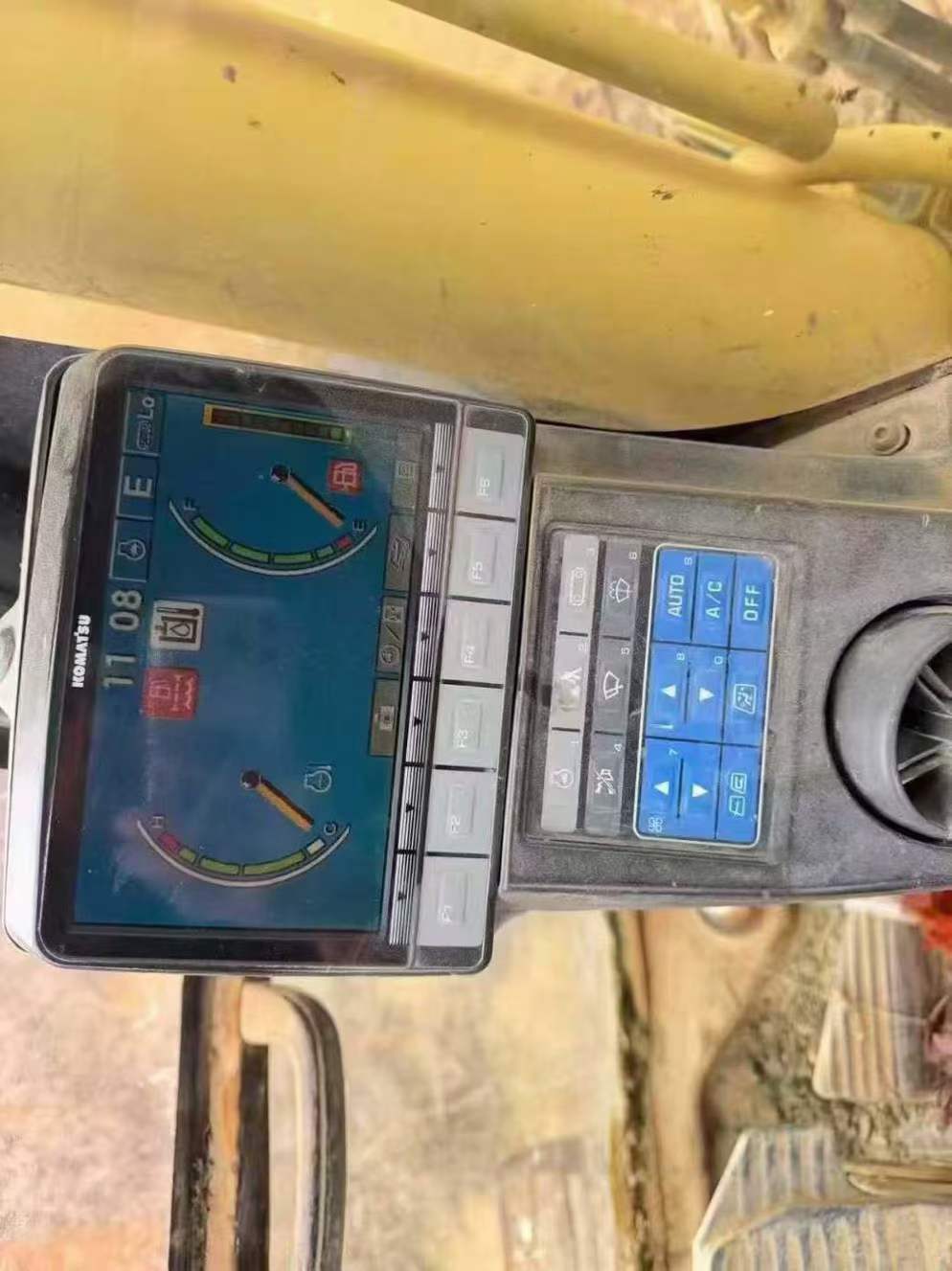

- The operator's cabin offers excellent visibility, enhancing safety and precision during operations.
- Equipped with a fixed displacement axial piston motor for rotation and a variable axial piston motor for travel, it provides smooth and stable movement.
- Travel speeds of 5.5/4.1/3.0 km/h, combined with a minimum turning radius of 3040 mm, make it highly maneuverable on various terrains.
- Ground specific pressure of 44.1 Kpa and a track gauge of 2200 mm contribute to its stability and reduced ground disturbance.
| Specifications | Value |
|---|---|
| No. | 1003675 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1-A |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Working Hydraulic Circuit (Mpa) | 34.8 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Hydraulic System (L) | 232 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 1110 |
| Maximum excavation radius of stop surface (mm) | 9700 |
