Product Description
Built for high-output excavation, this 2016 Komatsu PC200-8N1 delivers reliable performance across digging, grading, and demolition applications. Powered by a Komatsu SAA6D107E-1-A engine producing 110 kW at 2000 rpm, this 20-ton excavator combines proven Japanese engineering with the durability demanded on active job sites. Currently located in Shenzhen, Guangdong, it arrives ready for immediate deployment.
- Maximum digging depth of 6,620 mm and reach of 9,875 mm handles deep foundation and trenching work
- 0.8 m³ bucket capacity with 149 kN digging force tackles dense material efficiently
- 2,900 mm rod length provides versatile working range for site grading and loading operations
- Water-cooled 6-cylinder engine with 6.69 L displacement ensures consistent hydraulic flow under load
- Operating weight of 19,500 kg balances stability with transportability
- 34.8 MPa working hydraulic circuit supports responsive attachment control
Equipped with variable axial piston travel motors and fixed displacement swing motor, this PC200-8N1 offers precise positioning for demolition and material handling. Standard backhoe configuration and 400 L fuel capacity support ext
| Specifications | Value |
|---|---|
| No. | 1025941 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

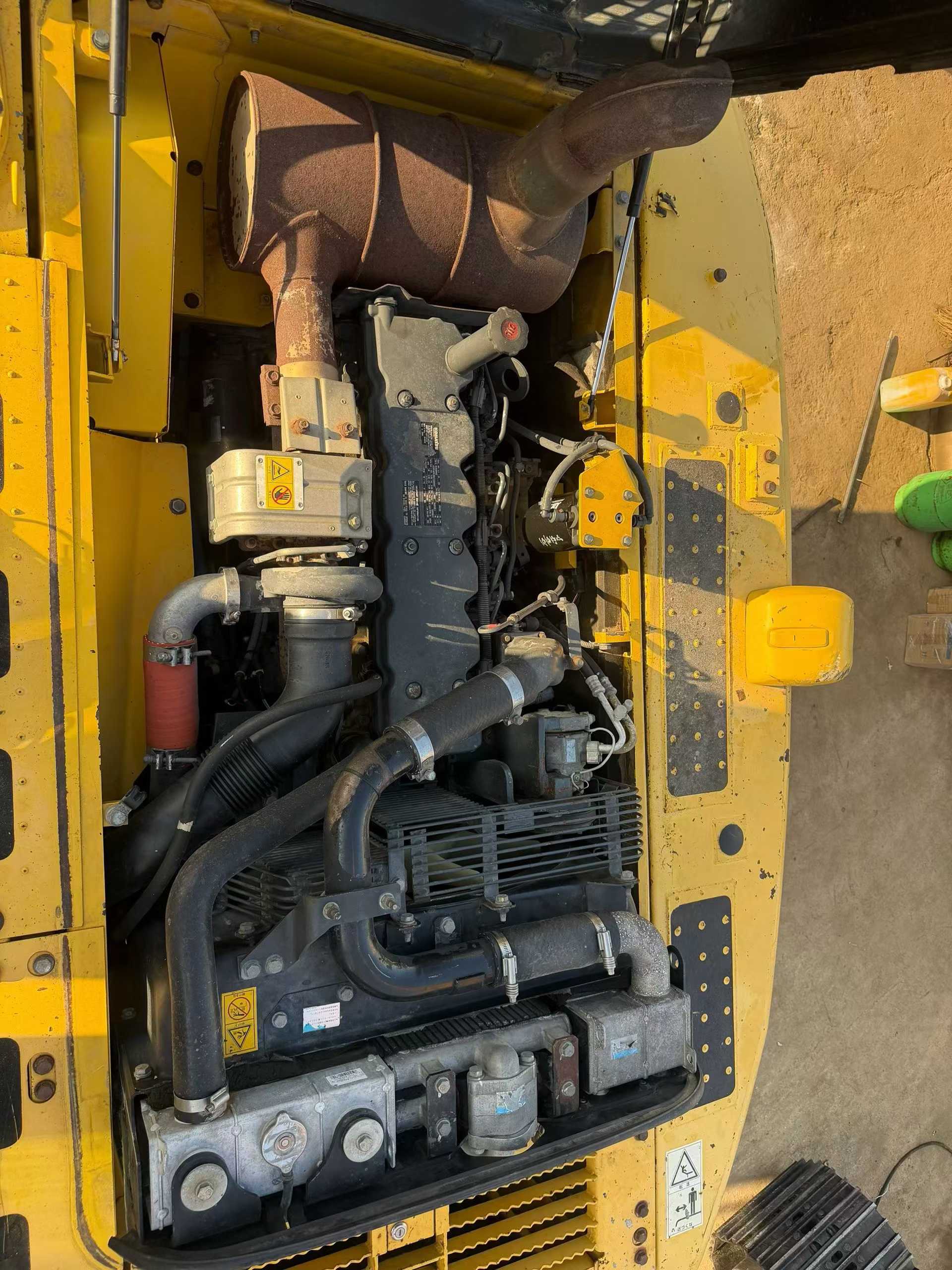

| Engine type | Komatsu SAA6D107E-1-A |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Working Hydraulic Circuit (Mpa) | 34.8 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Hydraulic System (L) | 232 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 1110 |
| Maximum excavation radius of stop surface (mm) | 9700 |
