Product Description

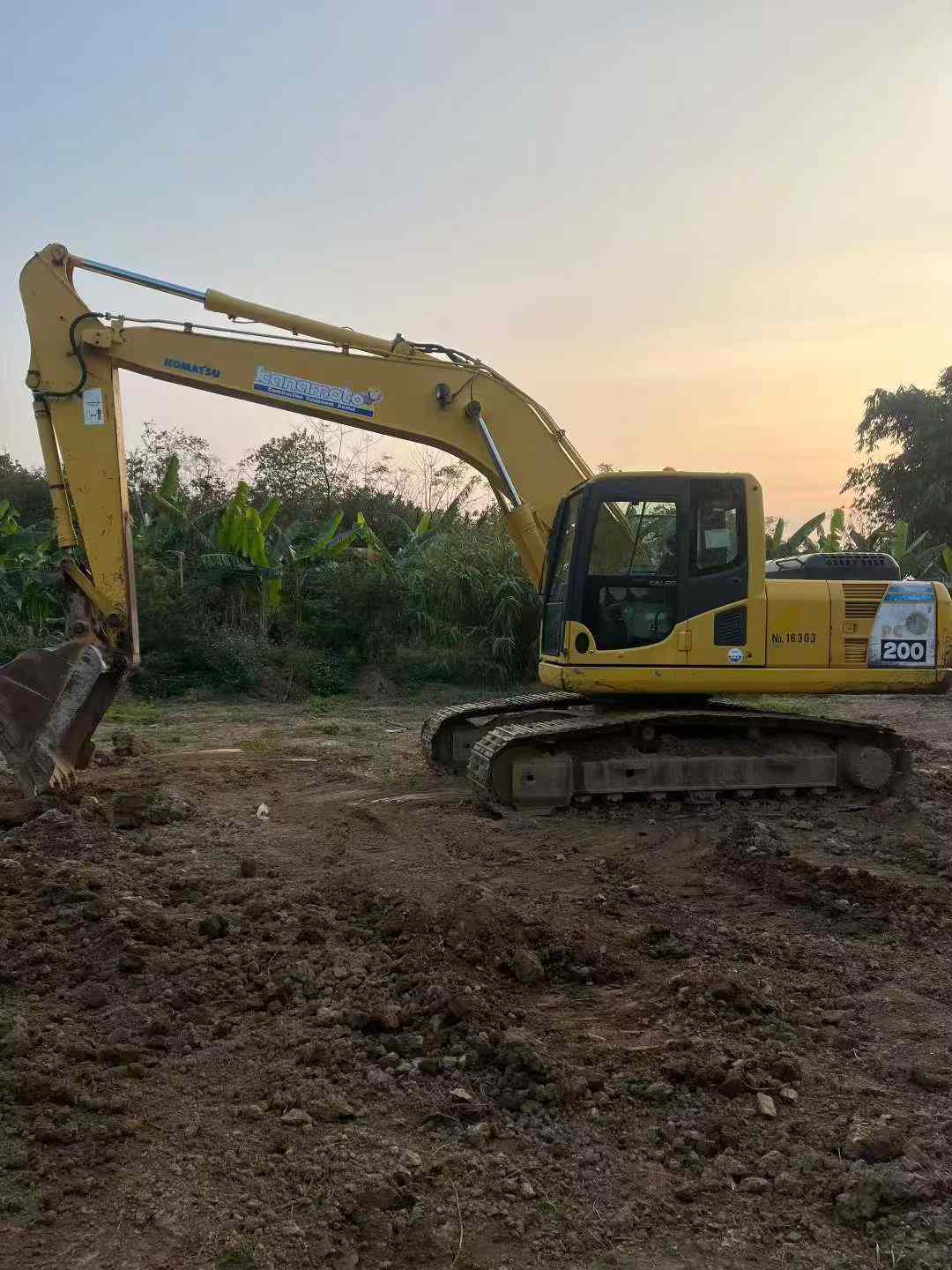

Proven in the field since 2016, this Komatsu PC200-8N1 excavator delivers the reliability that keeps projects moving forward. Operating at 20 tons with a robust 19,500 kg working weight, this Japanese-engineered machine combines proven Komatsu SAA6D107E-1-A power with exceptional digging performance. The 110 kW engine drives 149 kN bucket digging force and 108 kN rod digging force, tackling demanding excavation tasks with consistent efficiency.

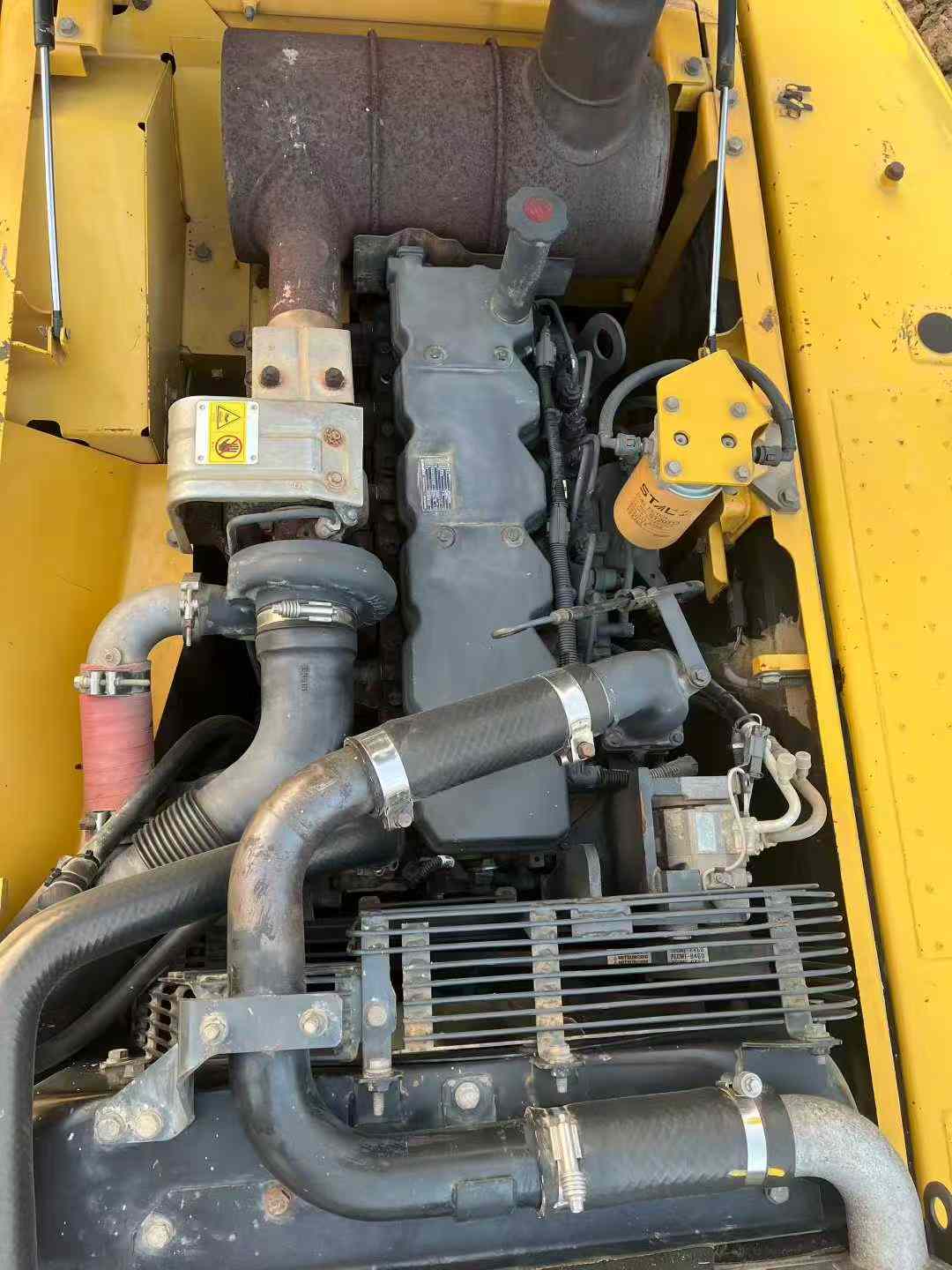

Built for endurance, this workhorse features a water-cooled 6-cylinder engine with 6.69L displacement, backed by a substantial 400L fuel tank for extended operation. With a maximum digging depth of 6,620 mm and reach of 9,875 mm, it handles diverse applications from foundation work to material handling. The 0.8 m³ backhoe bucket and 2,900 mm rod length provide versatile performance across job sites.
Key Specifications:
- Rated Power: 110 kW at 2,000 rpm
- Maximum Digging Depth: 6,620 mm
- Operating Weight: 19,500 kg
- Hydraulic System: 232L total capacity
- Location: Zhaoqing, Guangdong
| Specifications | Value |
|---|---|
| No. | 1027766 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1-A |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Working Hydraulic Circuit (Mpa) | 34.8 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Hydraulic System (L) | 232 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 1110 |
| Maximum excavation radius of stop surface (mm) | 9700 |
