Product Description

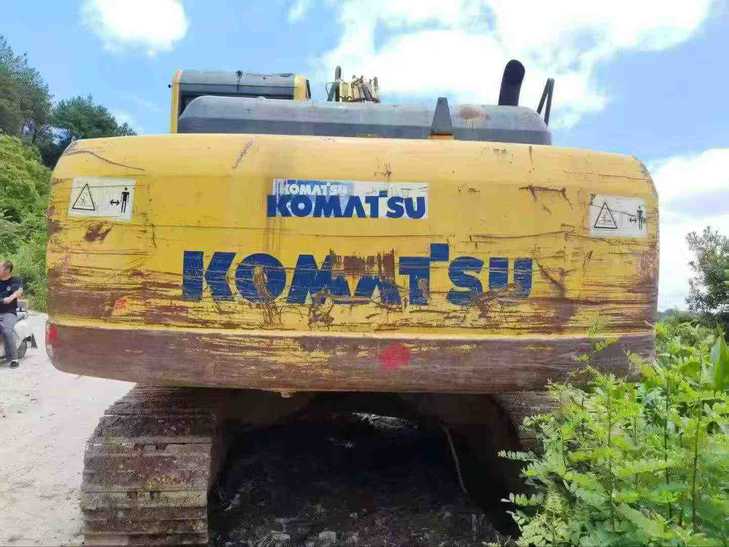

This 2020 Komatsu PC200-8N1 hydraulic excavator offers proven performance for mid-sized earthmoving operations. The PC200-8N1 series is known for its fuel efficiency and operator comfort, making it suitable for construction, demolition, and material handling applications. Currently located in Sichuan, China, this machine represents an opportunity to acquire reliable Komatsu engineering at a competitive price point.
- Year of Manufacture: 2020
- Model: PC200-8N1
- Operating Weight Class: ~20 tonnes
- Engine: Komatsu SAA6D107E-1 (turbocharged diesel)
- Hydraulic System: Closed-center load-sensing
- Location: Sichuan Province, China
The PC200-8N1 features Komatsu's KOMTRAX monitoring system and is designed for durability in demanding environments. Inspection and shipping arrangements can be coordinated. Contact us for current machine hours, maintenance records, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1075160 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19500 |
| Bucket capacity (m³) | 0.8 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1-A |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Fixed displacement axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Working Hydraulic Circuit (Mpa) | 34.8 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Hydraulic System (L) | 232 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3040 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 1110 |
| Maximum excavation radius of stop surface (mm) | 9700 |
