Product Description

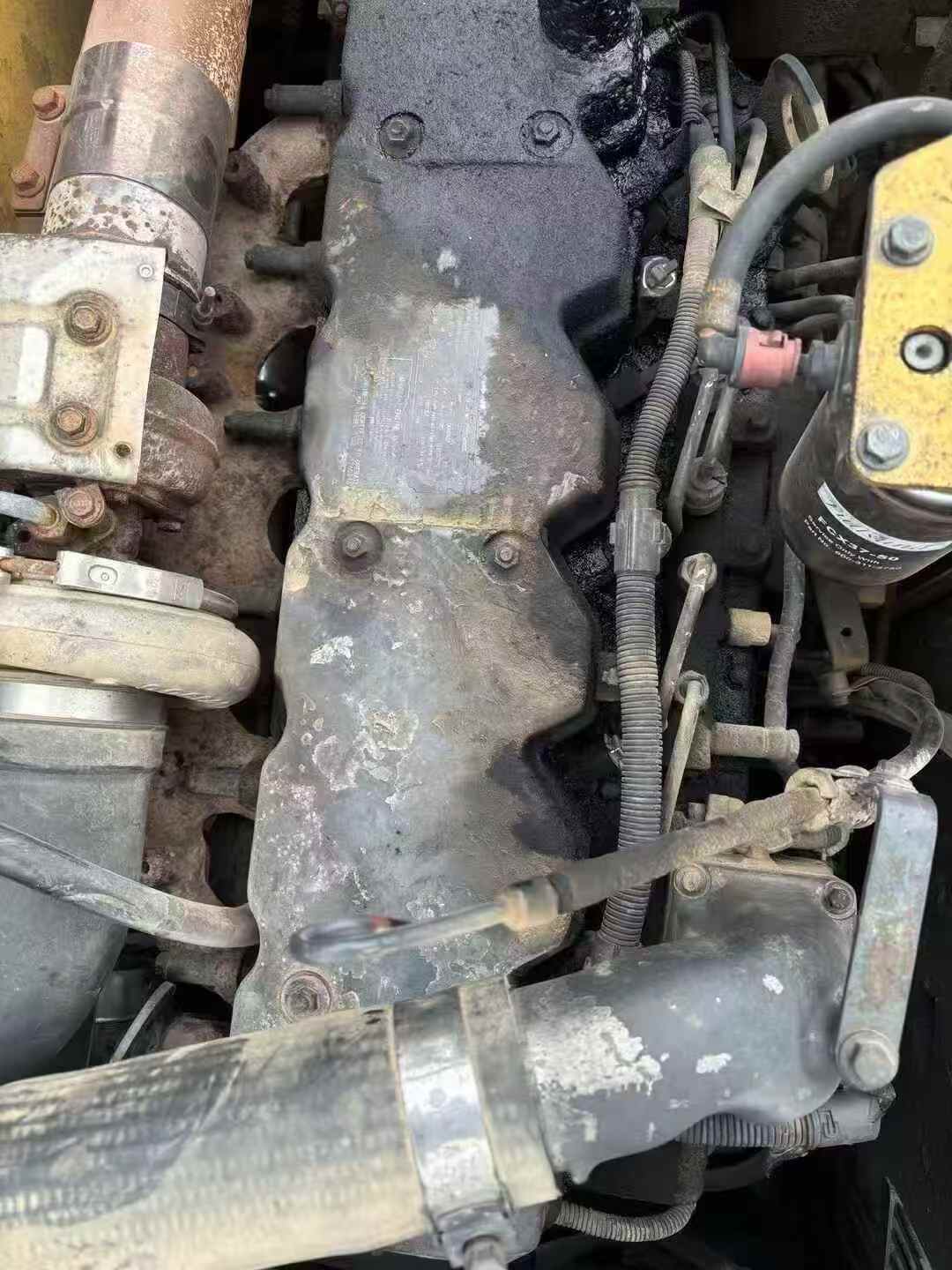

Engineered with Komatsu's renowned SAA6D107E-1 engine, this PC200LC-8 delivers 110 kW of rated power at 2000 rpm through a robust 6.69L displacement system. Hydraulic performance stands at the forefront with an impressive 148.96 kN bucket digging force and 127.4 kN rod digging force, ensuring consistent productivity across demanding excavation tasks. Built on a 20-ton platform with a 20,700 kg working weight, this machine combines stability with operational efficiency.
Technical specifications demonstrate superior reach capabilities:
- Maximum digging radius: 9,380 mm
- Maximum digging depth: 6,095 mm
- Maximum excavation height: 9,800 mm
- Maximum unloading height: 6,890 mm
Equipped with a 0.9 m³ backhoe bucket, this joint venture/import model features variable travel speeds (3.0-5.5 km/h) for adaptable site mobility. Transport dimensions of 9,495 mm length, 2,980 mm width, and 3,190 mm height facilitate efficient logistics. Currently located in Guizhou, this PC200LC-8 represents Komatsu's commitment to precision engineering and reliable hydraulic technology in the 20-ton excavator class.
| Specifications | Value |
|---|---|
| No. | 1007456 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Displacement (L) | 6.69 |
| Bucket digging force (kN) | 148.96 |
| Rod digging force (kN) | 127.4 |
| Travel speed (km/h) | High speed: 5.5 / Medium speed: 4.1 / Low speed: 3 |
| Total transport length (mm) | 9495 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3190 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 6095 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 5430 |
| Maximum excavation radius of stop surface (mm) | 9190 |
