Product Description

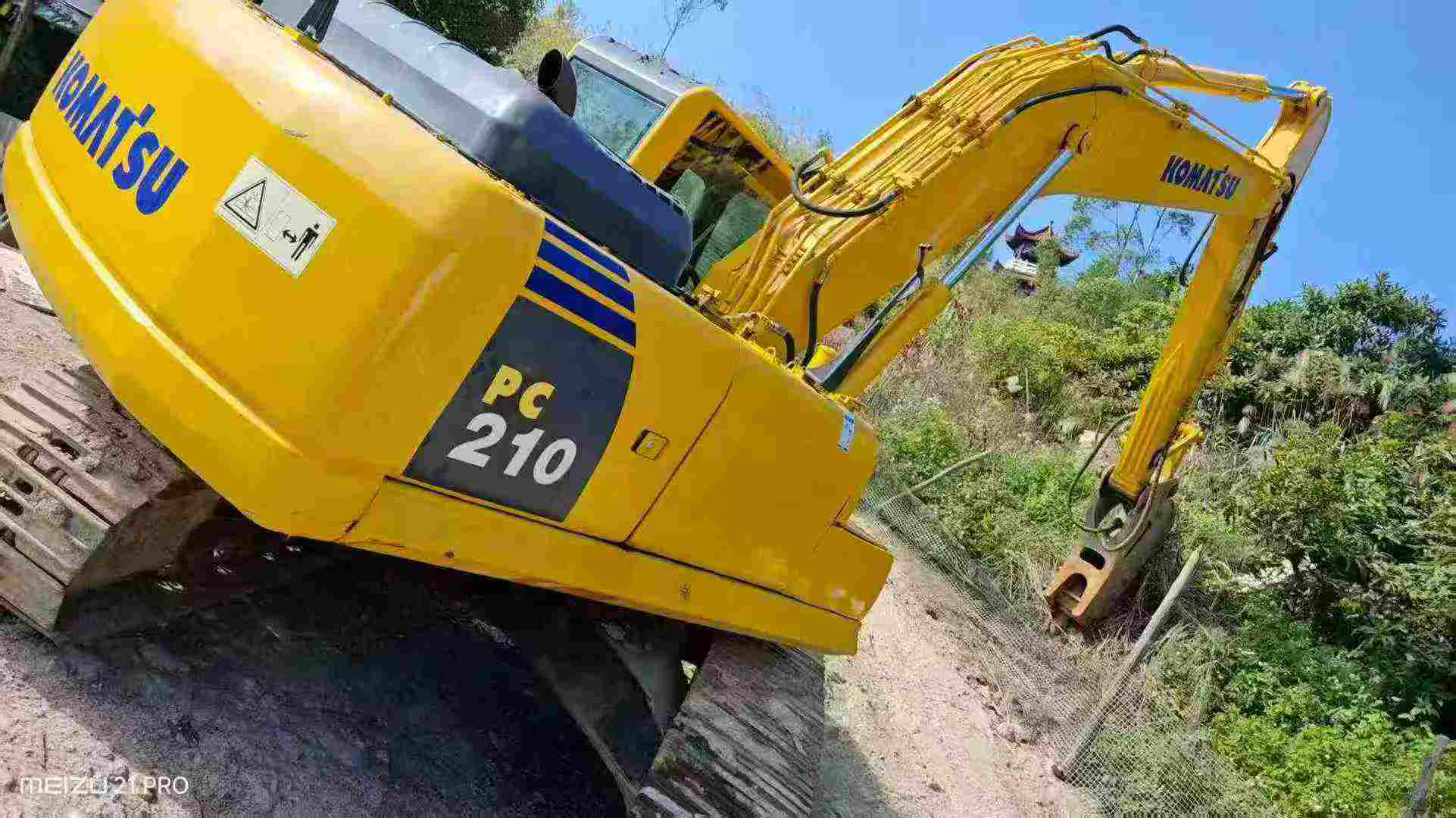

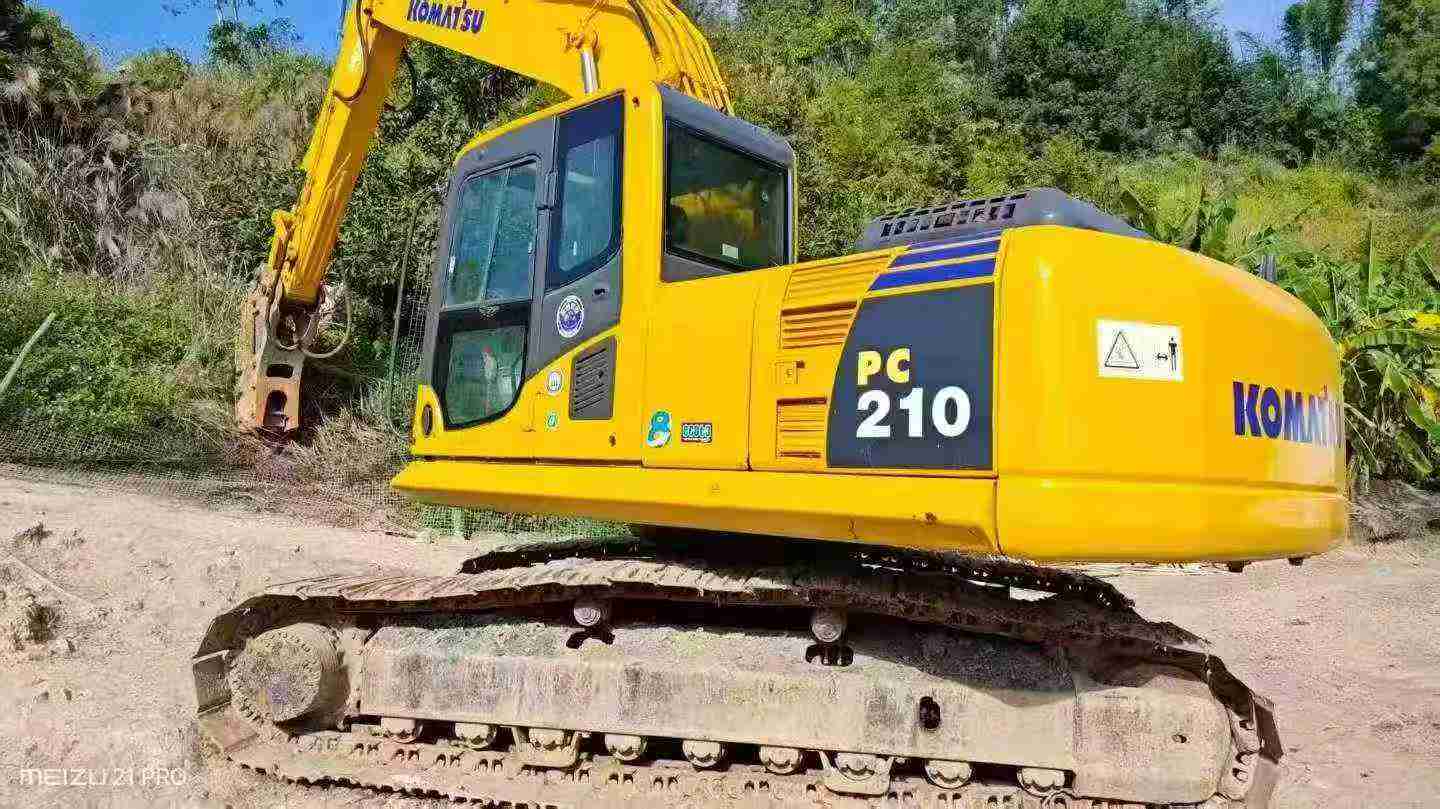

With a robust 21-ton working weight and a powerful Komatsu SAA4D107E-1 engine, this 2011 Komatsu PC210-8 excavator is primed for immediate deployment in your heavy-duty projects. Located in 四川泸州, it boasts a 0.9 m³ bucket capacity, ideal for efficient digging and grading tasks. Equipped with a 6-cylinder, direct injection, turbocharged, post-cooled engine, it meets 2006 EPA/Tier3 and EUIIIA standards, ensuring reliable performance and environmental compliance.
- Bucket digging force: 149 kN, enhancing excavation power
- Travel speed: 3.0/4.1/5.5 km/h, suitable for various site conditions
- Maximum digging depth: 6620 mm, perfect for deep excavation needs
- Water-cooled engine with a displacement of 6.69 L, providing consistent cooling and efficiency
- Total transport dimensions: 9425 x 3000 x 3040 mm, facilitating easy transportation to any job site
This machine is ready to tackle demanding tasks right out of the gate, making it an indispensable asset for your construction or demolition projects.
| Specifications | Value |
|---|---|
| No. | 1034680 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20630 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA4D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
