Product Description

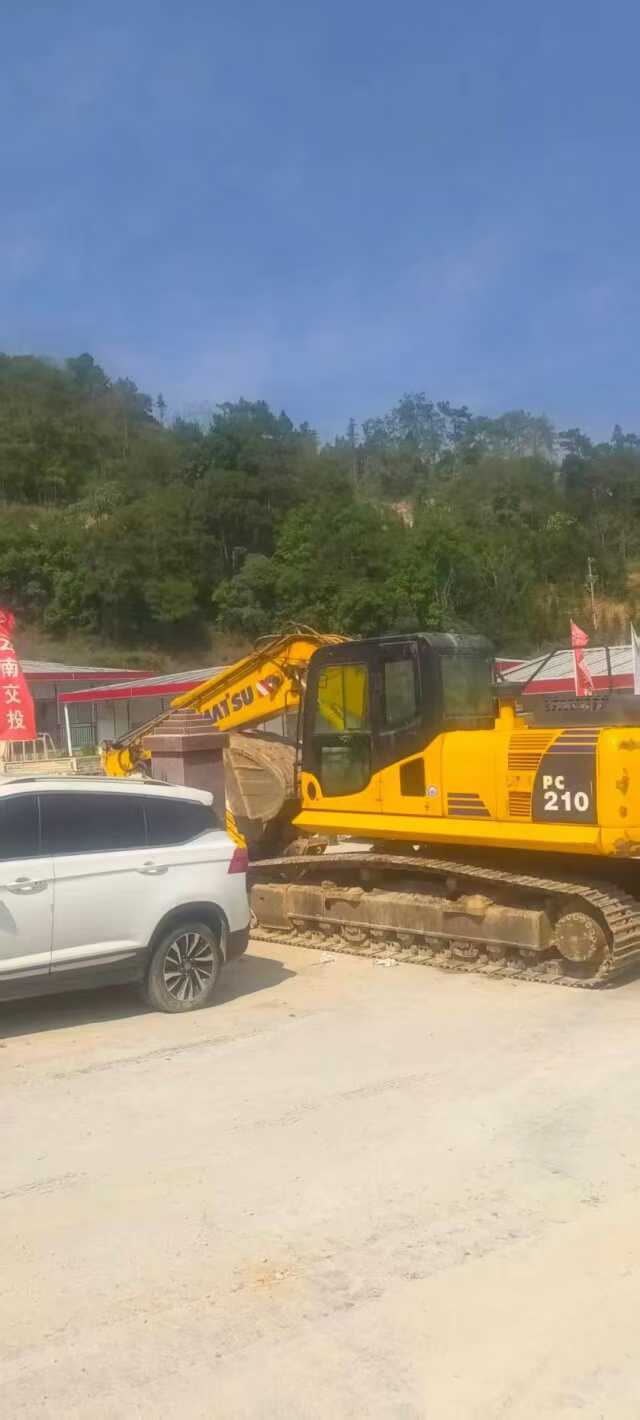

Built for serious ground work, this 2014 Komatsu PC210-8 is a 21-ton hydraulic excavator sourced directly from Yunnan, China — inspected, available, and ready to deploy on your next project. Powered by the proven Komatsu SAA4D107E-1 water-cooled, 6-cylinder turbocharged engine producing 110 kW at 2,000 RPM, this machine delivers consistent, reliable performance across digging, grading, trenching, and light demolition applications.
- Bucket Digging Force: 149 kN — aggressive digging performance in hard soil and compacted material
- Maximum Digging Depth: 6,620 mm — suited for deep trench and foundation work
- Maximum Digging Radius: 9,875 mm — extended reach for wide-area excavation
- Maximum Excavation Height: 10,000 mm — effective for loading trucks and high-reach clearing
- Bucket Capacity: 0.9 m³ with standard backhoe bucket
- Travel Speed: Up to 5.5 km/h — moves efficiently across active job sites
- Engine Standard: Meets EPA 2006/Tier 3 and EU IIIA emissions compliance
- Ground Pressure: 34.3 kPa with 800 mm track shoes — stable footing on soft ground
With a 400-liter fuel tank and a robust hydraulic system delivering 439 L/min maximum pump flow, this PC210-8 is configured for long operational cycles with minimal downtime. Contact Fair Trade Machinery today to request inspection reports and shipping terms.
| Specifications | Value |
|---|---|
| No. | 1056460 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20630 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

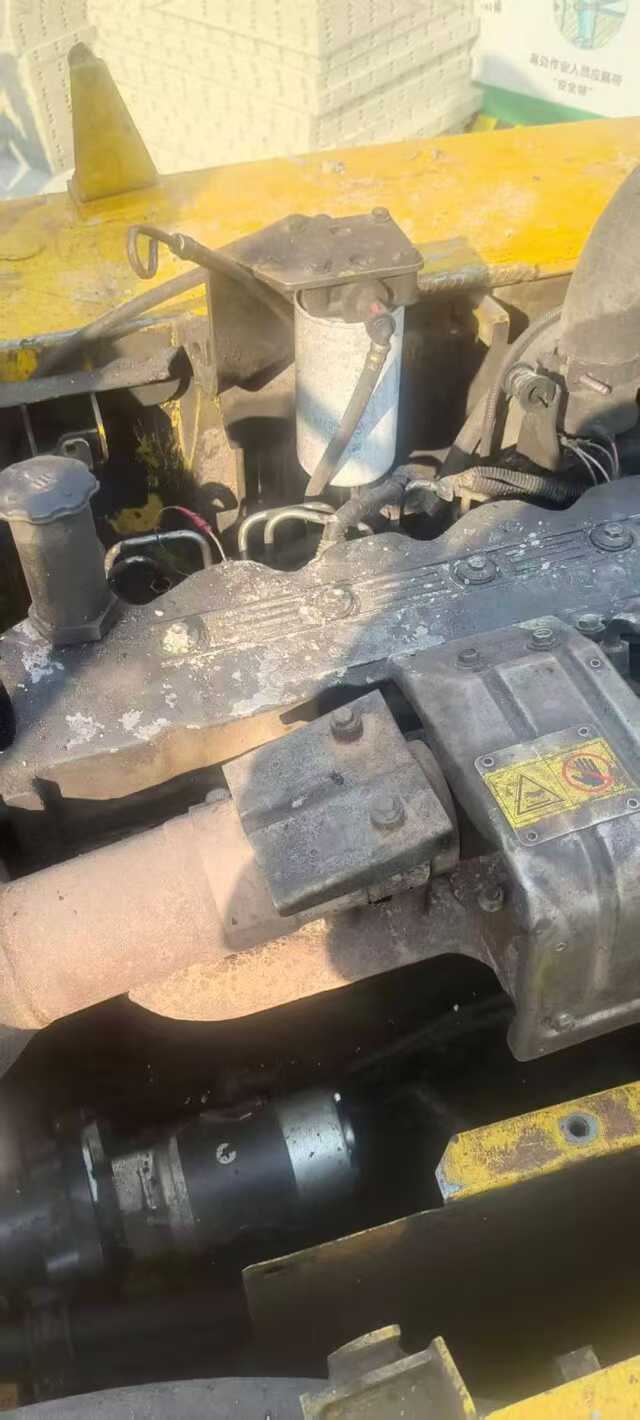

| Engine type | Komatsu SAA4D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |

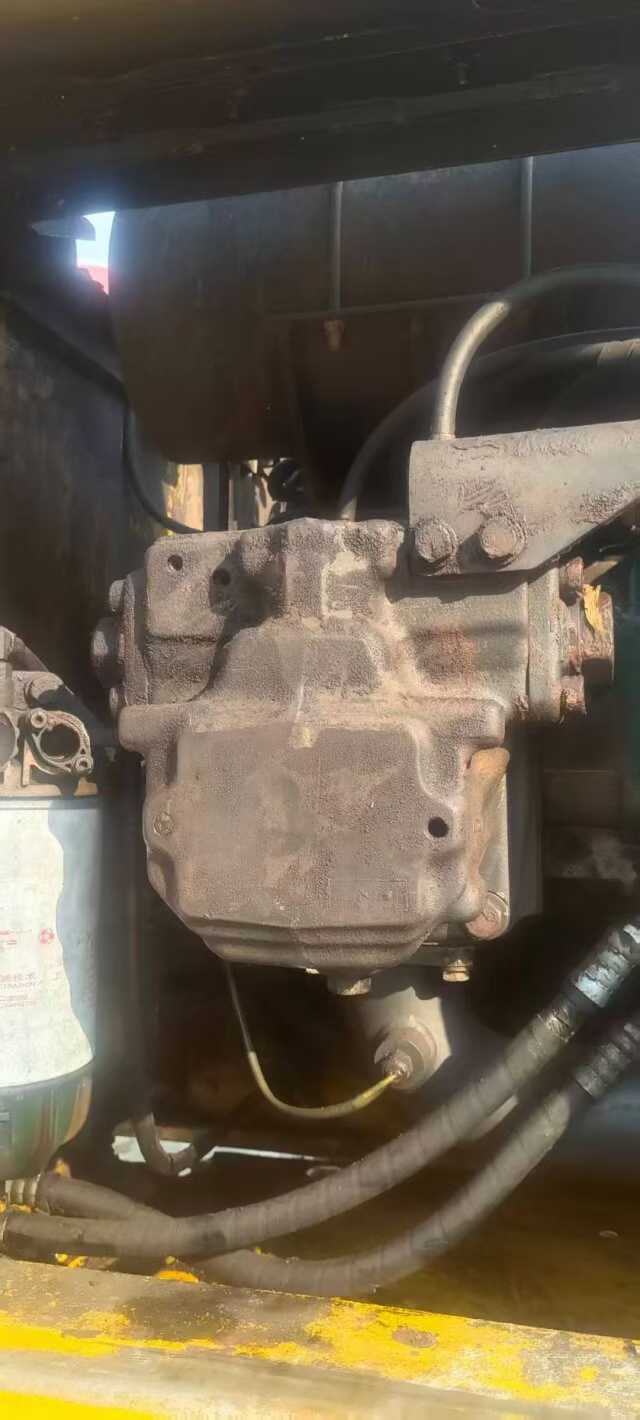

| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |

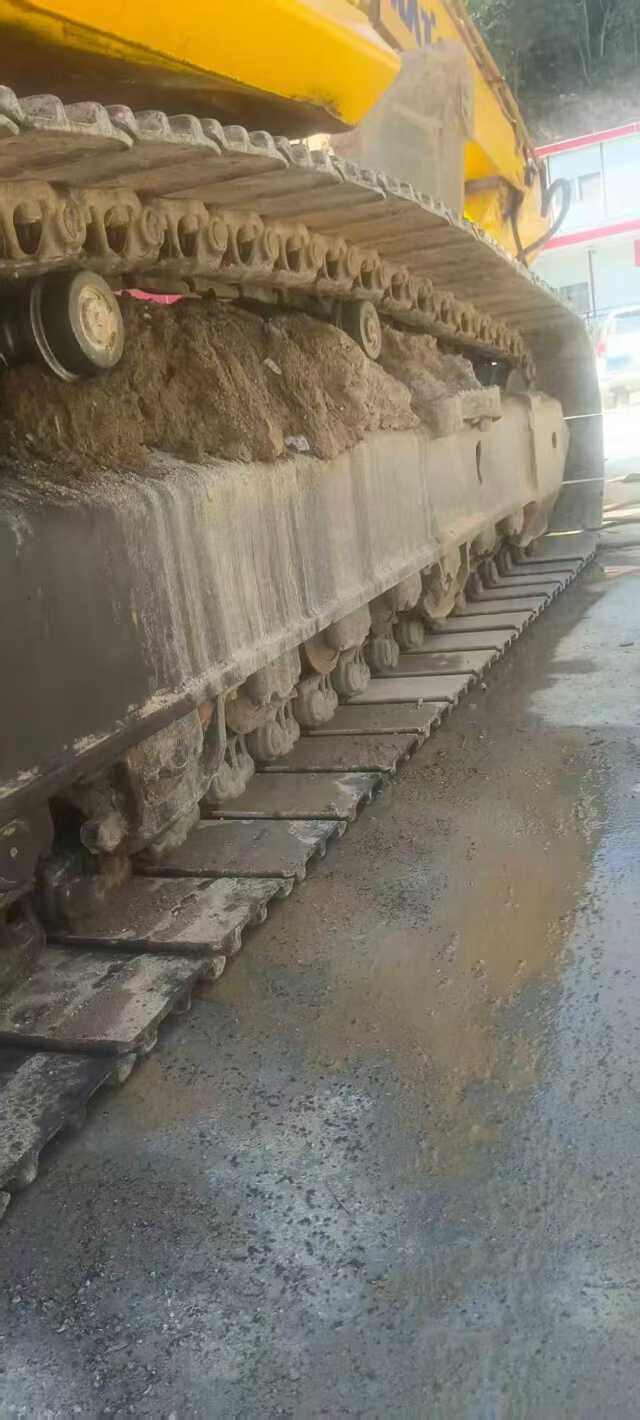

| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
