Product Description

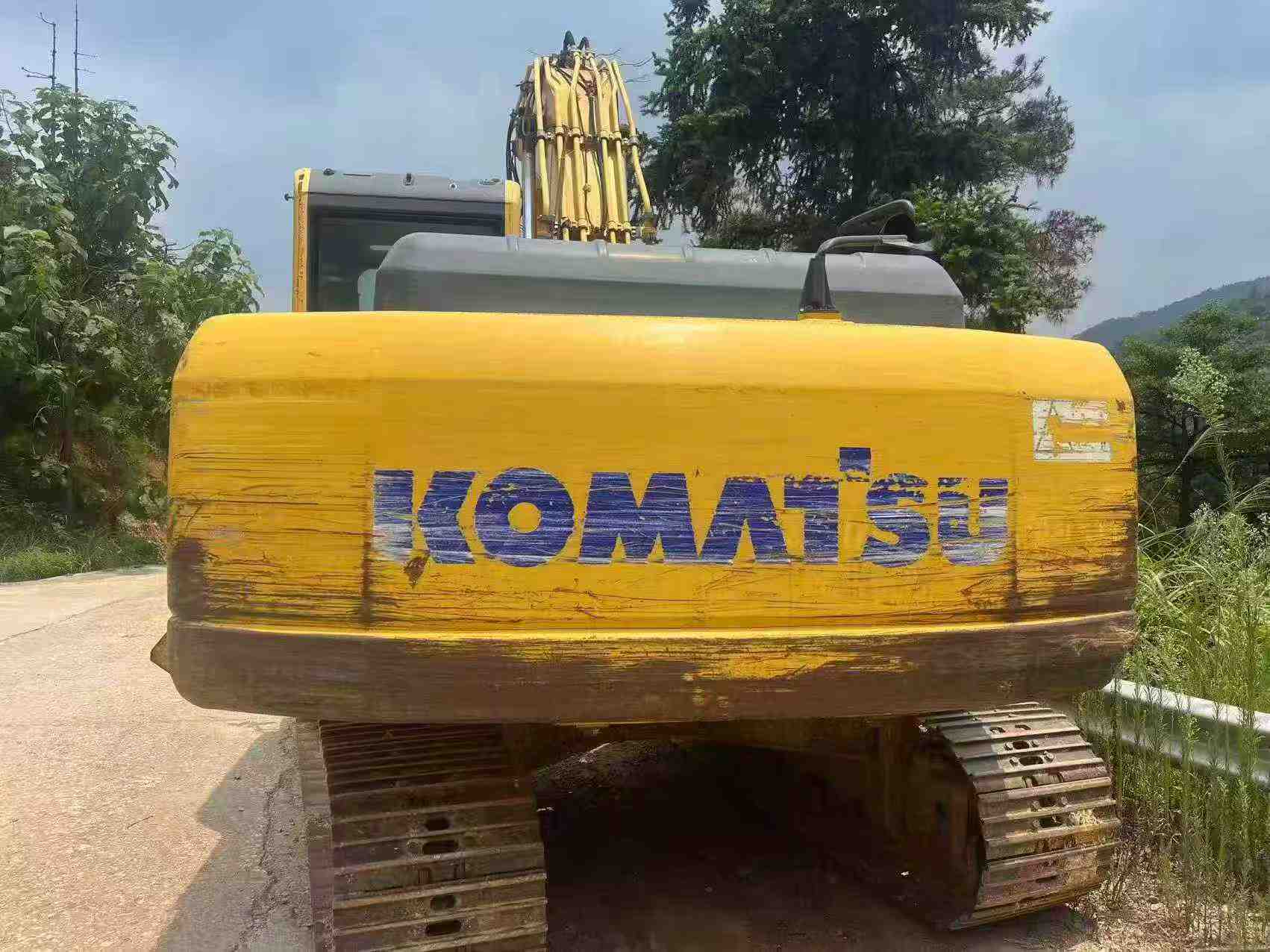

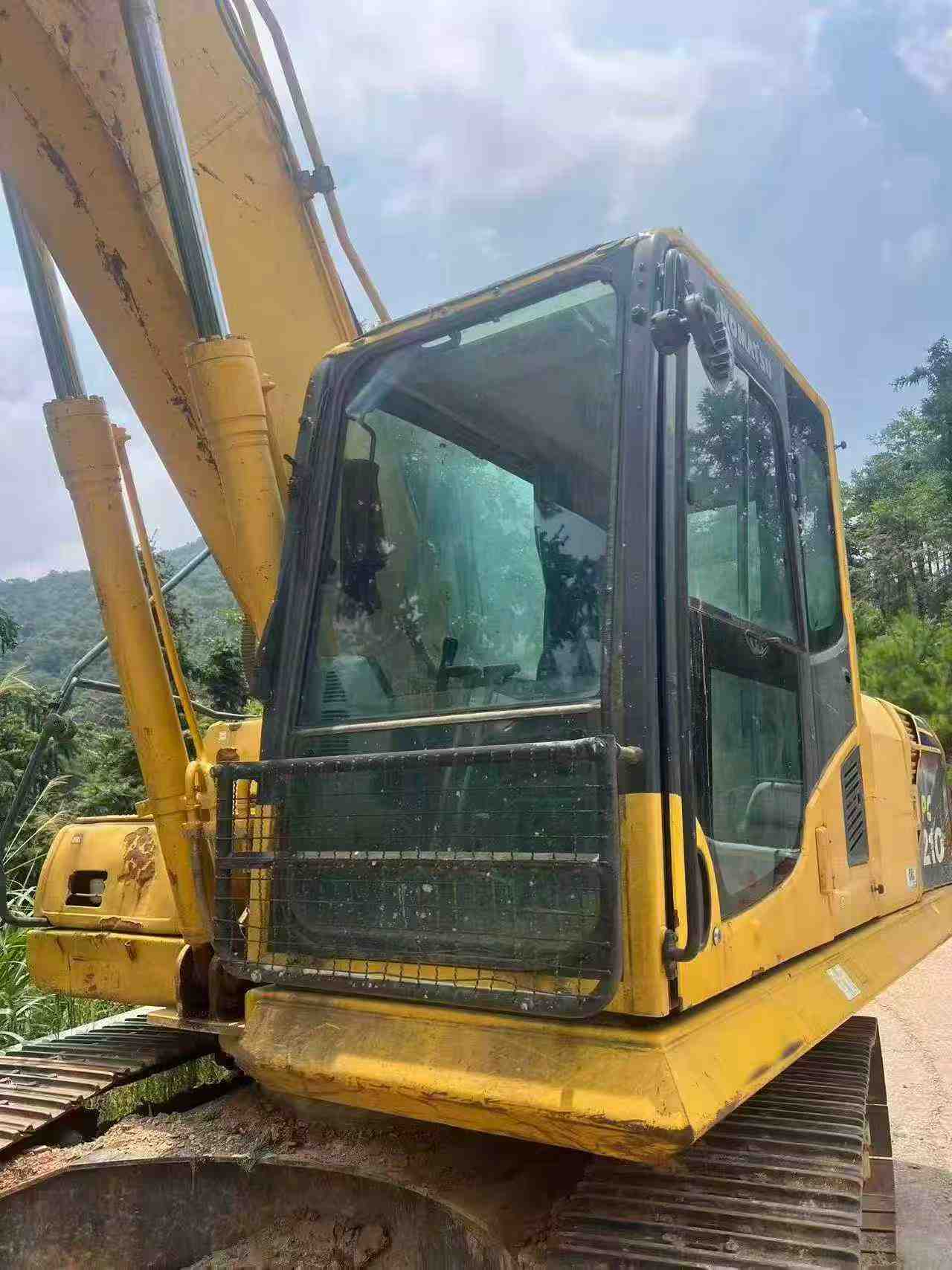

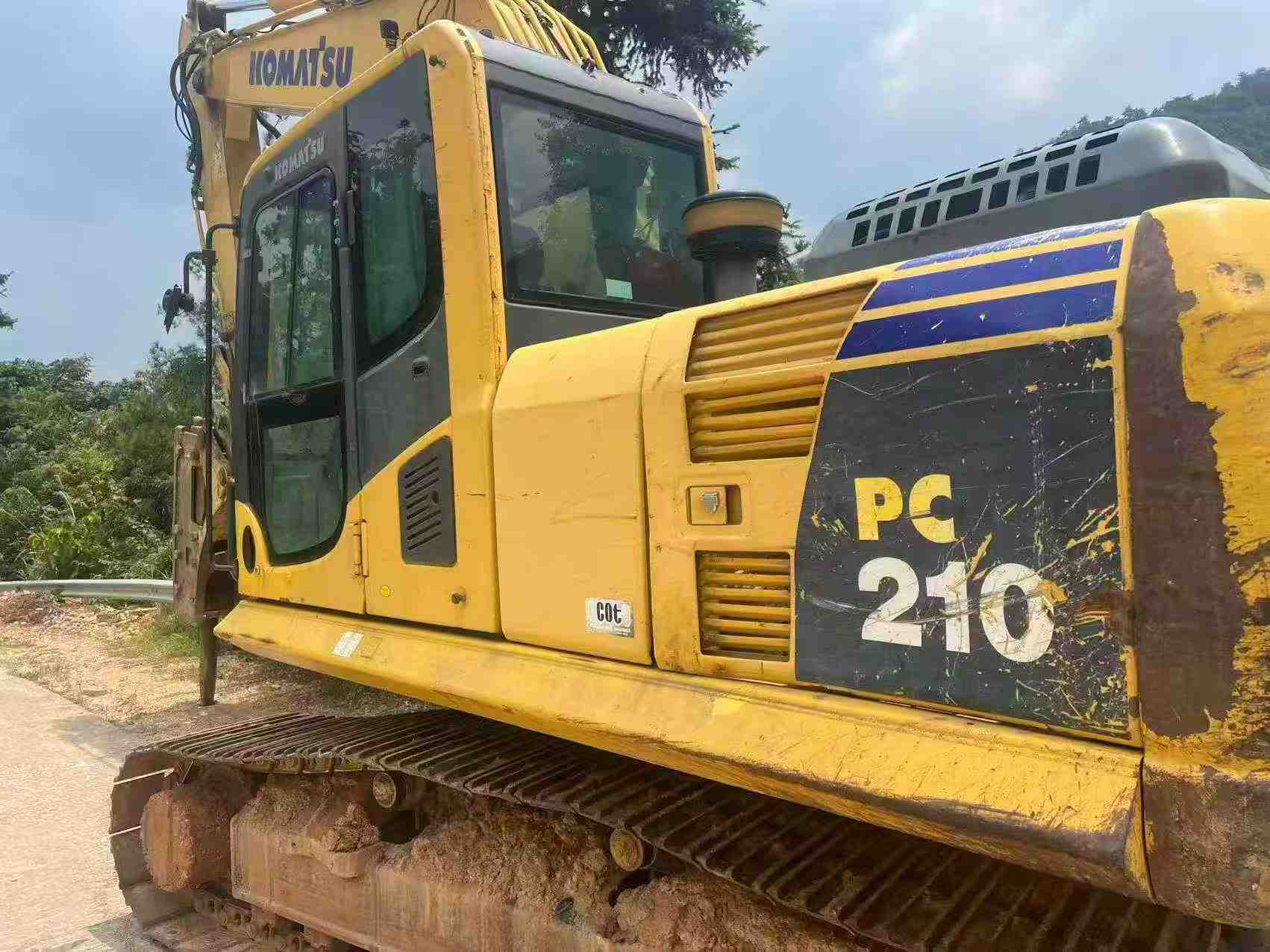

Discover the reliability and performance of the 2018 Komatsu PC210-8, available now in Zhejiang, China. This excavator, part of Komatsu's renowned lineup, is designed to meet the demanding needs of construction and excavation projects. With its robust build and efficient operation, the PC210-8 is a preferred choice for professionals seeking durability and productivity on the job site.
- Year: 2018
- Brand: Komatsu
- Model: PC210-8
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1134488 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20630 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

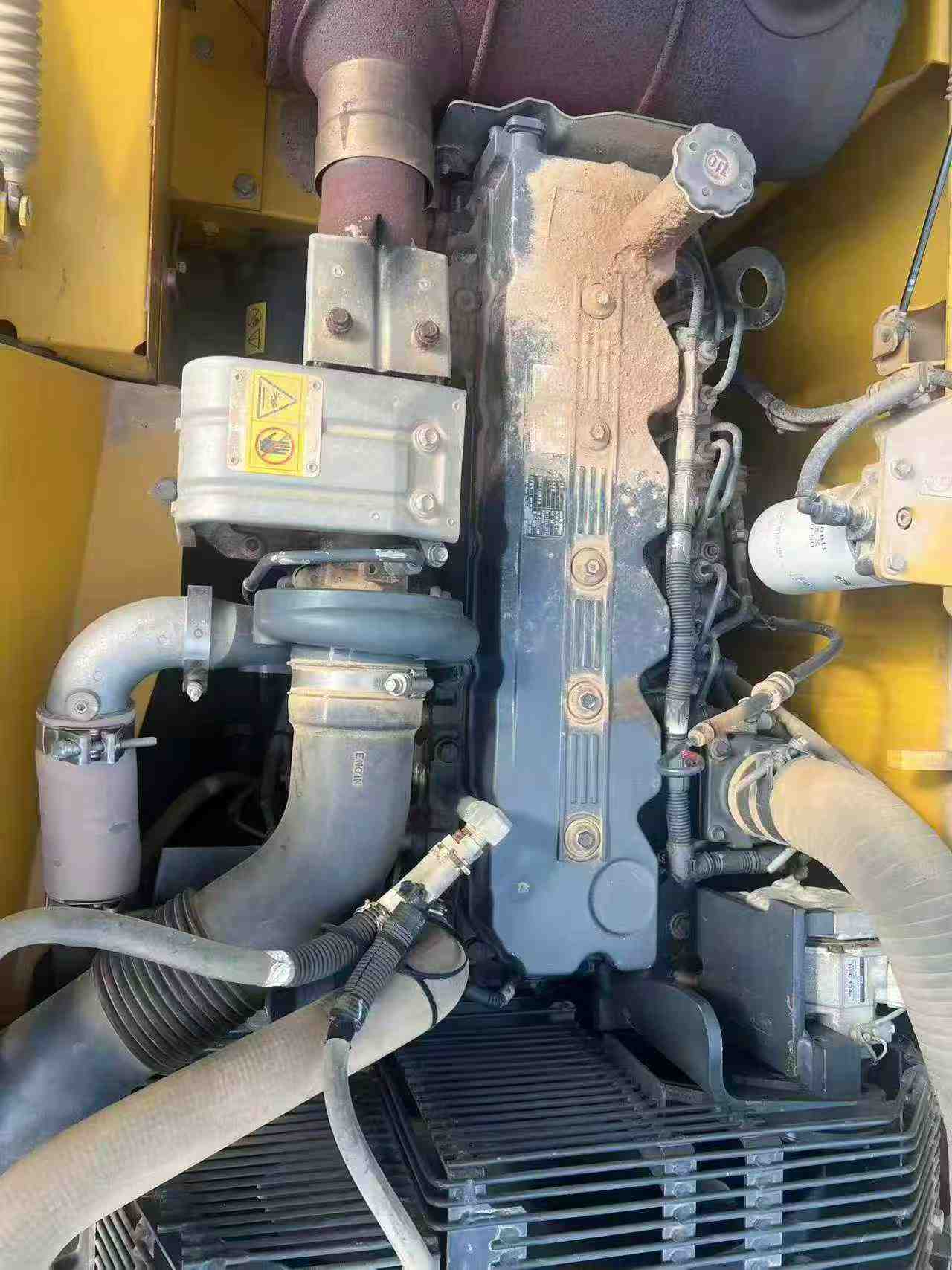

| Engine type | Komatsu SAA4D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 115 * 1120 * 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 135 * 1490 * 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 1334 * 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 3000 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3000 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Maximum effective digging depth (mm) | 6370 |
